AX92352

Status : Available

2-CH Encoder Card with Real-Time Trigger I/O

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AX92352
AX92352
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Synchronizes devices via real-time I/O
  • Applied to area scan and line scan applications
  • Integrates multiple I/O
    2-CH 32-bit incremental quadrature encoder input
    4-CH trigger input
    4-CH trigger output
    8-CH isolated DI, 8-CH isolated DO
  • Programmable interrupt functions
  • PCI Express x1 compliant

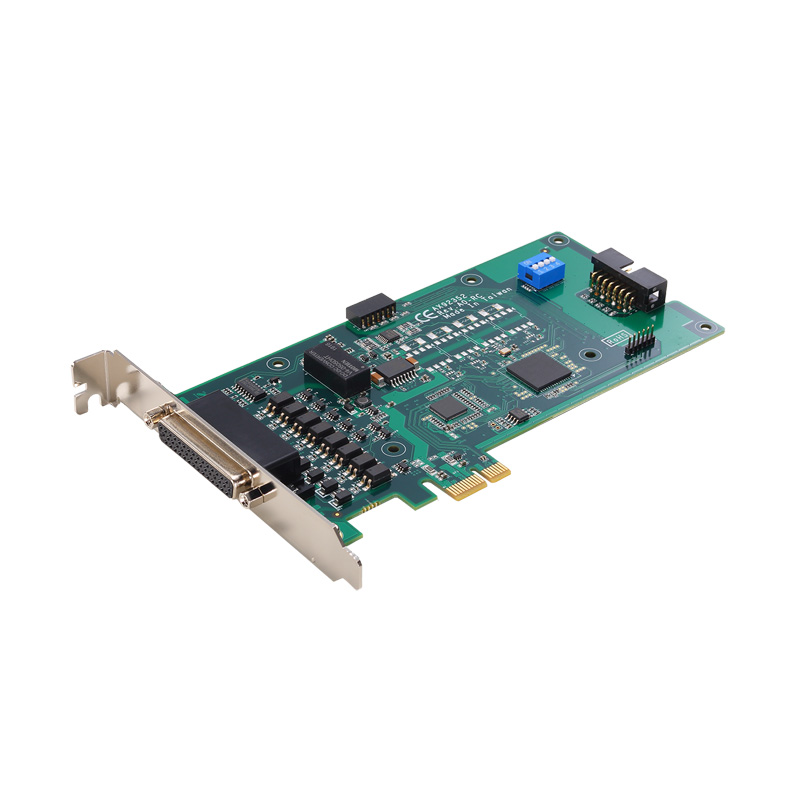

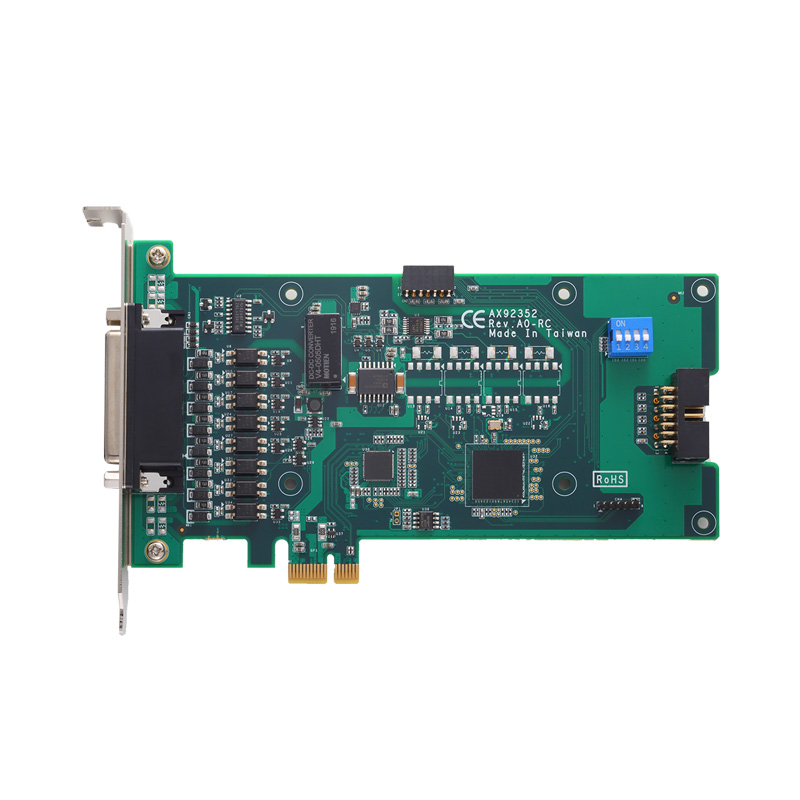

The AX92352 is a PCI Express x1 vision card with encoder inputs and real-time controls. It features 2-CH 32-bit incremental quadrature encoder input with FIFO (first in first out) buffers. It also integrates 4-CH isolated trigger input and 4-CH isolated trigger output with microsecond-scale control and 8-CH isolated DI and DO for sensor and actuator control. With the support of encoder input and real-time I/O control, the AX92352 is able to synchronize multiple cameras in area scan applications. It also can record the encoder positions and trigger the cameras for inline production inspections.

Specifications


Bus Type
  • PCI Express x1
Connector
  • 2-CH 32-bit incremental quadrature encoder input
  • 4-CH trigger input
  • 4-CH trigger output
  • 8-CH isolated DI, 8-CH isolated DO
Power Connector
  • N/A
Power Requirements
  • 180mA @ +3.3V (Max.)
  • 120mA @ +12V (Max.)
Operating Temperature
  • 0°C to +70°C (32°F to +158°F)
Relative Humidity
  • 10 to 95% RH, non-condensing
Dimensions
  • 168 x 100 mm
Certifications
  • CE
Software
  • C#, C/C++
OS
  • Windows® 7/Windows® 10 (32/64bit)

Ordering Information

  • AX92352 (P/N-E392352102)
    AX92352 Vision I/O card with encoder
  • AX92353 (P/N-E392353100)
    4-CH lighting control module (this optional module cannot be operated independently, please apply with AX92352)
  • 5A244AP1200E
    44-pin DIN-rail terminal board DM44-AP12
  • 594DM443500E
    44-pin D-SUB cable, L=1m WHDM44/1.0-6954
  • 594DM443510E
    44-pin D-SUB cable, L=2m WHDM44/2.0-6954
  • 594DM443520E
    44-pin D-SUB cable, L=3m WHDM44/3.0-6954

Download

Drivers

Date Description Version Download File
2020/06/09 Driver and SDK VA1.2

Software

Manual

Date Description Version Download File
2020/06/09 User Manual VA1

Design Guide

Technical Announcement

Certificates
