PICO318

Status : Available

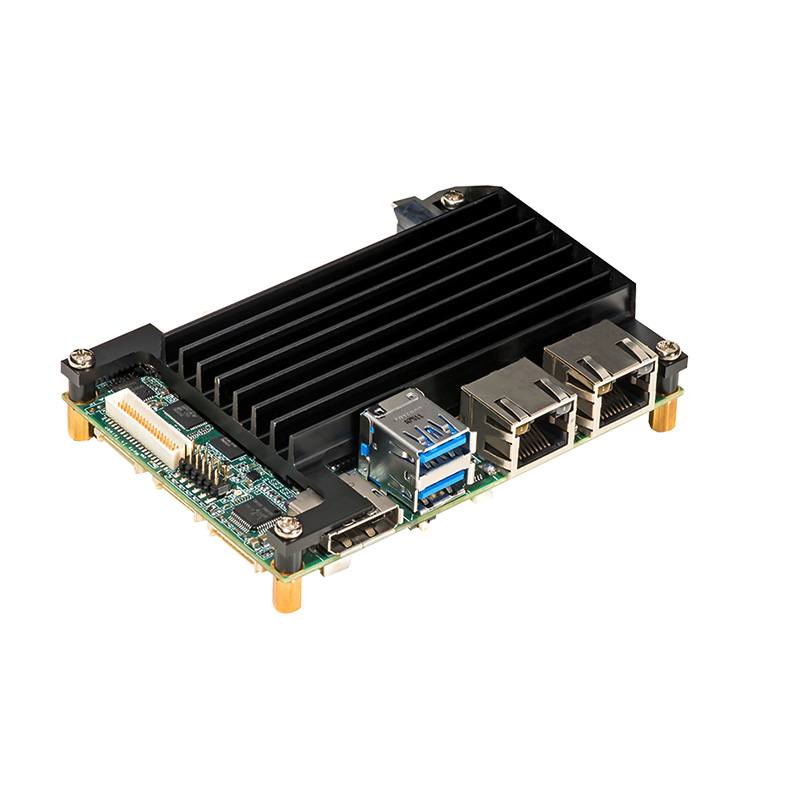

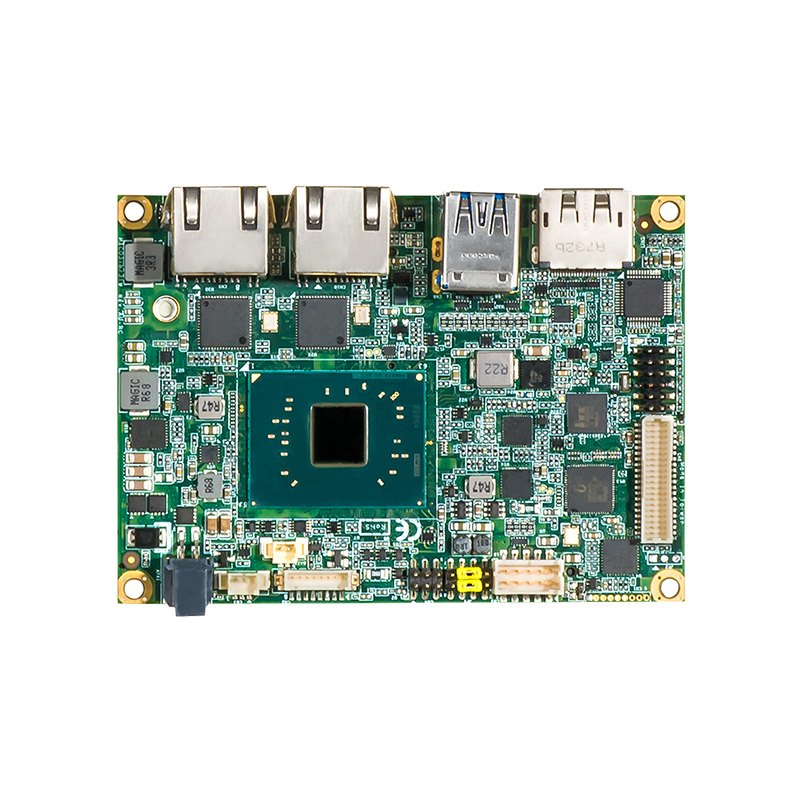

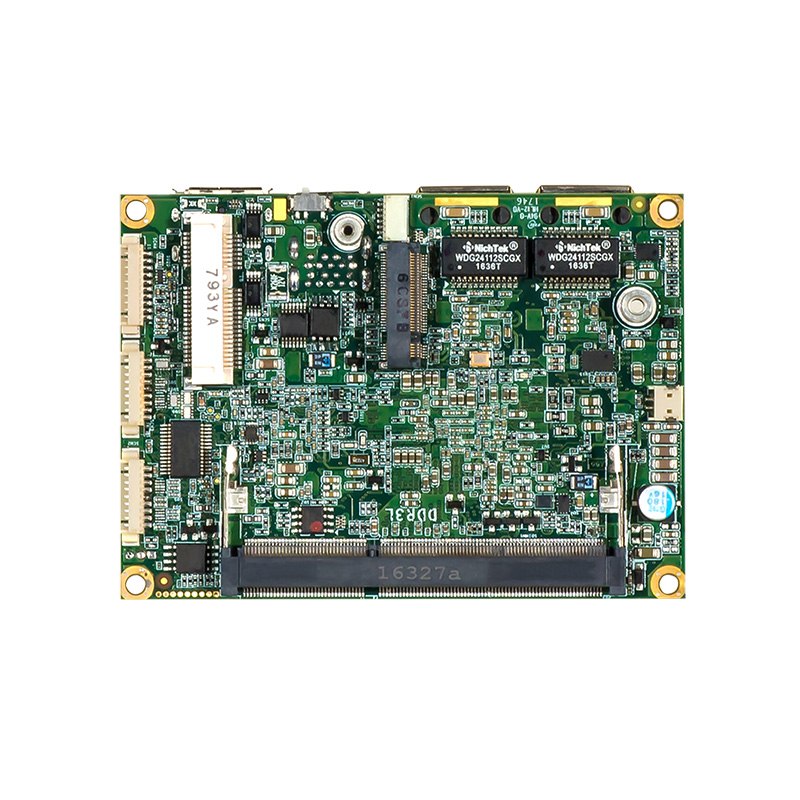

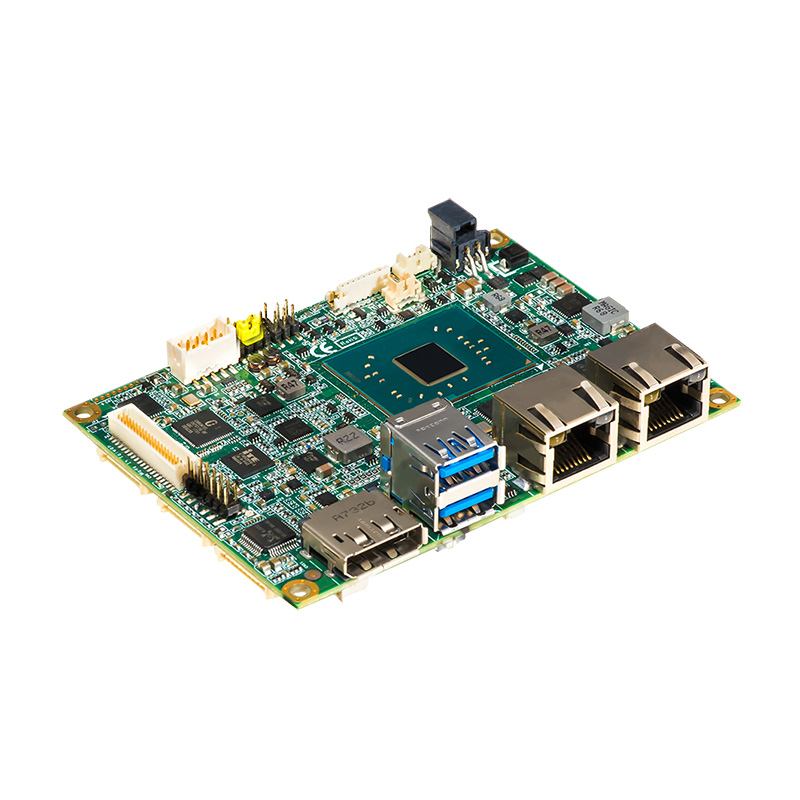

Pico-ITX SBC with Intel® Pentium® Processor N4200/Celeron® Processor N3350 and J3455, DisplayPort++, LVDS, 2 GbE LAN, and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
PICO318
PICO318
PICO318
PICO318
PICO318
Fanless

Fanless

UL508

UL508

UL1604

UL1604

TripleView

TripleView

Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Pentium® processor N4200/Celeron® processor N3350 and J3455
  • 1 DDR3L SO-DIMM for up to 8GB of memory
  • 1 PCI Express Mini Card slot with mSATA supported
  • 2 GbE LAN
  • M.2 Key B

The PICO318 is powered by the Intel® Pentium® processor N4200 or Celeron® processor N3350/J3455. The PICO318 is a low power-consumption 2.5-inch embedded board that is expandable, rugged design, feature-rich and versatile to help facilitate quick deployment. The PICO318 is equipped with one 204-pin DDR3L-1867 SO-DIMM for up to 8GB system memory. A dual-display capability is available through 18/24-bit single/dual channel LVDS and DisplayPort. For storage, there are one M.2 key B slot for SATA or PCIe x2 SSD card and one half-size PCI Express Mini Card slot with support for mSATA. Moreover, the pico-ITX form factor single board computer features 12V DC power supply input with AT Auto Power On function. The Intel® Apollo Lake-based pico-ITX board provides rich I/O connectivity including two USB 3.0 ports, two USB 2.0 ports, one RS-232/422/485 port, one RS-232 port, two Gigabit LAN ports with Intel® i211AT Ethernet controller, one HD Codec audio, and 4-channel digital I/O. The PICO318 is suitable for various industrial environments with an operating temperature range of -20°C to +60°C.

Specifications

CPU
  • Intel® Pentium® processor N4200 & Celeron® processor N3350 and J3455 onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x DisplayPort++
  • 1 x LVDS
Digital I/O
  • 4-channel in/out programmable
Audio
  • Mic-in/Line-in/Line-out
Storage
  • 1 x M.2 KEY B (SATA, USB 2.0, PCIe x2 optional) in 22 x 42 or 30 x 42
Expansion
  • 1 x Half-size PCI Express Mini Card slot with mSATA supported
Others
  • 1 x I2C
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Pentium® N4200 @ 1.1 GHz, min. RMS: +12V @1.3A
  • Celeron® N3350 @ 1.1 GHz, min. RMS: +12V @1.1A
  • Celeron® J3455 @1.5 GHz, min. RMS: +12V @1.8A
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +60°C (-4°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • APC203 (P/N-E27P203100): Embedded chassis with PICO318PGGA-N3350 (P/N-E38H318102), 8GB RAM, 64GB M.2 Key B card and 12V/60W adapter
  • I/O: 2 x GbE LAN, 2 x USB 3.0, 1 x DisplayPort++, 1 x 12V DC Jack
  • Dimensions (with wall mount ear): 152.5 mm (6") (W) x 107.5 mm (4.23”) (D) x 37.5mm (1.48") (H)
  • Operating Temperature: -10°C to +50°C (+14°F to +122°F)

Ordering Information

  • PICO318PGGA-N4200 (P/N-E38H318101)
    Pico-ITX SBC with Intel® Pentium® processor N4200 (1.1 - 2.5 GHz, 2MB cache, 6W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, and 2 USB 3.0 (without heatsink)
  • PICO318PGGA-N3350 (P/N-E38H318100)
    Pico-ITX SBC with Intel® Celeron® processor N3350 (1.1 - 2.4 GHz, 2MB cache, 6W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, and 2 USB 3.0 (without heatsink)
  • PICO318PGGA-J3455 (P/N-E38H318105)
    Pico-ITX SBC with Intel® Celeron® processor J3455 (1.5 - 2.3 GHz, 2MB cache, 10W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0 and 2 USB 3.0 (without heatsink)
  • PICO318PGGA-N3350 60°C (P/N-E38H318102)
    Pico-ITX SBC with Intel® Celeron® processor N3350 (1.1 - 2.4 GHz, 2MB cache, 6W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and heatsink
  • PICO318PGGA-N4200 60°C (P/N-E38H318103)
    Pico-ITX SBC with Intel® Pentium® processor N4200 (1.1 - 2.5 GHz, 2MB cache, 6W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and heatsink
  • PICO318PGGA-J3455 60°C (P/N-E38H318106)
    Pico-ITX SBC with Intel® Celeron® processor J3455 (1.5 - 2.3 GHz, 2MB cache, 10W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and heatsink
  • 7128H316000E
    Heatspreader
  • 594H3180400E
    DC power cable for adapter, L=180 mm
  • 50966124050E
    Adapter 12V 60W FSP060-DHAN3 with screw
  • 59312260020E
    Audio cable with bracket, P=1.25 mm, L=450 mm
  • 59380880250E
    COM port cable DB9-9 x 1-pin, P=1.25 mm, L=250 mm
  • 594E8422800E
    2 x USB 2.0 cable with bracket, L=180 mm
  • 594H3186800E
    Buzzer cable 9 x 5.5 mm 2-pin, L=40mm
  • E393A19100
    AX93A19 SIM card slot board
  • APC203 (P/N-E27P203100)
    Embedded chassis with PICO318PGGA-N3350 (P/N-E38H318102), 8GB RAM, 64GB M.2 Key B card and 12V/60W adapter

Download

Drivers

Date Description Version Download File
2023/05/17 SerialPatch VA1.1
2023/05/17 LAN Driver VA1.1
2023/05/17 Audio Driver VA1.1
2023/05/17 Graphic Driver VA1.1
2023/05/17 Chipset Driver VA1.1
2023/05/17 TXE Driver VA1.1

Software

Manual

Date Description Version Download File
2023/06/19 User Manual VA6
2018/12/07 Quick Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/03 UKCA Declaration of Conformity
2021/04/15 CE-Conformity Declaration
