PICO840

Status : Available

Pico-ITX SBC with Intel® Atom® Processor E3845/E3827, LVDS/ VGA (HDMI), LAN and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

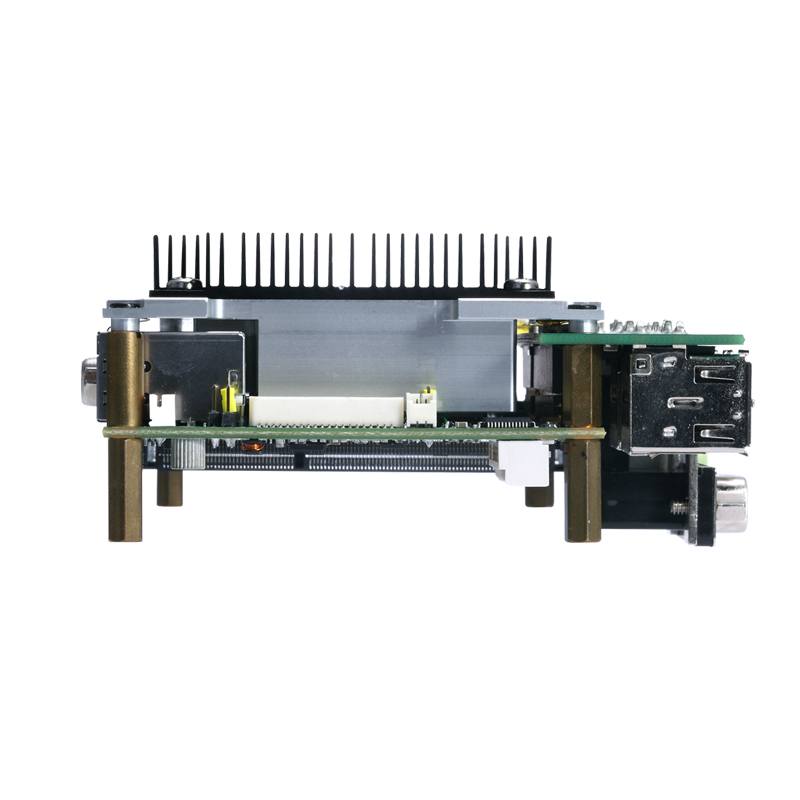

PICO840
PICO840
PICO840
PICO840
PICO840
PICO840
PICO840
PICO840
Fanless

Fanless

PoE

PoE

UL508

UL508

UL1604

UL1604

CFast

CFast

TripleView

TripleView

Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Atom® processor E3845/E3827 (Bay Trail SoC)
  • 1 DDR3L-1066/1333 SO-DIMM, up to 8GB
  • 4 USB 2.0 ports
  • 2 COM ports (RS-232/422/485 selectable)
  • PCI Express Mini Card slot with mSATA supported

The PICO840 ultra-small Pico-ITX embedded SBC supports the quad-core Intel® Atom® processor (code name: Bay Trail-I) and supporting DDR3L-1066/1333 MHz system memory up to 8 GB. Considering different environments, this industrial-grade Pico-ITX mainboard is built to withstand extreme temperature, ranging from -40°C to +70°C (-40°F to +158°F). Moreover, with superior integration and power efficiency, this compact size single board computer enables system developers and OEMs to create smaller, lighter, quieter devices than ever and embrace the new possibilities across POS systems, mobile medical monitor, compact panel PCs as well as multiple embedded computer, system and appliance segments.

Specifications

CPU
  • Intel® Atom® processor E3845 1.91GHz quad core, E3827 1.75GHz dual core onboard (Bay Trail)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i210IT)
Display
  • 1 x VGA or 1 x HDMI
  • 1 x LVDS
Digital I/O
  • N/A
Audio
  • MIC-in/Line-out
Storage
  • 1 x SATA-300
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
Others
  • SMbus
  • ST ST33TPM12LPC with TPM 1.2 compliant
Battery
  • Lithium 3 V/220 mAH
Power Input
  • DC power jack connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Atom® E3845 @ 1.91 GHz, 8 GB DDR3L
    Max. RMS: +12V @ 1.33A
  • Intel® Atom® E3827 @ 1.75 GHz, 8 GB DDR3L
    Max. RMS: +12V @ 1.2A
Watchdog Timer
  • 255 levels, 1~255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C ~ +70°C (-40°F ~ 158°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

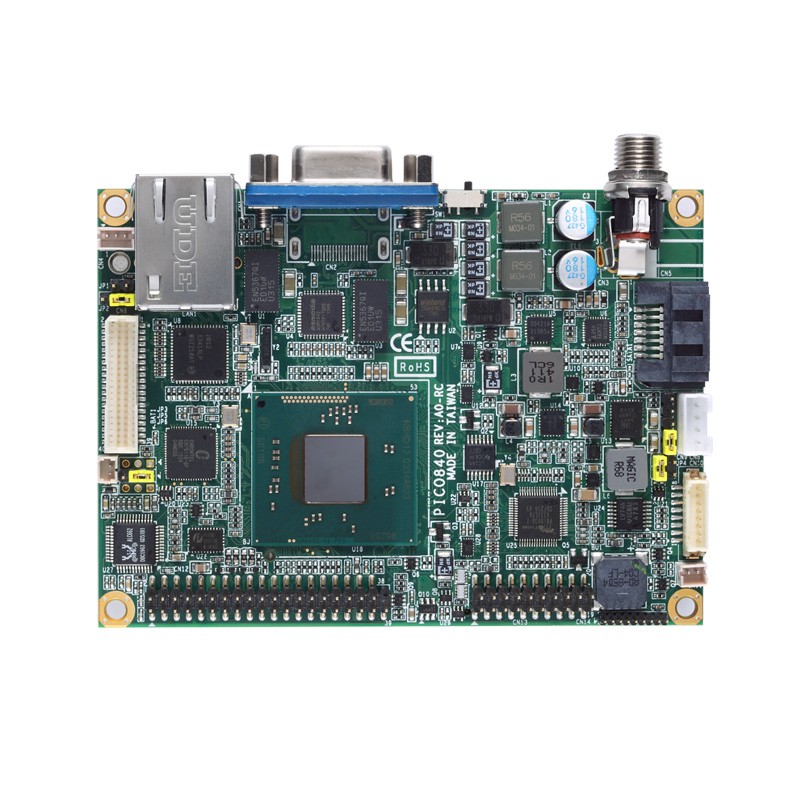

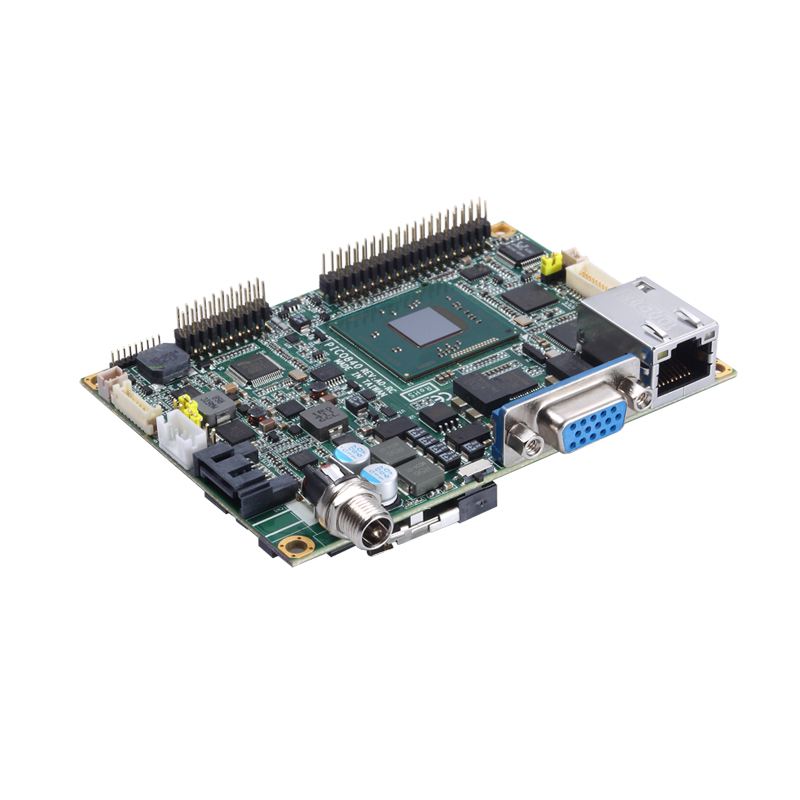

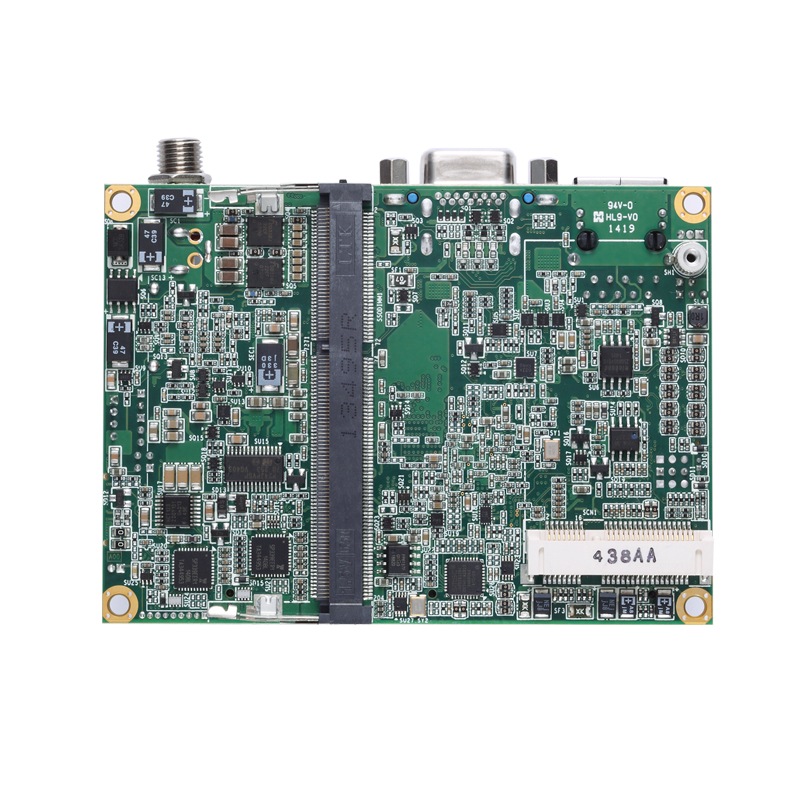

  • PICO840VGA-E3845 (P/N-E38H840100)
    Pico-ITX SBC with Intel® Atom® processor E3845 (1.91 GHz, 2MB Cache, 10W), and VGA/LVDS, 1 GbE LAN, audio and gift box
  • PICO840VGA-E3827 (P/N-E38H840104)
    Pico-ITX SBC with Intel® Atom® processor E3827 (1.75 GHz, 1MB Cache, 8W) and VGA/LVDS, 1 GbE LAN, audio and gift box

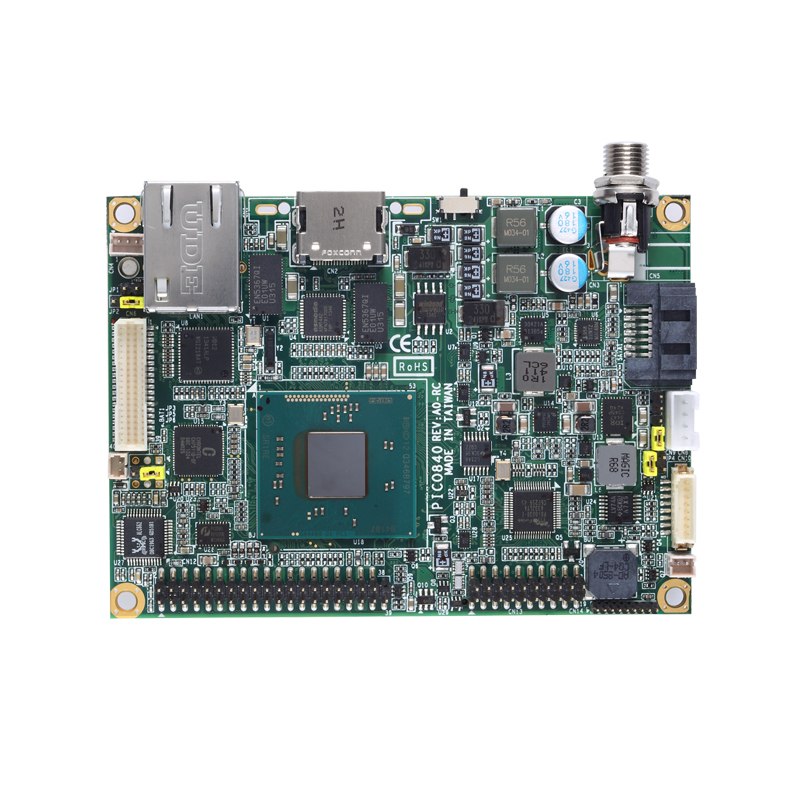

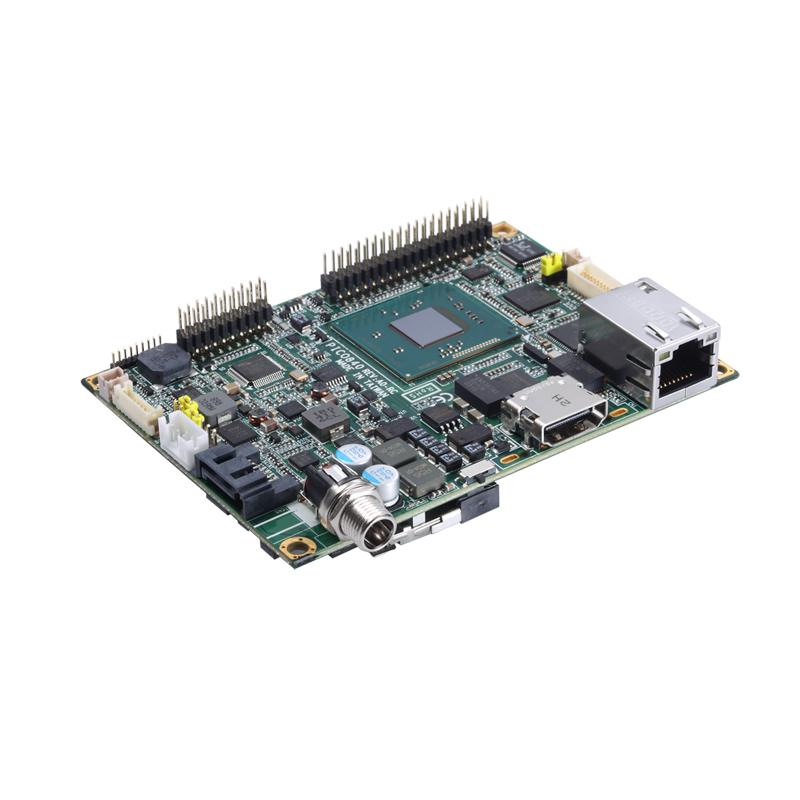

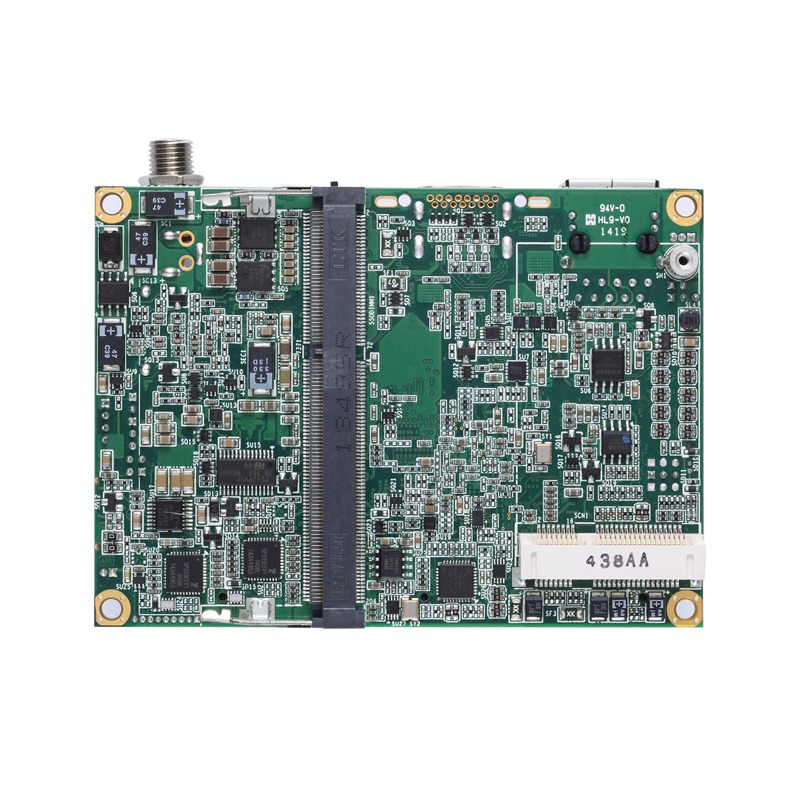

  • PICO840HGA-E3845 (P/N-E38H840101)
    Pico-ITX SBC with Intel® Atom® processor E3845 (1.91 GHz, 2MB Cache, 10W), and HDMI/LVDS, 1 GbE LAN, audio and gift box

Download

Drivers

Date Description Version Download File
2017/07/12 Function driver for Windows 10 VA1.3
2017/07/12 Function driver for Windows 8 VA1.3
2017/07/12 Function driver for Windows 7 VA1.3

Software

Manual

Date Description Version Download File
2017/07/12 User Manual VA1.3
2017/07/12 Quick Manual VA1.3

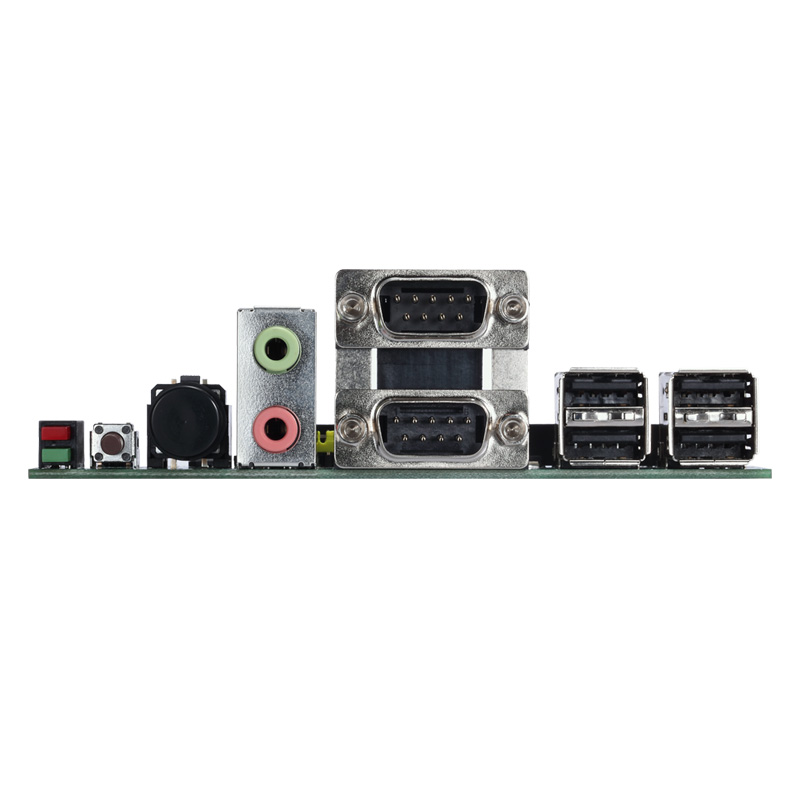

2017/07/12 AX93283 Quick Manual VA1.3

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/03 UKCA Declaration of Conformity
2021/03/26 CE-Conformity Declaration
2017/08/09 CE-Conformity Declaration
