CAPA13R

Status : Available

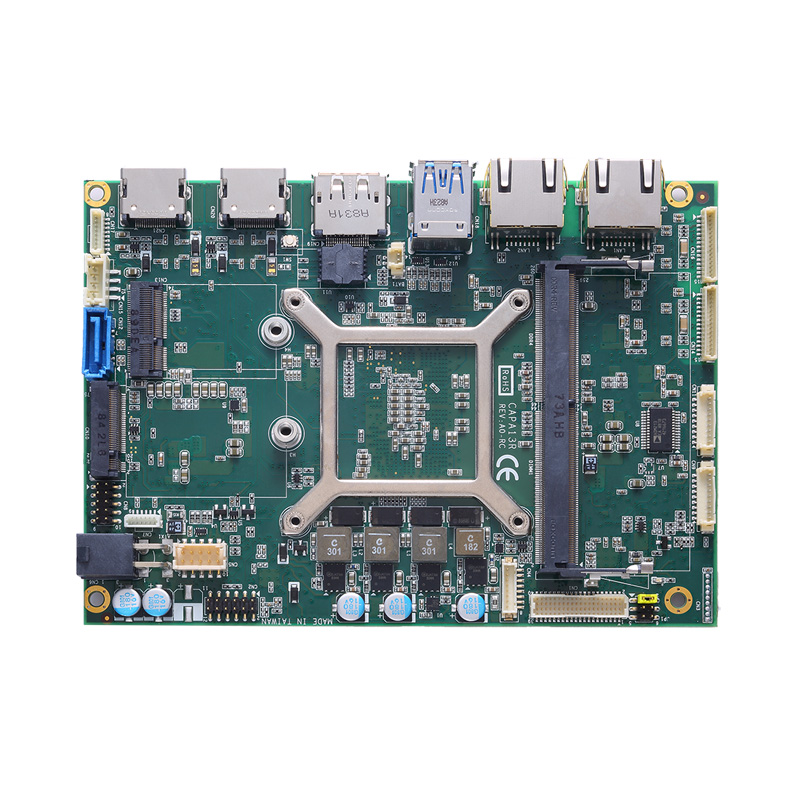

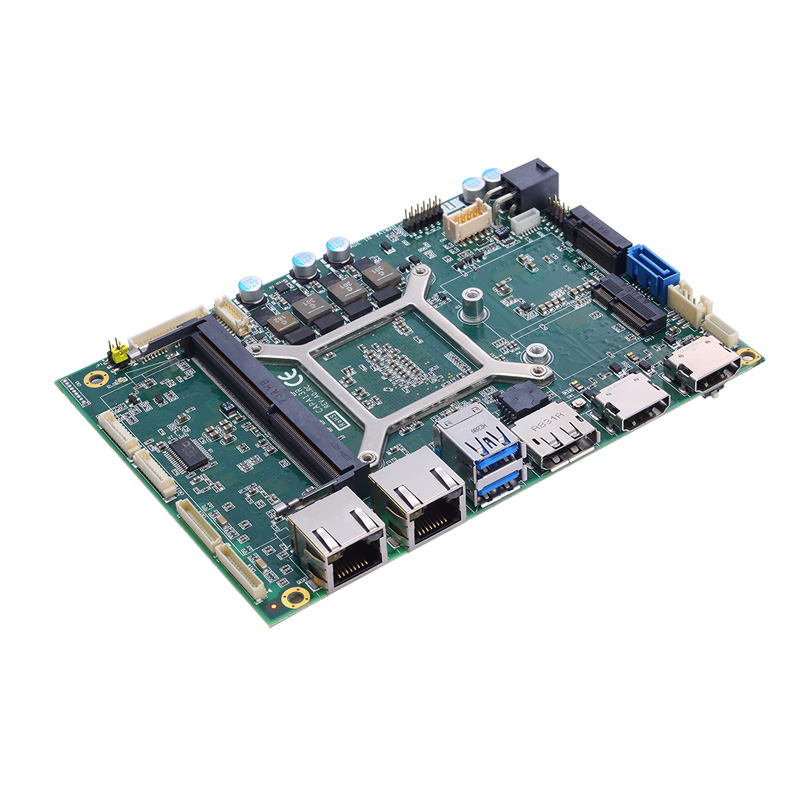

3.5” Embedded SBC with AMD Ryzen™ Embedded V1807B/V1605B APU, DisplayPort++, 2 HDMI, LVDS, and 4 GbE LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CAPA13R
CAPA13R
CAPA13R
CAPA13R
CAPA13R
TripleView

TripleView

Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • AMD Ryzen™ Embedded V1807B and V1605B APU
  • 1 DDR4 SO-DIMM for up to 16GB of memory
  • Supports quad-view display
  • 4 GbE LAN
  • M.2 Key E
  • M.2 Key B

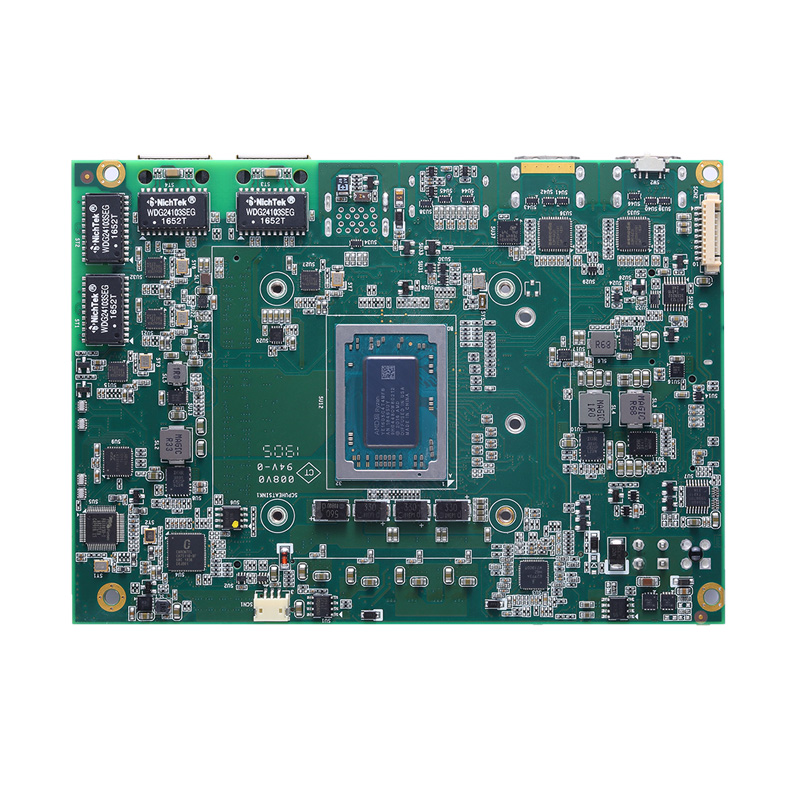

The CAPA13R is powered by the onboard AMD Ryzen™ Embedded V1807B/V1605B processor with Radeon™ Vega graphics. The 4K embedded board is well-suited for graphics-intensive applications such as medical imaging, video surveillance, 3D simulators, optical quality control, digital signage, kiosks/POI, thin clients, and more. The integrated AMD Radeon™ RX Vega graphics with the support of DirectX 12 and OpenGL 4.5 marks the cutting edge of embedded graphics. The CAPA13R can deliver truly impressive user experiences and outstanding 3D graphics quality through two HDMI, one DisplayPort++ and one LVDS. Its onboard CPU is attached to the rear side of the board, which can aid with heat dissipation and offers flexibility for easy system integration and minimum maintenance. Moreover, the CAPA13R offers multiple expansion interfaces with one M.2 Key E slot for wireless modules and one M.2 key B slot for storage cards. One 260-pin SO-DIMM socket on the CAPA13R supports up to 16GB of DDR4-2400 (V1605B) and DDR4-3200 (V1807B) memory. The system has a +12V DC power input.

Specifications

CPU
  • AMD Ryzen™ Embedded V1807B/V1605B APU onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-2400 (V1605B), DDR4-3200 (V1807) SO-DIMM, up to 16GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen2
Ethernet
  • 2 x10/100/1000 Mbps Ethernet (Realtek RTL8111G)
  • 2 x10/100/1000 Mbps Ethernet (Realtek RTL8111G)(optional)
Display
  • 1 x DisplayPort++
  • 2 x HDMI
  • 1 x LVDS
Digital I/O
  • 8-channel in/out programmed
Audio
  • HD audio link
Storage
  • 1 x SATA-600
  • 1 x M.2 Key B (SATA, USB 2.0, PCIe x2 for optional) in 22 x 42 or 30 x 42
Expansion
  • 1 x M.2 Key E (PCIe x1, USB 2.0) in 22 x 30
Others
  • ST ST33HTPH2E32AHB4 with TPM 2.0 compliant
Battery
  • Lithium 3V/220 mAh
Power Input
  • 2 x 2 pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • AMD V1605B @2.0 GHz 16GB DDR4, min. RMS. +12V@2.5A
  • AMD V1807B @3.35 GHz 16GB DDR4, min. RMS. +12V@4.2A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +60°C (-4°F to 140°F)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • APC200-2G-V1605B: Embedded chassis with CAPA13RPHGG-V1605B (P/N: E38E13R108), 8GB RAM, 64GB M.2 Key B card and 12V/60W adapter
  • I/O: 2 x GbE LAN, 2 x USB 3.2 Gen2, 1 x DisplayPort++, 2 x HDMI, 1 x 12V DC Jack
  • Dimensions (with wall mount ear): 197.4 x 139.6 x 49.6 mm (7.77" x 5.5" x 1.95")
  • Operating Temperature: -10°C to +50°C (+14°F to +122°F)

Ordering Information

  • CAPA13RPH4G-V1605B (P/N-E38E13R101)
    3.5” Embedded SBC with AMD Ryzen™ V1605B (2.0-3.6 GHz, 2MB Cache, 15W), DisplayPort++, 2 HDMI, LVDS, and 4 GbE LAN; without fan

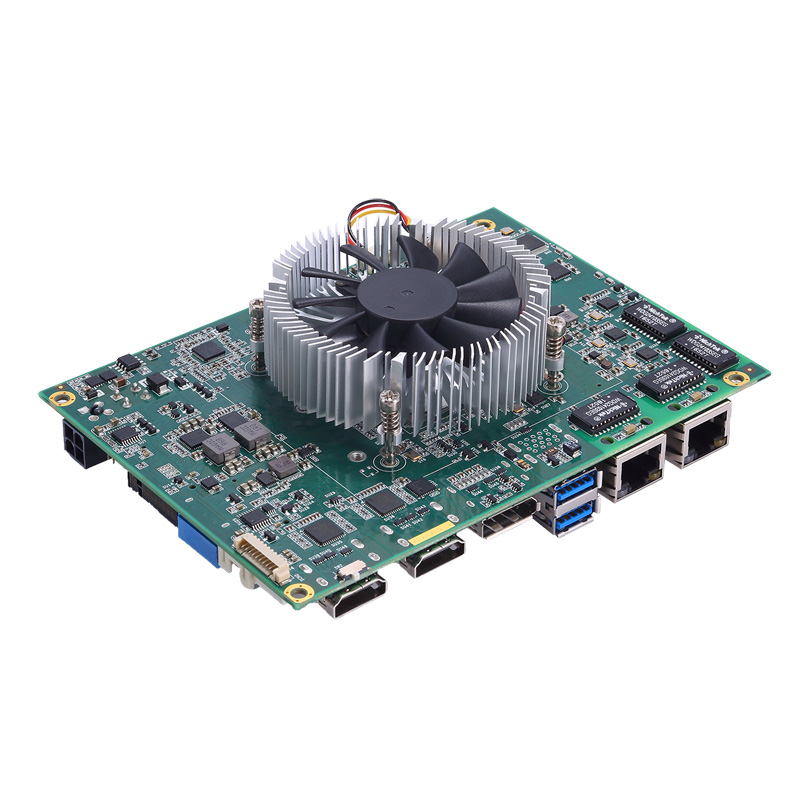

  • CAPA13RPH4G-V1605B w/fan (P/N-E38E13R106)
    3.5” Embedded SBC with AMD Ryzen™ V1605B (2.0-3.6 GHz, 2MB Cache, 15W), DisplayPort++, 2 HDMI, LVDS, 4 GbE LAN, and fan
  • CAPA13RPH4G-V1807B (P/N-E38E13R100)
    3.5” Embedded SBC with AMD Ryzen™ V1807B (3.35-3.8 GHz, 2MB Cache, 45W), DisplayPort++, 2 HDMI, LVDS, and 4 GbE LAN; without fan
  • CAPA13RPH4G-V1807B w/fan (P/N-E38E13R105)
    3.5” Embedded SBC with AMD Ryzen™ V1807B (3.35-3.8 GHz, 2MB Cache, 45W), DisplayPort++, 2 HDMI, LVDS, 4 GbE LAN, and fan
  • CAPA13RPHGG-V1605B (P/N-E38E13R104)
    3.5” Embedded SBC with AMD Ryzen™ V1605B (2.0-3.6 GHz, 2MB Cache, 15W), DisplayPort++, 2 HDMI, LVDS, and 2 GbE LAN; without fan
  • CAPA13RPHGG-V1605B w/fan (P/N-E38E13R108)
    3.5” Embedded SBC with AMD Ryzen™ V1605B (2.0-3.6 GHz, 2MB Cache, 15W), DisplayPort++, 2 HDMI, LVDS, 2 GbE LAN, and fan
  • CAPA13RPHGG-V1807B (P/N-E38E13R103)
    3.5” Embedded SBC with AMD Ryzen™ V1807B (3.35-3.8 GHz, 2MB Cache, 45W), DisplayPort++, 2 HDMI, LVDS and 2 GbE LAN; without fan
  • CAPA13RPHGG-V1807B w/fan (P/N-E38E13R107)
    3.5” Embedded SBC with AMD Ryzen™ V1807B (3.35-3.8 GHz, 2MB Cache, 45W), DisplayPort++, 2 HDMI, LVDS, 2 GbE LAN, and fan
  • AX93A22 (P/N-E393A22100)
    HD codec audio board for Mic-in/Line-in/Line-out
  • 594H3186800E
    Buzzer cable 9 x 55 mm 2-pin, L=400 mm
  • 59380880250E
    COM port cable DB9-9 x 1P, P=1.25, L=250 mm
  • 594E8422800E
    2 x USB 2.0 cable with bracket, 180 mm
  • 7128E13R000E
    Heatspreader

Download

Drivers

Date Description Version Download File
2021/07/12 Ethernet driver (RTL8111H) VA1.1
2021/07/12 Ethernet driver (RTL8111G) VA1.0
2020/03/06 AMD FP5 Win10 driver VA1.0

Software

Manual

Date Description Version Download File
2020/03/06 User's Manual VA1
2020/03/06 Quick Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/06 UKCA Declaration of Conformity
2021/04/14 CE-Conformity Declaration
