CAPA311

Status : Available

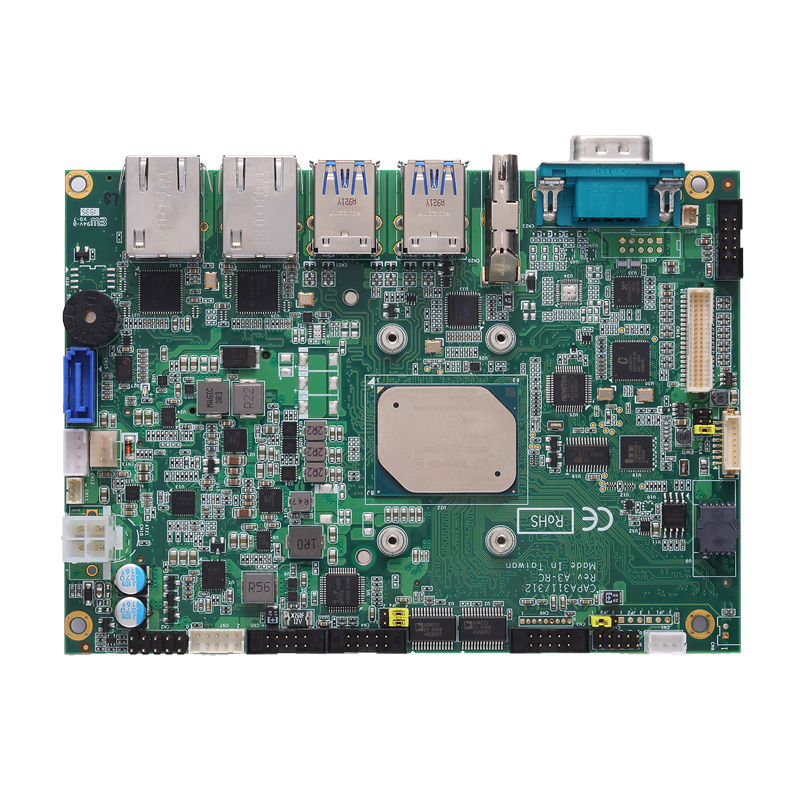

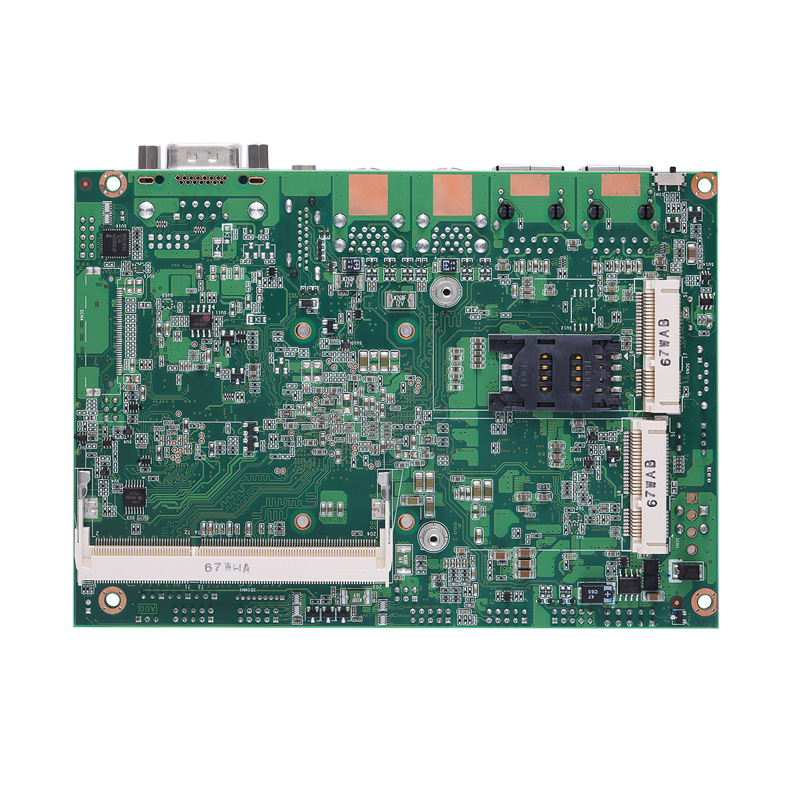

3.5" Embedded SBC with Intel® Atom® x5-E3940 Processor, HDMI, LVDS, 2 GbE LAN and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CAPA311
CAPA311
CAPA311
Fanless

Fanless

UL508

UL508

UL1604

UL1604

TripleView

TripleView

Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Atom® x5-E3940 processor
  • 1 DDR3L SO-DIMM for up to 8GB of memory
  • 2 USB 2.0 and 4 USB 3.0
  • 2 full-size PCI Express Mini Card slots

Specifications

CPU
  • Intel® Atom® x5-E3940 processor onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
  • 2 x RS-232
USB
  • 2 x USB 2.0
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet with Intel® I210-AT
Display
  • 1 x HDMI
  • 1 x LVDS
  • 1 x VGA (optional)
  • 1 x eDP (optional)
Digital I/O
  • 8-channel in/out programmable
Audio
  • Mic-in/Line-in/Line-out
Storage
  • 1 x SATA-600
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA supported
  • 1 x Full-size PCI Express Mini Card slot
  • 1 x SIM slot
Others
  • TPM 2.0
  • SMBus; compatible with I2C
Battery
  • Lithium 3 V/220 mAh
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel Atom® x5-E3940 @ 1.1 GHz 8GB DDR3L
  • Max RMS: +12V @1.1A
Watchdog Timer
  • 65536 levels, 1 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C to +80°C (-40°F to +185°F)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • CAPA311HGGA-E3940 (P/N-E38E311102)
    3.5" Embedded SBC with Intel Atom® x5-E3940 processor (1.6 - 1.8 GHz, 2MB cache, 9.5W), HDMI, LVDS, 2 GbE LAN and audio

Download

Drivers

Date Description Version Download File
2020/09/25 Audio driver VA1.0
2020/09/25 LAN driver VA1.0
2020/09/25 TXE driver VA1.0
2020/09/25 Graphic driver VA1.0
2020/09/25 Chipset driver VA1.0

Software

Manual

Date Description Version Download File
2023/06/30 User's manual VA5

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/06 UKCA Declaration of Conformity
