CAPA842

Status : Available

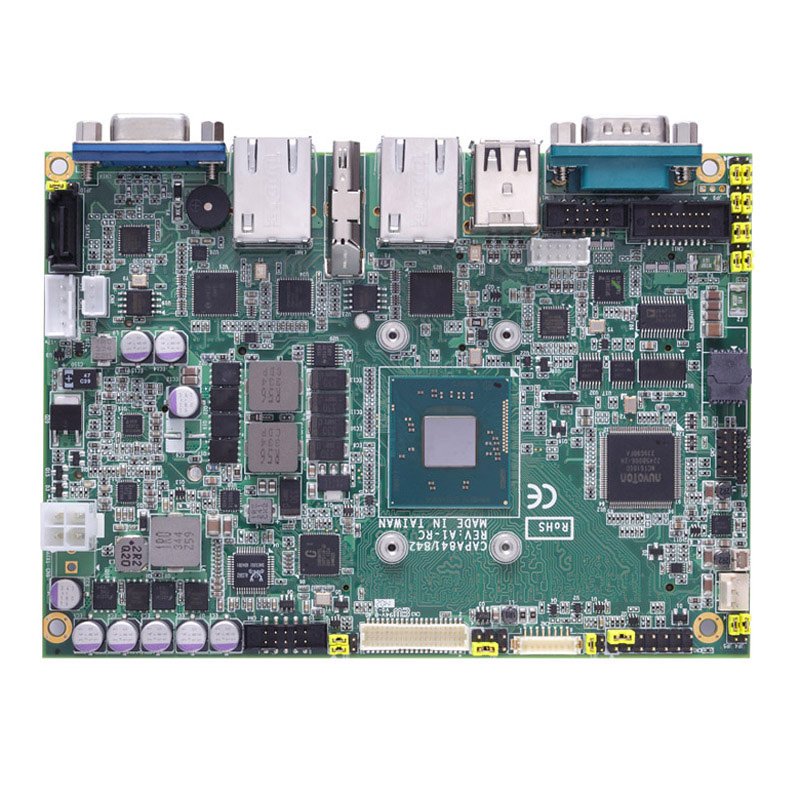

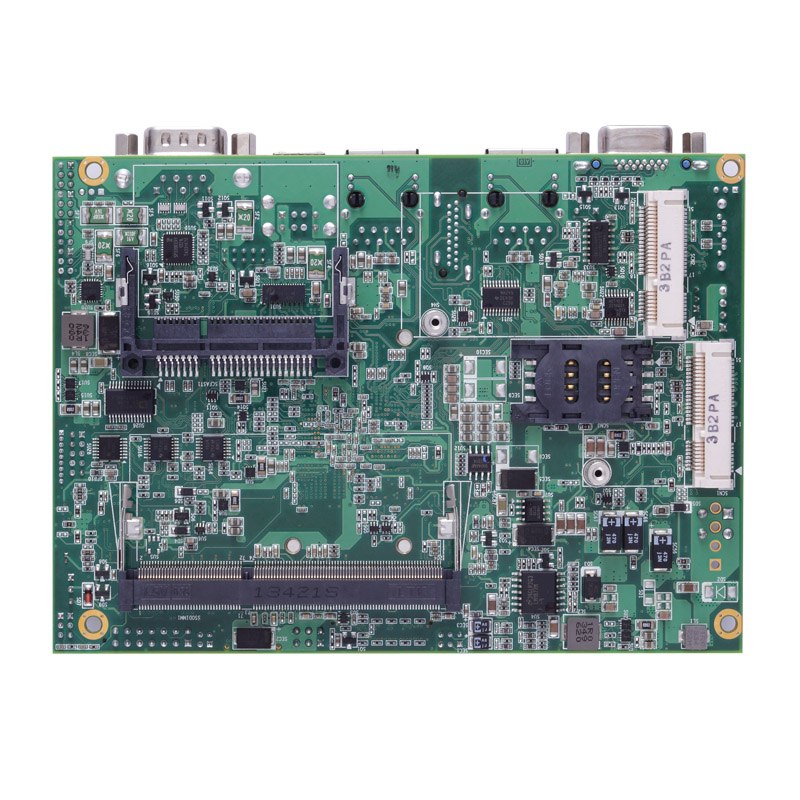

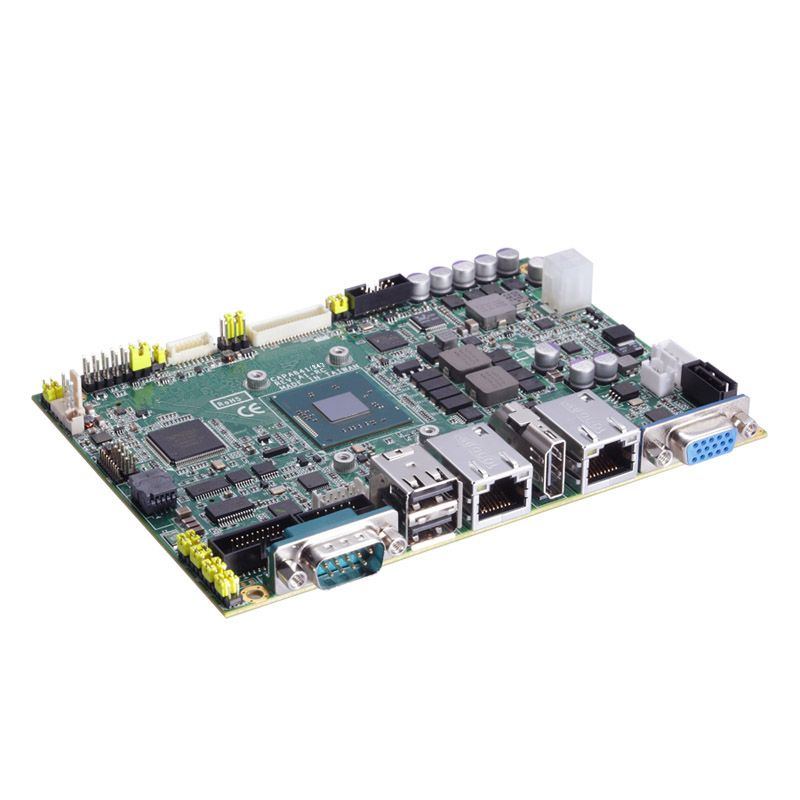

3.5" Embedded SBC with Intel® Celeron® Processor J1900/N2807, LVDS/VGA/HDMI, Dual LANs and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CAPA842
CAPA842
CAPA842
Fanless

Fanless

UL508

UL508

UL1604

UL1604

TripleView

TripleView

Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Celeron® processor J1900/N2807 (Bay Trail SoC)
  • 1 DDR3L-1333 SO-DIMM, up to 8GB
  • 4 USB 2.0 ports
  • 4 COM ports
  • 2 PCI Express Mini Card and 1 SIM slot
  • 2 Gigabit Ethernet ports
  • LVDS/VGA/HDMI with dual-view supported

The CAPA842, fanless 3.5-inch embedded board, is equipped with the newest 22nm Intel® Celeron® processor quad core J1900 (2.0GHz) or dual core Celeron® N2807 (1.58 GHz). The CAPA842 supports high bandwidth DDR3L-1333 SO-DIMM with memory up to 8 GB. Designed with fanless ultra-small form factor, the CAPA842 has excellent temperature tolerance for used in extremely harsh environments. With integrated Intel® Gfx graphics engine, up to 854MHz in turbo, this ultra-small 3.5-inch embedded single board computer provides completely new visual experiences, including faster media processing, full HD over HDMI, and spectacular HD playback, etc. Moreover, its multiple display outputs of HDMI, LVDS and VGA support dual views.

Specifications

CPU
  • Intel® Celeron® processor J1900 quad core or N2807 dual core onboard (Bay Trail)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 with +5V/+12V powered
  • 2 x RS-232 with +5V/+12V powered
USB
  • 4 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x VGA
  • 1 x LVDS
  • 1 x HDMI
Digital I/O
  • 8-IN/OUT
Audio
  • MIC-in/Line-in/Line-out/Speaker out
Storage
  • 1 x CFast™
  • 1 x SATA-300
Expansion
  • 1 x Full-size PCI Express Mini Card w/mSATA
  • 1 x Half-size PCI Express Mini Card
  • 1 x SIM slot
Others
  • TPM 1.2/2.0 (optional)
  • SMbus
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Celeron® J1900 @ 2 GHz, 8GB DDR3L
    Max. RMS: +12V @ 1.41A
  • Intel® Celeron® N2807 @ 1.58 GHz, 8GB DDR3L
    Max. RMS: +12V @ 0.64A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +70°C (-4°F to +158°F)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • CAPA842VHGGA-J1900 (P/N-E38E842102)
    3.5" Embedded SBC with Intel® Celeron® processor J1900 (2 - 2.42 GHz, 2 MB Cache, 10 W), HDMI, VGA, LVDS, 2 GbE LAN, audio and heatsink
  • CAPA842VHGGA-N2807 (P/N-E38E842100)
    3.5" Embedded SBC with Intel® Celeron® processor N2807 (1.58 - 2.16 GHz, 1 MB Cache, 4.3 W), HDMI, VGA, LVDS, 2 GbE LAN, audio and heatsink

Download

Drivers

Date Description Version Download File
2023/03/16 TXE Driver V1.6
2023/03/16 Intel(R) Sideband Fabric (Intel(R) MBI) Driver V1.6
2023/03/14 Audio Driver V1.6
2023/03/14 LAN Driver V1.6
2023/03/14 Graphic Driver V1.6
2023/03/14 Chipset Driver V1.6

Software

Manual

Date Description Version Download File
2023/09/04 User Manual VA6
2019/11/27 Quick Manual VA3

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/06 UKCA Declaration of Conformity
2021/04/14 CE-Conformity Declaration
