IMB530

Status : Available

ATX Motherboard with LGA1200 Socket 11th/10th Gen Intel® Core™ i9/i7/i5/i3, Xeon® W Processor, Intel® W480E, ECC DDR4, USB 3.2 Gen1/Gen2, NVMe, Dual LAN, VGA, DisplayPort++, DVI-D, and HDMI

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

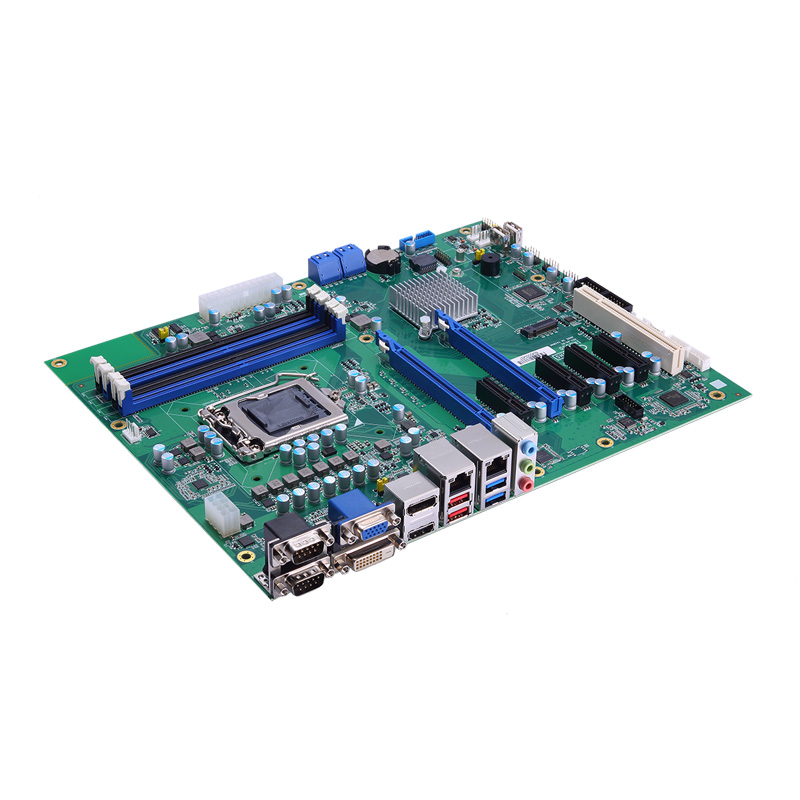

IMB530

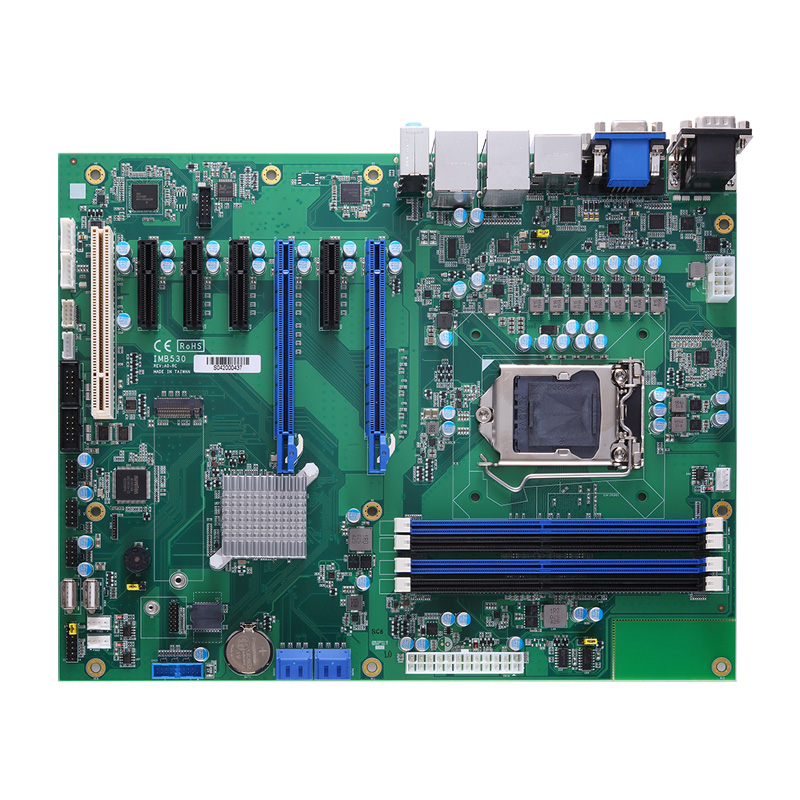

IMB530
+5V

+5V

AXView

AXView

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1200 socket 11th/10th gen Intel® Core™ i9/i7/i5/i3, Xeon® W, Pentium® or Celeron® processor (Comet Lake)
  • Four 288-pin DDR4-2933 ECC/non-ECC un-buffered Long-DIMM for up to 128GB of memory
  • DisplayPort++, VGA, DVI-D and HDMI with triple-view supported
  • Supports M.2 Key M 2280
  • 2 USB 3.2 Gen2 and 4 USB 3.2 Gen1
  • TPM 2.0 supported (optional)

The IMB530 is powered by the LGA1200 socket 11th/10th generation Intel® Core™ i9/i7/i5/i3, Intel® Xeon® W, Intel® Pentium® or Intel® Celeron® processor with the Intel® W480E chipset. The ATX motherboard is designed to deliver unrivaled performance, multiple connectivities, and stunning graphical performance for system developers in designing a multifunctional system. The IMB530 supports two PCIe x16 slots, three PCIe x4 slots, one PCIe slot and one PCI slot for a diverse range of configurations including GPU cards, AI accelerators and frame grabber cards. Other expansion option includes M.2 Key M 2280 NVMe SSD for increased read/write performance. In addition, the industrial ATX motherboard is integrated with the Intel® HD Graphic, which enables three simultaneous 4K displays via DisplayPort++, VGA, DVI-D, and HDMI. The IMB530 is aimed at AI-integrated systems, iHPC, video surveillance, industrial automation, machine vision, and more.

Specifications

CPU
  • LGA1200 socket 11th/10th gen Intel® Core™ i9/i7/i5/i3, Xeon® W, Pentium® or Celeron® processor (up to 125W)
Chipset
  • Intel® W480E
System Memory
  • 4 x 288-pin DDR4-2933 ECC/non-ECC un-buffered Long-DIMM, up to 128GB (ECC memory is available for Intel® Xeon® and Core™ i3 processors)
BIOS
  • AMI
COM
  • 2 x RS-232 (internal box header)
  • 2 x RS-232/422/485 (rear I/O)
USB
  • 2 x USB 3.2 Gen 2x1 (10Gbps, rear I/O)
  • 2 x USB 3.2 Gen 1x1 (5Gbps, rear I/O)
  • 2 x USB 3.2 Gen 1x1 (5Gbps, internal box header)
  • 6 x USB 2.0 (internal pin header)
  • 2 x USB 2.0 (internal 180D type A)
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I219-LM)
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
Display
  • 1 x VGA
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x DisplayPort++
Digital I/O
  • 8-channel programmable
Audio
  • HD Codec audio as MIC-in/Line-in/Line-out
Storage
  • 4 x SATA-600 with RAID 0/1/5/10
  • M.2 Key M 2280 (signal: PCIe x4/SATA)
Expansion
  • 1 x PCIe x16 slot (signal: x16 or x8)
  • 1 x PCIe x16 slot (signal: x0 or x8)
  • 3 x PCIe x4 slot open ended
  • 1 x PCIe x4 slot open-ended (signal: x1)
  • 1 x PCI
Others
  • 1 x PS/2 keyboard (internal box header)
Battery
  • Lithium 3 V/ 220 mAH
TPM
  • TPM 2.0 (optional)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 305 x 244 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • IMB530-S (P/N-E38F530101)
    ATX motherboard with LGA1200 socket 10th gen Intel® Core™ i9/i7/i5/i3, Xeon® W, Pentium® or Celeron® processor, Intel® W480E, USB 3.2 Gen2, SATA 3.0, GbE LAN, VGA, DisplayPort++, DVI-D, and HDMI
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 5948C122800E
    2 x USB 3.2 Gen1 x 1 cable with bracket, L=400 mm
  • 59380000290E
    PS/2 keyboard & mouse cable with bracket
  • 593826A0000E
    SATA signal cable/red, L=500 mm
  • 59384500100E
    Audio cable with bracket, P=2.0 mm, L=450 mm
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 83935151000E
    TPM 2.0 module (AX93515)
  • 5076E510000E
    CPU heatsink for 1U chassis (AX61135TM)
  • 50761222000E
    CPU cooler for 2U, 4U, and wall mount chassis

Download

Drivers

Date Description Version Download File
2021/12/28 RAID Driver V1.1
2021/12/28 NuvSerial VA1.1
2021/12/28 ME VA1.1
2021/12/28 LAN VA1.1
2021/12/28 Audio VA1.1
2021/12/28 Graphic driver VA1.1
2021/12/28 Chipset driver VA1.1

Software

Manual

Date Description Version Download File
2023/09/15 User's Manual VA4

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/03/04 CE-Conformity Declaration
2021/12/03 UKCA Declaration of Conformity
