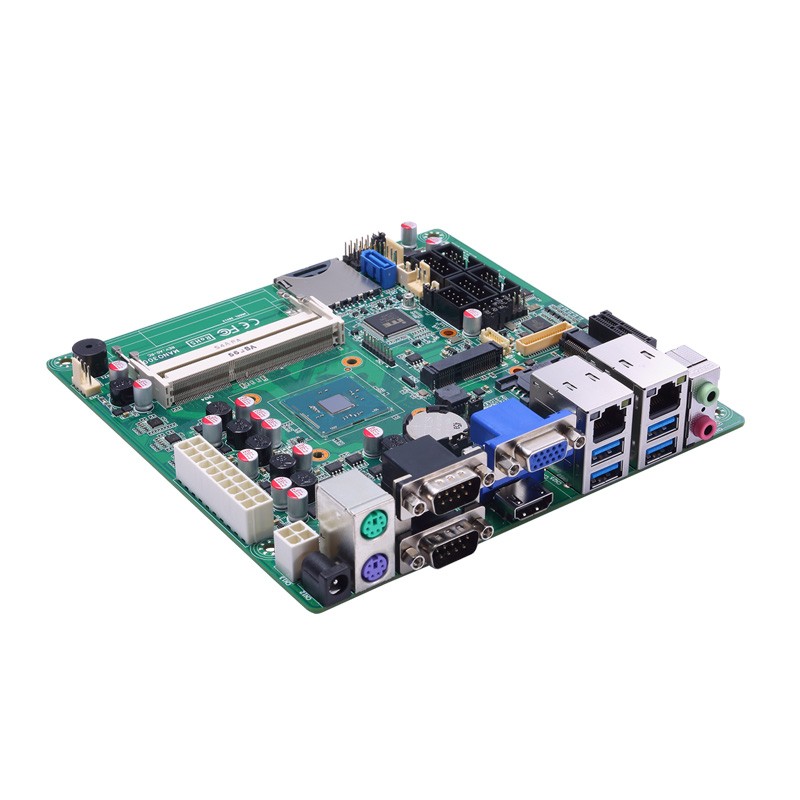

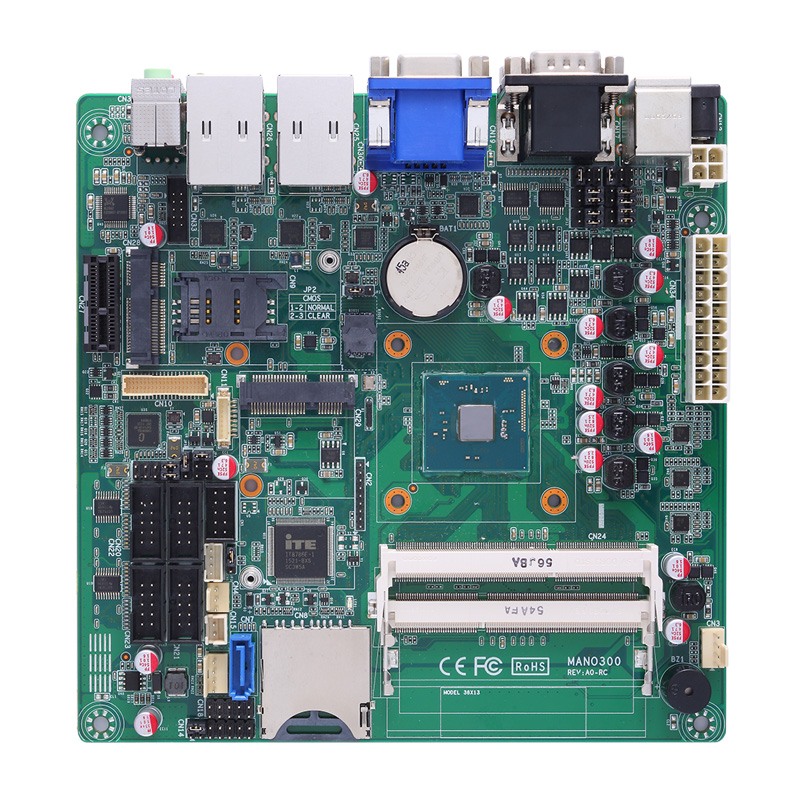

MANO300

Status : Available

Mini-ITX SBC with Intel® Celeron® Processor N3160 (up to 2.24 GHz) SoC, VGA/HDMI/LVDS, USB 3.0, Mini PCIe Card, mSATA and HD Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MANO300
MANO300
UL508

UL508

UL1604

UL1604

CFast

CFast

AXView

AXView

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Celeron® processor N3160 2.24 GHz (Braswell)
  • 2 DDR3L-1600 SO-DIMM, up to 8GB
  • PCI Express Mini Card and PCIe x1 slot
  • 4 USB 3.0 and 2 USB 2.0 ports
  • 1 SATA-600, 1 mSATA and 1 SDXC
  • 6 COM ports
  • 12 VDC and STD ATX
  • VGA,HDMI and LVDS with triple-view supported

The MANO300 mini-ITX motherboard built with the latest Intel® Celeron® processor N3150 (codename: Braswell) with integrated Intel® Gen 8 graphics supporting up to 4K resolution. Two SO-DIMM sockets are provided to support up to 8GB of DDR3L-1600 memory. The 12V single voltage DC power jack or ATX power makes the power input selection more flexible for different automation and embedded industries. Its friendly fanless cooling system design and compact form factor aimed at space-limited applications as well as harsh environments.

Specifications

CPU
  • Intel® Celeron® processor N3160 up to 2.24 GHz
Chipset
  • SoC integrated
System Memory
  • 2 x 204-pin SO-DIMM dual channel DDR3L-1600, up 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
  • 4 x RS-232 (one with +5/+12V)
USB
  • 2 x USB 2.0 (Internal)
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Realtek RTL8111F)
Display
  • 1 x VGA
  • 1 x HDMI
  • 1 x LVDS
Digital I/O
  • 8 channels programmable
Audio
  • Mic-in/Line-out
Storage
  • 1 x SATA-600
  • 1 x mSATA
Expansion
  • 1 x PCIe x1
  • 1 x PCI Express Mini Card
  • 1 x SIM card slot
Others
  • 1 x PS/2 keyboard & mouse
Battery
  • Lithium 3 V/ 220 mAH
Power Input
  • 12VDC or STD ATX
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Hardware Monitoring
  • N/A
Operating Temperature
  • 0°C ~ +60°C (+32°F ~ +140°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MANO300VHGGA (P/N-E38M300101)
    Mini-ITX SBC with Intel® Celeron® N3160, VGA/HDMI/ LVDS, 2 GbE LANs, 6 COM, USB 3.0, mSATA, PCI Express Mini Card and HD audio
  • 59411500600E
    SATA power cable 4P 180 mm (RC)
  • 59386831000E
    USB x 2, 2 x 5P 2.54 mm, L=180 mm
  • 59380703000E
    COM port x 2 with bracket P=2.54 mm
  • 50956124040E
    AC Adapter 60W/12V5A/Φ2.5

Download

Drivers

Date Description Version Download File
2017/10/11 Win10_Driver_64bit V1.1
2017/10/11 Win10_Driver_32bit V1.1
2017/10/11 Win8.1_Driver_64bit V1.1
2017/10/11 Win8.1_Driver_32bit V1.1
2017/10/11 Win7_Driver_64bit V1.1
2017/10/11 Win7_Driver_32bit V1.1
2017/07/10 IEGD_15.1_LVDS only for Win XP VA1.0

Software

Manual

Date Description Version Download File
2023/02/14 User's Manual V4.0
