MANO315

Status : Available

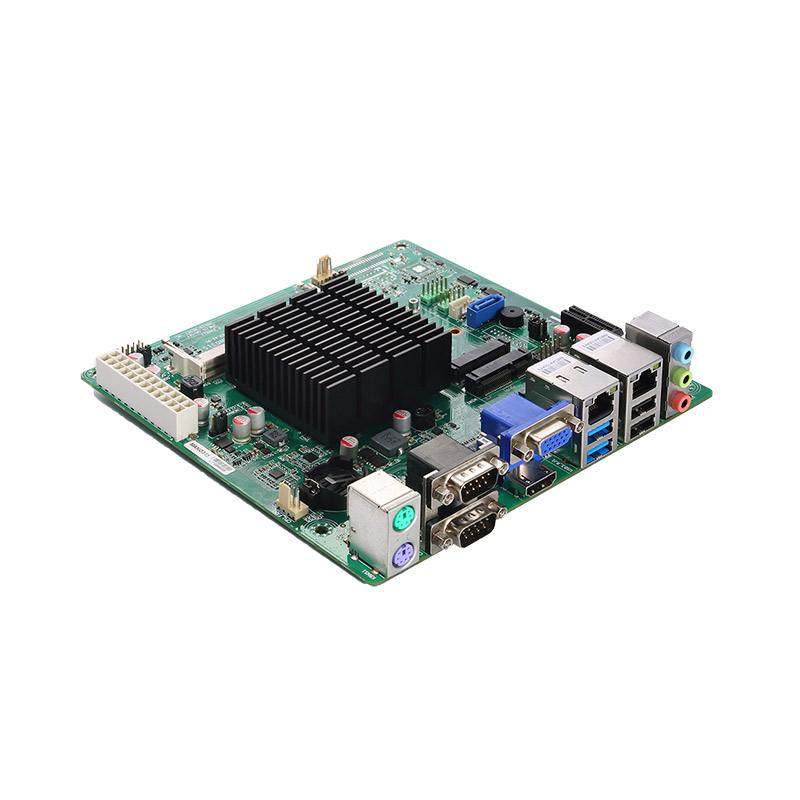

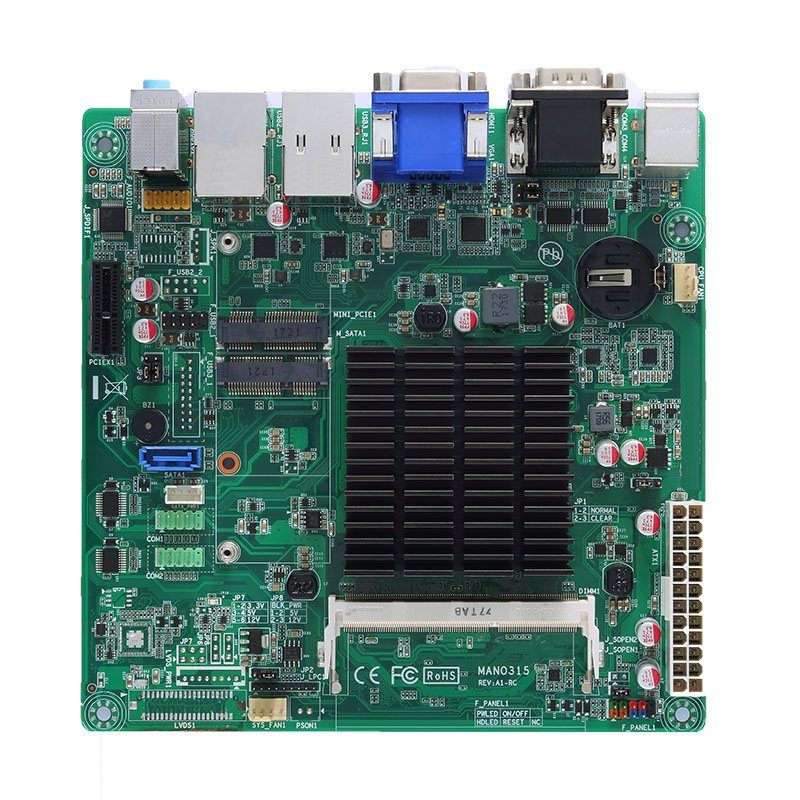

Mini-ITX SBC with Intel® Celeron® Processor J3355, VGA, HDMI, USB 3.0, PCI Express Mini Card Slot, mSATA and HD Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MANO315
MANO315
UL508

UL508

UL1604

UL1604

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Celeron® processor J3355 (Apollo Lake)
  • DDR3L SO-DIMM for up to 8GB of memory
  • 1 PCI Express Mini Card slot and PCIe x1
  • 2 USB 3.0 and 4 USB 2.0
  • 1 SATA-600 and 1 mSATA
  • 4 COM supported
  • STD ATX Power
  • VGA and HDMI supported

Specifications

CPU
  • Intel® Celeron® processor J3355
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1866, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232 (rear I/O with +5V supported)
  • 2 x RS-232
USB
  • 2 x USB 2.0 (internal)
  • 2 x USB 3.0
  • 2 x USB 2.0 (rear I/O)
Ethernet
  • 2 x 10/100/1000 Mbps (Realtek RTL8111F)
Display
  • 1 x VGA
  • 1 x HDMI
Digital I/O
  • N/A
Audio
  • Mic-in/Line-out
Storage
  • 1 x SATA-600
  • 1 x mSATA
Expansion
  • 1 x PCIe x1
  • 1 x PCI Express Mini Card slot
Others
  • 1 x PS/2 keyboard and mouse
Battery
  • Lithium 3V/220 mAH
Power Input
  • N/A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MANO315VHGGA-J3355 (P/N-E38M315100)
    Mini-ITX SBC with Intel® Celeron® processor J3355 (2.0 to 2.5 GHz, 2MB cache, 10W), VGA, HDMI, 2 GbE LAN, 4 COM, USB 3.0, PCI Express Mini Card slot and HD audio
  • 593M8810300E
    COM port cable, P=2.0 mm, L=300 mm
  • 594M5002A00E
    6-pin wafer to PS/2 cable, P=2.0 mm, L=200 mm
  • 59384500100E
    Audio cable with bracket, P=2.0 mm, L=420 mm
  • 59386831000E
    2-port USB cable with bracket, 5-pin header, P=2.54 mm, L=180 mm
  • 594P8800600E
    SATA power cable, 4-pin to 15-pin, P=2.0 mm, L=200 mm
  • 593M8400400E
    Audio cable, P=2.54 mm, L=300 mm

Download

Drivers

Date Description Version Download File
2019/01/14 Win10_64_TXE V1.0
2019/01/14 Win10_64_Serial IO V1.0
2019/01/14 Win10_64_Audio V1.0
2019/01/14 Win10_64_LAN V1.0
2019/01/14 Win10_64_Graphic V1.0
2019/01/14 Win10_64_Chipset V1.0

Software

Manual

Date Description Version Download File
2019/05/21 User's Manual V2.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/03 UKCA Declaration of Conformity
2021/04/15 CE-Conformity Declaration
