MANO526

Status : Available

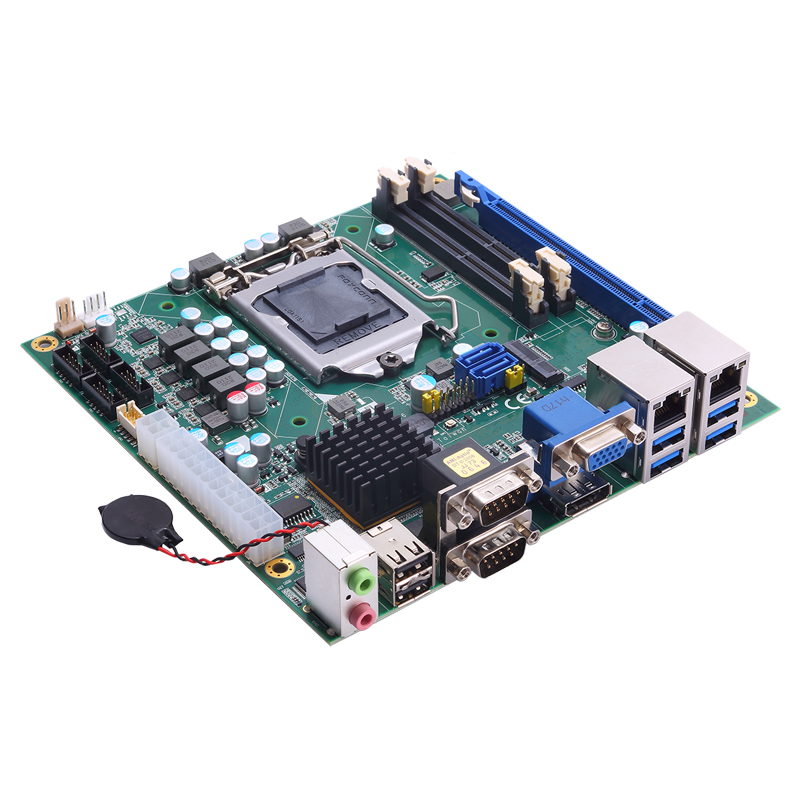

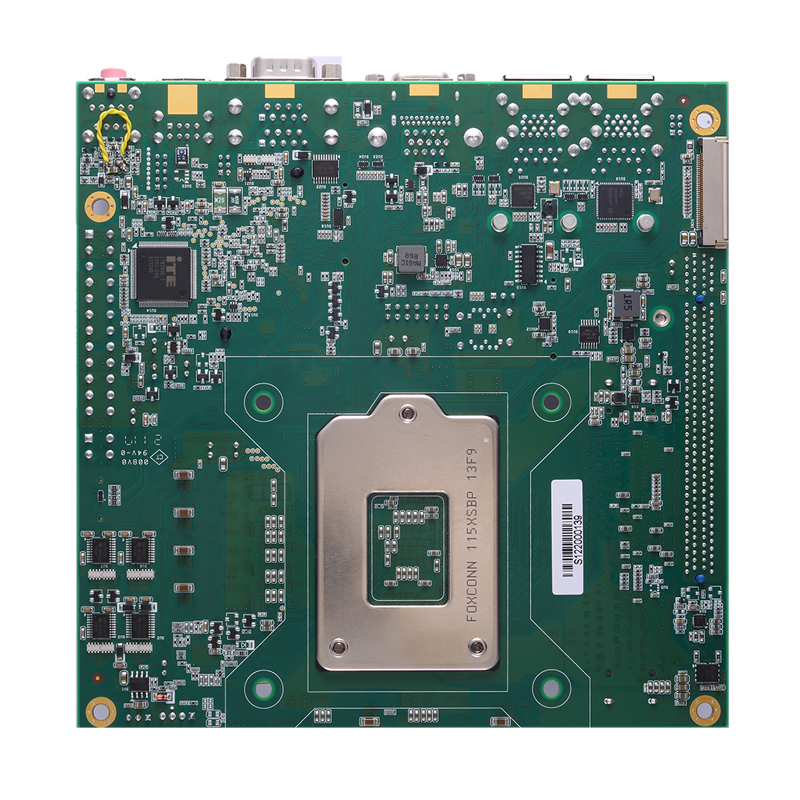

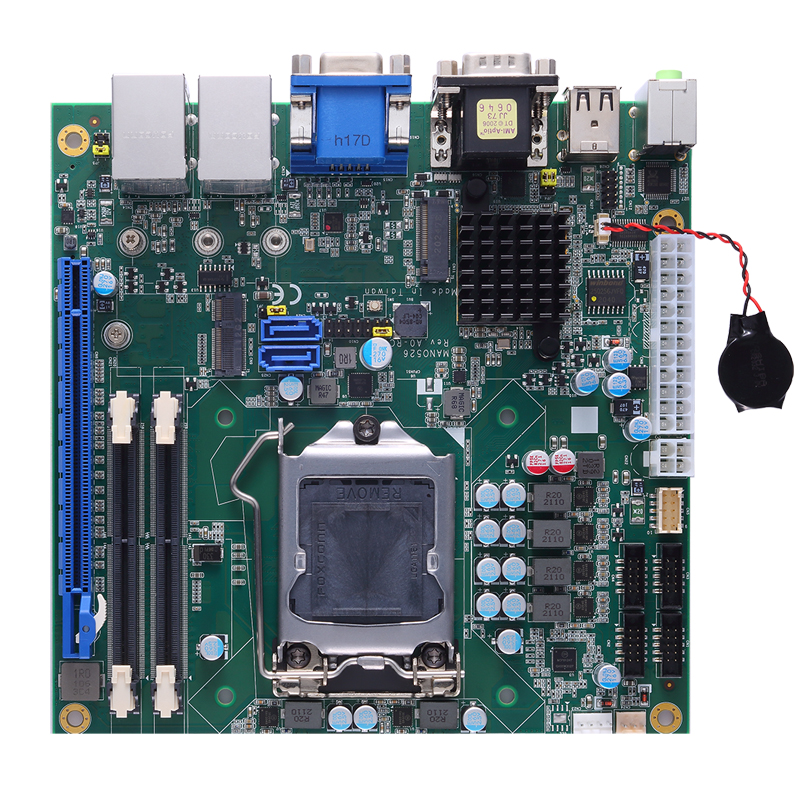

Mini-ITX SBC with LGA1151 Socket 9th/8th Gen Intel® Core™ Processor, Intel® Q370, HDMI, DisplayPort++, eDP, 2 GbE LAN, and HD Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MANO526
MANO526
MANO526
AXView

AXView

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3 processor
  • Intel® Q370 chipset
  • 2 DDR4 SO-DIMM for up to 32GB of memory
  • 4 USB 3.0 and 4 USB 2.0
  • 6 COM ports
  • 2 SATA-600 and 1 M.2 Key M
  • PCIe x16 and M.2 Key E

Specifications

CPU
  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Chipset
  • Intel® Q370
System Memory
  • 2 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (with +5V/+12V power)
  • 5 x RS-232
USB
  • 4 x USB 3.0
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I211-AT)
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I219-LM)
Display
  • 1 x DisplayPort++
  • 1 x eDP
  • 1 x HDMI
Digital I/O
  • 8-channel in/out programmed
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 2 x SATA-600
  • 1 x M.2 Key M 2242/2260/2280; supports NVMe
Expansion
  • 1 x PCIe x16
  • 1 x M.2 Key E 2230
Others
  • Onboard TPM 2.0
Battery
  • Lithium 3V/220mAH
Power Input
  • STD 12V ATX power
  • 24+4 pin ATX connector
  • AT Mode Auto Power Function supported
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MANO526-Q370 (P/N-E38M526101)
    Mini-ITX SBC with LGA1151 socket 9th/8th gen Intel® Core™ processor, Intel® Q370, HDMI, DisplayPort++, eDP, 2 GbE LAN, and HD audio
