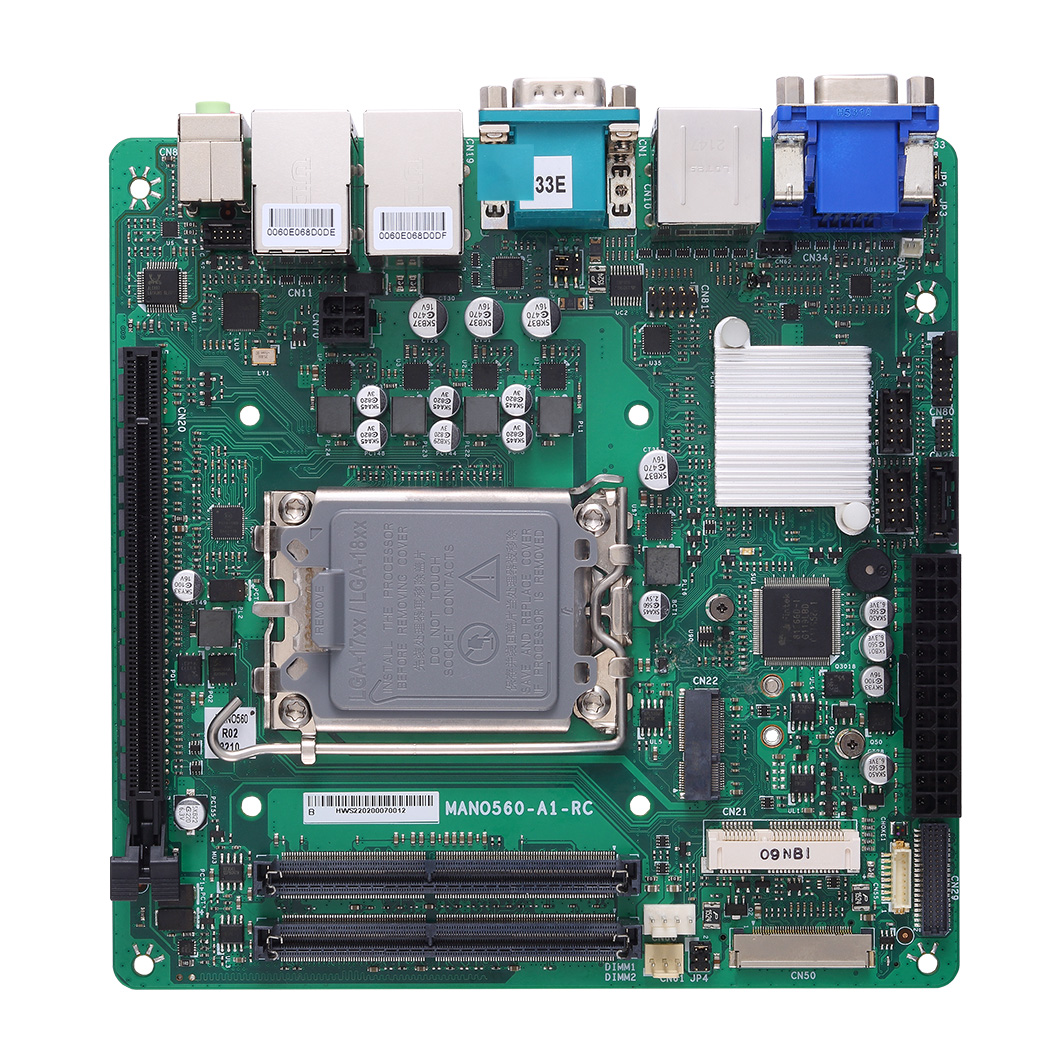

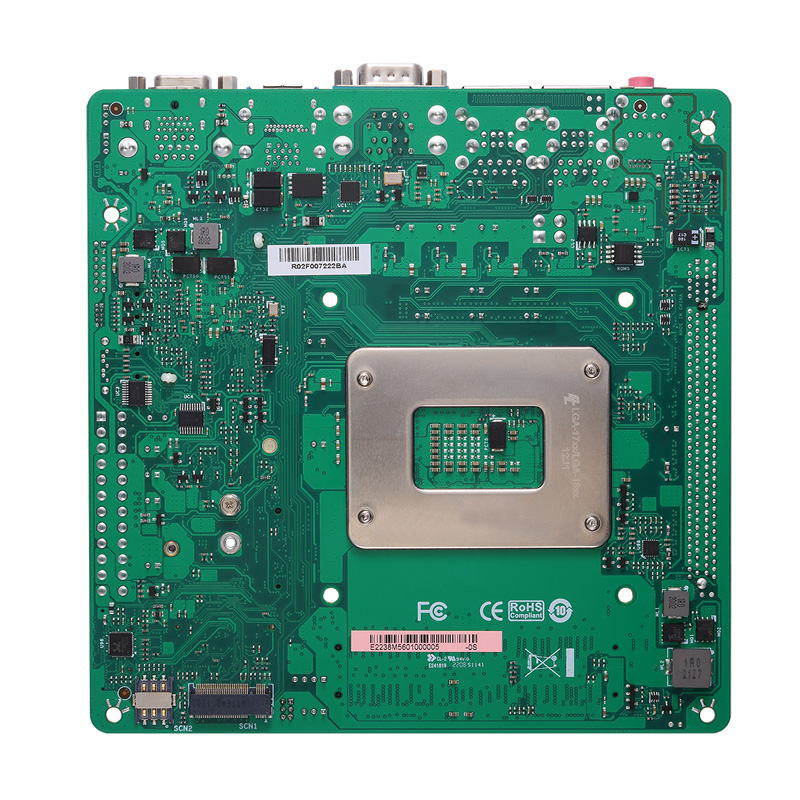

MANO560

Status : Available

Mini-ITX SBC with LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Pentium® or Celeron® Processor, DisplayPort, HDMI, VGA, LVDS, USB 3.2, M.2, and Dual GbE LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MANO560
MANO560
AXView

AXView

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1700 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
  • Intel® H610 chipset
  • 2 DDR4 SO-DIMM for up to 64GB memory
  • 2 USB 3.2 Gen1 and 5 USB 2.0
  • 4 COM ports
  • 1 PCIe x16 and 1 M.2 Key E slot
  • 1 full-size PCI Express Mini Card slot
  • 1 SATA-600
  • 1 M.2 Key B for USB 3.2 interface 5G module

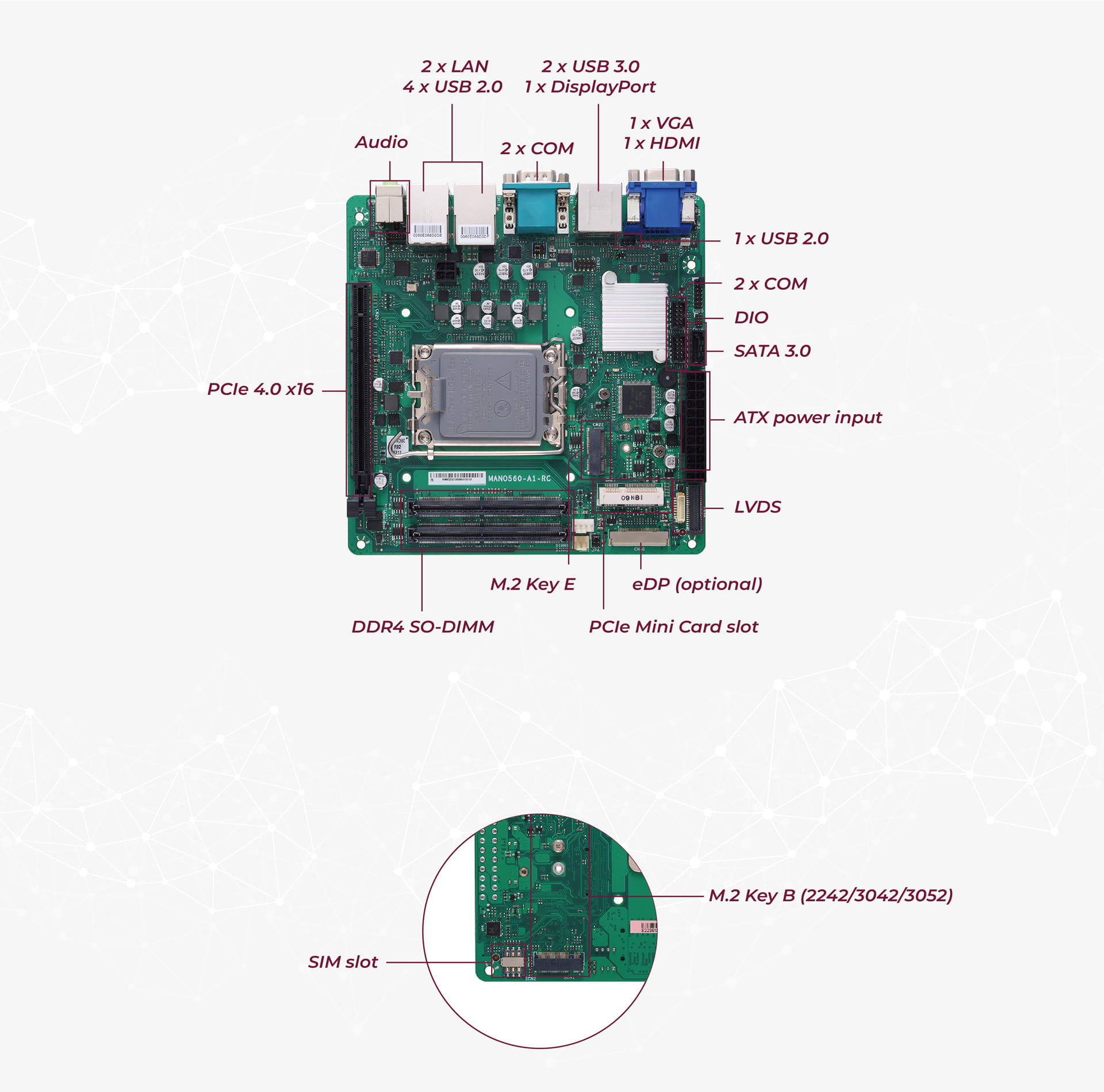

Specifications

CPU
  • LGA1700 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3 Pentium® or Celeron® processor (up to 65W)
Chipset
  • Intel® H610
System Memory
  • 2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (with +5V/+12V power)
  • 3 x RS-232
USB
  • 2 x USB 3.2 Gen1
  • 5 x USB 2.0
Ethernet
  • 1 x 2500/1000/100/10 Mbps Ethernet (Intel® I225-V)
  • 1 x 1000/100/10 Mbps Ethernet (Intel® I219-V)
Display
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LVDS (eDP BOM optional)
  • 1 x VGA
Digital I/O
  • 8-channel in/out programmed
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 1 x SATA-600
  • 1 x M.2 Key B
Expansion
  • 1 x PCIe x16
  • 1 x M.2 Key B
  • 1 x M.2 Key E 2230
  • 1 x PCIe Mini Card slot
Others
  • Onboard TPM 2.0 (TPM IC: SLB9670)
Battery
  • Lithium 3V/220mAH
Power Input
  • Standard 12V ATX power
  • 24+4 pin ATX connector
  • AT mode auto power function supported
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MANO560-H-B-U (P/N-E38M560100)
    Mini-ITX SBC with LGA1700 14th/13th/12th gen Intel® Core™ processer, DisplayPort, HDMI, VGA, LVDS, USB 3.2, M.2 for USB 3.2 interface, mPCIe (SATA+USB), dual GbE LAN, HD audio, and bulk packing
  • MANO560-H-S-U (P/N-E38M560101)
    Mini-ITX SBC with LGA1700 14th/13th/12th gen Intel® Core™ processer, DisplayPort, HDMI, VGA, LVDS, USB 3.2, M.2 for USB 3.2 interface, mPCIe (SATA+USB), dual GbE LAN, HD audio, and single box packing
  • MANO560-H-B-S (P/N-E38M560102)
    Mini-ITX SBC with LGA1700 14th/13th/12th gen Intel® Core™ processer, DisplayPort, HDMI, VGA, LVDS, USB 3.2, M.2 for SATA interface, mPCIe (SATA+USB), dual GbE LAN, HD audio, and bulk packing
  • MANO560-H-S-S (P/N-E38M560103)
    Mini-ITX SBC with LGA1700 14th/13th/12th gen Intel® Core™ processer, DisplayPort, HDMI, VGA, LVDS, USB 3.2, M.2 for SATA interface, mPCIe (SATA+USB), dual GbE LAN, HD audio, and single box packing
  • 505000001000
    LGA1700 Cooler 1U 4500RPM
  • 505000001100
    LGA1700 Cooler 1.5U 5500RPM
  • 594P8802810E
    USB Cable L
  • 590000039200
    COM Cable D-SUB9P to DuPont 2x5 P2.0 L=20cm
  • 59386831010E
    SATA2 Signal Cable 180D, L=350 mm (RC)

Download

Drivers

Date Description Version Download File
2022/10/25 Serial IO Driver for Windows 10 VA1.0
2022/10/25 LAN Driver for Windows 10 VA1.0
2022/10/25 Audio Driver for Windows 10 VA1.0
2022/10/25 ME Driver for Windows 10 VA1.0
2022/10/25 Chip Driver for Windows 10 VA1.0
2022/10/25 Graphics Driver for Windows 10 VA1.0

Software

Manual

Date Description Version Download File
2022/10/19 MANO560 User's Manual VA3_10-13-2022 VA3.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/06/30 UKCA Declaration of Conformity
2022/06/30 CE-Conformity Declaration
