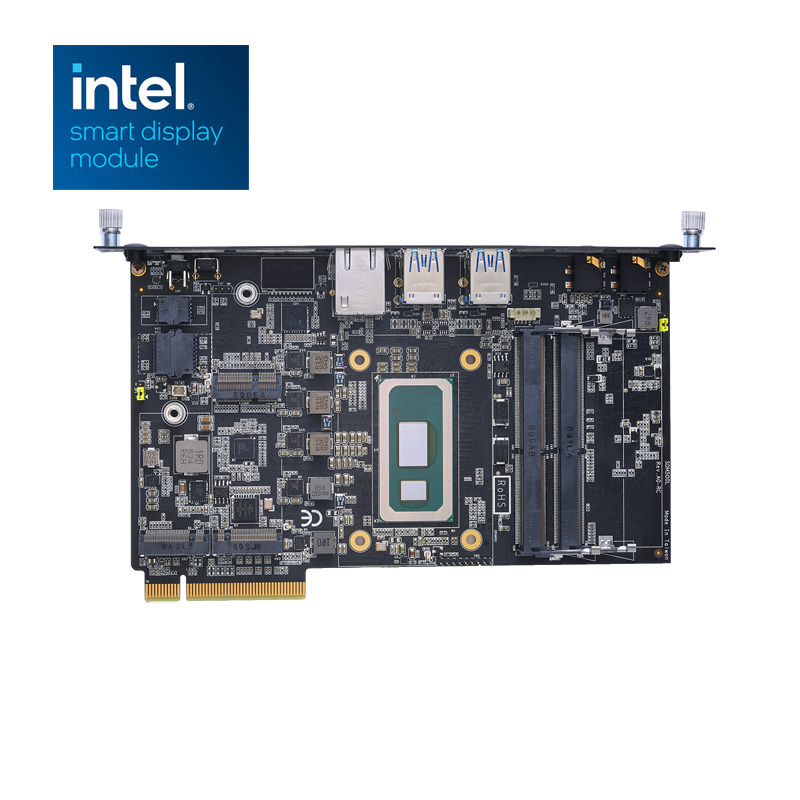

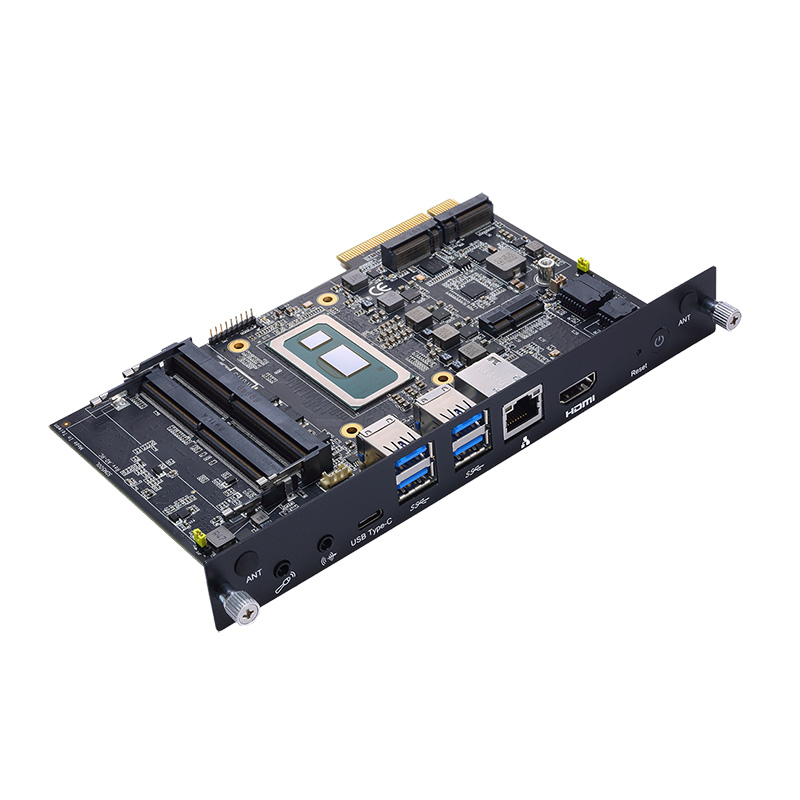

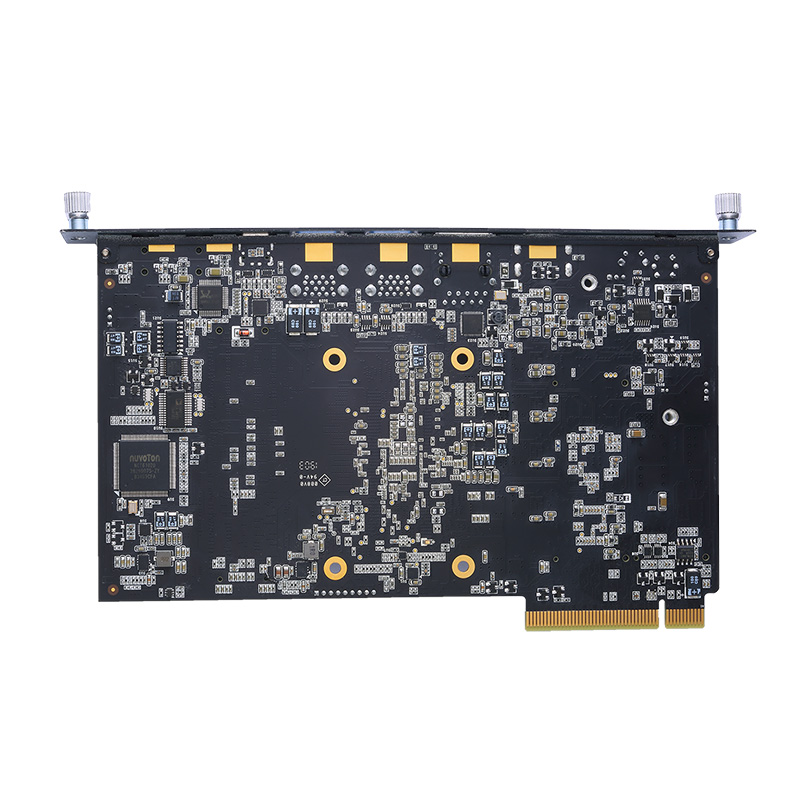

SDM500L

Status : Available

Intel® Smart Display Module Large (Intel® SDM-L) with 8th Gen Intel® Core™ i7/i5/i3, Intel® Celeron® Processor, HDMI and LAN

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
SDM500L
SDM500L
SDM500L
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Smart Display Module (Intel® SDM) specification
  • 8th gen Intel® Core™ i7/i5/i3 or Intel® Celeron® processor (Whiskey Lake-U)
  • 2 DDR4-2400 SO-DIMM for up to 32G of memory
  • M.2 Key E slot
  • M.2 Key M slot
  • M.2 Key B slot
  • One HDMI, four USB 3.0, and LAN
  • Supports Intel® AMT 12

The SDM500L is powered by the onboard 8th generation Intel® Core™ i7/i5/i3 processor with the Intel® Generation 9 HD Graphics chipset. The Intel® Smart Display Module-Large (Intel® SDM-L) measures just 175 x 100 mm and a maximum z-height of 1.6 mm, which is well-suited for ultra-slim displays. It can be easily connected to an SDM-compliant display via a high-speed PCIe x8 edge connector - which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 2.0, DisplayPort 1.2, Serial TX/RX and I2C signals. With its excellent graphics performance and installation flexibility, the incredible signage module can satisfy diverse industry requirements and support a wide range of digital signage applications such as bedside terminals for hospital patients or factory automation solutions.

Specifications


CPU
  • 8th gen Intel® Core™ i7/i5/i3 or Intel® Celeron® processor (Whiskey Lake-U)
Chipset
  • SoC integrated
System Memory
  • 2 x 260-pin DDR4-2400 SO-DIMM, up to 32G
SDM Edge connector
  • 1 x USB 3.0
  • 1 x HDMI 2.0
  • 1 x DisplayPort 1.2
  • 1 x Serial TX/RX
  • 2 x I2C
I/O
  • 1 x LAN
  • 4 x USB 3.0
  • HD audio codec with Mic-in/Line-out
  • 1 x USB type C (optional)
  • 1 x HDMI 1.4 (optional)
Storage
  • 1 x M.2 Key B 2242 slot
  • 1 x M.2 Key M 2280 slot
Expansion
  • 1 x M.2 Key E 2230 slot for Wi-Fi/BT
Power Input
  • Through SDM golden finger
  • +12V & +3.3VBS
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Dimensions
  • 175 x 100 mm
Weight (net/gross)
  • 252g/340g
Board Thickness
  • 1.6 mm
Operation Humidity
  • 10% - 95% relative humidity, non-condensing
Operating Temperature
  • 0ºC to 60ºC (+32°F to +140°F)
  • -20ºC to 70ºC (-20°F to +158°F) (optional)

Ordering Information

  • SDM500L-I3B-NN1 (P/N-E38X500118)
    SDM-L module with Intel® Core™ i3-8145UE processor with 2 SO-DIMM, 2 M.2 SSD, 1 LAN, 4 USB 3.0, 1 Mic-in and 1 Line-out
  • SDM500L-I3B-HC1 (P/N-E38X500119)
    SDM-L module with Intel® Core™ i3-8145UE processor with 2 SO-DIMM, 2 M.2 SSD, 1 LAN, 4 USB 3.0, 1 Mic-in, 1 Line-out, 1 HDMI and 1 USB Type-C
  • SDM500L-I5B-NN1 (P/N-E38X500120)
    SDM-L module with Intel® Core™ i5-8365UE processor with 2 SO-DIMM, 2 M.2 SSD, 1 LAN, 4 USB 3.0, 1 Mic-in and 1 Line-out
  • SDM500L-I5B-HC1 (P/N-E38X500121)
    SDM-L module with Intel® Core™ i5-8365UE processor with 2 SO-DIMM, 2 M.2 SSD, 1 LAN, 4 USB 3.0, 1 Mic-in, 1 Line-out, 1 HDMI and 1 USB Type-C
  • SDM500L-CLA-NN1 (P/N-E38X500122)
    SDM-L module with Intel® Celeron® 4305UE processor with 2 SO-DIMM, 2 M.2 SSD, 1 LAN, 4 USB 3.0, 1 Mic-in, 1 Line-out
  • 8812T1500A0E
    Wi-Fi kit
  • M.2 SSD
    M.2 2280-B-M 64 to 256GB
  • DDR4 SO-DIMM
    4GB to 32GB

Download

Drivers

Date Description Version Download File
2020/12/09 6. intel ME VA1.0
2020/12/09 7. realtek audio VA1.0
2020/12/09 4. intel ethernet VA1.0
2020/12/09 5. intel wireless VA1.0
2020/12/09 1. intel chipset VA1.0
2020/12/09 2. intel Graphics VA1.0
2020/12/09 3. intel serial IO VA1.0

Software

Manual

Date Description Version Download File
2021/11/08 SDM500L Quick Manual VA1.1
2020/12/09 user's manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/10 UKCA Declaration of Conformity
2021/09/02 UKCA-Conformity Declaration
2021/04/15 CE-Conformity Declaration
