SDM510L

Status : Available

Intel® Smart Display Module Large (Intel® SDM-L) with 12th Gen Intel® Core™ i7/i5/i3 or Intel® Celeron® Processor and Intel® Iris® Xe Graphics with 8K60Hz or up to Four 4K60Hz Supported

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote

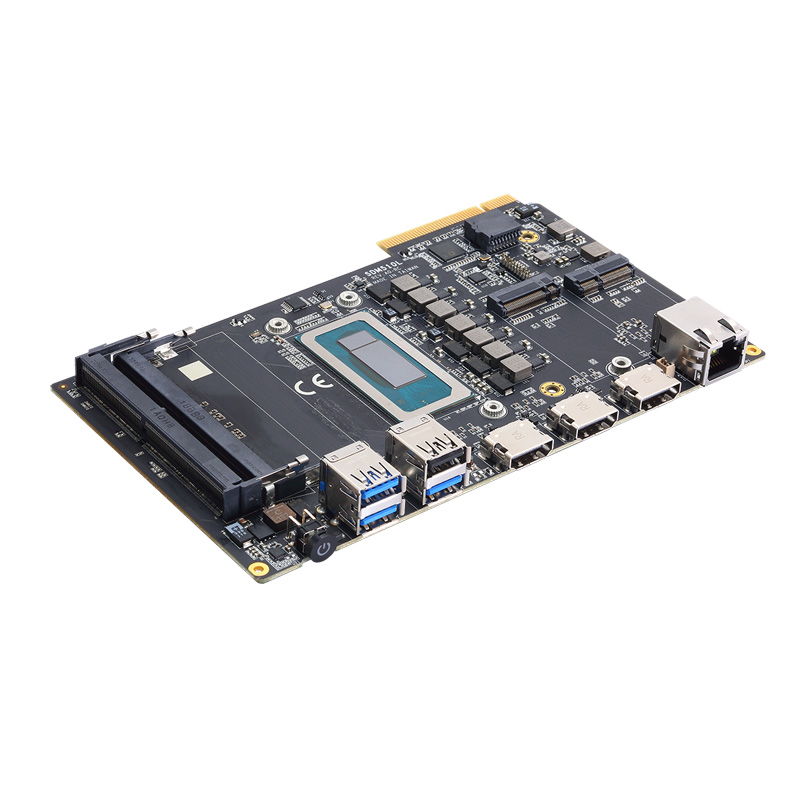

SDM510L

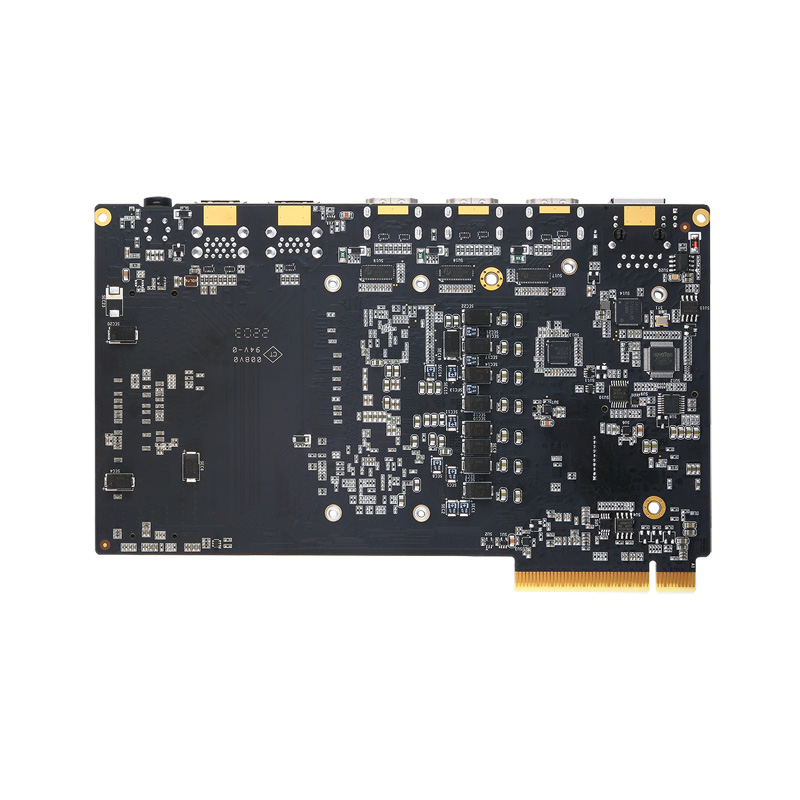

SDM510L

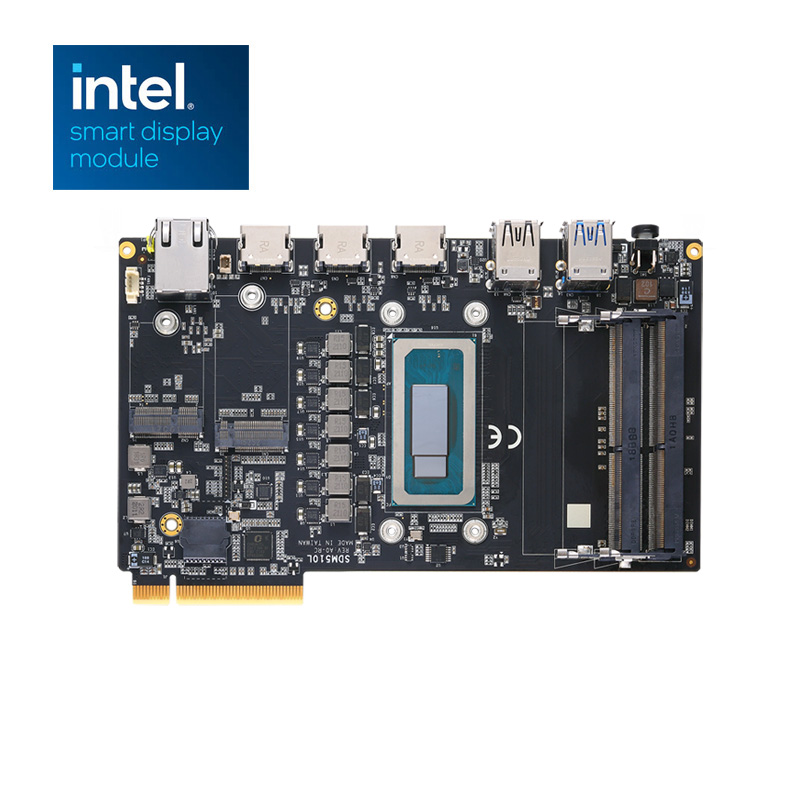

SDM510L
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Smart Display Module (Intel® SDM) specification
  • 12th gen Intel® Core™ i7/i5/i3 or Intel® Celeron®
  • processor (Alder Lake-H/P/U series)
  • 2 DDR4-3200 SO-DIMM
  • M.2 Key E slot
  • M.2 Key M slot
  • 3 HDMI, 3 USB 3.2 Gen2, 1 USB 2.0, and 1 LAN

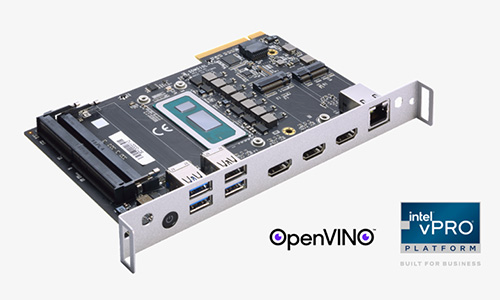

  • Supports Intel® OpenVINO™ and Intel vPro®
Easy to Maintain with SDM design
The design of the SDM510L is based on the plug-and-play Intel® SDM specification, which is easy to upgrade and maintain for saving considerable support costs.
SDM510L
SDM510L
Boost Up Overall Productivity
The SDM510L supports Intel® OpenVINO™ which provides pre-trained machine learning models to execute computer vision and deep learning inference to offer analytics on customer engagement. Additionally, this module is integrated with the Intel vPro® platform allows technicians to monitor and maintain devices remotely even if it is deployed in a hard-to-reach place.

Remarkable Computing Performance

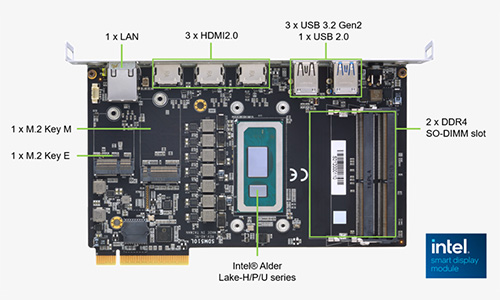

The SDM510L is powered by the 12th generation Intel® Core™ i7/i5/i3 or Intel® Celeron® processors. This module supports two DDR4-3200 SO-DIMM slots, one M.2 Key M 2242 slot for storage, and one M.2 Key E 2230 slot for Wi-Fi/Bluetooth as the expansion for performance upgrade.
Rich Input/Output Interfaces
The SDM510L has an SDM edge connector, three USB 3.2 Gen2, one USB 2.0, and one 2.5GbE LAN for further connection. This ensures handier use according to the needs.
Simultaneous Multi-Displays Support
The SSK515 features Intel® Iris® Xe Graphics (Core™ i7/i5) or Intel® UHD Graphics (Core™ i3 and Celeron®) with one HDMI 2.1 (for 8K60Hz), three HDMI 2.0 (4K60Hz), and one DisplayPort 1.4 which allows connecting quadruple displays with precise color accuracy and wide ranges of colors to deliver crystal-clear images.

Specifications


CPU
  • 12th gen Intel® Core™ i7/i5/i3 or Intel® Celeron® processor (Alder Lake-H/P/U series)
Chipset
  • SoC integrated
System Memory
  • 2 x 260-pin DDR4-3200 SO-DIMM
SDM Edge connector
  • 1 x USB 3.0
  • 1 x HDMI 2.1 (8K60Hz)
  • 1 x DisplayPort 1.4
  • 1 x Serial TX/RX
  • 2 x I2C
I/O
  • 1 x 2.5GbE with Intel® I225; supports Wake-on LAN (Intel® Core™ i7 and i5 support Intel vPro® function)
  • 3 x HDMI 2.0 (4K60Hz)
  • Audio by HDMI
  • 3 x USB 3.2 Gen2
  • 1 x USB 2.0
Storage
  • 1 x M.2 Key M 2242 slot
Expansion
  • 1 x M.2 Key E 2230 slot for Wi-Fi/Bluetooth
Power Input
  • Through SDM golden finger
  • +12V & +3.3VSB
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Dimensions
  • 175 x 100 mm
Weight (net/gross)
  • 252g/340g
Board Thickness
  • 1.6 mm
Operation Humidity
  • 10% - 95% relative humidity, non-condensing
Operating Temperature
  • 0ºC to 60ºC (+32°F to +140°F)

Ordering Information

  • SDM510L-I5H-3H1 (P/N-E38X510L01)
    SDM-L module with Intel® Core™ i5-12600HE processor (45W), 2 SO-DIMM, 1 M.2 SSD, 3 HDMI, 1 LAN, 3 USB 3.2 Gen2, and 1 USB 2.0
  • SDM510L-I3U-3H1 (P/N-E38X510L00)
    SDM-L module with Intel® Core™ i3-1215UE processor (15W), 2 SO-DIMM, 1 M.2 SSD, 3 HDMI, 1 LAN, 3 USB 3.2 Gen2, and 1 USB 2.0
  • SDM510L-CLU-3H1 (P/N-E38X510L02)
    SDM-L module with Intel® Celeron 7305E processor (15W), 2 SO-DIMM, 1 M.2 SSD, 3 HDMI, 1 LAN, 3 USB 3.2 Gen2, and 1 USB 2.0
  • 8812T1500A0E
    Wi-Fi kit
  • M.2 SSD
    M.2 Key B 2242; 64GB to 256GB
  • DDR4 SO-DIMM
    DDR4 4GB to 32GB

Download

Drivers

Date Description Version Download File
2023/06/30 Wifi VA1.1
2023/06/30 Chipset VA1.1
2023/06/30 ME VA1.1
2023/06/30 Ethernet VA1.1
2023/06/30 Serial IO VA1.1
2023/06/30 Graphics VA1.1

Software

Manual

Date Description Version Download File
2023/05/30 user's manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/06/05 CE LVD Verification
2023/06/05 UKCA Declaration of Conformity
2023/06/05 FCC Verification
2023/06/05 CE EMC Verification
2023/06/05 CE-Conformity Declaration
