SDM310S

Status : Available

Intel® Smart Display Module Small (Intel® SDM-S) with Intel® Celeron® Processor J6412

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
SDM310S
SDM310S
SDM310S
SDM310S
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Smart Display Module (Intel® SDM) specification
  • Intel® Celeron® processor J6412 (Elkhart Lake)
  • 4GB LPDDR4 memory onboard (8GB optional)
  • 64GB eMMC onboard (128G optional)
  • Supports two 4K 60Hz
  • Two Type C (USB 3.2) and one GbE LAN
  • Small design for easy integration into slim displays
  • Optimized for digital signage, public kiosks, professional monitors, point-of-sale
  • Projections for magic mirrors, beside terminals, hospitality, and more

Specifications


CPU
  • Intel® Celeron® processor J6412 (Elkhart Lake)
Chipset
  • SoC integrated
System Memory
  • LPDDR4 4GB memory onboard (8GB optional)
SDM Edge connector
  • 1 x USB 3.0
  • 1 x HDMI 2.0b
  • 1 x DisplayPort 1.2a
  • 1 x Serial TX/RX
  • 2 x I2C
  • 1 x PCIe x1

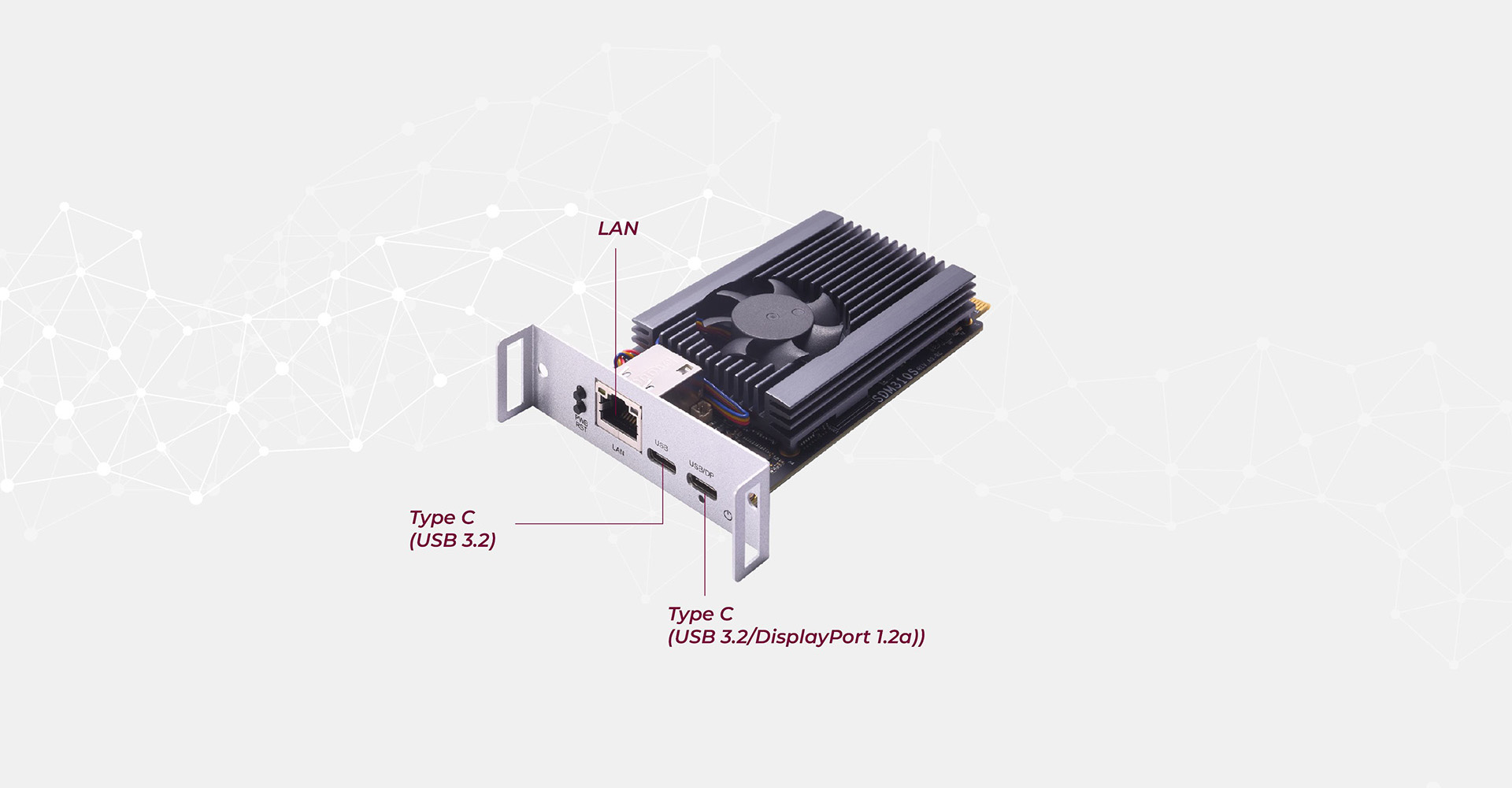

I/O
  • 1 x 10/100/1000 Mbps with RTL8111H
  • 1 x Type C (USB 3.2 Gen2/DisplayPort 1.2a 4K@60Hz)
  • 1 x Type C (USB 3.2 Gen2)
Storage
  • 64GB eMMC onboard (128G optional)
Expansion
  • 1 x PCIe x1
Power Input
  • +12V & +3.3VBS
  • Intel® UHD Graphics
Watchdog Timer
  • 255 levels, 1 to 255 sec./min.
Dimensions
  • 100 x 60 mm
Weight (net/gross)
  • 146g/226g
Board Thickness
  • 1.6 mm
Operation Humidity
  • 10% to 95% relative humidity, non-condensing
Operating Temperature
  • 0°C to +55°C (+32°F to +131°F)

Ordering Information

  • SDM310S-J6412-4G64G
    SDM-S module with Intel® Celeron® processor J6412, LPDDR4 4GB, eMMC 64GB, 1 LAN, 1 Type C (USB 3.2), 1 Type C (USB 3.2/DisplayPort 1.2a)

Download

This object is currently under update, please visit later.
