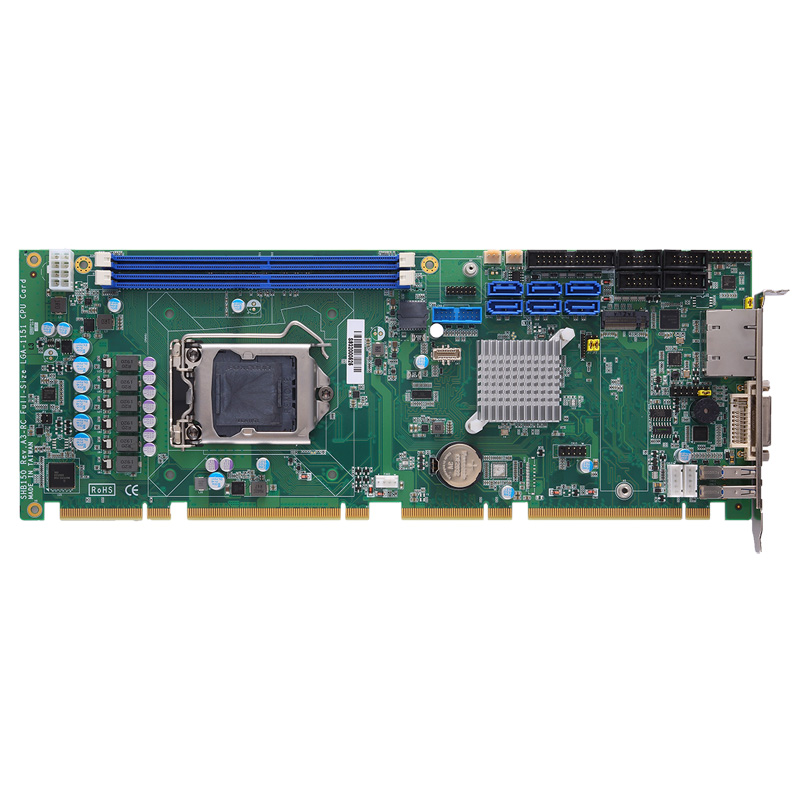

SHB150R

Status : Available

PICMG 1.3 Full-size CPU Card with LGA1151 Socket 9th/8th Gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® Processor, Intel® C246/Q370/H310, SATA 3.0, USB 3.2 Gen1/Gen2, Dual LAN, and DVI-I

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
SHB150R
Fanless

Fanless

AXView

AXView

E-Mark

E-Mark

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E (Intel® C246), Pentium® or Celeron® processor (up to 95W)
  • Intel® C246/Q370/H310 chipset
  • 2 DDR4-2666/2400 Long-DIMM for up to 64GB of memory
  • Supports Intel® AMT and vPro (Intel® C246/Q370)
  • Supports TPM 2.0 (optional)
  • Supports M.2 Key M (Intel® C246/Q370)

The SHB150R is a PICMG 1.3 single board computer with scalable CPU options including the Intel® Xeon®, 9th/8th generation Intel® Core™, Intel® Pentium® or Intel® Celeron® processors with the Intel® C246/Q370/H310 chipset. The system host board has a maximum of six SATA-600 ports supporting software RAID 0/1/5/10 for data redundancy. It comes with two 288-pin DDR4-2666/2400 Long-DIMM sockets with up to 64GB of system memory. It has one M.2 Key M 2280 SSD slot with a PCIe x4 interface (Intel® C246 or Q370). The full-size PICMG 1.3 system host board delivers a true high definition visual experience with the Intel® HD Graphics and offers triple display configurations (Intel® C246 or Q370) via DVI-I and DisplayPort++ (internal header) ports. For reliable operation in harsh environments, the SHB150R is capable of withstanding a wide operating temperature range of 0°C to 60°C. It is compatible with Windows® 10 and Linux operating systems. The SHB150R features rich I/O options and high-speed transfer interfaces as well as superior graphics capability, making it an ideal solution for smart factory automation.

Specifications


CPU
  • LGA1151 Socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E (C246), Pentium® or Celeron® processor (up to 95W)
Chipset
  • Intel® C246/Q370 (Intel® vPro supported)
  • Intel® H310
System Memory
  • Intel® C246: 2 x 288-pin 2666/2400 with ECC un-buffered Long-DIMM (Intel® Core™ i7/i5 only supports non-ECC), up to 64GB
  • Intel® Q370/H310: 2 x 288-pin 2666/2400 un-buffered Long-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 2 x RS-232
  • 2 x RS-232/422/485, mode selection by SW
USB
  • Intel® C246/Q370: 2 x USB 3.2 Gen2x1, 4 x USB 3.2 Gen1x1 & 6 x USB 2.0 (2 ports onboard, 4 ports on SHB connector-C golden fingers)
  • Intel® H310: 4 x USB 3.2 Gen1x1 & & 6 x USB 2.0 (2 ports onboard, 4 ports on SHB connector-C golden fingers)
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® I219-LM; AMT)
  • 1 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x DVI-I
  • 1 x DisplayPort++ (internal header)
Digital I/O
  • N/A
Audio
  • HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out with audio kit AX93242 (optional)
Storage
  • M.2 Key M 2280, PCIe x4 signal (C246, Q370)
  • C246/Q370: 6 x SATA-600, support RAID 0/1/5/10
  • H310: 4 x SATA-600
Expansion
  • 1 x PCIe x16 Gen3
  • 1 x PCIe x4 or 4 x PCIe x1 Gen3
  • 4 x 32-bit PCI bus masters
Others
  • 1 x PS/2 keyboard internal connector
  • 1 x PS/2 mouse internal connector
  • TPM 2.0 module (optional)
  • 1 x LPT
  • 1 x Smart CPU fan
  • 1 x Smart system fan
Battery
  • Lithium 3V/220 mAH
Power Requirements
  • Intel® Core™ i7-9700TE with 32GB 2 x DDR4-2666
  • +12V @ 2.8A, +5V @ 2.4A, +3.3V @ 1.3A
Watchdog Timer
  • 225 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 338 x 126 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • SHB150RDGG-Q370 (P/N-E38C150106)
    PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® Q370, DVI-I, 2 GbE LAN, and PCIe x4
  • SHB150RDGG-Q370 (P/N-E38C150107)
    PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® Q370, DVI-I, 2 GbE LAN, and PCIe x1
  • SHB150RDGG-H310 (P/N-E38C150108)
    PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® H310, DVI-I, 2 GbE LAN, and PCIe x4
  • SHB150RDGG-H310 (P/N-E38C150109)
    PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® H310, DVI-I, 2 GbE LAN, and PCIe x1
  • SHB150RDGG-C246 (P/N-E38C150110)
    PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® C246, DVI-I, 2 GbE LAN, and PCIe x4
  • SHB150RDGG-C246 (P/N-E38C150111)
    PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® C246, DVI-I, 2 GbE LAN, and PCIe x1
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5948C122800E
    1 x Dual USB 3.2 (Gen1x1) cable with bracket, L=400 mm
  • 59401502800E
    1 x Dual USB 3.2 (Gen2x1) cable with bracket, L=400 mm
  • 59380000290E
    PS/2 keyboard & mouse cable with bracket
  • 593826A0000E
    SATA signal cable/red, L=500mm
  • E393242100
    AX93242-RC HD audio converter kit
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 594826A0010E
    DVI-I to DVI-D+VGA Y cable
  • 83935151000E
    TPM 2.0 module (AX93515)
  • 83987091000E
    DisplayPort++ kit with bracket
