SHB215

Status : Available

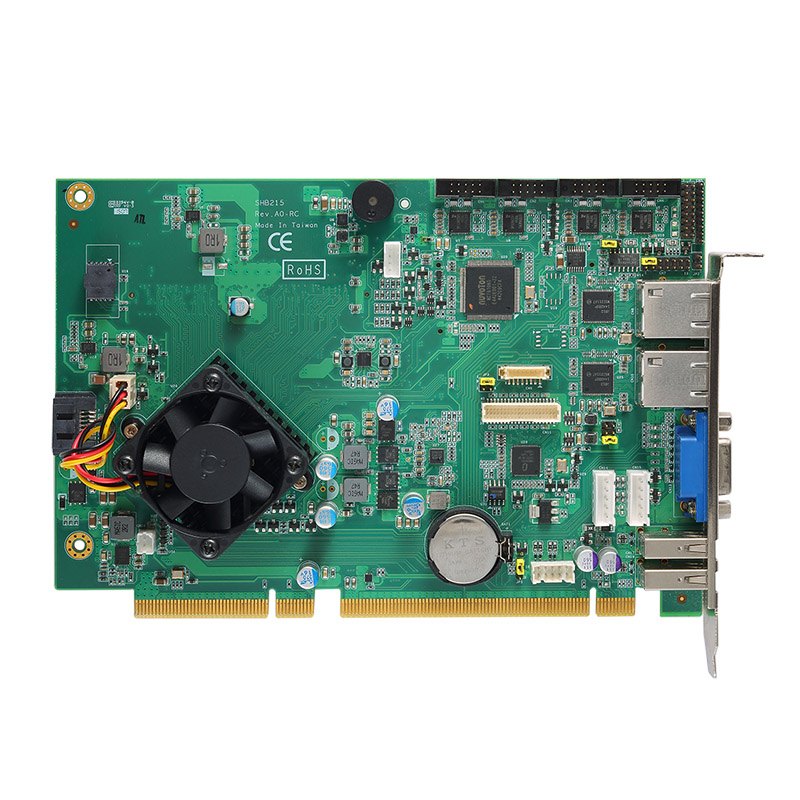

PICMG 1.3 Half-size CPU Card with Intel® Celeron® Processor J1900 (up to 2.42 GHz), SATA2, CFast™, VGA, LVDS and Dual LANs

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
SHB215
Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Celeron® processor J1900 up to 2.42 GHz
  • 1 DDR3L-1333/1600 SO-DIMM, up to 8GB
  • VGA and LVDS with dual-view supported
  • 1 CFast™ socket onboard

Specifications


CPU
  • Intel® Celeron® processor J1900 (up to 2.42 GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333/1600, up to 8GB
BIOS
  • AMI
COM
  • 4 x RS-232/422/485
USB
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x VGA
  • 1 x LVDS
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x CFast™
Expansion
  • 1 x PCIe x16
  • 1 x PCIe x4 or 4 PCIe x1
Others
  • 1 x PS2 keyboard & mouse
  • SMBus
Battery
  • Lithium 3v/220 mAH
Power Requirements
  • Intel® Celeron® Processor J1900, 2GB DDR3L
  • +5V @ 1.69A, +12V @ 2.01A, +3.3V @ 1.87A
Watchdog Timer
  • 225 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% - 95% relative humidity, on-condensing
Dimensions
  • 185 x 126 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • SHB215VGG (P/N
    E38C215100)
  • 59380000290E
    PS2 keyboard & mouse cable with bracket
  • 59409222800E
    Stack USB 2.0 cable, L=260mm

Download

Drivers

Date Description Version Download File
2017/09/27 Win10_Driver_TXE VA1.0
2017/09/27 Win10_Driver_ Sideband Fabric VA1.0
2017/09/27 Win10_Driver_LAN VA1.0
2017/09/27 Win10_Driver_Graphic VA1.0
2017/09/27 Win10_Driver_Chipset VA1.0
2017/09/27 Win8_Driver_TXE VA1.0
2017/09/27 Win8_Driver_ Sideband Fabric VA1.0
2017/09/27 Win8_Driver_LAN VA1.0
2017/09/27 Win8_Driver_Graphic VA1.0
2017/09/27 Win8_Driver_Chipset VA1.0
2017/09/27 Win7_Driver_TXE VA1.0
2017/09/27 Win7_Driver_ Sideband Fabric VA1.0
2017/09/27 Win7_Driver_LAN VA1.0
2017/09/27 Win7_Driver_Graphic VA1.0
2017/09/27 Win7_Driver_Chipset VA1.0

Software

Manual

Date Description Version Download File
2017/09/27 User's Manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/10 UKCA Declaration of Conformity
