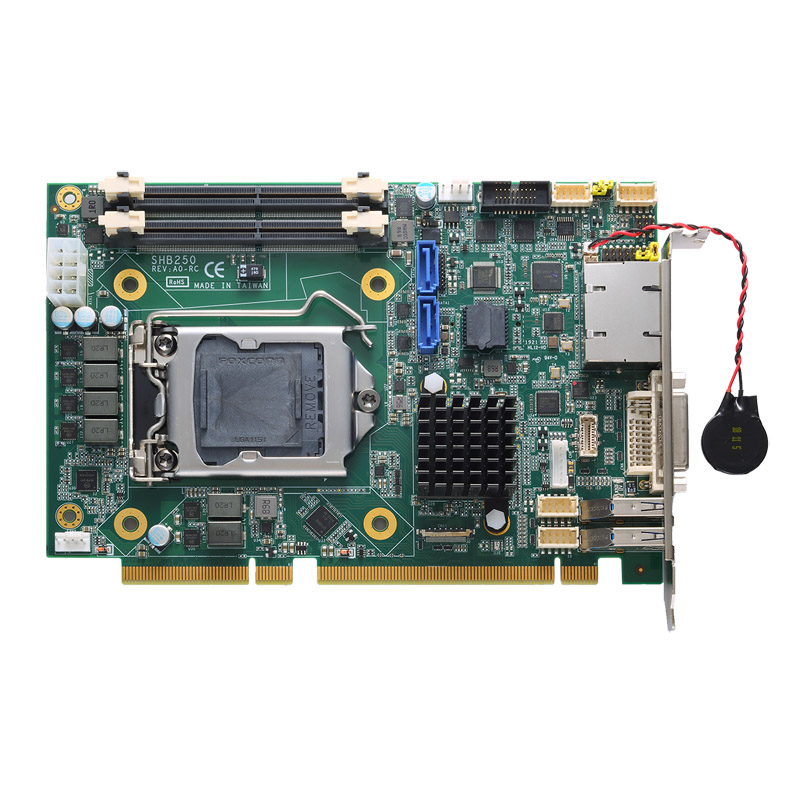

SHB250R

Status : Available

PICMG 1.3 Half-size CPU Card with LGA1151 Socket 9th/8th Gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® Processor, Intel® C246/Q370/H310, SATA 3.0, USB 3.2 Gen1x1, LAN and DVI-I

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
SHB250R
Fanless

Fanless

Microsoft Azure

Microsoft Azure

AXView

AXView

E-Mark

E-Mark

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E (C246), Pentium® or Celeron® processor
  • Intel® C246/Q370/H310 chipset
  • 2 DDR4-2666/2400 SO-DIMM for up to 64GB of memory
  • Supports M.2 slot
  • Supports Intel® AMT and vPro (C246/Q370)
  • TPM 2.0 supported

The SHB250R supports multi-level CPU options including the LGA1151 9th/8th generation Intel® Core™ (code name: Coffee Lake Refresh), Intel® Xeon® E, Intel® Pentium® or Intel® Celeron® processor with the Intel® C246/Q370/H310 chipset. It comes with two 260-pin DDR4-2666/2400 SO-DIMM sockets for up to 64GB of system memory. The half-size slot CPU card has two SATA-600 ports supporting software RAID 0/1/5/10 for data redundancy. The PICMG 1.3 system host board has one M.2 Key M 2242 SSD slot with a PCIe 3.0 x4 or SATA-3 interface. The system host board delivers superior graphics performance with the Intel® HD Graphics and offers triple display configurations via DVI-I and DisplayPort++ (internal header) ports.The SHB250R comes ahead of the industry, offering increased computing efficiency, rugged design, flexible I/O expandability as well as superior graphics capability to satisfy the requirements of AIoT-centric applications in the field of intelligent transportation, factory automation, cloud infrastructure, intelligent agriculture or intelligent digital surveillance

Specifications


CPU
  • LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E (C246), Pentium® or Celeron® processor (8th up to 95W, 9th up to 35W)
Chipset
  • Intel® C246/Q370 (Intel® vPro supported)
  • Intel® H310
System Memory
  • C246: 2 x 260-pin 2666/2400 with ECC un-buffered SO-DIMM, up to 64GB (Intel® Core™ i7/i5 only support non-ECC)
  • Q370/H310: 2 x 260-pin 2666/2400 un-buffered SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485, mode selection by SW
USB
  • 4 x USB 3.2 Gen1x1 (2 ports in I/O, 2 ports in interanal box header)
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® I219-LM; AMT)
  • 1 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x DVI-I
  • 1 x DisplayPort++ (internal header)
Digital I/O
  • 8-channel programmable
Audio
  • HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out with Realtek ALC888
Storage
  • M.2 Key M 2242 (Q370/C246 support PCIe 3.0 x4 or SATA-3, H310 supports SATA-3)
Expansion
  • 1 x PCIe x16 Gen3
  • 1 x PCIe x4 or 4 x PCIe x1 Gen3
Others
  • 1 x PS/2 keyboard & mouse internal connector
  • TPM 2.0
Battery
  • Lithium 3V/220 mAH
Power Requirements
  • Intel® Core™ i7-9700TE, 32GB DDR4-2666 x 2
  • +5V @ 0.2A, +12V @ 3.8A, +3.3V @ 0.8A
Watchdog Timer
  • 225 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to 60°C (32°F to 140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 185 x 126 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • SHB250RDGG-Q370 (P/N-E38C250100)
    PICMG 1.3 half-size CPU card with LGA1151 socket, Intel® Q370, DVI-I, 2 GbE LAN, audio, and PCIe x4
  • SHB250RDGG-H310 (P/N-E38C250102)
    PICMG 1.3 half-size CPU card with LGA1151 socket, Intel® H310, DVI-I, 2 GbE LAN, audio, and PCIe x4
  • SHB250RDGG-C246 (P/N-E38C250101)
    PICMG 1.3 half-size CPU card with LGA1151 socket, Intel® C246, DVI-I, 2 GbE LAN, audio, and PCIe x4
  • 59380000300E
    2 x COM port, with bracket, P=1.27 x 2.54, L=300 mm
  • 59401502800E
    1 x USB 3.2 Gen1x1 cable with bracket 20P, L=400 mm
  • 59382631000E
    2 x USB 2.0 cable with bracket 180 mm
  • 594C2302500E
    PS/2 keyboard & mouse cable
  • 593826A0000E
    SATA signal cable/red, L=500mm
  • 594826A0010E
    DVI-I to DVI-D+VGA Y cable
  • 83987091000E
    DisplayPort++ kit

Download

Drivers

Date Description Version Download File
2020/07/21 6. Intel RST Driver VA1.0
2020/07/21 5. Intel ME Driver VA1.0
2020/07/21 4.Intel LAN Driver VA1.0
2020/07/21 3. Realtek Audio Driver VA1.0
2020/07/21 2. Intel Graphic Driver VA1.0
2020/07/21 1. Intel Chipset Driver VA1.0

Software

Manual

Date Description Version Download File
2023/01/17 User's Manual VA3.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/10 UKCA Declaration of Conformity
