Q7B300

Status : Available

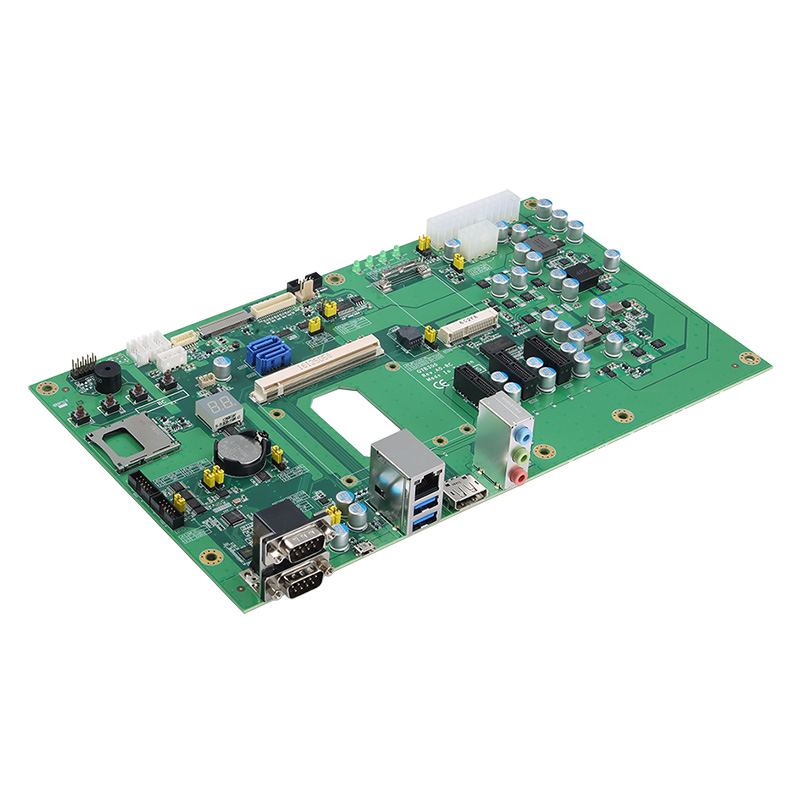

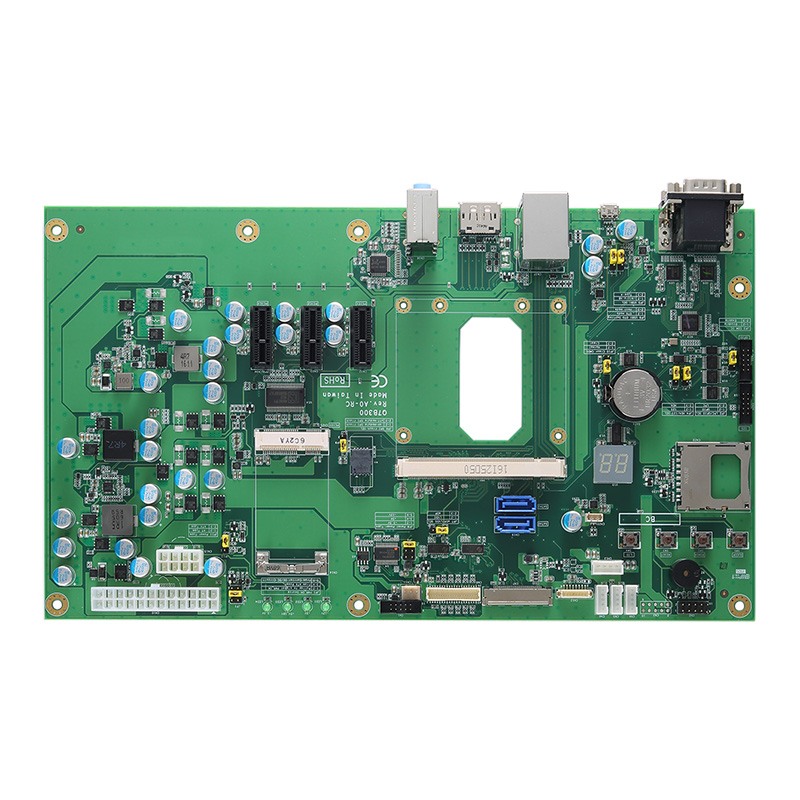

Qseven Rev 2.1 Development Baseboard

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
Q7B300
Q7B300
PoE

PoE

Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Qseven module evaluation purpose
  • 1 Gigabit Ethernet port
  • 2 SATA connectors
  • 2 RS-232/422/485 & 1 RS-232
  • 3 PCIe x1 slots
  • 3 USB 3.0, 1 micro USB 2.0 port (optional)
  • 1 PCI Express Mini Card slot (PCIe+USB+SMBus)
  • 1 SD card slot
  • 1 LVDS (or eDP)/DP connector

Specifications


CPU
  • On the module
Chipset
  • On the module
System Memory
  • On the module
BIOS
  • On the module
COM
  • 2 x RS-232/422/485
  • 1 x RS-232 (RX/TX/RTS/CTS)
USB
  • 3 x USB 3.0
  • 1 x Micro USB 2.0 port (optional)
Ethernet
  • 1 x 10/100/1000Mbps
Display
  • 1 x LVDS
  • 1 x eDP connector (switchable to LVDS with jumper setting)
  • 1 x DisplayPort
Audio
  • MIC-in/Line-out
GPIO
  • 4-IN & 4-OUT
I2C
  • 1 x I2C
CAN
  • N/A
SPI
  • N/A
Storage
  • 2 x SATA-600
Expansion
  • 1 x PCI Express Mini Card slot (SD full-size)
  • 3 x PCIe x1
  • 1 x SD Card slot
Others
  • 1 x SMBus
Battery
  • Lithium 3V/220 mAH.
Power Requirement
  • AT/ATX power
Watchdog Timer
  • On the module
Hardware Monitoring
  • Yes
Operating Temperature
  • -20ºC ~ +70ºC (-40ºF ~ +185ºF)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 293.4 x 171.5 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • Q7B300 (P/N- E399300100)
    Qseven Rev 2.1 development board

Download

Drivers

Software

Manual

Date Description Version Download File
2018/11/20 User Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/08 UKCA Declaration of Conformity
