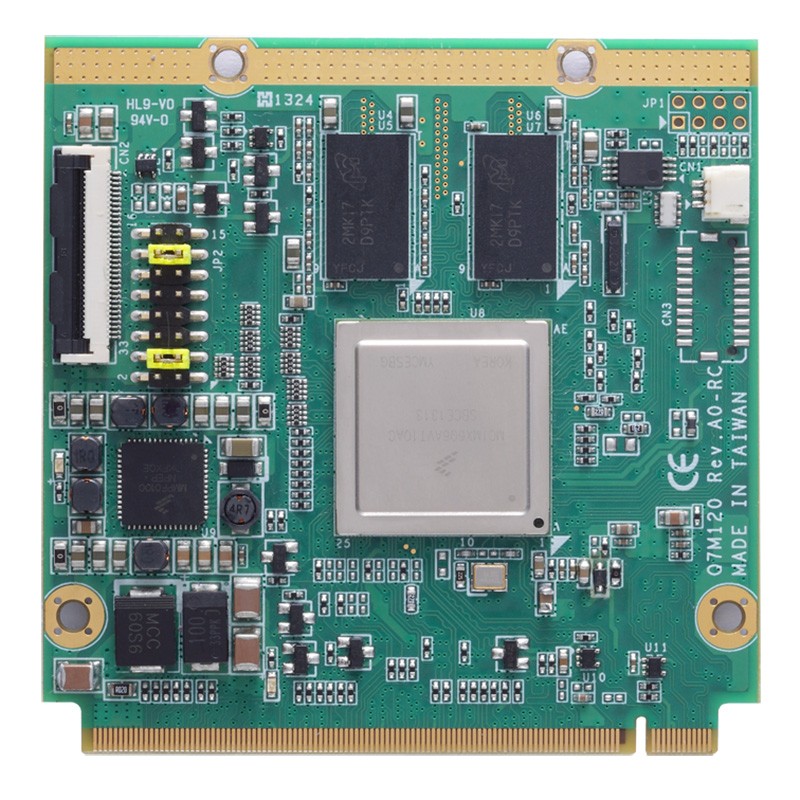

Q7M120



CPU	Freescale i.MX6 Series SoC with Quad/DualLite/Solo ARM Cortex™-A9 CPU 800 MHz/1 GHz (only Solo)
Chipset	SoC integrated
System Memory	Onboard DDR3-1600, up to 1GB
BIOS	N/A
COM	4 x COM with TX/RX/RTS/CTS (1 with 3.3V TTL level) 1 x Console port
USB	1 x USB 2.0 1 x OTG client
Ethernet	1 x 10/100/1000Mbps
Display	1 x 24-bit TTL signal 2 x Signal channel 24-bit LVDS 1 x HDMI 1080P
Audio	1 x Audio (Mic-in/Headphone)
GPIO	8 button-detect
I2C	3 x I2C
CAN	2 x CANBus 2.0B
SPI	1 x SPI
Storage	1 x eMMC flash 4 GB 1 x SDIO interface SATA interface (Quad cores CPU)
Expansion	1 x PCIe x1
Others	N/A
Battery	Battery on the Baseboard is required
Power Requirement	+5V, 1A
Watchdog Timer	N/A
Hardware Monitoring	N/A
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	10% - 95%, non-condensing
Dimensions	70 x 70 mm
Board Thickness	1.2 mm ± 0.1mm
Certifications	CE
