Q7M311

Status : Available

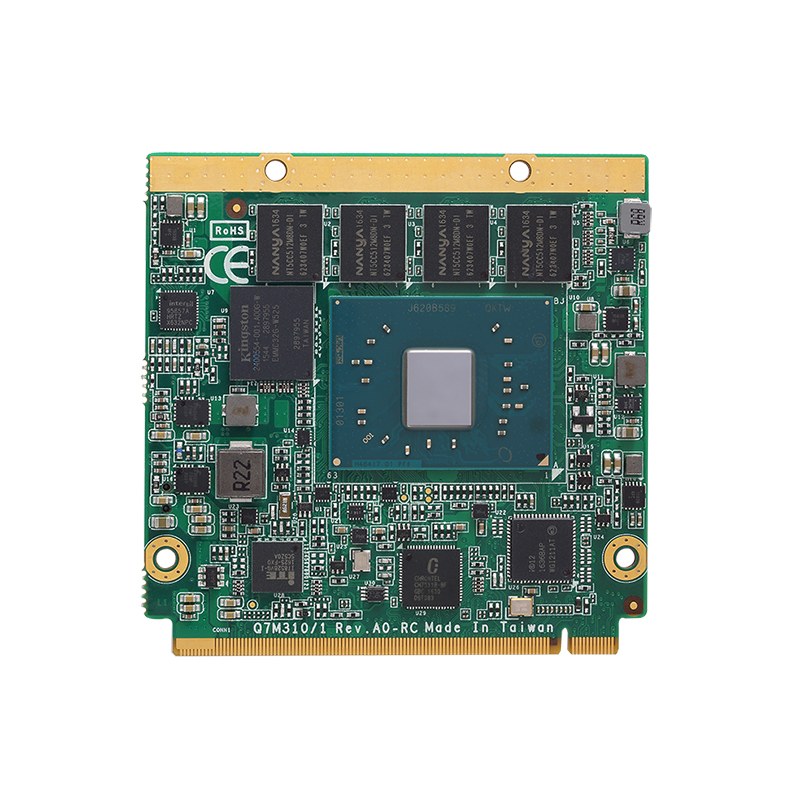

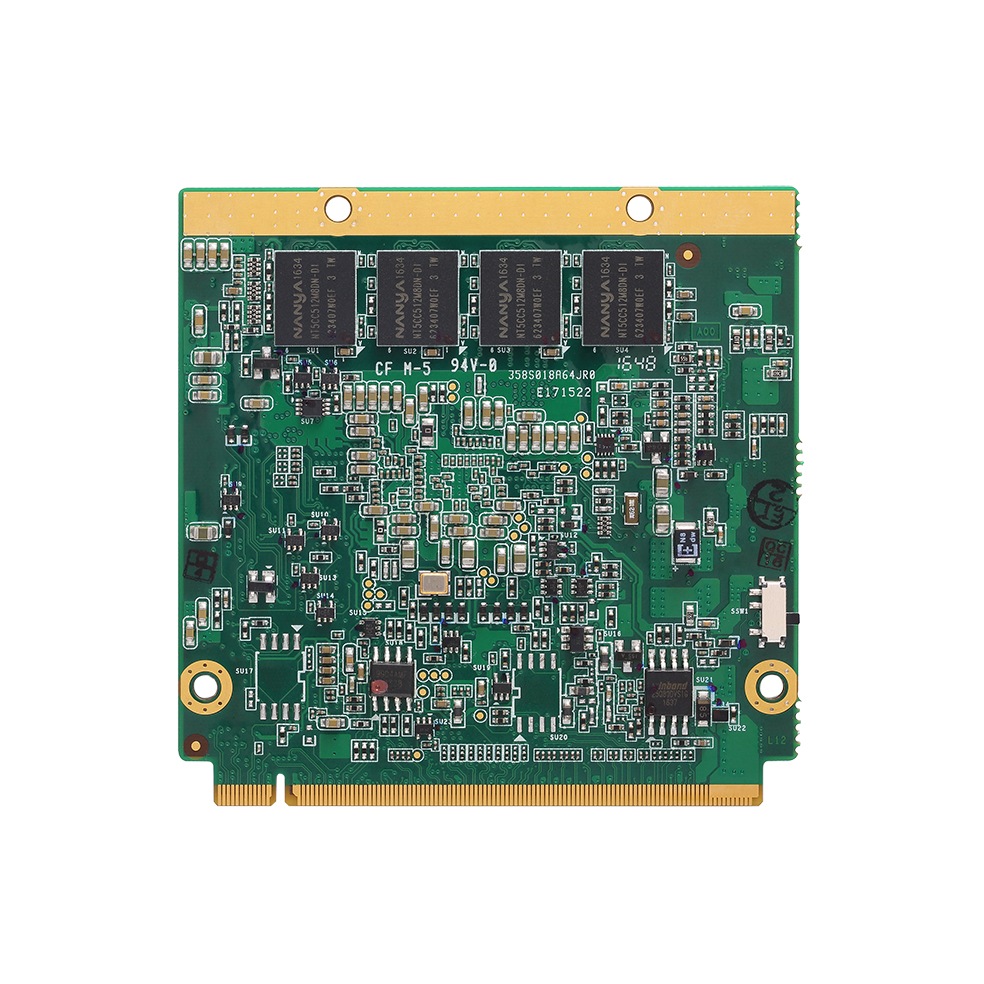

Qseven Module with Intel® Pentium® Processor N4200 & Celeron® Processor N3350

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
Q7M311
Q7M311
Fanless

Fanless

UL1604

UL1604

TripleView

TripleView

Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Pentium® processor N4200 & Celeron® processor N3350 (Apollo Lake)
  • Onboard 4GB DDR3L memory
  • 4 lanes of PCI Express slot
  • 2 SATA-600
  • 3 USB 3.0 and 4 USB 2.0

The Q7M311 has adopted the 14nm Intel® Pentium® N4200 and Celeron® N3350 quad-core/dual-core processors (codename: Apollo Lake). The extremely small embedded module supports 4GB (or optionally up to 8GB) DDR3L memory onboard and 32GB eMMC flash memory (optional). With a seismic design and for industrial-grade temperatures, both the CPU and the DDR3L RAM are soldered to deliver reliable and excellent computing performance. With rich features embedded in all the components built in a small form factor, the industrial-grade computer-on-module is aimed for industrial IoT applications, including industrial control, medical imaging, digital signage, gaming machines, military, and networking.

Specifications


CPU
  • Intel® Pentium® processor N4200 & Celeron® processor N3350 onboard
Chipset
  • SoC integrated
System Memory
  • Onboard 4GB DDR3L memory
BIOS
  • AMI
COM
  • 1 x Serial TX/RX
USB
  • 3 x USB 3.0
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® I210)
Display
  • 1 x DDI (DisplayPort, HDMI, DVI)
  • 1 x LVDS (eDP optional)
Audio
  • HD link interface to baseboard for Codec
GPIO
  • 8 x GPIO
I2C
  • 1 x I2C
CAN
  • N/A
SPI
  • 1 x SPI interface
Storage
  • eMMC 5.0 up to 64GB (optional)
  • 2 x SATA-600
Expansion
  • 4 x PCIe x1 (3 x PCIe x1 if onboard LAN is supported)
Others
  • 1 x LPC interface (optional)
  • 1 x SDIO
  • SMBus
  • Smart Battery
Battery
  • N/A
Power Requirement
  • ATX: 5V, +5VSB
  • AT: 5V
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +70°C (-4°F to +158°F)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 70 x 70 mm
Board Thickness
  • 1.2 mm
Certifications
  • CE

Ordering Information

  • Q7M311PG-N4200-4G (P/N-E38Q311102)
    Qseven module with Intel® Pentium® N4200, 4GB DRAM, DDI/LVDS, USB 3.0 and GbE LAN
  • Q7M311PG-N3350-4G (P/N-E38Q311100)
    Qseven module with Intel® Celeron® N3350, 4GB DRAM, DDI/LVDS, USB 3.0 and GbE LAN
  • 7128Q311000E
    Q7M311 heat spreader
  • 7118Q311000E
    Q7M311 heatsink without fan

Download

Drivers

Date Description Version Download File
2018/11/20 LAN Driver VA1.3
2018/11/20 Serial IO Driver VA1.3
2018/11/20 Graphic Driver VA1.3
2018/11/20 TXE Driver VA1.3
2018/11/20 Chipset Driver VA1.3

Software

Manual

Date Description Version Download File
2018/11/20 User Manual VA1.3
2018/11/20 Quick Manual VA1.3

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/08 UKCA Declaration of Conformity
2017/08/21 CE-Conformity Declaration
