SSK315

Status : Available

15.6" Self-Service Kiosk with Intel® Smart Display Module (SDM) CPU Card, Direct Bonding PCAP, 2D Barcode Scanner, Thermal Printer, and NFC

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

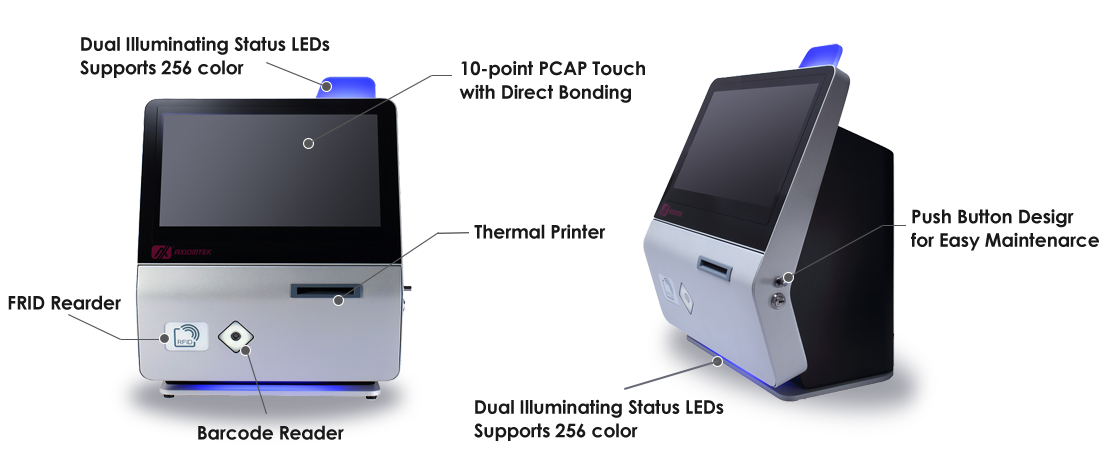

  • 15.6" optical bonding LCD with wide viewing angle and 400 nits of brightness
  • Supports Intel® Smart Display Module Small (Intel® SDM-S) and Intel® Smart Display Module Large (Intel® SDM-L)
  • Push button design for easy maintenance
  • Supports floor stand and counter-top stand
  • Dual illuminating status LEDs
  • Modular design
  • All-in-one seamless design

Axiomtek's kiosk products are designed to deliver rich features, ease of customization, and fast time-to-market to OEM and ODM customers in an attractive package. They offer high reliability, easy upgrade, fool-proofed operation, and maintenance for retail, grocery, hospitality, and quick-service restaurant chains. Airports, other mass transit, and medical facilities can also utilize its add-on features such as an antimicrobial surface for protection from viruses and bacteria, and rich interfaces including those for sensors and cameras to incorporate temperature screening and touchless functionalities. Axiomtek's kiosks offer a perfect balance of beauty, features, functionality, practicality, and value.

SSK315

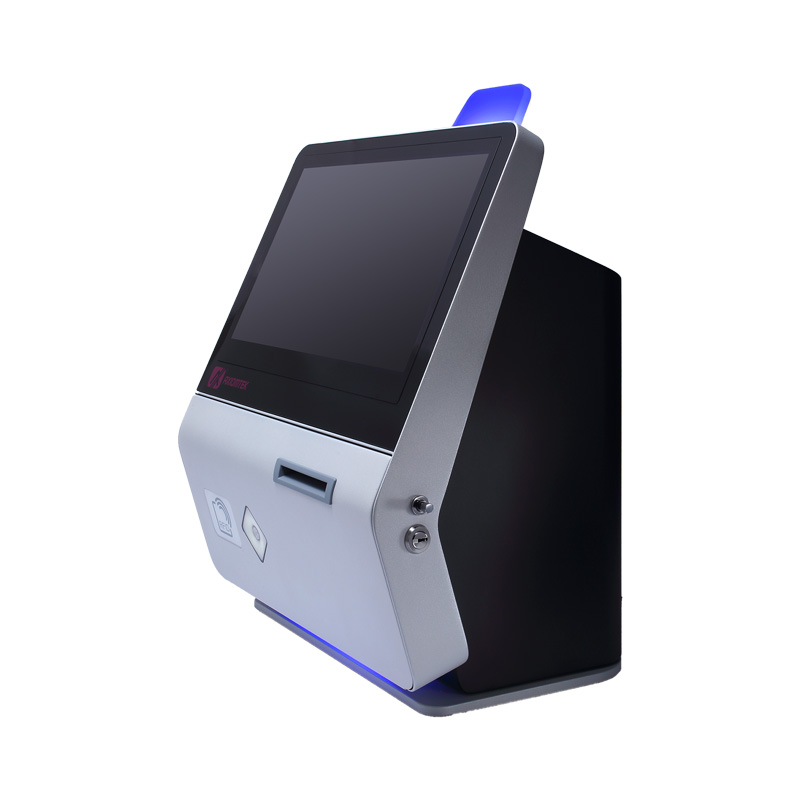

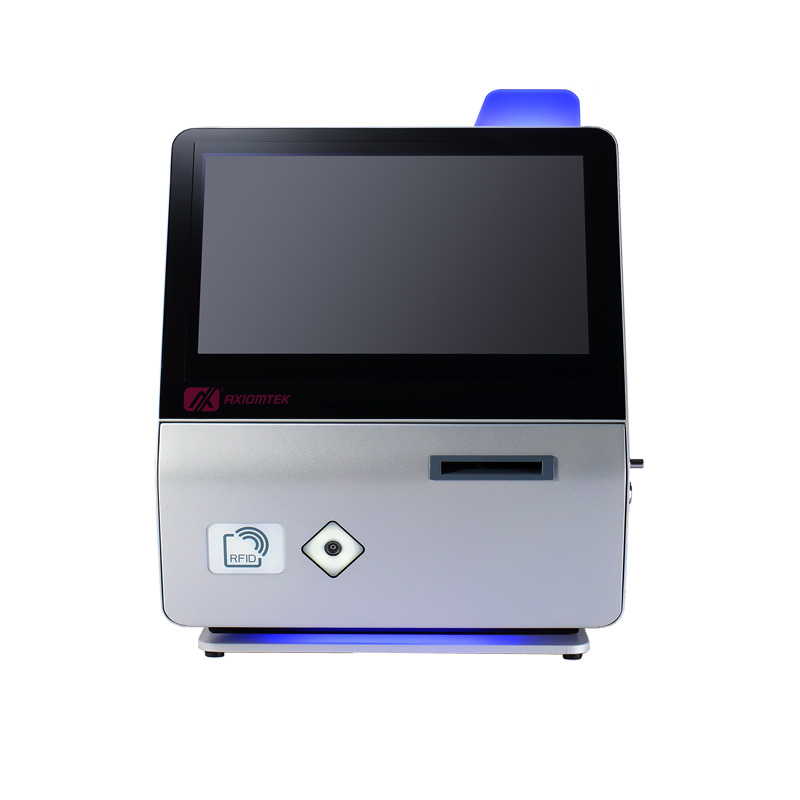

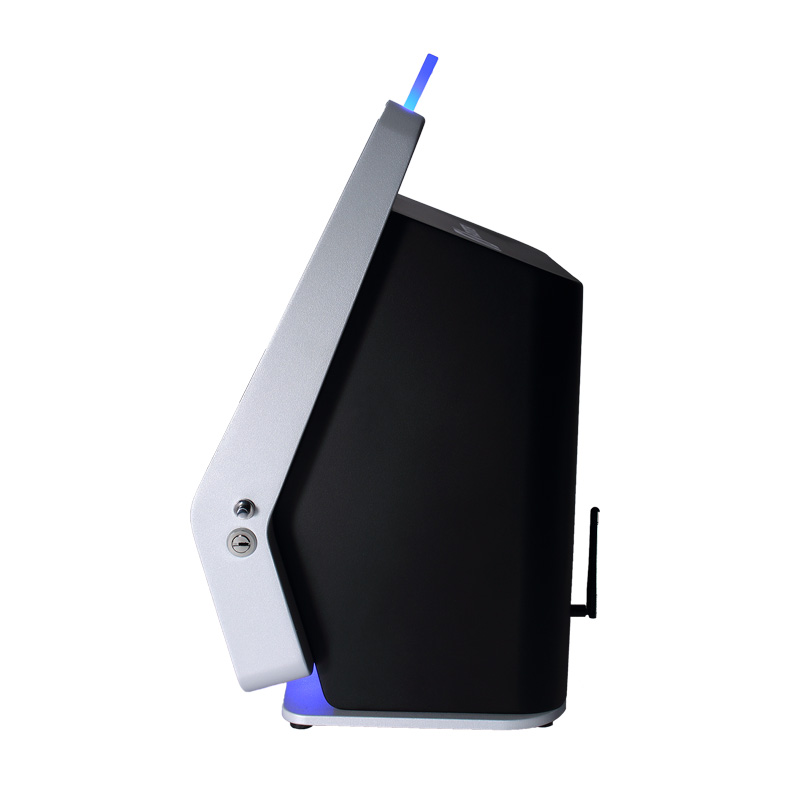

Axiomtek's Regata kiosk (SSK315) offers a compact footprint, seamlessly integrated hardware peripherals, modular construction, and an attractive design. The product can be customized with choices of multi-functional stands and peripheral interfaces. It is optimized for self-check-in functions with an IC card printer, a 13.56 NFC reader, 1D/2D barcode capability and thermal 2”/3” printer support. The SSK315 offers a perfect balance of function and aesthetics needed for Front of House/lobby display.

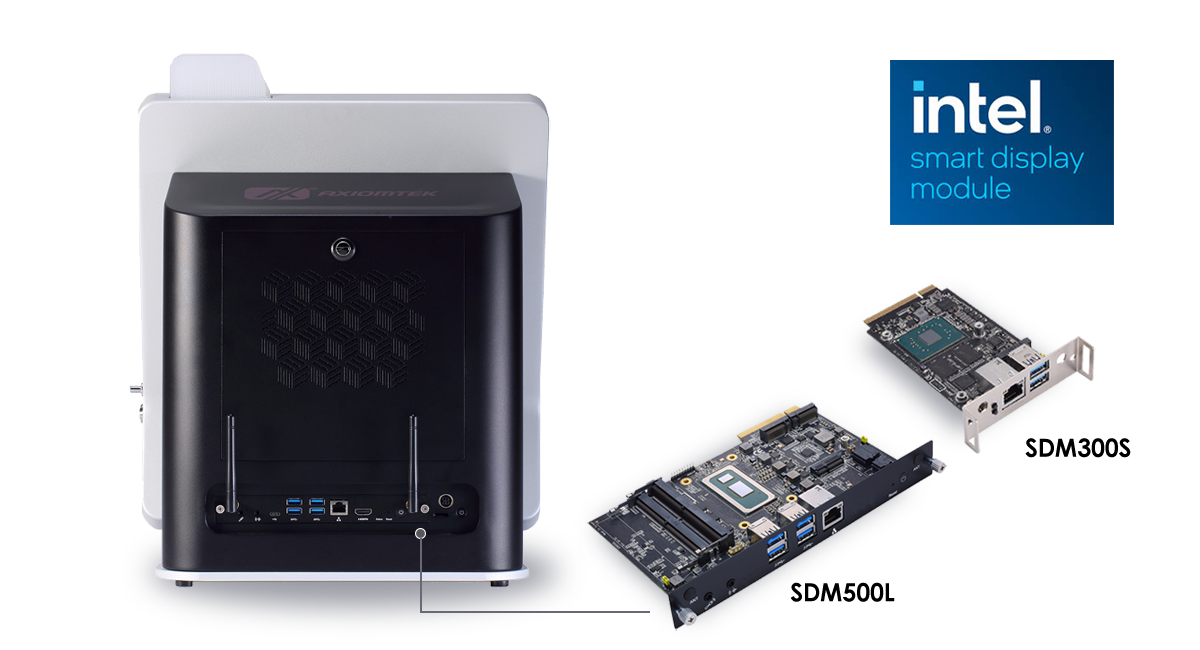

SSK315 with SDM module

Specifications

Display
  • LCD Panel Size: 15.6 " FHD TFT
  • Brightness (cd/m ): 400 nits
  • Resolution:1920 (H) x 1080 (V)
  • Aspect Ratio: 16:9
  • Touchscreen: 10-point projected capacitive touch with direct bonding
System
  • Intel® SDM Small (SDM300-S, 60 x 100 mm):
  • Quad-core Intel® Pentium® N4200 processor, 1.1GHz
  • Intel® HD Graphics 505/500
  • Onboard LPDDR4 2400 MHz 4GB (8GB optional)
  • 1 x eMMC 64GB onboard
  • 1 x M.2 Key E 2230 slot (for the Wi-Fi/4G LTE)

  • Intel® SDM Large (SDM500-L, 175 x 100 mm):
  • Intel® Core™ i5-8365UE processor, 1.6GHz
  • Intel® Core™ i3-8145UE processor, 2.2GHz
  • Intel® Celeron® 4305UE processor, 2.0GHz
  • Intel® UHD Graphics 620/610
  • 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB
  • 1 x M.2 Key B 2280 slot
  • 1 x M.2 Key E 2230 slot (for the Wi-Fi/4G LTE)

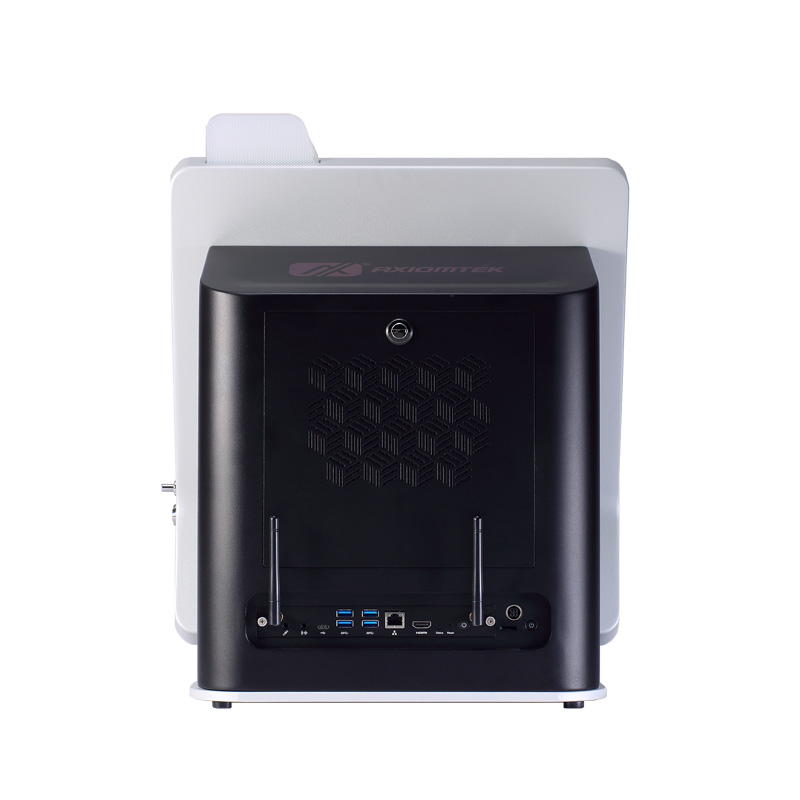

I/O
  • Intel® SDM Small (SDM300-S, 60 x 100 mm):
  • 1 x GbE LAN
  • 2 x USB 3.0 Type A
  • 2 x SMA antenna reserved hole

  • Intel® SDM Large (SDM500-L, 175 x 100 mm):
  • 1 x GbE LAN
  • 2 x USB 3.0 Type A
  • 2 x USB 3.0 Type C
  • 1 x Line-out
  • 1 x Mic-in
  • 2 x SMA antenna reserved hole
Devices
  • 2D Barcode Scanner
  • Thermal Printer
  • NFC
  • 2 x Stereo Speaker. 96dB, 1.5W, 4 ohm
  • 2 LED light bar, support 256 color
Others
  • N/A
Front Bezel
  • IP54, metallic front bezel
Power Supply
  • 120W DC adapter
  • Power Consumption: Average 90W
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Mounting
  • Floor stand
  • Counter-top stand
Dimensions (W x D x H)
  • 405 x 288 x 509 mm (15.94" x 11.34" x 20.04")
Weight (net/gross)
  • 20 kg (44.1 lb)/23 kg (50.7 lb)
Operation System
  • N/A
Certifications
  • CE, FCC Class A

Ordering Information

  • SSK315-SDM500L-8365UE
    15.6" FHD PCAP touch slim bezel panel with SDM-L, Intel® Core™ i5 8365UE processor, 4GB memory, 128GB M.2 SSD, thermal printer, 2D barcode scanner, NFC, 1 LAN, 4 USB 3.0, 2 speakers, 1 Mic-in, 1 Line-out, 1 DC Jack
  • SSK315-SDM500L-8145UE
    15.6" FHD PCAP touch slim bezel panel with SDM-L, Intel® Core™ i3 8145UE processor, 4GB memory, 128GB M.2 SSD, thermal printer, 2D barcode scanner, NFC, 1 LAN, 4 USB 3.0, 2 speakers, 1 Mic-in, 1 Line-out, 1 DC Jack
  • SSK315-SDM500L-4305UE
    15.6" FHD PCAP touch slim bezel panel with SDM-L, Intel® Celeron® 4305UE processor, 4GB memory, 128GB M.2 SSD, thermal printer, 2D barcode scanner, NFC, 1 LAN, 4 USB 3.0, 2 speakers, 1 Mic-in, 1 Line-out,1 DC Jack
  • SSK315-SDM300S-N4200
    15.6" FHD PCAP touch slim bezel panel with SDM-S, Intel® Pentium® N4200 processor, onboard LPDDR4 4G & EMMC 64GB, 1 LAN, 2 USB 3.0, 2 speakers, thermal printer, 2D barcode scanner, NFC, 1 DC Jack
