AIE100-ONX

Status : Available

Fanless Edge AI System with NVIDIA® Jetson Orin™ NX, 1 HDMI, 1 GbE LAN, 1 GbE PoE, 2 USB, and Remote Management Service Empowered by Allxon

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AIE100-ONX
AIE100-ONX
AIE100-ONX
UL508

UL508

UL1604

UL1604

e13 & ISO7637

e13 & ISO7637

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • NVIDIA® Jetson Orin™ NX, up to 100 TOPS
  • High AI computing performance for GPU-accelerated processing
  • Ideal for edge AI smart city applications
  • Supports one 15W GbE PoE for camera
  • Wide operating temperature from -25°C to +50°C
  • IP42 rating for semi-outdoor applications
  • Supports 24/7 secure remote monitoring, control, and OTA
  • deployment empowered by Allxon

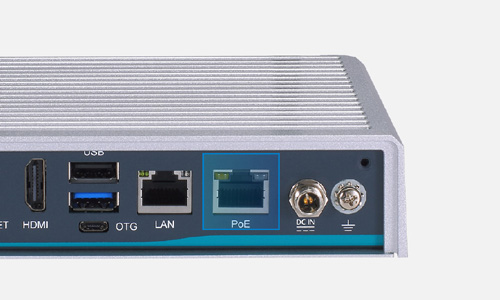

IP Surveillance
Equipped with a 15W GbE PoE port, the AIE100-ONX offers a ready-to-deploy IP camera with both power and video transmission.
AIE100A-ONX
AIE100A-ONX

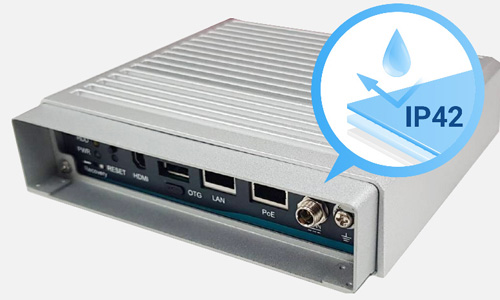

Durable Enclosure
An optional waterproof IP42-rated cover kit is also designed for strengthening the protection of semi-outdoor environments.
Driving AI Innovation at the Edge
Axiomtek’s AIE100-ONX is specifically built around the NVIDIA Jetson Orin NX system-on-module. It is integrated with the latest NVIDIA Ampere architecture GPU and NVIDIA Deep Learning Accelerators, which deliver up to 5x the performance compared to the previous generation. With NVIDIA’s AI and accelerated computing technologies, Axiomtek continues to deliver advanced hardware platforms and data communication solutions for deploying AI to the edge, helping customers speed up the implementation of deep learning capabilities into their IoT devices and turn Artificial Intelligence of Things (AIoT) into reality.
AIE100-ONX
Small Yet Powerful
Axiomtek’s AIE100-ONX, an ultra-compact edge AI system, is powered by the NVIDIA Jetson Orin NX module that features a powerful 8-core/6-core ARM® Cortex® A78AE processor delivering up to 100 TOPS of AI performance and integrates an advanced 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores.
NVIDIA JetPack Support
It will also offer support for NVIDIA JetPack™ 5.1 for ease of development for AI computing and deep learning applications such as autonomous machines, robotics, computer vision and more.
Allxon Device Management Solutions(Allxon DMS)
The AIE100-ONX also integrates Allxon DMS to provide a cost-effective and simplified device management solution with comprehensive remote management capabilities.

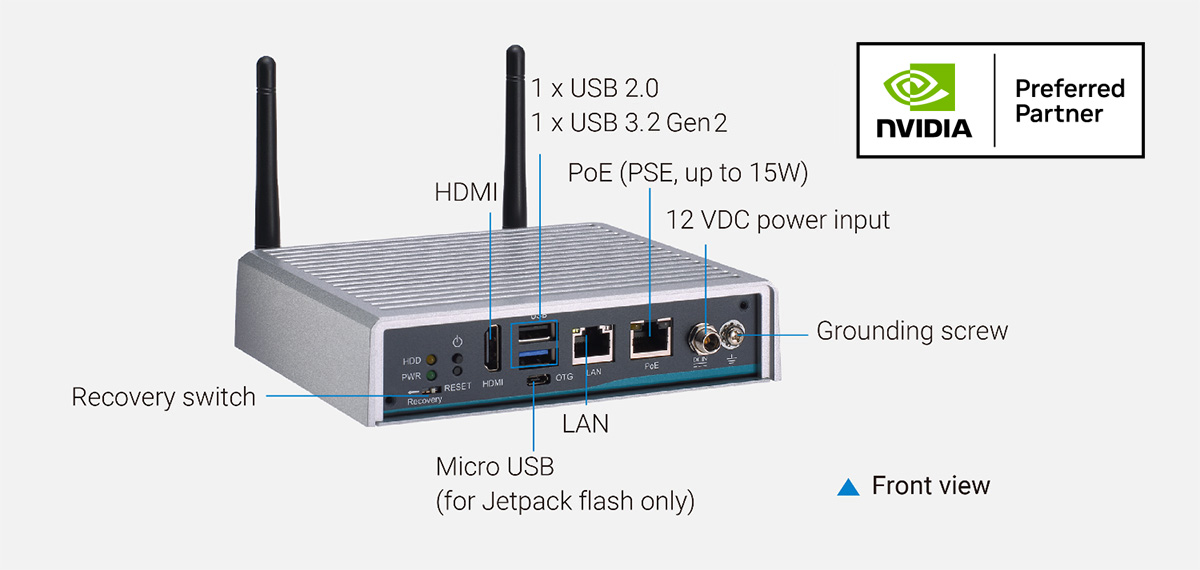

Rich I/O Interfaces
Axiomtek’s AIE100-ONX supports rich I/O interfaces, including one USB 3.2 Gen2 port, one USB 2.0 port, one Micro USB port, one GbE LAN, one GbE PoE and one HDMI 2.1 with 4K2K.

Specifications

AI Accelerator
  • NVIDIA® Jetson Orin™ NX (up to 100 TOPS)
CPU
  • 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
  • 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
GPU
  • 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Chipset
  • SoC integrated
System Memory
  • 16GB: 16GB 128-bit LPDDR5 onboard
  • 8GB: 8GB 128-bit LPDDR5 onboard
COM
  • N/A
USB
  • 1 x USB 3.2 Gen2
  • 1 x USB 2.0
  • 1 x Micro USB for image flash
Ethernet/PoE
  • 1 x 10/100/1000 Mbps Ethernet (via Jetson Orin™ NX)
  • 1 x 10/100/1000 Mbps PoE (Intel® I210-IT; max. up to 15W)
Display
  • 1 x HDMI 2.1 with 4K2K supported
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 1 x Recovery switch
  • 1 x Reset button
  • 1 x Power button
  • 2 x SMA-type antenna connector
Power Supply
  • 1 x 12 VDC screw-type power input connector
Watchdog Timer
  • Built-in Orin NX
Construction
  • Aluminum extrusion and heavy-duty steel, IP40 (IP42 by optional cover kit)
Operating Temperature
  • -25°C to +50°C (-13°F to +122°F) (power mode: 25W)
Relative Humidity
  • 10% - 95%, non-condensing
Vibration
  • 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)
  • 148.6 x 129.8 x 34.6 mm (5.85" x 5.11" x 1.36")
Weight (net/gross)
  • 1 kg (2.20lb)/1.6 kg (3.52lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Linux Ubuntu 20.04 or later
Mounting
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit

Ordering Information

  • AIE100-ONX-16GB (P/N-E27H100105)
    Fanless edge AI system with NVIDIA® Jetson Orin™ NX 16GB, 1 HDMI, 1 GbE LAN, 1 GbE PoE and 2 USB
  • AIE100-ONX-8GB
    Fanless edge AI system with NVIDIA® Jetson Orin™ NX 8GB, 1 HDMI, 1 GbE LAN, 1 GbE PoE and 2 USB
  • 8817H1003A0E
    Wall mount kit
  • 8817H1001A0E
    DIN-rail kit
  • 8817H1006A0E
    VESA mount kit
  • 8817H1002A0E
    IP42 waterproof cover kit
  • M.2 NVMe SSD
    128GB or above
  • LTE module
  • Wi-Fi module
  • Power cord
  • 50966124050E
    12V/60W adapter

Download

Drivers

Software

Manual

Date Description Version Download File
2023/06/26 User's Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/01/09 CE-Conformity Declaration
2024/01/09 UKCA Declaration of Conformity
2024/01/09 FCC Verification
2024/01/09 CE LVD Verification
2024/01/09 UKCA Declaration of Conformity
2024/01/09 CE EMC Verification
2024/01/09 CE-Conformity Declaration
