AIE110-ONX

Status : Available

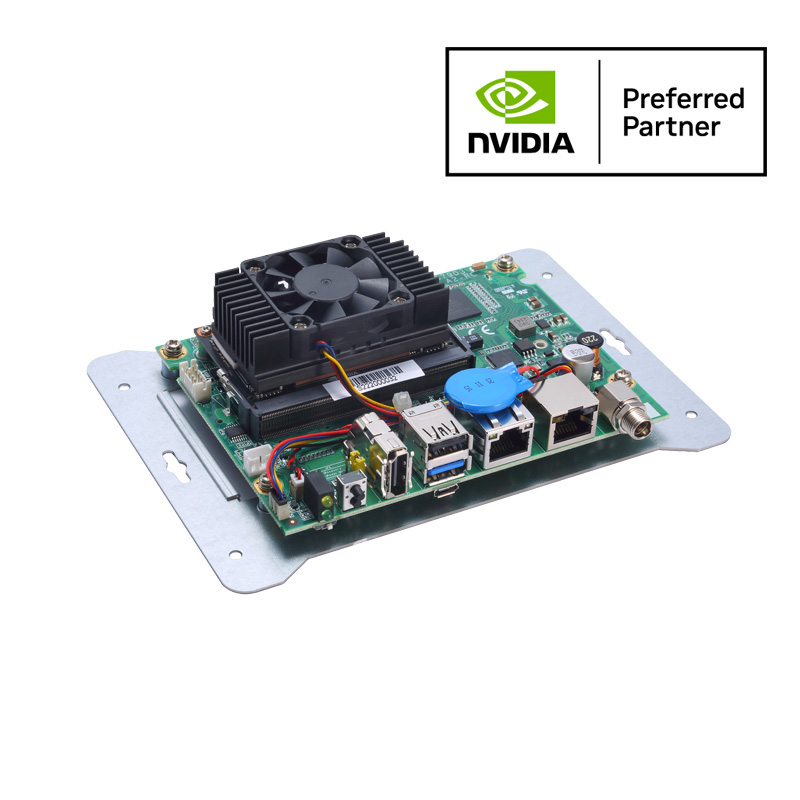

Edge AI Developer Kit with NVIDIA® Jetson Orin™ NX SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AIE110-ONX
AIE110-ONX
AIE110-ONX
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • NVIDIA® Jetson Orin™ NX (up to 100 TOPS)

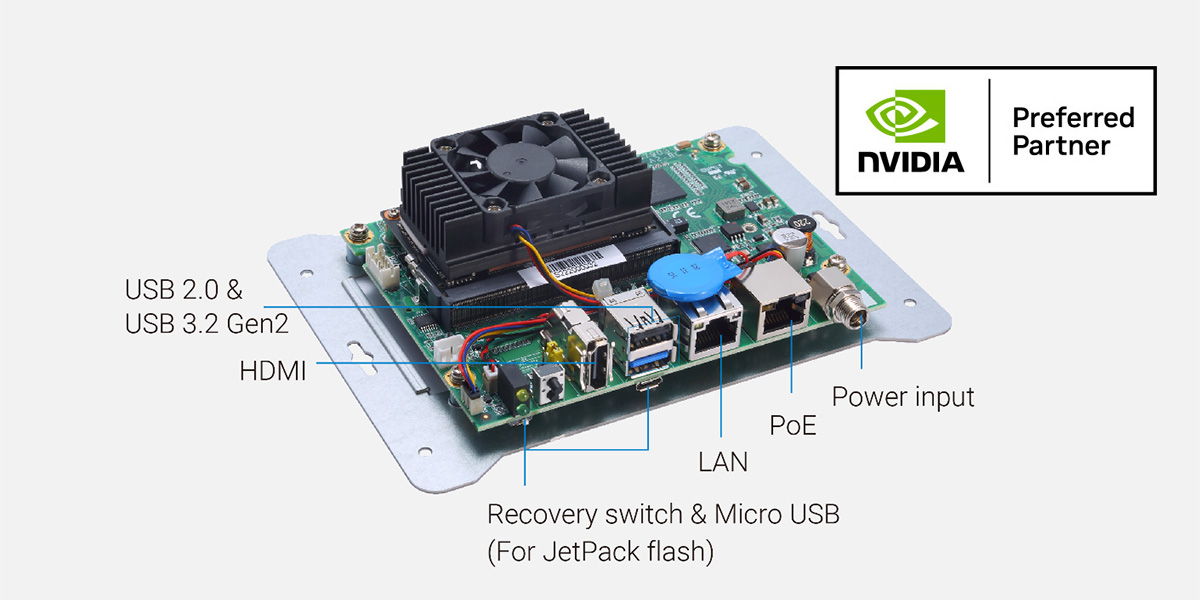

  • 1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE LAN
  • Supports one 15W GbE PoE for camera
  • 1 M.2 Key M NVMe SSD slot
  • 1 PCI Express Mini Card slot for Wi-Fi/Bluetooth/LTE/GPS
  • JetPack supported
  • Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
Ultra Compact Edge AI Developer Kit for Full-Featured AI Applications
AIE110-ONX

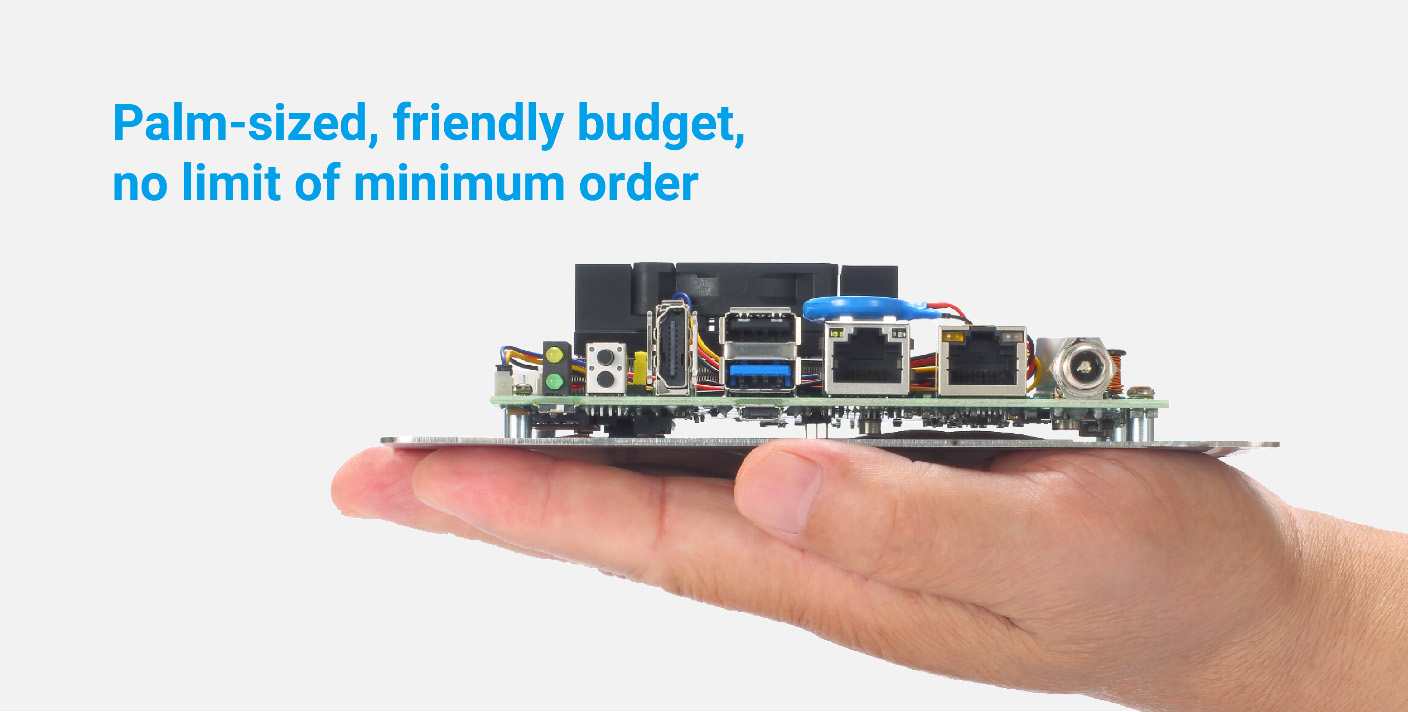

The AIE110-ONX provides up to 100 TOPS of accelerated AI computing performance. This small yet powerful edge AI developer kit, tailored for quick development with no minimum order, is well-suited for makers, learners, and system integrators seeking to effortlessly enhance AI innovation.
AIE110-ONX
Supercomputer Performance
The AIE110-ONX is powered by the NVIDIA® Jetson Orin™ NX system-on-module which has a 6-core/8-core NVIDIA ARM® Cortex A78AE v8.2 64-bit CPU and a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores.
NVIDIA JetPack Support
With NVIDIA JetPack support, the AIE110-ONX provides a full development environment for end-to-end accelerated development on Nvidia Jetson modules, to foster the development of AI-assisted operations across industries.
Rugged & Reliable Design
The AIE110-ONX has a rugged design for harsh environments, allowing it to operate under a wide temperature range from -10°C to +60°C and vibration of up to 3 Grms. It has 8GB/16GB 128-bit LPDDR5 onboard via the Jetson Orin NX module.
Great Expandability

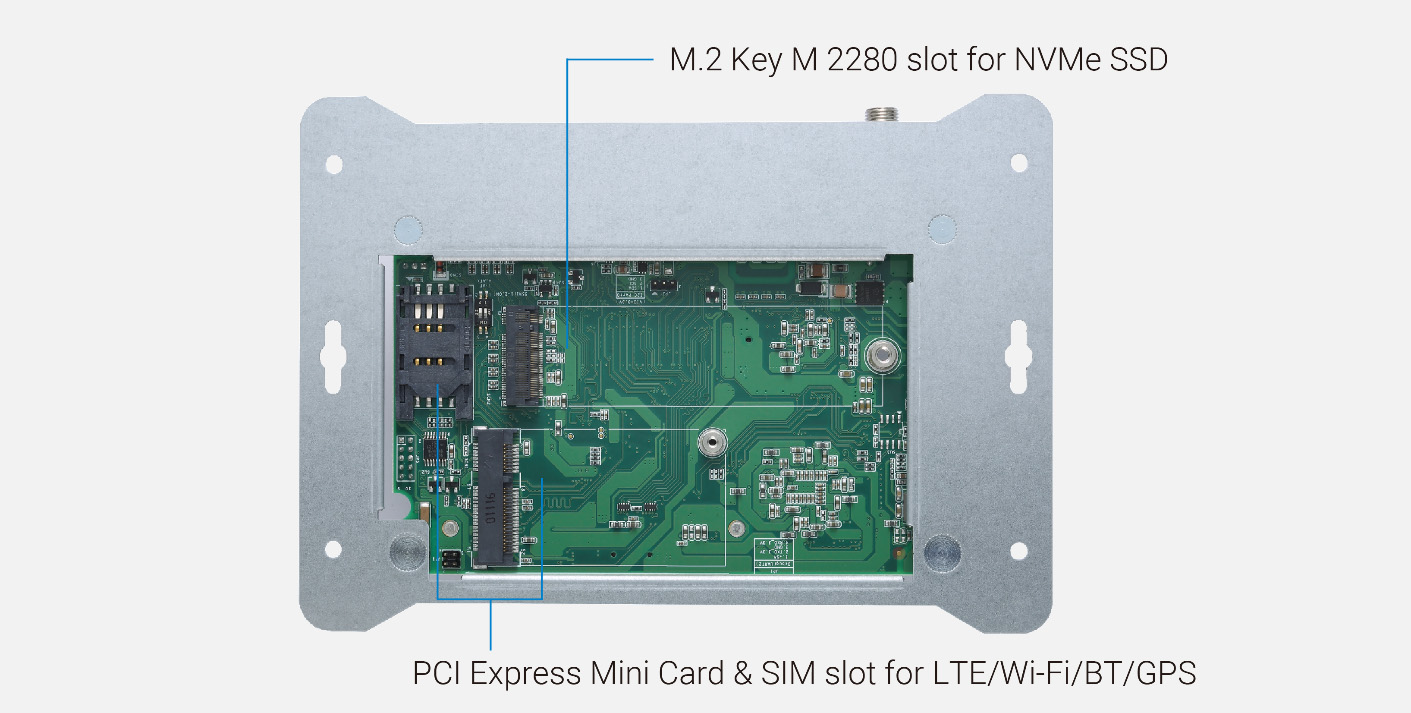

The AIE110-ONX is equipped with one M.2 Key M 2280 with PCIe x4 NVMe SSD slot for massive data processing. It also supports one full-size PCI Express Mini Card slot and one SIM slot for 3G/4G, GPS, Wi-Fi, and Bluetooth connections.
AIE110-ONX

Specifications

AI Accelerator
  • NVIDIA® Jetson Orin™ NX
CPU
  • 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
  • 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
GPU
  • 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
Chipset
  • SoC integrated
System Memory
  • 16GB: 16GB 128-bit LPDDR5 onboard
  • 8GB: 8GB 128-bit LPDDR5 onboard
COM
  • N/A
USB
  • 1 x USB 3.2 Gen2
  • 1 x USB 2.0
  • 1 x Micro USB
Ethernet/PoE
  • 1 x 10/100/1000 Mbps Ethernet (via Jetson Orin™ NX)
  • 1 x 10/100/1000 Mbps PoE (Intel® I210-IT; max. up to 15W)
Display
  • 1 x HDMI 2.1 with 4K2K supported
Digital I/O
  • 1 x DIO (pin header)
Audio
  • N/A
Storage
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 1 x Recovery switch
  • 1 x Reset button
  • 1 x Power button
  • 1 x 12 VDC power input connector
Power Supply
  • 12 VDC screw type
Watchdog Timer
  • Built-in Orin™ NX
Construction
  • N/
Operating Temperature
  • -10°C to +60°C (14°F to +140°F)
Relative Humidity
  • 10% - 95%, non-condensing
Vibration
  • 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)
  • 165 x 117 x 37.7 mm (6.49" x 4.60" x 1.48")
Weight (net/gross)
  • 0.3 kg (0.66 lb)/ 0.9 kg (1.98 lb)
Certifications
  • CE
EOS Support
  • Linux Ubuntu 20.04 or later
Mounting
  • N/A

Ordering Information

  • AIE110-ONX-16GB
    Edge AI developer kit with NVIDIA® Jetson Orin™ NX 16GB, 1 HDMI, 1 GbE LAN, 1 GbE PoE and 2 USB
  • AIE110-ONX-8GB
    Edge AI developer kit with NVIDIA® Jetson Orin™ NX 8GB, 1 HDMI, 1 GbE LAN, 1 GbE PoE and 2 USB
  • M.2 NVMe SSD
    128GB or above
  • LTE module
  • Wi-Fi module
  • Power cord
  • 50966124050E
    12V/60W adapter

Download

Drivers

Software

Manual

Date Description Version Download File
2024/01/23 User's Manual VA1

Design Guide

Technical Announcement

Certificates
