ICO120-E3350

Status : Available

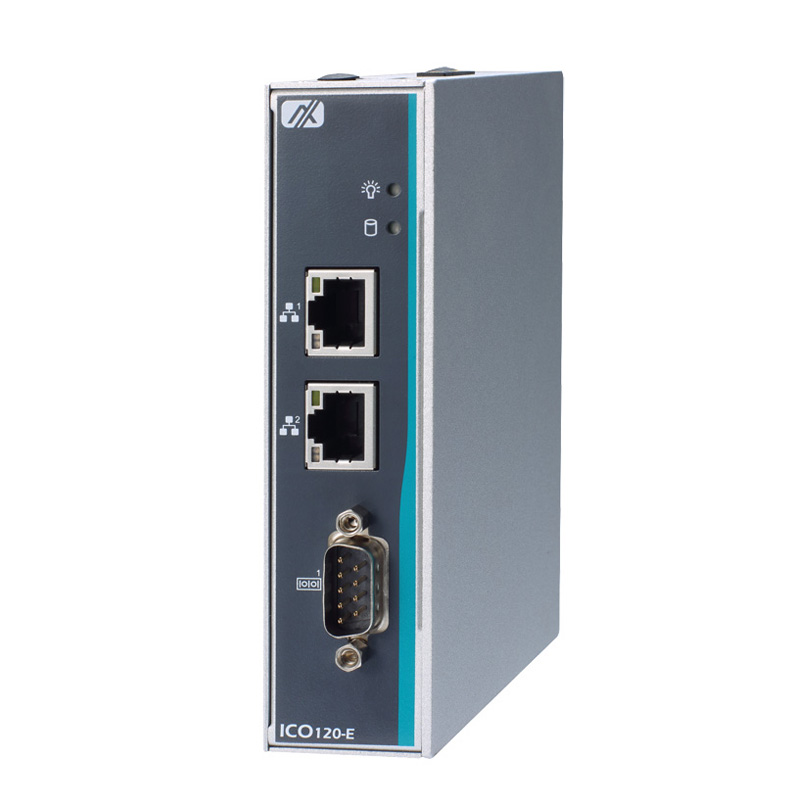

DIN-rail Fanless Embedded System with Intel® Celeron® Processor N3350, COM/CAN/DIO, 2 LAN, 2 USB, and HDMI

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ICO120-E3350
ICO120-E3350
ICO120-E3350
ICO120-E3350
PoE

PoE

UL508

UL508

IP40

IP40

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Extreme cost-effective with fanless and cableless design
  • Intel® Celeron® processor N3350, reliable F1 stepping version CPU
  • COM/CAN/DIO, 2 USB, and 2 GbE LAN
  • Wide operating temperature range from -40°C to +70°C
  • 9 to 36 VDC wide range power input (typical: 12-24 VDC)
  • OVP, UVP, OCP, RPP power protection design
  • eAPI for intelligent remote monitoring software integration
Closer to a More Sustainable Future
Axiomtek’s ICO120-E3350 is designed to simplify device-to-cloud communication and enable data-driven condition-based maintenance management for the connectivity of industrial devices as well as next-generation intelligent infrastructure to the Internet of Things.

ICO120-E3350
Optimized Performance
The ICO120-E3350, an extremely compact industrial IoT gateway, is powered by the Intel® Celeron® processor N3350 (codename: Apollo Lake-M). The ICO120-E3350 features fanless operation, -40°C to 70°C operating temperature range, and 9V to 36V DC wide power input with overvoltage and reverse protection.
More Expansion Possibilities
The IIoT gateway comes with a full-size Rev. 1.2 PCI Express Mini Card slot with SIM socket for Wi-Fi, 3G/4G/LTE and GPS connectivity and a half-size Rev. 1.2 PCI Express Mini Card slot for wireless module and mSATA SSD.
Rich I/O Interfaces

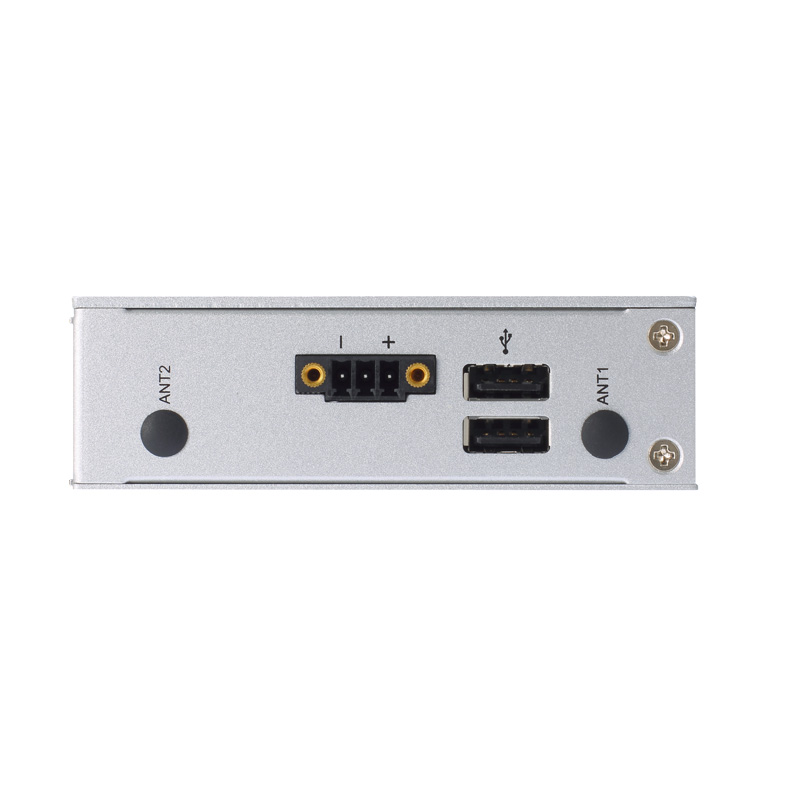

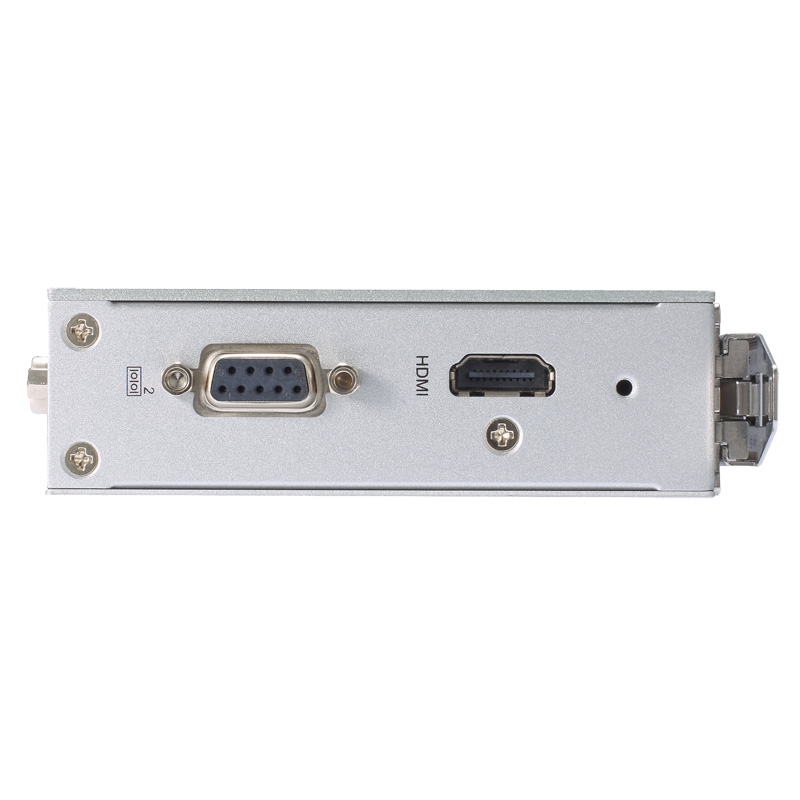

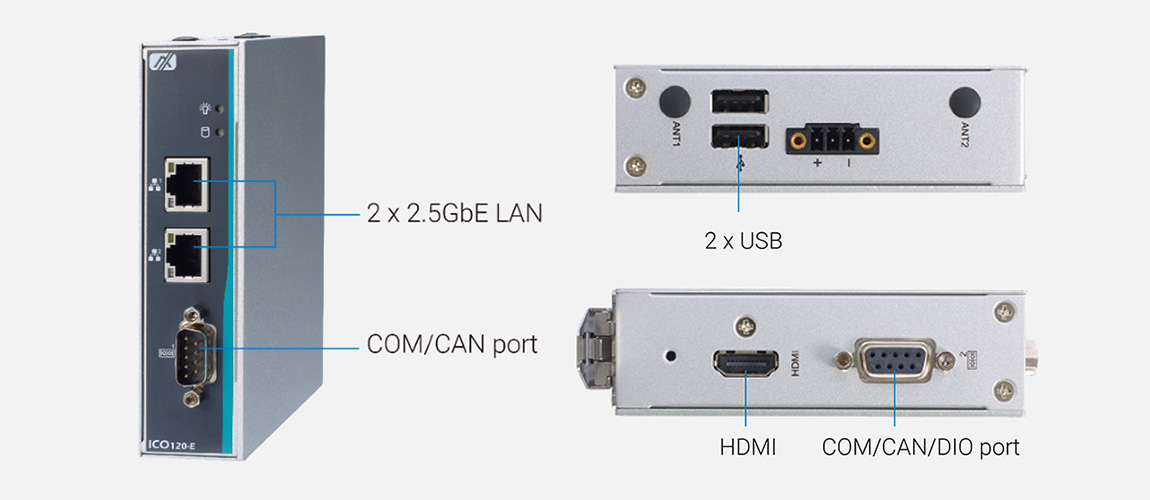

This budget-friendly industrial gateway supports rich I/O interfaces, including two DB9 ports with COM/CAN/DIO selections, one HDMI, two USB 2.0, two RJ-45, and two antenna openings.
ICO120-E3350

Specifications

CPU
  • Intel® Celeron® N3350 2C @1.1 GHz
  • TDP: 6W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB
COM
  • 1 x DB9 RS-232/422/485
USB
  • 2 x USB 2.0
Ethernet
  • 2 x RJ-45 isolated GbE Ethernet (Intel® I210-IT)
  • Isolation voltage: 1.5 kV
PoE
  • N/A
CANbus
  • 1 x CAN 2.0 A/B, 1 Mbps bitrate with SocketCAN & J1939 supported
Digital I/O
  • 1 x DIO (8-bit programmable DIO)
Analog Input
  • N/A
Display
  • 1 x HDMI
Expansion
  • 1 x Full-size Rev. 1.2 PCI Express Mini Card slot with PCIe/USB signal (with SIM socket)
  • 1 x Half-size Rev. 1.2 PCI Express Mini Card slot with mSATA/USB/PCIe signal
Storage
  • 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
  • eMMC (optional)
Others
  • 2 x Antenna opening
  • TPM 2.0
Power
  • 1 x Terminal block, 9 to 36 VDC (typical: 12-24 VDC)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP30
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%
Vibration
  • 2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions
(W x D x H)
  • 31 x 100 x 125 mm (1.22" x 3.93" x 4.92")
Weight (net/gross)
  • 0.3 kg (0.67 lb)/0.45 kg (0.99 lb)
Certifications
  • CE (Class A), FCC (Class A), UL
  • EN 55032 (Class A), EN 55035
  • FCC part 15 B (Class A)
EOS Support
  • Windows® 10 IoT, Linux
Software Support
  • eAPI
Mounting

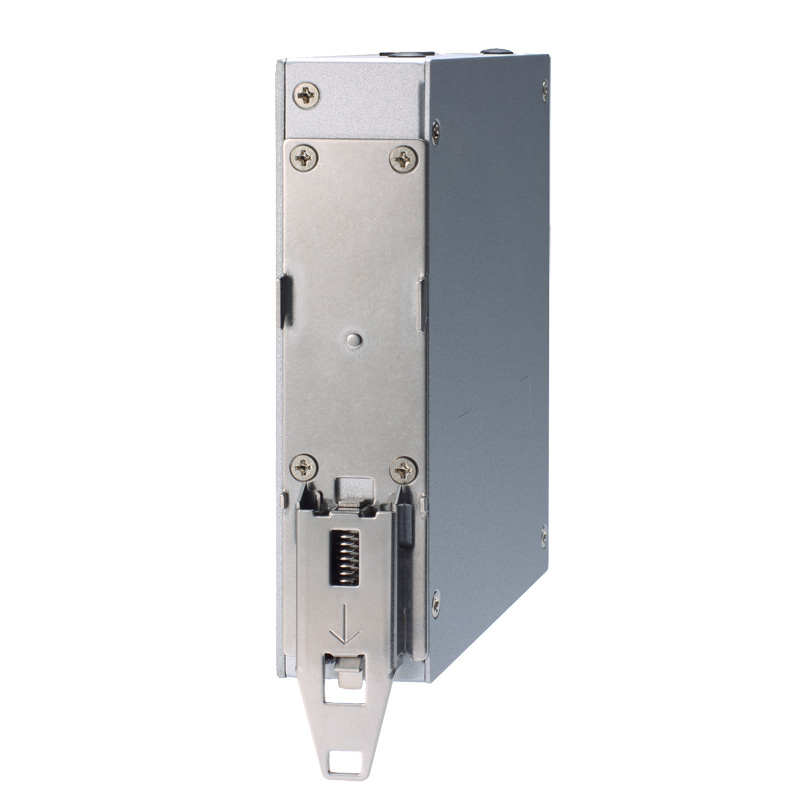

  • DIN-rail
  • Wall Mounting

Ordering Information

  • ICO120-E3350-A (P/N-E22C120114)
    DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 2 COM, 2 GbE LAN, and 2 USB
  • ICO120-E3350-B (P/N-E22C120115)
    DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 1 COM, DIO, 2 GbE LAN, and 2 USB
  • ICO120-E3350-C (P/N-E22C120116)
    DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 1 COM, 1 CAN, 2 GbE LAN, and 2 USB
  • ICO120-E3350-E (P/N-E22C120117)
    DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 1 CAN, 1 DIO, 2 GbE LAN, and 2 USB

Download

Drivers

Date Description Version Download File
2023/07/03 TXE VA1.0
2023/07/03 CANBUS VA1.0
2023/07/03 GPIO VA1.0
2023/07/03 Ethernet VA1.0
2023/07/03 Graphic VA1.0
2023/07/03 Chipset VA1.0

Software

Manual

Date Description Version Download File
2023/07/05 User's manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/01/12 CE EMC Verification
2023/11/30 UL Certificate
2023/11/30 CB Certificate
2023/05/18 UKCA Declaration of Conformity
2023/05/18 FCC Verification
2023/05/18 CE-Conformity Declaration
