ICO300-83M

Status : Available

ATEX/CID2 Certified DIN-rail Fanless Embedded System with Intel Atom® x5-E3930/x5-E3940 Processor, Isolated COM, LAN and Isolated DIO

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

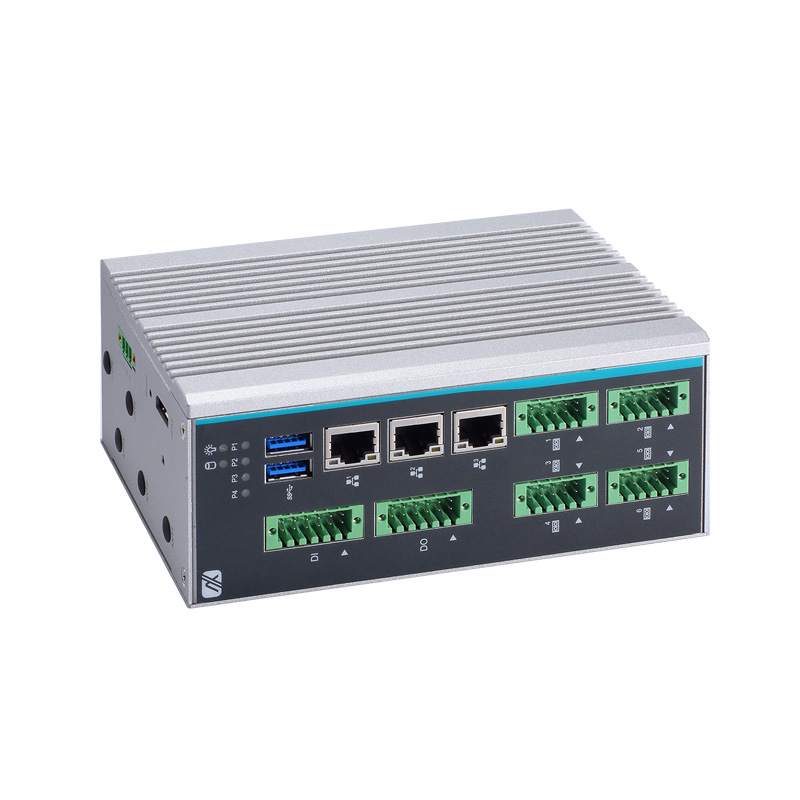

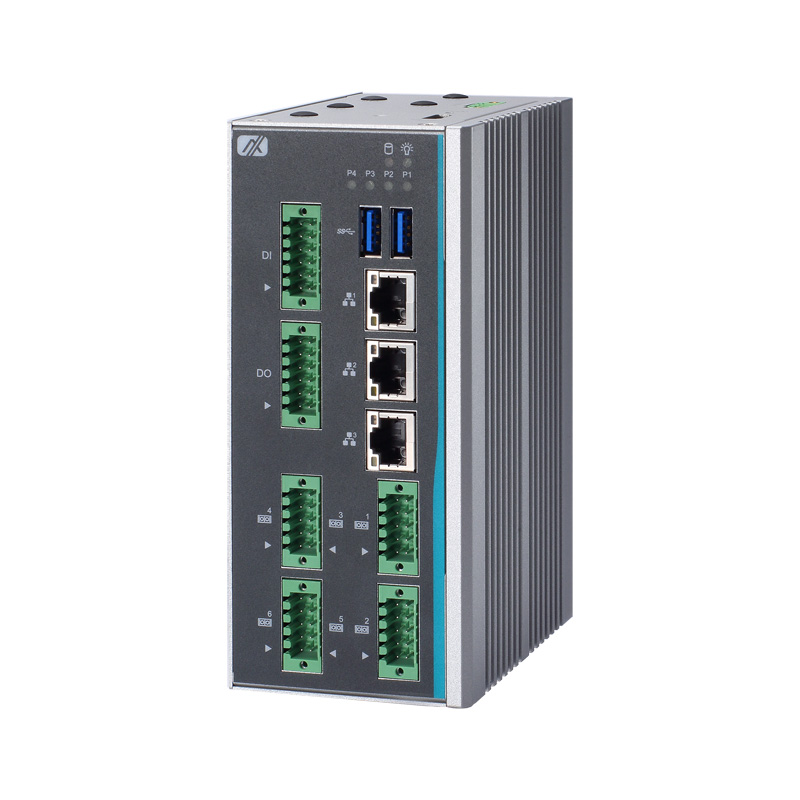

ICO300-83M
ICO300-83M
ICO300-83M
ICO300-83M
ICO300-83M
ICO300-83M
ICO300-83M
PoE

PoE

UL508

UL508

UL1604

UL1604

e13 & ISO7637

e13 & ISO7637

E-Mark

E-Mark

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Cost-effective with fanless design
  • Intel Atom® x5-E3930/x5-E3940 processor
  • 6 isolated COM, isolated DIO (8-in/8-out), 3 GbE LAN
  • Wide operating temperature range from -40°C to +85°C
  • 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
  • Supports TPM 2.0
  • ATEX/Class I Division 2 (CID2) certified
  • Supports cold boot at -40°C

Axiomtek's ICO300-83M is ATEX, Class I Division 2 (CID2) certified DIN-rail fanless embedded system for hazardous environments where ignitable concentrations of flammable gases or liquids might exist. It is powered by the Intel Atom® x5-E3930/x5-E3940 processor with 8GB DDR3L-1866 RAM. For operation in harsh industrial environments, the IP40-rated DIN-rail fanless box PC has a wide operating temperature of -40°C to 85°C, 9 to 36 VDC wide voltage input with OVP, UVP, OCP as well as RPP, and up to 3G vibration endurance. The anti-explosion ICO300-83M is specially designed for the oil and gas industry, chemical industry, steel industry, and distilling industry.

Specifications

CPU
  • Intel Atom® x5-E3930 processor, 1.3GHz/2C/6.5W
  • Intel Atom® x5-E3940 processor, 1.6GHz/4C/9.5W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB
COM
  • 2 x Isolated RS-232/422/485 (Phoenix Type)
  • 4 x Isolated RS-232/422/485 (4-wire, Phoenix Type for full type)
USB
  • 2 x USB 3.0
Ethernet
  • 3 x RJ-45 isolated 10/100/1000 Mbps Ethernet (Intel® I210-IT)
  • Isolation voltage: 1.5 kV
PoE
  • N/A
CANbus
  • N/A
Analog Input
  • N/A
Digital I/O
  • 1 x Isolated 8-in/8-out DIO (for full type)
Display
  • 1 x HDMI (up to 1920 x 1200 @60Hz)
Expansion
  • 1 x M.2 Key B 3052: USB 3.0/PCIe (optional)
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot: USB (for LTE/Wi-Fi module)
  • 1 x Half-size Rev.1.2 PCI Express Mini Card slot: USB/mSATA (for mSATA)
  • 2 x SIM slot (1 for M.2; 1 for full-size PCI Express Mini Card)
Storage
  • 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
  • 1 x Internal 2.5" SATA drive (9.5 mm height)
  • 1 x 8G eMMC onboard
Others
  • TPM 2.0

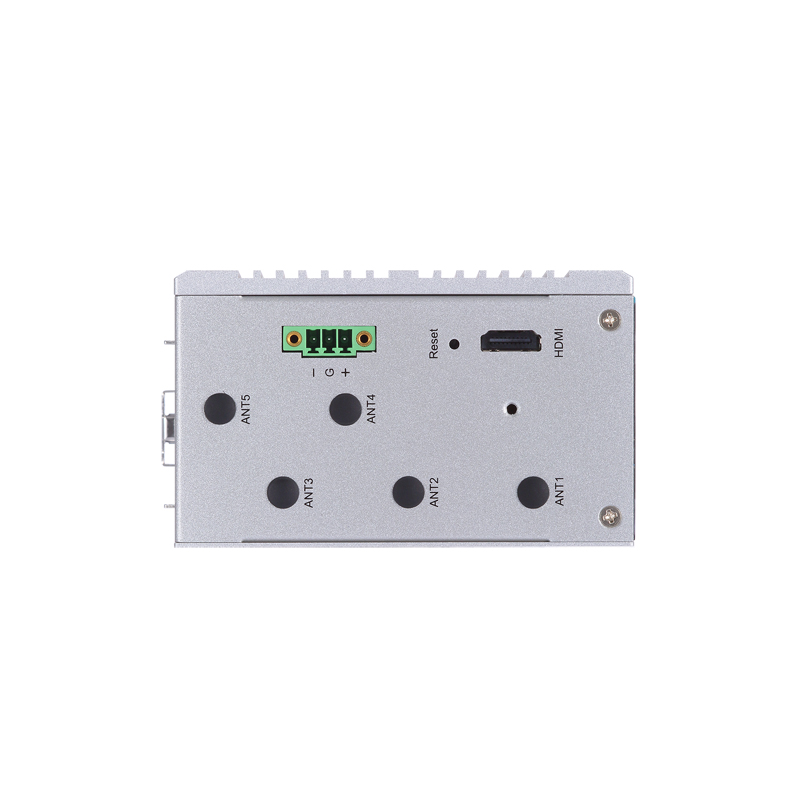

  • 5 x Antenna opening
Power
  • 1 x Terminal block, 9 to 36 VDC, typical 12/24V
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +75°C (-40°F to +167°F)
  • Cold boot at -40°C
  • Supports +85°C operating temperature under condition
Relative Humidity
  • 10% to 95%
Vibration
  • 3 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions
(W x D x H)
  • Slim type: 51 x 110 x 155 mm (2.0" x 4.33" x 6.1")
  • Full type: 66 x 110 x 155 mm (2.48" x 4.33" x 6.1")
Weight (net/gross)
  • 1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certifications
  • CE/FCC
  • UL
  • ATEX/Class I Division 2
EOS Support
  • Windows® 10 IoT, Linux
Software Support
  • eAPI

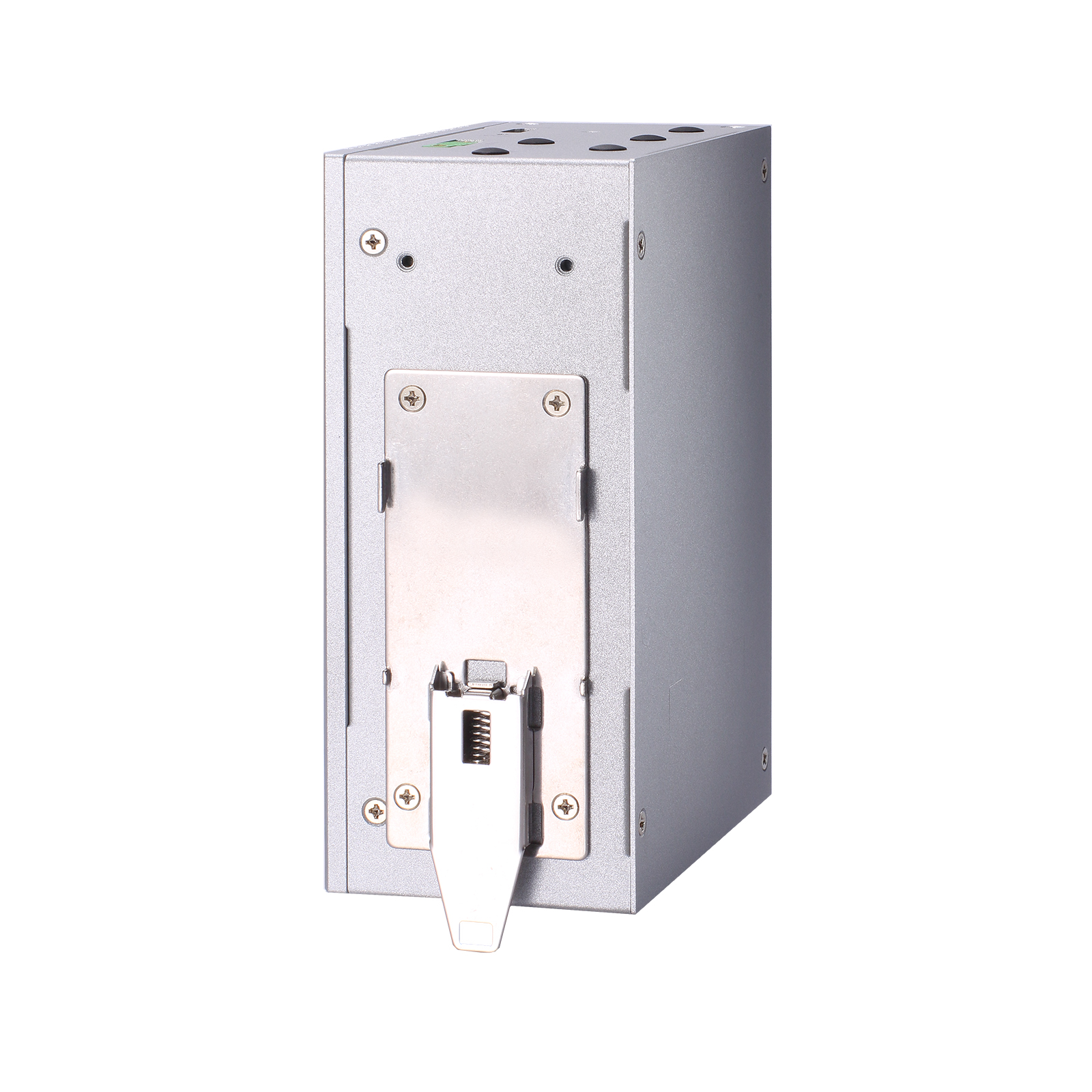

Mounting
  • DIN-rail
  • Wall Mounting

Ordering Information

  • ICO300-83M (P/N-E22C300154)
    ATEX/CID2 certified DIN-rail fanless embedded system with Intel Atom® x5-E3930 processor, 1 HDMI, 3 GbE LAN, 6 isolated COM, 1 isolated DIO, 2 USB, WT
  • ICO300-M3930S-A (P/N-E22C300160)
    ATEX/CID2 compliant DIN-rail fanless embedded system with Intel Atom® x5-E3930 processor, 1 HDMI, 3 GbE LAN, 2 isolated COM, 2 USB, WT
  • ICO300-M3940-A (P/N-E22C300161)
    ATEX/CID2 compliant DIN-rail fanless embedded system with Intel Atom® x5-E3940 processor, 1 HDMI, 3 GbE LAN, 6 isolated COM, 1 isolated DIO, 2 USB, WT
  • ICO300-M3940S-A (P/N-E22C300162)
    ATEX/CID2 compliant DIN-rail fanless embedded system with Intel Atom® x5-E3940 processor, 1 HDMI, 3 GbE LAN, 2 isolated COM, 2 USB, WT
