ICO520

Status : Available

DIN-Rail Fanless Embedded System with 12th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, 4 2.5GbE LAN, 2 HDMI, 4 USB, 4 Isolated COM, and Isolated DIO (8-in/8-out)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ICO520
ICO520
ICO520
ICO520
ICO520
ICO520
ICO520
PoE

PoE

UL508

UL508

UL1604

UL1604

e13 & ISO7637

e13 & ISO7637

iAMT

iAMT

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • High performance with fanless and DIN-rail design
  • 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (Alder Lake-P)
  • 4 isolated COM, isolated DIO (8-in/8-out), Four 2.5 GbE LAN
  • Wide operating temperature range from -40°C to +70°C
  • 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
  • Supports TPM 2.0
  • Supports cold boot at -40°C

Specifications

CPU
  • Intel® Core™ i7-1265UE (1.7GHz/10C/15W)
  • Intel® Core™ i5-1245UE (1.5GHz/10C/15W)
  • Intel® Core™ i3-1215UE (1.2GHz/6C/15W)
  • Intel® Celeron® 7305E (1GHz/5C/15W)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR4-3200 SO-DIMM, up to 32GB
COM

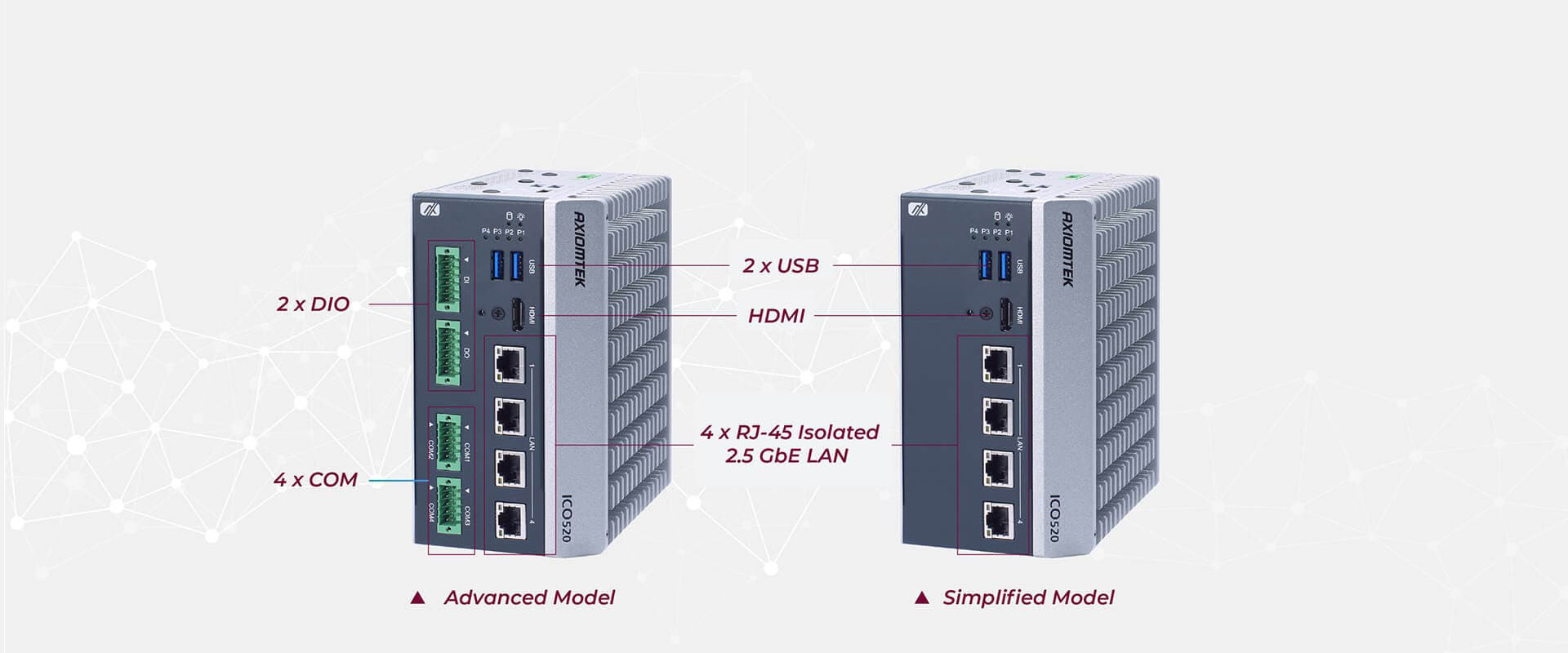

  • 4 x Isolated RS-232/422/485 (4-wire, Phoenix-type connectors, only for full type)
  • Isolation voltage: 2 kV
USB
  • 4 x USB 3.1
Ethernet
  • 4 x RJ-45 isolated 2.5 GbE LAN (Intel® I226-IT )
  • Isolation voltage: 1.5 kV
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x Isolated 8-in/8-out DIO (only for full type)
  • Isolation voltage: 2 kV
Analog Input
  • N/A
Display

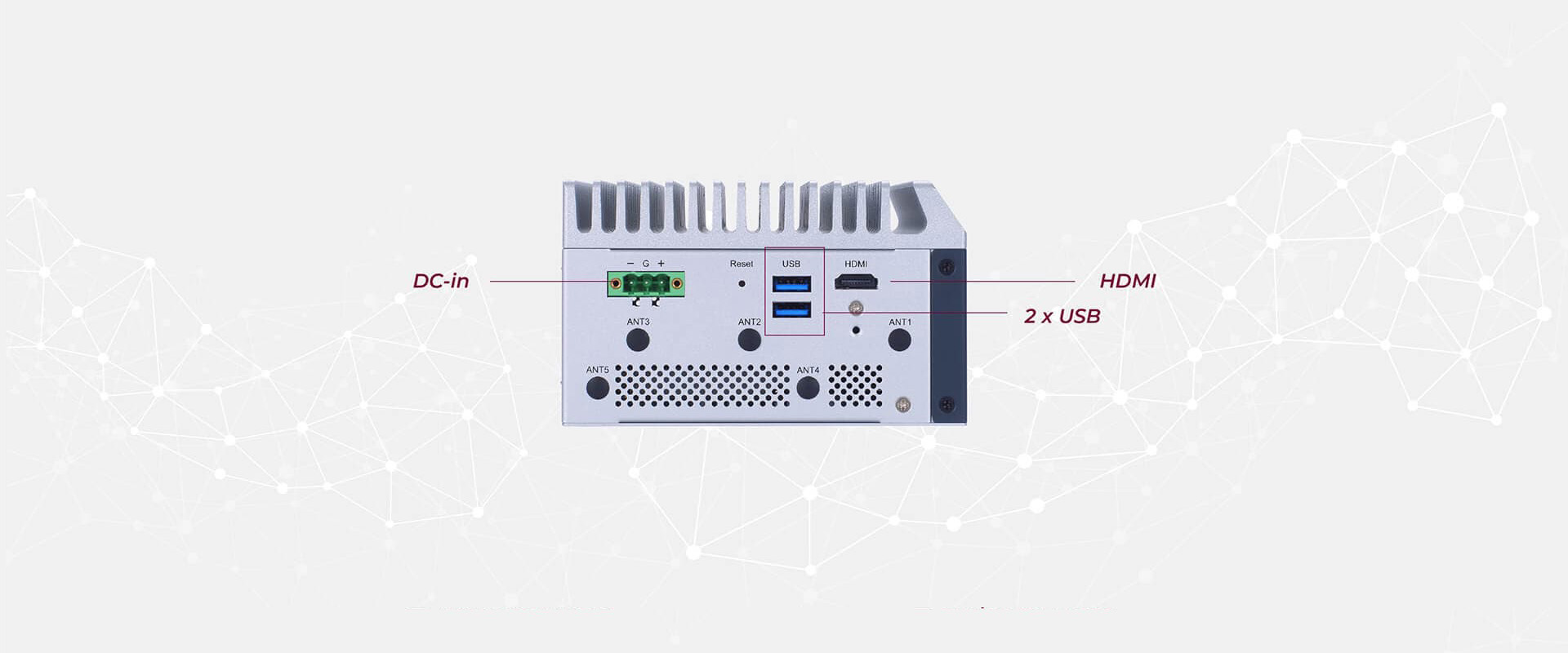

  • 2 x HDMI
Expansion
  • 1 x M.2 Key B 3050/3052 slot: PCIe/USB (for 5G/Wi-Fi)
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot: PCIe/USB (for LTE/Wi-Fi)
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot: SATA/USB (for mSATA/Wi-Fi)
  • 3 x SIM slot (1 for M.2 and 2 for full-size PCI Express Mini Card)
Storage
  • 1 x Internal 2.5” SATA Drive
  • 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
  • 1 x M.2 (PCIe Gen2 x4): NVMe (2242/2280) (fully type only)
Others
  • TPM 2.0
  • 5 x Antenna opening
Power
  • 1 x Terminal block, 9 to 36 VDC, typical 2/24V
  • Power consumption: full loading
  • - 54.82W (with 12VDC)
  • - 56.52W (with 24VDC)
  • MTBF: 47,832 (hrs, @50°C)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP30
Operating Temperature
  • Cold boot at -40°C
  • With fan kit: -40°C to +70°C (-40°F to +158°F)
  • Without fan kit:
  • With i7-1265UE or i5-1245UE: -40°C to +50°C (-40°F to +122°F)
  • With i3-1215UE or 7305E: -40°C to +60°C (-40°F to +140°F)
Relative Humidity
  • 10% to 95%
Vibration
  • 2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions
(W x D x H)
  • 83 x 110 x 155 mm (3.27" x 4.33" x 6.10")
Weight (net/gross)
  • Full: 1.75 kg (3.86 lb)
  • Simplified: 1.65 kg (3.84 lb)
Certifications
  • CE (Class A), FCC (Class A)
EOS Support
  • Windows® 10 IoT, Linux
Software Support
  • eAPI
Mounting

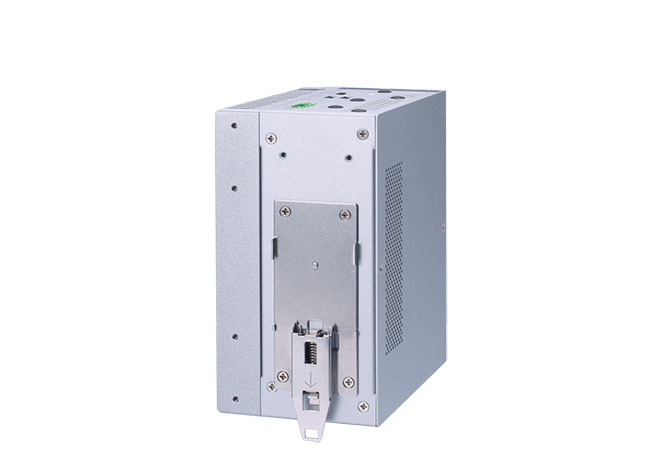

  • DIN-rail
  • Wall Mounting

Ordering Information

  • ICO520-ALD7-A
    DIN-rail fanless embedded system with Intel® Core™ i7-1265UE processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, isolated DIO (8-in/8-out), and 2 HDMI
  • ICO520-ALD7-AS
    DIN-rail fanless embedded system with Intel® Core™ i7-1265UE processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI
  • ICO520-ALD5-A
    DIN-rail fanless embedded system with Intel® Core™ i5-1245UE processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, isolated DIO (8-in/8-out), and 2 HDMI
  • ICO520-ALD5-AS
    DIN-rail fanless embedded system with Intel® Core™ i5-1245UE processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI
  • ICO520-ALD3-A
    DIN-rail fanless embedded system with Intel® Core™ i3-1215UE processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, isolated DIO (8-in/8-out), and 2 HDMI
  • ICO520-ALD3-AS
    DIN-rail fanless embedded system with Intel® Core™ i3-1215UE processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI
  • ICO520-ALDC-A
    DIN-rail fanless embedded system with Intel® Celeron® 7305E processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, isolated DIO (8-in/8-out), and 2 HDMI
  • ICO520-ALDC-AS
    DIN-rail fanless embedded system with Intel® Celeron® 7305E processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI

Download

This object is currently under update, please visit later.
