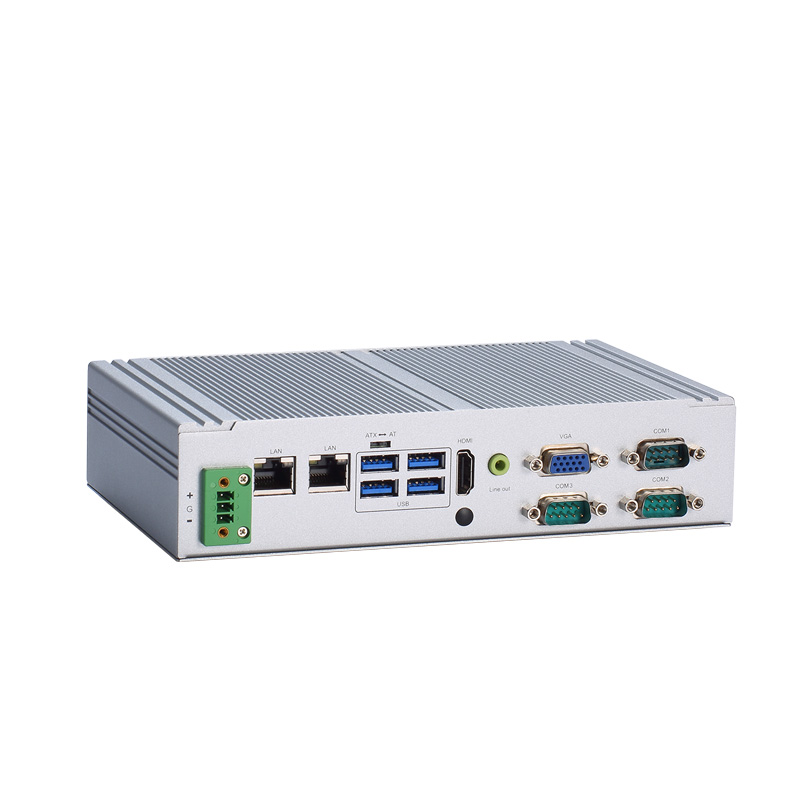

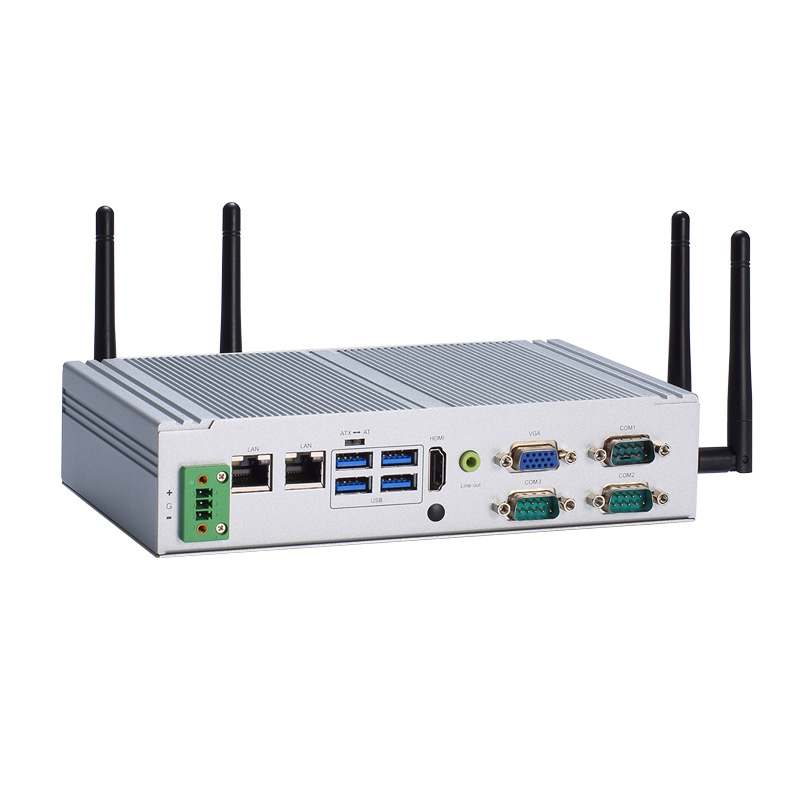

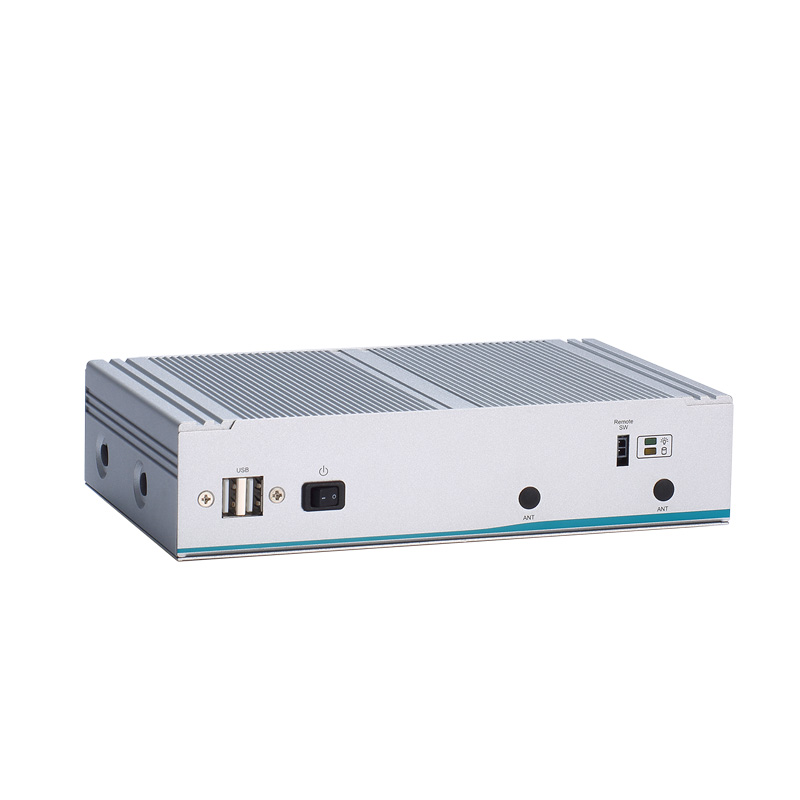

eBOX626A

Status : Available

Fanless Embedded System with Intel® Celeron J6412 2.0 GHz, HDMI, VGA, 6 USB, 2 LAN, 3 COM, and 9 to 36 VDC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
eBOX626A
eBOX626A
eBOX626A
Fanless

Fanless

PoE

PoE

UL508

UL508

UL1604

UL1604

e13 & ISO7637

e13 & ISO7637

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Celeron® Processor J6412 quad-core onboard
  • -20 °C to +60 °C operating temperature
  • 1 HDMI and 1 VGA for dual-view display
  • Trusted Platform Module (TPM) 2.0 onboard
  • M.2 Key E for Wi-Fi/Wi-Fi 6 connection
  • 9 to 36 VDC Wide range power input

Specifications

CPU
  • Intel® Celeron® processor J6412, up to 10W
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 2 x RS-232
USB
  • 4 x USB 3.1 Gen2
  • 2 x USB 2.0
Ethernet/PoE
  • 1 x 10/100/1000/2500 Mbps Ethernet (Intel® i226-LM)
  • 1 x 10/100/1000 Mbps Ethernet (Intel® i210-AT)
Display
  • 1 x HDMI 1.4b (lockable)
  • 1 x VGA
Digital I/O
  • N/A
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x 2.5" SATA HDD drive bay (up to 9.5 mm height)
  • 1 x mSATA (enabled in BIOS setting)
Expansion
  • 1 x Full size internal PCI Express Mini Card slot (mSATA/SIM) (USB + PCIe + SATA)
  • 1 x M.2 2230 Key E (PCIe + USB)
Others
  • TPM 2.0
  • 1 x ATX power switch
  • 1 x ATX/AT quick switch
  • 1 x Remote power switch
  • 4 x Antenna opening
Power
  • 1 x Phoenix type VDC power input connector
  • 9 to 36 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -20°C to +60°C (-4°F to +140°F) (with W.T. SSD/DRAM)
Relative Humidity
  • 10% - 95%, non-condensing
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions
(W x D x H)
  • 200 x 120 x 46 mm (7.87" x 4.72" x 1.81")
Weight (net/gross)
  • 1.2 kg (2.43 lb)/1.8 kg (3.97 lb)
Certifications
  • CE, FCC Class A, UKCA
EOS Support
  • Win10 IoT, Win11 IoT, Linux
Software Support
  • N/A
Mounting
  • Wall mount Kit
  • VESA mount kit
  • DIN-rail kit

Ordering Information

  • eBOX626A-EL-C1 (PN-E36K626A00)
    Fanless Embedded System with Intel® Celeron® J6412 2.0 GHz, HDM, VGA, 6 USB, 2 LAN, 3 COM, and 9 to 36 VDC
  • 2.5" SATA HDD
    64GB or above
  • 2.5" SATA SSD
    100GB or above
  • DDR4 SO-DIMM
    8GB to 32GB
  • mSATA
    64MB or above
  • 8816K6271A0E
    Wall mount Kit
  • 886K62613A0E
    VESA mount kit
  • 886K62614A0E
    DIN-rail kit
  • Wi-Fi/LTE module
