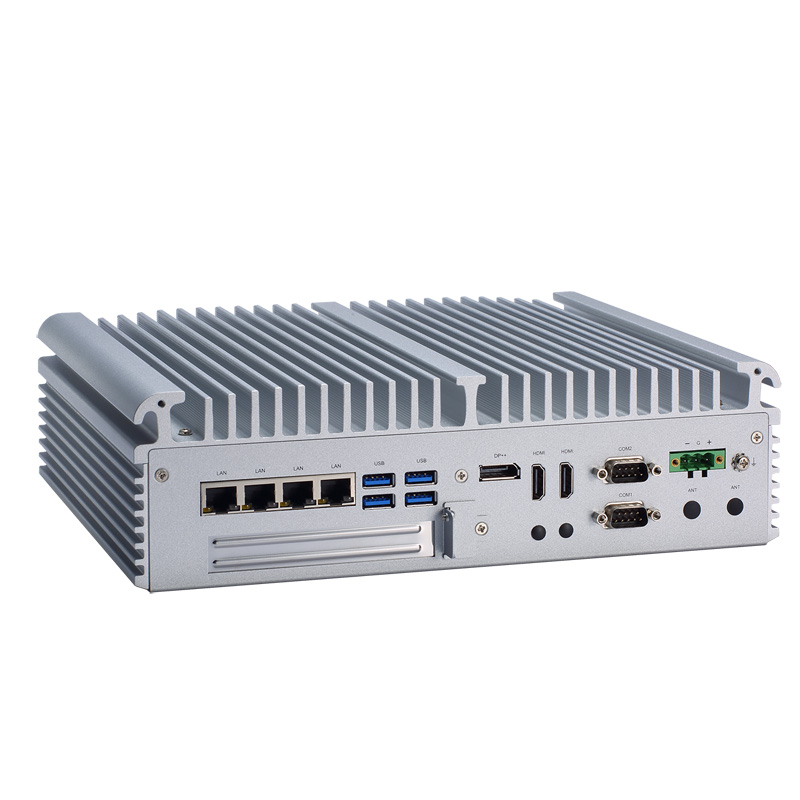

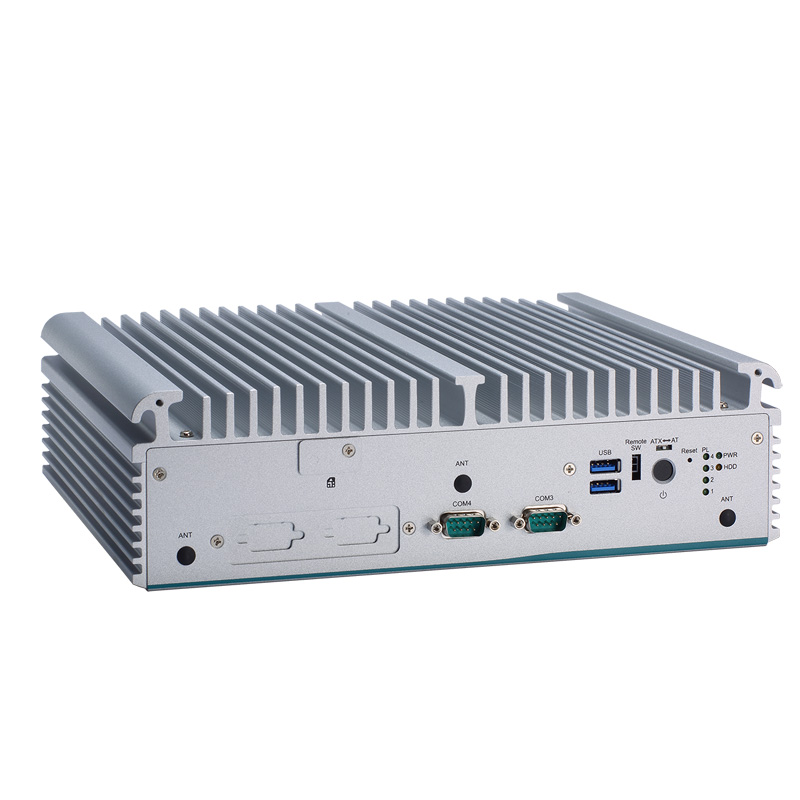

eBOX710A

Status : Available

Fanless Embedded System with LGA1200 Socket 11th/10th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® Processor, Intel® H420E, 2 HDMI, DisplayPort, 6 USB, 4 LAN, PCIe x4 slot, and 9 to 48 VDC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
eBOX710A
eBOX710A
Fanless

Fanless

UL508

UL508

e13 & ISO7637

e13 & ISO7637

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 11th/10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® (Comet Lake-S) up to 65W processor
  • 4 GbE LAN and 4 COM ports
  • Dual 2.5" SATA HDD drive bays
  • 2 HDMI and 1 DisplayPort with dua-view supported
  • -40°C to +70°C wide operating temperatures
  • Wide range power input from 9 to 48 VDC
  • 1 PCIe x4 slot for I/O card
  • Flexible I/O Window supported via mPCIe modules
Expediting AIoT with More Possibility
The scalable eBOX710A also presents greater expansion capabilities with one PCIe x4 slot and two full-size PCI Express Mini Card slots accompanied by an internal SIM slot.
eBOX710A
eBOX710A
Ready for Different Requirements

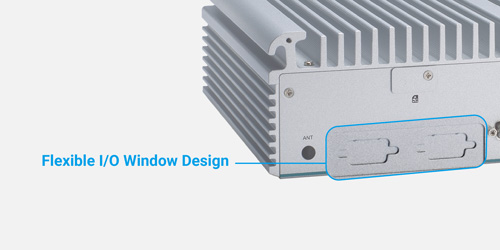

To fulfill the diverse needs of customers and reduce deployment time, the resilient eBOX710A has a flexible I/O window for optional mPCIe-based I/O modules.
Fanless Embedded System with Flexible Expansion Options
The eBOX710A is powered by the high-performance 11th/10th generation Intel® Core™ i9/i7/i5/i3 or Celeron® processor (code name: Comet Lake-S) with the Intel® H420E chipset. The IP40-rated embedded box PC is designed to operate reliably in industrial environments with a wide operating temperature range of -40°C to +70°C, vibration endurance for up to 3G and 9 to 48 VDC power input. The durable eBOX710A comes with one PCIe x4 expansion slot which makes it well-suited for machine learning, deep learning, robotic control, edge computing, and more AIoT applications.
IPC972
High Performance
The eBOX710A supports 11th/10th generation Intel® Core™ i9/i7/i5/i3 or Celeron® processor (code name: Comet Lake-S) with the Intel® H420E chipset. It comes with dual 260-pin DDR4 non-ECC SO-DIMM slots with a total capacity of 64GB.
Flexible Expansion Options

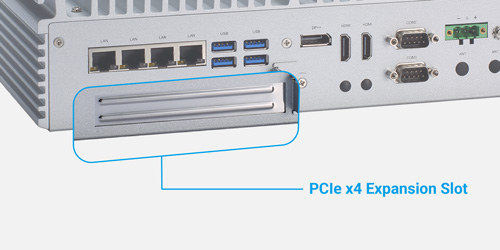

The eBOX710A has a flexible I/O window for optional mPCIe-based I/O modules. The scalable embedded system also presents greater expansion capabilities with one PCIe x4 slot and two full-size PCI Express Mini Card slots accompanied by an internal SIM slot.
Rugged Design
The eBOX710A has IP40-rated heavy-duty aluminum extrusion and steel case. The durable embedded box PC is designed to operate reliably in industrial environments with a wide operating temperature range of -40°C to +70°C, vibration endurance for up to 3G and 9 to 48 VDC power input.
Rich I/O Interfaces

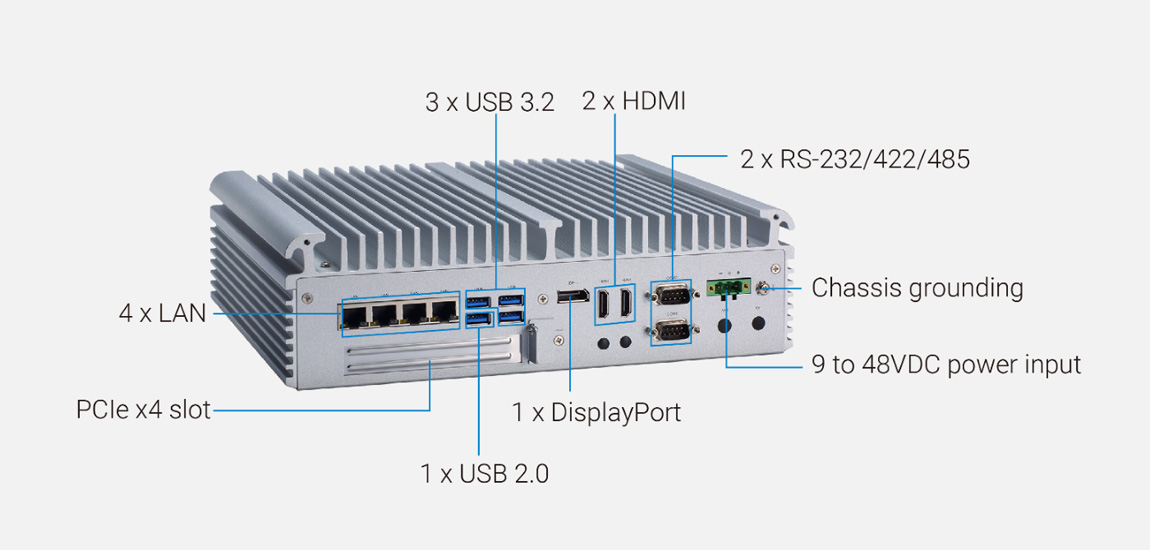

The eBOX710A comes with two RS-232, two RS-232/422/485, five USB 3.2 Gen1 ports, one USB 2.0, four GbE LAN ports, two HDMI ports, and one DisplayPort 1.2 ++. A SIM slot with cover is located on the front panel for easy access. Two 2.5” SATA HDD drive bays are available for extensive storage needs.

Specifications

CPU
  • LGA1200 socket 11th/10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W)
Chipset
  • Intel® H420E
System Memory
  • 2 x 260 pin DDR4-2933 non-ECC SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 2 x RS-232
  • 2 x RS-232/422/485
USB
  • 5 x USB 3.2 Gen1
  • 1 x USB 2.0
Ethernet/PoE
  • 4 x GbE LAN (3 x Intel® i210-IT, 1 x Intel® i219-LM)
Display
  • 2 x HDMI 1.4b (lockable)
  • 1 x DisplayPort 1.2 ++
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 2 x 2.5” SATA HDD/SSD (up to 15 mm height)
  • 2 x mSATA (enabled in BIOS setting)
Expansion
  • 2 x Full-size PCI Express Mini Card slot (USB + PCIe + SATA signal)
  • 1 x M.2 Key B 3050 slot (for 5G; USB signal)
  • 1 x Front-access SIM slot with cover (for M.2 Key B)
  • 1 x Internal SIM slot with PCIe Mini Card slot
  • 1 x PCIe x4 slot
  • 1 x Flexible I/O window (Default: 2 x DB9 half-cut bracket)
Others
  • TPM 2.0
  • 1 x AT/ATX quick switch
  • 1 x Remote switch
  • 5 x Antenna opening
  • 1 x Grounding
Power
  • 9 to 48 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow (CPU TDP 35W)
  • -40°C to +60°C (-40°F to +158°F) with 0.7 m/s air flow (CPU TDP 65W)(with W.T. DRAM & SSD)
Relative Humidity
  • 10% - 90%, non-condensing
Vibration
  • IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11 ms duration)
Dimensions
(W x D x H)
  • 280 x 210 x 80.5mm (11.02" x 8.26" x 3.16")
Weight (net/gross)
  • 4.9 kg (10.8 lb)/7 kg (15.43 lb)
Certifications
  • CE, FCC Class A, UKCA
EOS Support
  • Win 11/10 IoT, Linux
Software Support
  • N/A
Mounting
  • Wall mount kit
  • DIN-rail kit

Ordering Information

  • eBOX710A-CML-PCIe (P/N-E36K710A00)
    Fanless embedded system with LGA1200 socket 11th/10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor, Intel® H420E, 2 HDMI, DisplayPort, 6 USB, 4 LAN, PCIe x4 slot, and 9 to 48 VDC
  • 2.5” SATA HDD
    80GB or above
  • 2.5” SATA SSD
    100GB or above
  • DDR4 SO-DIMM
    8GB to 32GB
  • mSATA
    64GB or above
  • 8816K6718A0E
    Wall mount kit
  • 886K671A0A0E
    DIN-rail kit
  • Wi-Fi/LTE/5G module
  • 509000001500
    24V 120W power adapter
  • Power cord
  • E392906101
    AX92906 COM Mini PCIe Module
  • E392903102
    AX92903 CANbus PCI Express Mini module
  • E392902103
    AX92902 LAN PCI Express Mini module
  • E392918103
    AX92918 Dual LAN PCI Express Mini module
  • 590000002700
    DIO cable, L=20 cm, DB9 connector

Download

Drivers

Date Description Version Download File
2022/12/16 8. AxEAPI2.1 VA1.0
2022/12/16 7. DIO Test Tool VA1.0
2022/12/16 6. NuvSerial v1.0.2011.1109 (WHQL) VA1.0
2022/12/16 4. Intel LAN Driver VA1.0
2022/12/16 5. Intel ME Driver VA1.0
2022/12/16 2. Intel Graphics Driver VA1.0
2022/12/16 3. Realtek Audio Driver VA1.0
2022/12/16 1. Intel Chipset Driver VA1.0

Software

Manual

Date Description Version Download File
2023/03/29 User Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/03/07 UKCA Declaration of Conformity
2023/03/07 CE-Conformity Declaration
2023/03/07 FCC Verification
2023/03/07 CE EMC Verification
