IFB122

Status : Available

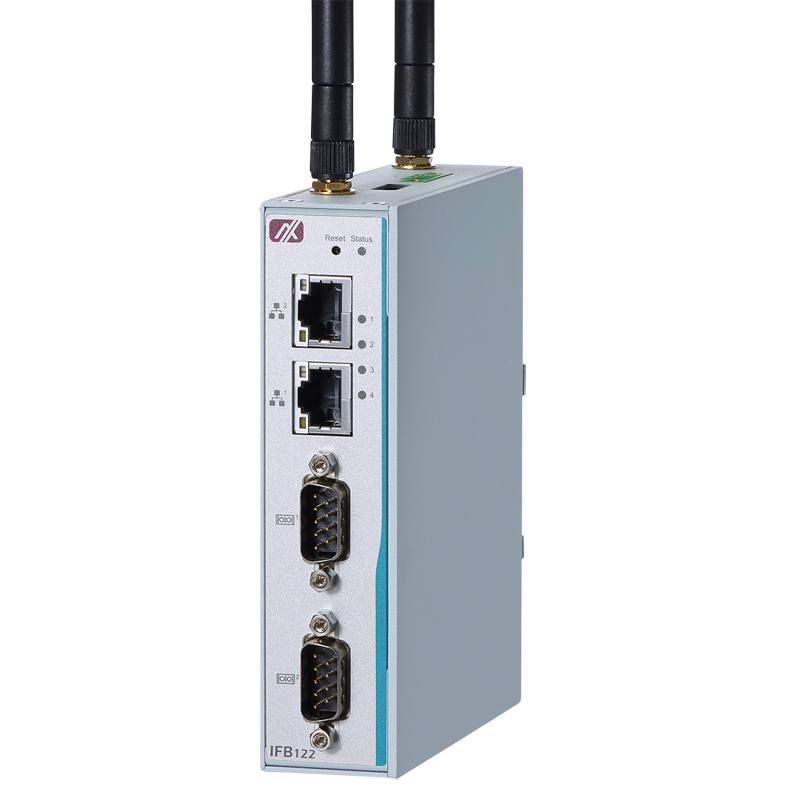

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, 2 COM, 2 LANs and DIO (2-In/1-Out)

PoE

PoE

UL508

UL508

UL1604

UL1604

IP40

IP40

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • RISC-based (i.MX 6UltraLite) processor 528 MHz
  • 256MB DDR3 SDRAM onboard
  • 8GB eMMC flash onboard
  • 1 PCI Express Mini Card slot (Wi-Fi or 3G/4G)
  • 2 digital inputs and 1 digital output
  • Power input range of 9V to 48V DC with terminal block
  • Embedded Linux operating system (Yocto)
  • Fanless and compact design
  • Wide operating temperature range from -40°C to +70°C

The IFB122 is an extremely compact RISC-based DIN-rail industrial IoT gateway powered by the low-power Freescale i.MX 6UL-2 processor in the ARM® Cortex™-A7 micro architecture. Designed to meet the challenges in critical environments, it supports extended operating temperature ranging from -40°C to 70°C, flexible wide voltage range 9V - 48V DC power input, and can withstand vibration up to 5G. One PCI Express Mini Card slot, one SIM card slot, and two internal antennas are available for Wi-Fi and 3G/4G connections. With the abilities to transmit data and manage various devices, the IP40-rated ready-to-run IFB122 is definitely a cost-effective solution for remote control/monitoring management applications such as unmanned control room, industrial machine, automatic parking lot, traffic cabinet, etc.

Specifications

CPU
  • NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
Chipset
  • SoC integrated
System Memory
  • 256 MB DDR3-1600 onboard
COM
  • 2 x RS-232/422/485
USB
  • 1 x USB 2.0
Ethernet
  • 2 x 10/100 Mbps Ethernet
  • Magnetic isolation protection 1.5KV
PoE
  • N/A
CANbus
  • N/A
Digital I/O

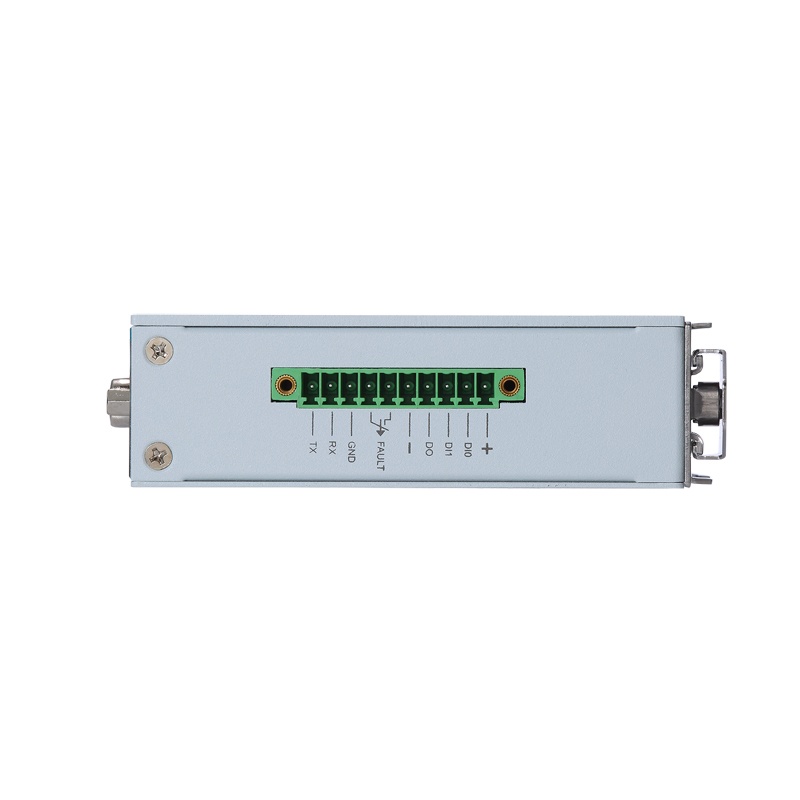

  • 1 x DIO (2-In/1-Out)
Analog Input
  • N/A
Display
  • N/A
Wireless
  • 1 x PCI Express Mini Card slot (USB signal only)
  • 1 x SIM card socket
Storage
  • 1 x eMMC 8 GB Flash onboard
Others
  • 1 x Relay
  • 1 x EEPPROM (2 Kb)
  • Console port
  • RTC
Power

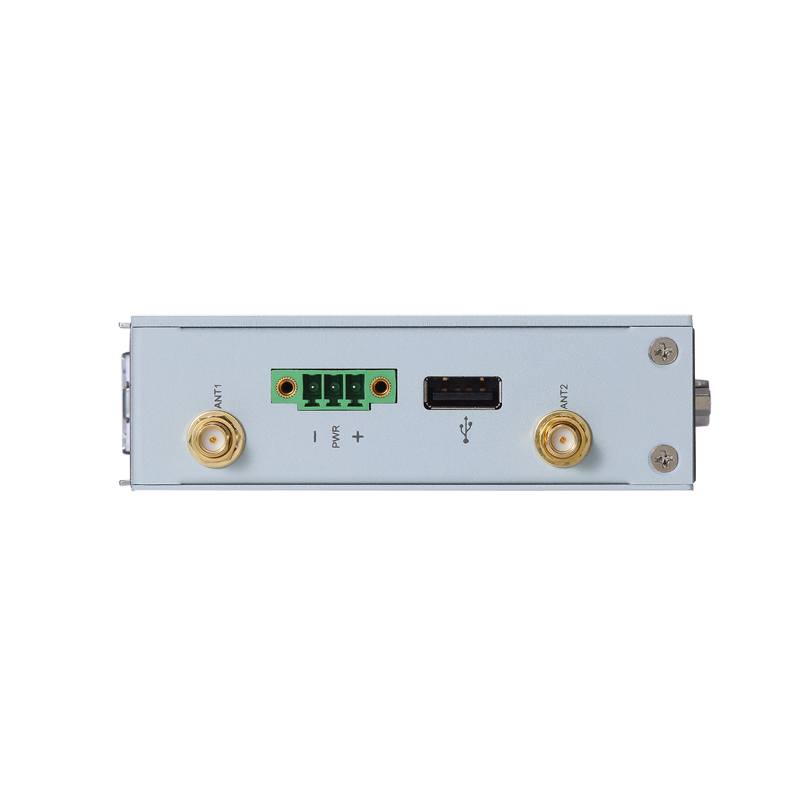

  • 9 to 48 VDC power input
Watchdog Timer
  • WDT 1: 0.5 to 128 sec. with a time resolution of 0.5 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Relative Humidity
  • 10% to 95%
Vibration
  • 5 Gms @ (10 to 150Hz random; operation)
Dimensions (W x D x H)
  • 31 x 100 x 125 mm (1.22" x 3.94" x 4.92")
Weight (net/gross)
  • 0.3 kg (0.66 lb)/0.44 kg (0.97 lb)
Certifications
  • FCC part 15, Heavy Industrial CE
EOS Support
  • OS: Yocto 3.3 (Hardknott)
  • Kernel: 5.10.72

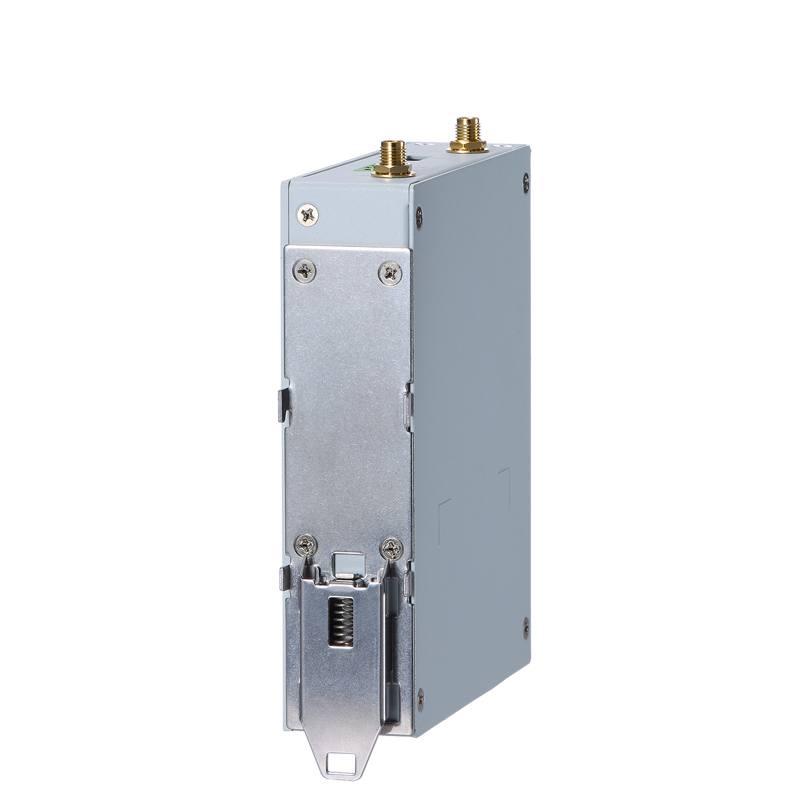

Mounting
  • DIN-rail
  • Wall mount

Ordering Information

  • IFB122-UL8E-A (P/N-E26V122109)
    Robust DIN-rail fanless embedded system with i.MX 6UL processor, 8GB eMMC, 2 COM, 2 LAN, and DIO (2-in/1-out) (-40°C to +70°C)
  • Wall mount kit
  • Wireless (3G/GPS or Wi-Fi) module

Download

Drivers

Software

Date Description Version Download File
2023/02/02 IFB122 Linux BSP Yocto 3.3 (Hardknott) V1.0.3

Manual

Date Description Version Download File
2023/05/31 Linux User Manual VA6
2019/10/28 User Manual VA5
2017/11/06 IFB122 Quick Guide VA1-12-12-2016 VA1.1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/12/27 CE LVD Verification
2022/12/27 UKCA Declaration of Conformity
2022/12/27 CE-Conformity Declaration
2022/12/27 FCC Verification
2017/06/27 CE EMC Verification
