AX61120TB

Status : Available

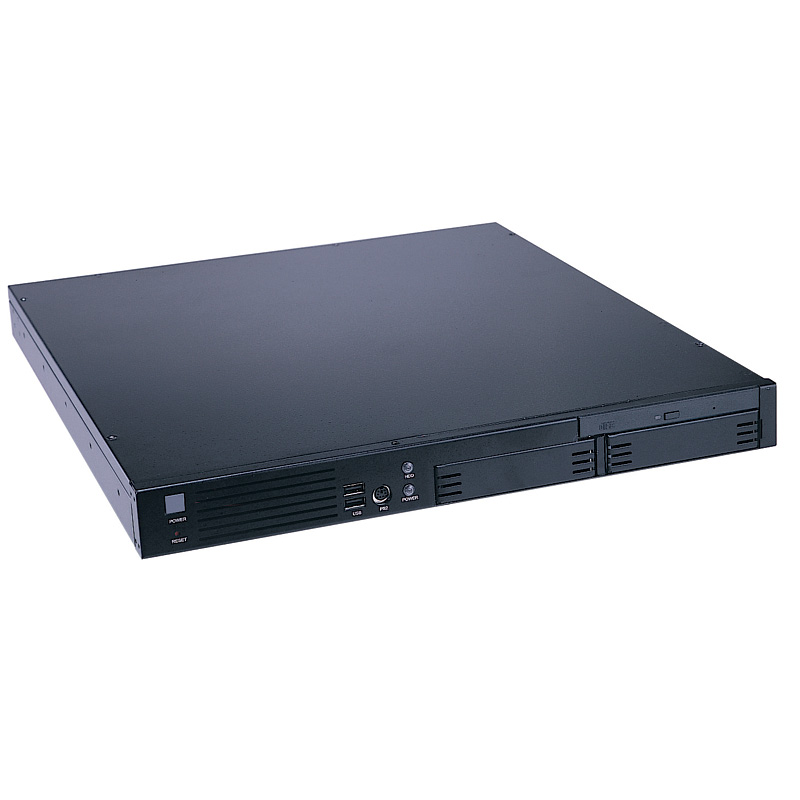

1U Rackmount Chassis for Full-size SBC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AX61120TB
AX61120TB
AX61120TB
AX61120TB
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • PICMG 1.3 SBC structure with 2 expansion slots
  • Internal two 3.5" HDD drive bays
  • Slim-line CD-ROM disk bay for ease of system installation
  • Special cooling system design for supporting Intel® Pentium® 4 processor

The AX61120TB is a slim 1U-high rackmount industrial computer chassis. This chassis supports up to two PCI expansion slots and can be equipped with a 250W ATX PFC power supply. The front access I/O ports are designed for ease access. The efficient cooling system keeps the system away from over heated. This industrial chassis features two internal 3.5" drive bays and a slim-line CD-ROM disk bay for ease of system installation. Furthermore, the AX61120TB can accommodate various full-size PICMG single board computers.

Specifications


Height
  • 1U
Expansion
  • 2-slot

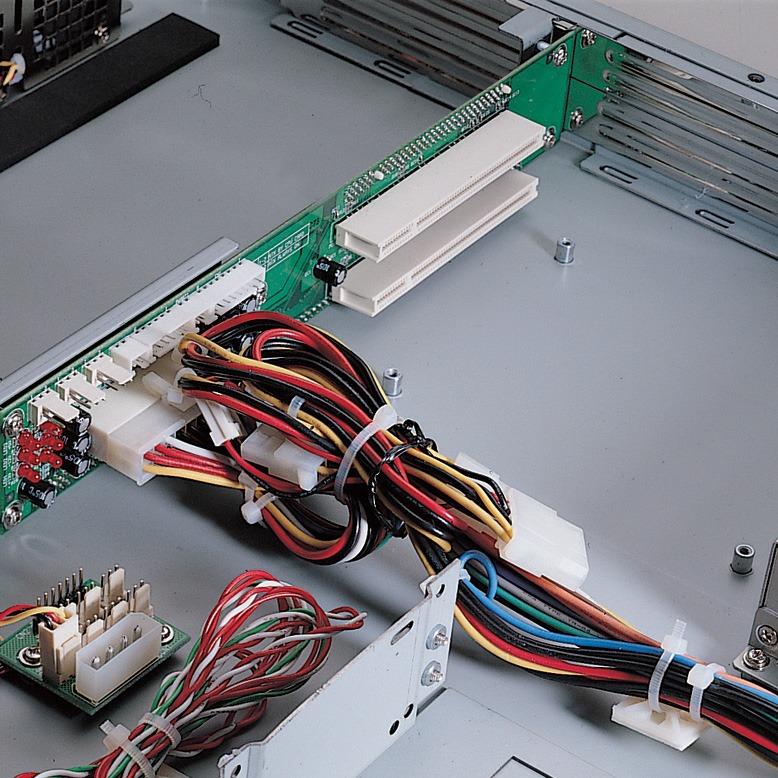

  • 1 x PCIe x16 & 1 x PCIe x4 via FAB209
Drive Bay
  • 2 x 3.5" HDD drive bay
Cooling System
  • 3 x 4 cm ball bearing fan
System Board
  • Full-size SBCs
Backplane Options
  • FAB209

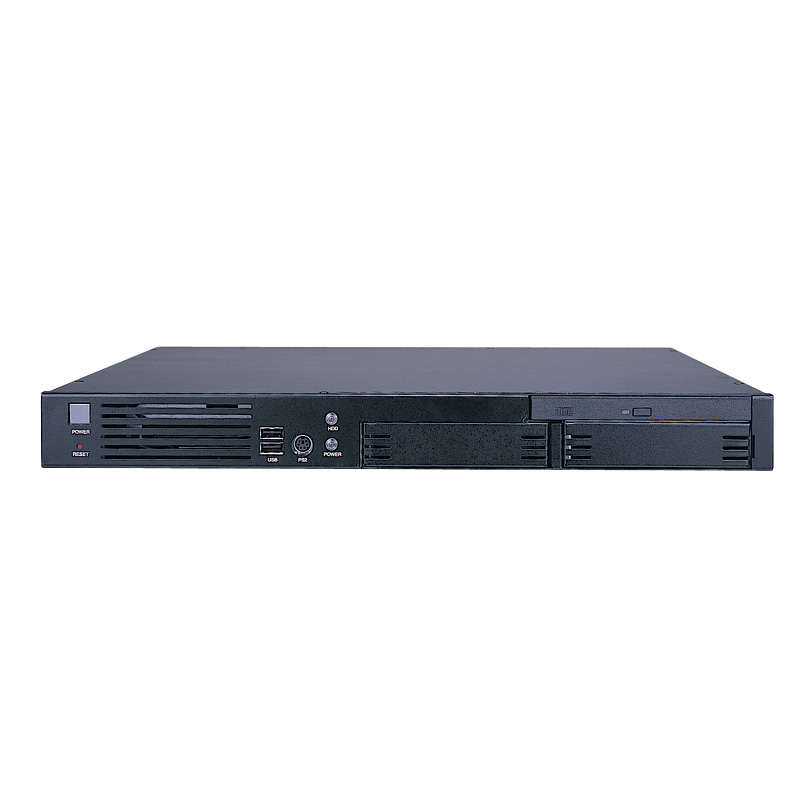

I/O Interface
  • 2 x USB
  • 1 x PS/2 6-pin
  • 1 x slim-line CD-ROM
Front Panel Indicators
  • 1 x Power on/off
  • 1 x HDD
Front Panel Controls
  • 1 x Power on/off
  • 1 x System reset
Power
  • 1U type
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(W x D x H)
  • 482.6 x 500 x 44.3 mm (19" x 19.7" x 1.75")
Weight (net/gross)
  • 9.8 kg (21.6 lb)/10.5 kg (23.15 lb)
Certifications
  • CE

Ordering Information

  • AX61120TB/X200
    With ATX 200W power supply
  • AX61120TB/X270
    With ATX 270W power supply
  • Backplane Options
    FAB209
  • Power Supply Options
    PS270-1U, PS200-1U
