IPC960A

Status : Available

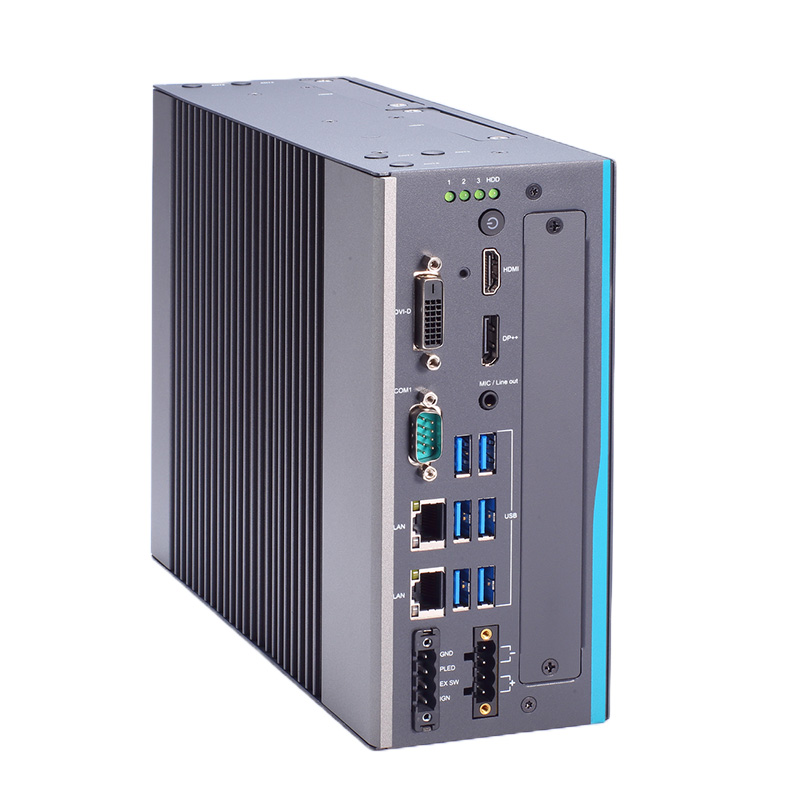

Fanless Industrial System with LGA1700 Socket 13th/12th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, Intel® H610E/Q670E, and Front-access I/O

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
IPC960A
IPC960A
PoE

PoE

UL508

UL508

+5V

+5V

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Fanless embedded system
  • Optional extension system I/O module
  • Optional 5G network (Q670E)
  • Intelligent power management: Ignition, USB power on/off control
  • Supports Intel RAID (Q670E)
  • EN61000-6-2 certified
  • Optional DIN-rail, bookshelf and wall mount kits

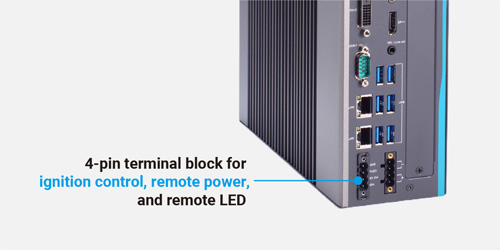

Intelligent Power Management
The IPC960A has one 4-pin terminal block for DC input and one 4-pin terminal block for ignition control, remote power, and remote LED.
Intelligent Power Management

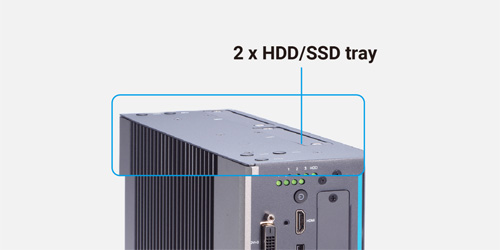

Ready for Extensive Storage Needs
Ready for Extensive Storage Needs
By supporting two 2.5" HDD/SSD and one optional M.2 Key M 2280 socket (PCIe x4 Gen4), the high-performance IPC960A delivers sufficient storage for massive data processing.

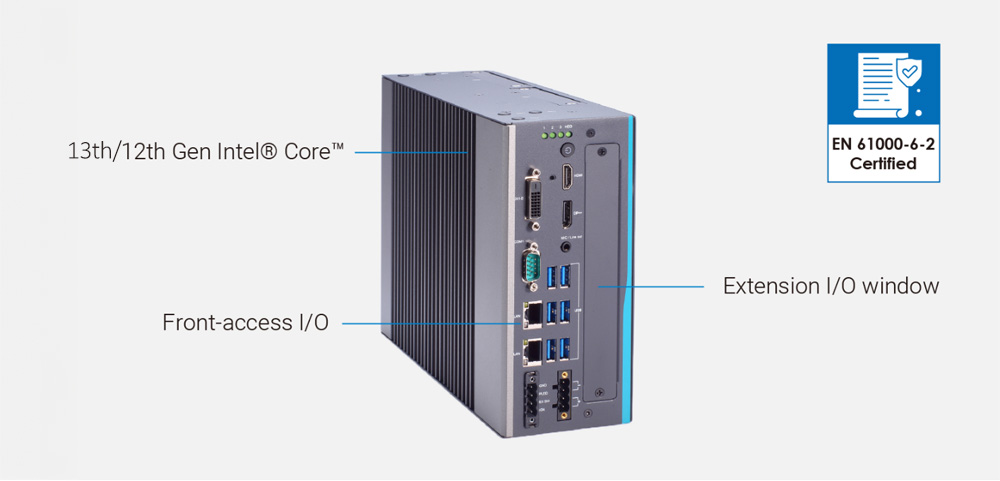

Industrial Edge System featuring Extension I/O Modules
The highly expandable IPC960A is powered by the 13th/12th gen Intel® Core™ processor with the Intel® H610E/Q670E chipset. Certified to EN 61000-6-2 regulations, the IPC960A offers a durable design, longevity of product life cycle, and high immunity for heavy-loading industrial environments. With fast and flexible deployment capabilities, this highly adaptable industrial computer can quickly and efficiently respond to changes or new circumstances for diverse applications in AI, vision inspection, objective classification, and factory automation.
IPC960A
Next-Gen Performance
The IPC960A is powered by the 13th/12th gen Intel® Core™ processor with the Intel® H610E/Q670E chipset. It is equipped with dual DDR5 4800/4000 SO-DIMM for up to 64GB of system memory.
Flexible Expansion Options
The IPC960A offers one optional I/O expansion module slot and I/O module options include Axiomtek’s AX93511, AX93512, AX93516, AX93519, MIO160, and MIO530.
Front-Facing I/O Interfaces
The IPC960A supports rich I/O options, including one 2.5GbE LAN port, one GbE LAN port, one RS-232/422/485, six USB 3.2 Gen2x1 (10G) ports, one internal USB 2.0 port, one DisplatPort++, one HDMI, one DVI-D.
Rugged & Reliable Design
The IPC960A has a wide operating temperature range of -20°C to +60°C and a wide range of power input from 18 to 36 VDC for operation in mission-critical environments.

Specifications


CPU
  • 13th/12th gen Intel® Core™ processor, up to 65W
Chipset
  • Intel® H610E/Q670E
System Memory
  • 2 x DDR5 4800/4000 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (default RS-232)
  • More COM ports available from extension I/O modules
USB
  • Intel® H610E:
  • 2 x USB 3.2 Gen2x1 (10G) type A
  • 2 x USB 3.2 Gen1x1 (5G) type A
  • 2 x USB 2.0
  • 2 x USB 2.0 Type A
  • Intel® Q670E:
  • 6 x USB 3.2 Gen2x1 (10G) type A
  • 1 x USB 2.0 (Internal, up to 30mm) 180D type A
Ethernet
  • 1 x 2.5GbE LAN (Intel® I226-V)
  • 1 x 1GbE LAN (Intel® 1219-LM); with Intel AMT (Q670)
  • More LAN ports available from extension I/O modules
Display
  • 1 x DisplayPort++ with 4096 x 2160 resolution supported
  • 1 x HDMI with 4096 x 2160 resolution supported
  • 1 x DVI-D with 1920 x 1200 resolution supported
Digital I/O
  • Available from extension I/O modules
Audio
  • 1 x 3.5mm jack for Mic-in and Line-out
Storage
  • Intel® H610E:
  • 2 x 2.5" HDD/SSD bay (7/9.5/15 mm height)
  • Intel® Q670E:
  • 2 x 2.5" HDD/SSD bay (7/9.5/15 mm height)
  • 1 x M.2 Key M 2280 socket (PCIe x4 Gen4)
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) with SIM slot
Others
  • TPM 2.0
  • 1 x HDD/SSD access LED
  • 3 x User's LED
  • 1 x Switch for power on/off with LED (default ATX)
Power
  • Input: 18 to 36 VDC
  • 1 x Switch for power on/off with LED (default ATX)
  • 1 x 4-pin terminal block (5.08 mm) for DC input
  • 1 x 4-pin terminal block (5.08 mm) for ignition control, remote power and remote LED
Construction
  • Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature
  • -20°C to +60°C with 13th/12th gen Intel® Core™ processor and industrial wide-temp SSD, 0.7m/s air flow
Relative Humidity
  • 10% to 90%, non-condensing
Dimensions
(W x H x D)
  • 83.5 x 192 x 260 mm (3.29" x 3.62" x 10.24")
Weight (net/gross)
  • 4.2 kg (9.26 lb)/5.2 kg (11.46 lb)
Software Support
  • AXView
EOS Support
  • Windows® 10, Linux
Certifications
  • CE (EN 61000-6-4/EN 61000-6-2)/FCC

Ordering Information

  • IPC960A-H-F5 (coming soon)
    Industrial system with Intel® H610E and blank extension system I/O cover; w/o Axiomtek logo
  • IPC960A-Q-F5 (P/N-E26G960A00)
    Industrial system with Intel® Q670E and blank extension system I/O cover; w/o Axiomtek logo
  • AX93511 (P/N-8816G974EA0E)
    4 x RS-232/422/485 module (default RS-232)
  • AX93512 (P/N-8816G974FA0E)
    2 x RS-232/422/485 with isolated 1.5kVDC & 8-in/8-out with isolated 1.5kVDC DIO module
  • AX93516 (P/N-8816G974GA0E)
    4 x RS-232/422/485 with isolated 2kVDC module
  • AX93519 (P/N-8816G974HA0E)
    1 x 1GbE LAN + 2 x RS-232/422/485 + 2 x USB module
  • MIO160 (P/N-E39Q160100)
    6 x Serial port (4-wire RS-232
  • MIO530 (P/N-E39Q530100)
    1 x M.2 Key E 2230 socket + 1 x M.2 Key B 3042/3050/3052/3060 socket w/SIM slot for 5G module or selected LTE module (Q670E)
  • 2.5” SATA HDD/SSD
  • DDR memory
    DDR5 4800/4000 MT/s un-buffered SO-DIMM, up to 64GB
  • 886G9501EA0E
    Wall mount bracket kit
  • 886G95018A0E
    DIN-rail kit
  • 886G960A0A0E
    Bookshelf kit
  • 509000001500
    120W wire adapter
  • 50906A24000E
    230 wire adapter
