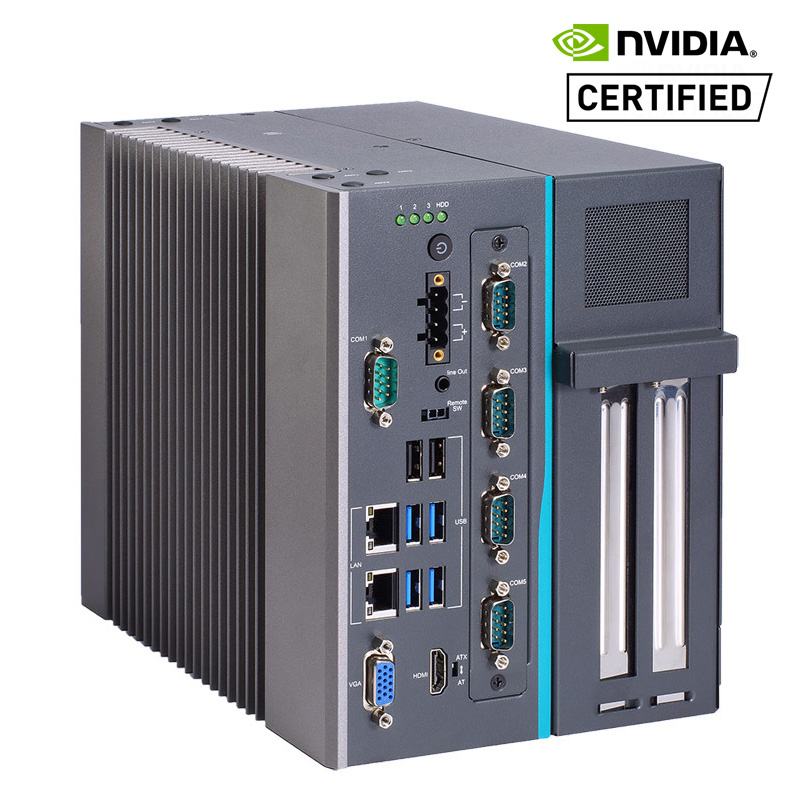

IPC962-525

Status : Available

2-slot Industrial System with LGA1151 Socket 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, Intel® H310/Intel® Q370, Front-access I/O, and PCIe & PCI Slots

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
IPC962-525
IPC962-525
Fanless

Fanless

PoE

PoE

UL508

UL508

M12 Connector

M12 Connector

+5V

+5V

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1151 socket 9th/8th gen Intel® Core™ processor, up to 65W
  • NVIDIA® GPU card, up to 125W
  • Supports NVIDIA® A2 GPU
  • M.2 Key B slot for 5G wireless connection (optional)
  • Supports RAID 0,1(Intel® Q370)
  • Supports Power-on delay function
  • Supports TPM 2.0
  • Supports AMT 12 (Intel® Q370)

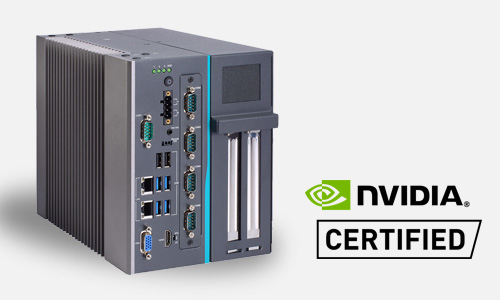

NVIDIA-Certified
Axiomtek’s IPC962-525 has been validated as an NVIDIA-certified edge computer, proving the performance for AI workloads.
IPC962-525
IPC962-525

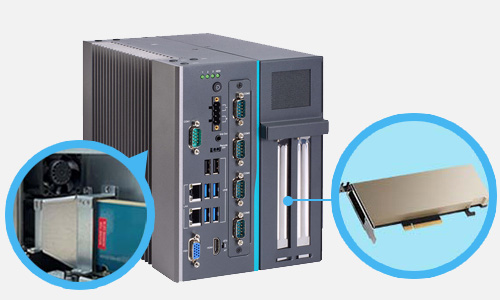

Compatible w/ A2 GPU
The IPC962-525 functions effortlessly with the A2 GPU; the combination can provide powerful computing capability.
High-scalable Design for Diverse Industrial IoT Applications
The IPC962-525 features the 9th gen Intel® Core™ processor and provides flexible I/O configurations in USB, Serial, and LAN. It has two high-speed PCIe/PCI slots for GPU, vision, motion, data acquisition and frame grabber cards. The system has an M.2 Key B slot for 5G deployment and a full-size PCI Express Mini Card slot for Wi-Fi, Bluetooth and 4G/LTE modules. It also has VGA and HDMI for display. As to system and data stability and security, it supports TPM 2.0 and RAID 0,1. In addition, it has a wide operating temperature range of -10°C to +60°C for mission-critical edge environments.

IPC962-525
Exclusive Air Duct
With an exclusive air duct in the system, it brings air straight to the A2 GPU to lower the temperature to maintain high performance.
Extensive Storage
Two 2.5" swappable HDDs/SSDs supporting RAID 0,1 and one M.2 Key M 2280 socket are available for extensive storage needs.
Flexible Expansion Options
The IPC962-525 has an optional extension I/O module slot with four choices of I/O modules including AX93511, AX93516, AX93519 and AX93512. Moreover, it provides two high-speed PCIe/PCI slots that have two different combinations of expansion kits: AX96205, AX96206 and AX96207.

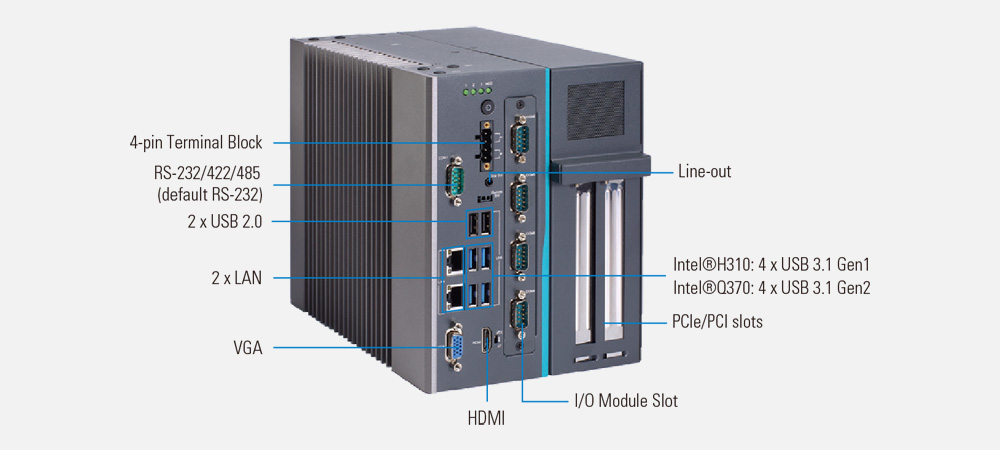

Front-facing I/O Connectors
The IPC962-525 comes with a wide choice of I/O interfaces including two GbE LAN ports, one COM port, seven USB ports, one VGA port, one HDMI port, one 4-pin terminal block, and one audio (Mic-in/out).

Specifications


CPU
  • 9th/8th gen Intel® Core™ processor, up to 65W
Chipset
  • Intel® H310/Intel® Q370
System Memory
  • 2 x DDR4-2666/2400 MT/s un-buffered SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • Available from extension I/O modules
USB
  • Intel®H310:
  • 4 x USB 3.1 Gen1
  • 2 x USB 2.0
  • 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)
  • Intel®Q370:
  • 4 x USB 3.1 Gen2
  • 2 x USB 2.0
  • 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)
  • More USB ports available from extension I/O modules
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I219-LM)
  • More LAN ports available from extension I/O modules
Display
  • 1 x VGA
  • 1 x HDMI
Digital I/O
  • Available from extension I/O modules
Audio
  • 1 x Line-out
Storage
  • Intel® H310:
  • 2 x 2.5" swappable HDD/SSD (7/9.5 mm height)
  • Intel® Q370:
  • 2 x 2.5" swappable HDD/SSD (7/9.5 mm height), supports RAID 0,1
  • 1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD
Expansion
  • Intel® H310: 1 x Full-size PCI Express Mini Card slot (USB interface)
  • Intel® Q370: 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) or 1 x M.2 Key B slot (3050)
  • 2 x PCIe/PCI slots
  • 1 x SIM slot
  • 1 x I/O module slot
Others
  • 1 x Switch for power on/off w/LED (ATX)
  • 1 x Remote switch
  • 1 x 4-pin terminal block
  • 1 x AT/ATX selectable switch
  • TPM 2.0
Power
  • Type: ATX/AT
  • Input: 24 VDC (uMin=19V/uMax=30V)
Construction
  • Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature
  • -10°C to +60°C (+14°F to +140°F) with Intel® 9th/8th gen Intel® Core™ and W.T. HDD/SSD
Relative Humidity
  • 10% to 90%, non-condensing
Dimensions
(W x H x D)
  • 147.5 x 192 x 230 mm (5.80" x 7.54" x 9.04")
Weight (net/gross)
  • 4.382 kg (9.66 lb)/5.346 kg (11.80 lb)
EOS Support
  • Windows® 10, Linux
Software Support
  • N/A
Certifications
  • CE (EN 61000-6-4/EN 61000-6-2)
  • FCC

Ordering Information

  • IPC962-525-N-DC-H310 (P/N-E26G962119)
    2-slot industrial system with 9th/8th gen Intel® Core™ processor and Intel® H310, and PCI Express Mini Card slot; w/o Axiomek logo
  • IPC962-525-N-DC-Q370 (P/N-E26G962114)
    2-slot industrial system with 9th/8th Intel® gen Core™ processor, Intel® Q370, and PCI Express Mini Card slot; w/o Axiomtek logo
  • IPC962-525-N-DC-Q370-5G (P/N-E26G962113)
    2-slot industrial system with 9th/8th Intel® gen Core™ processor, Intel® Q370, and 5G wireless version; w/o Axiomtek logo
  • AX93511 (P/N-8816G974EA0E)
    4 x RS-232/422/485 module (default RS-232)
  • AX93512 (P/N-8816G974FA0E)
    2 x RS-232/422/485 with isolated 1.5kVDC & 8-in/8-out with isolated 1.5kVDC DIO module
  • AX93516 (P/N-8816G974GA0E)
    4 x RS-232/422/485 with isolated 2kVDC module
  • AX93519 (P/N-8816G974HA0E)
    1 x 10/100/1000 Mbps (Intel® I210-AT) Ethernet; 2 x RS-232/422/485 & 2 x USB 3.1 (1 USB 3.1 Gen2 & 1 USB 2.0 signal)
  • 726G9740690E
    Blank I/O cover
  • AX96205 (P/N-83962051000E)
    1 x PCIe x16 + 1 PCIe x4 expansion card
  • AX96206 (P/N- 83962061000E)
    1 x PCIe x16 + 1 PCI expansion card
  • AX96207 (P/N-83962071000E)
    2 x PCI expansion card
  • 2.5” SATA HDD/SSD
  • M.2 Key M 2280 (PCIe x4) NVMe SSD
  • DDR4-2666 MT/s non-ECC SO-DIMM, up to 64GB
  • 8816G962BA0E
    IPC962 fan module kit (internal)
  • 8816G962CA0E
    IPC962 fan module kit (external)
  • 8816G9629A0E
    NVIDIA® Tesla T4 GPU card fan module kit (for AX96205)
  • 8816G962AA0E
    Wall mount bracket kit
  • 509000001500
    Adaptor 24V/120W, wire only
  • 50906A24000E
    Adaptor 24V/230W, wire only
  • 8816G9628A0E
    IPC962 license key kit
  • 5946G962000E
    Graphics card power cable ATX4P/BTX6 + 2P, L = 200mm
