mHPC200

Status : Available

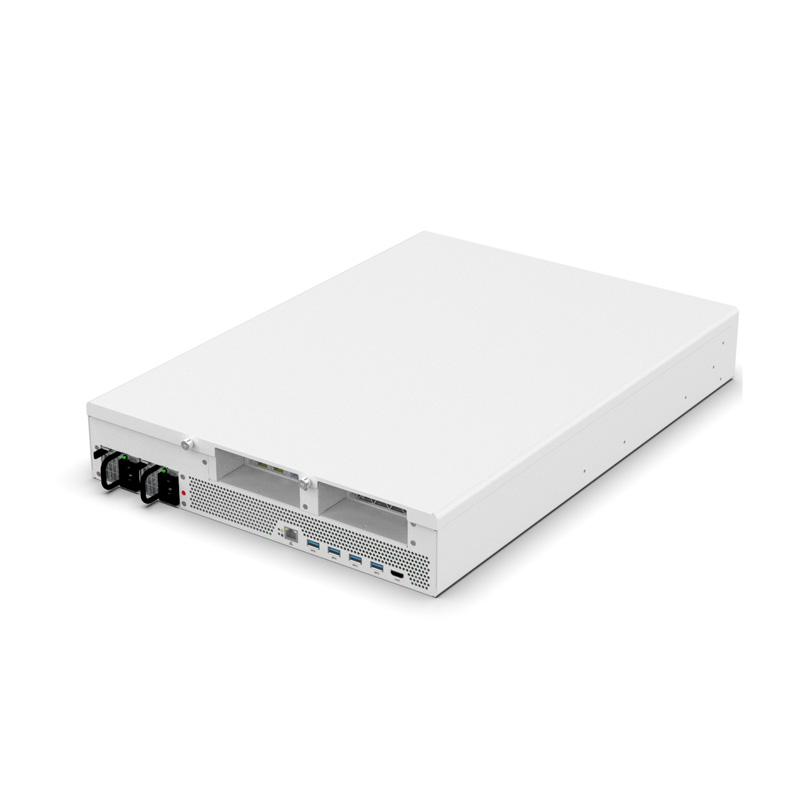

2U Rackmount Server with Dual Intel® Xeon® Gold 6226R Processors, Intel® C621 PCH for HPC in Medical Applications

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Dual Intel® Xeon® Gold 6226R processors
  • 12 DDR4-2933 ECC RDIMM, up to 384GB
  • Micron 6.4TB PCIe NVMe U.2 SSD, 9300 pro series
  • Supports PCIe x16 data center accelerator card
  • Supports 1200W redundant ATX power supply
  • Supports HDMI full HD output
  • Supports dual 10G Base-T & dual SFP+

The mHPC server products offer high computing power, graphical capabilities, rich interfaces, communication options and scalable features.

Secure Data Storage
Axiomtek's mHPC medical servers can effectively host a large quantity of information. Our standard servers offer scalable storage capacities and can be customized for high-speed hosting of large volumes of information or serve simpler tasks. They are designed to work well with a wide range of reporting, analytics and Electronic Medical Record (EMR) software and are created to be one of the most effective solutions for healthcare data storage.

Data Analytics
Axiomtek's mHPC medical servers are ideal for medical analytics applications. Coupled with analytics software, they can provide access to a vast amount of data or images, and process them to offer desired information and reports at a swift pace. With additional CPU and GPU capabilities, our AI servers can support complex laboratory, medical and research analytical applications. They can be used to support machine learning and other intelligent applications. Many of our servers in the AI product lines support leading software development kits and offer enhanced features for easy application development and deployment.

Controlling Medical Equipment at the Edge
Axiomtek’s powerful mHPC edge servers are purpose-built to effectively and reliably control medical equipment at the edge. They offer high-performance processors, rich interfaces, multiple communication options and flexibility for a wide range of applications. They can be used to control a variety of IoT medical devices, collect massive amounts of data, analyze and report in real-time to better detect and diagnose problems quickly and enhance patient treatment for improved outcomes. Among their rich features, our mHPC medical servers offer rich display outputs for applications requiring the displays of medical images. These edge servers feature high expandability, interconnectivity, rich protocol support and extensive choices of interfaces.

Specifications


CPU
  • Dual LGA3647 server-grade Intel® Xeon® Gold 6226R
  • processors 2.9GHz, 22MB Cache 16 cores
Chipset
  • PCH: Intel® C621, TDP 15W
  • BMC: ASpeed AST2500A2-GP
  • Embedded Graphics SoC: SiliconMotion SM768
System Memory
  • 12 x DDR4-2933 ECC RDIMM, up to 384GB
Graphics
  • Single HDMI 1.4 supported by SM768
BIOS
  • AMI version V1.04
Remote Management
  • IPMI 2.0 compliant
COM
  • N/A
USB
  • 4 x USB 3.0
Ethernet
  • 1 x LAN (BMC/IPMI)
  • 1 x Network card supports dual 10G Base-T & dual SFP+
Display
  • 1 x HDMI FHD
Storage
  • 2 x 2.5" hot-swappable SATA SSD slot, in upport of 2 x 256G SSD (RAID 1)
  • 2 x 2.5" hot-swappable U.2 SSD slot in support of 1 x 6.4T U.2 SSD (RAID 0)
Expansion
  • 2 PCIe riser cards inside:
  • 2 x PCIe x16 Gen 3.0 slots
  • 1 x PCIe x16 slot, 1x PCIe x8 slot, M.2 22110-M slot
Others
  • 2 x 110 to 240 VAC power input
  • 2 x LED status (power-on, SSD act.)
Power Supply
  • 2 x 1200W redundant ATX power supply
Watchdog Timer
  • Reset: 1 - 65535 sec./min. and 1 sec. or 1 min./step
Operating Temperature
  • 0°C to +40°C (32°F to +104°F)
Relative Humidity
  • 10% - 95%, non-condensing
Vibration Endurance
  • Heavy-duty steel
Dimensions (W x D x H)
  • 430 x 600 x 88 mm (19” x 19.4” x 3.5”)
Weight (net/gross)
  • 11.9 kg (26 lb) /16.10 kg (35 lb)
EOS Support
  • CentOS 7.6 & Windows 10 IoT
Certifications
  • CE, IEC 62368-1, FCC Class A compliant

Ordering Information

  • mHPC200-CCL
    2U 19" rackmount server with dual Intel® Xeon® Gold 6226R processors, 384GB DDR4-2933 ECC registered DIMM memory, single Micron 6.4TB PCIe NVMe U.2 SSD, two 256GB SATA III SSD, single network card
  • RAM (P/N-E9C1816K00)
    32GB ECC RDIMM DDR4-2933 288PIN Micron (MTA36ASF4G72PZ-2G9E2), 64GB to 384GB
  • U.2 SSD (P/N-E9B2Q00060)
    Micron 9300 max series 6.4TB NVMe U.2 SSD (MTFDHAL6T4TDR-1AT1ZABYY) QTY
  • SATAIII SSD (P/N-E9B2F1256R)
    Transcend 2.5“ 256GB SATAIII SSD (TS256S2MAX02IK1) QTY
  • 22" Rack rail (P/N-7421A610000E)
    NJ-21A61 SERVER SLIDE 22”
