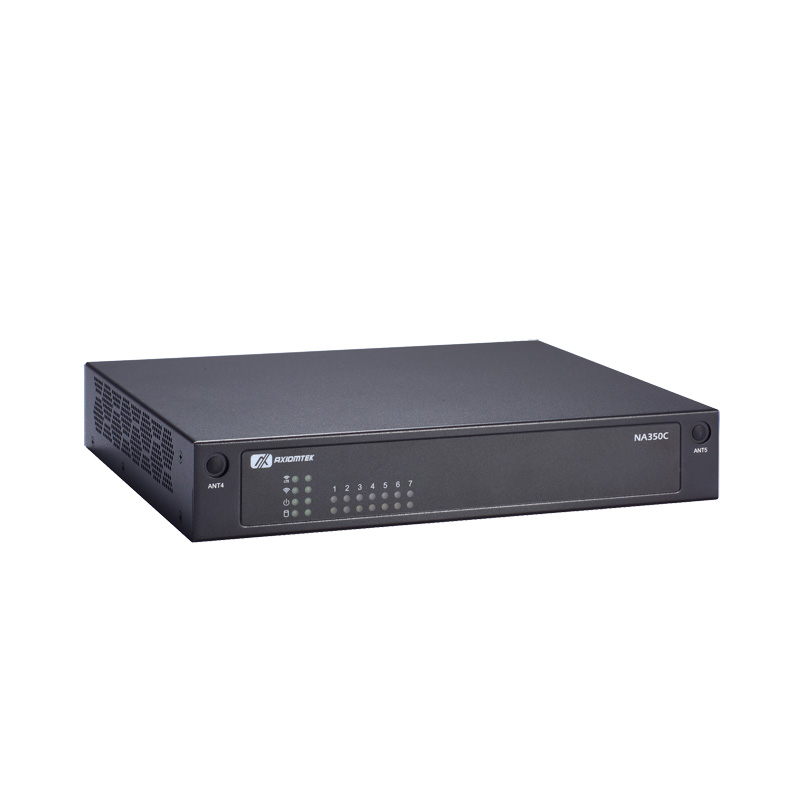

NA350C

Status : Available

Desktop Network Appliance Platform with Intel Atom® Processor x6425E and up to 7 LAN for VPN, 5G Edge Gateway, Firewall and UTM

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NA350C
NA350C
NA350C
+5V

+5V

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel Atom® x6425E processor (Elkhart Lake)
  • Two DDR4 SO-DIMM for up to 32GB of memory
  • Two 1G SFP and two GbE RJ-45 (Intel® I350)
  • Three 2.5G RJ-45 (MaxLinear GPY211)
  • One M.2 Key B slot for 5G NR/LTE
  • One M.2 Key E slot for Wi-Fi
  • One Full-size PCI Express Mini Card slot for LTE
  • One Half-size PCI Express Mini Card slot for Wi-Fi
  • Supports dual SIM sockets

Specifications


Form Factor
  • 1U desktop
CPU
  • Intel Atom® x6425E processor (Elkhart Lake)
Chipset
  • SoC integrated
System Memory
  • 2 x DDR4 SO-DIMM, up to 32GB
BIOS
  • AMI
Ethernet
  • 2 x GbE RJ-45
  • 2 x 1G SFP (Intel® I350)
  • 3 x 2.5G RJ-45 (MaxLinear GPY211)
LAN Bypass
  • 1 pair
LAN Module
  • N/A
Storage
  • 1 x M.2 Key M 2242 slot (SATA3)
Expansion
  • 1 x Half-size PCI Express Mini Card slot (PCIe+USB 2)
  • 1 x Full-size PCI Express Mini Card slot with Nano SIM (USB 2)
  • 1 x M.2 Key B 3052/3042 slot with Nano SIM (USB 2+USB 3)
  • 1 x M.2 Key E 2230 slot (PCIe+USB 2)

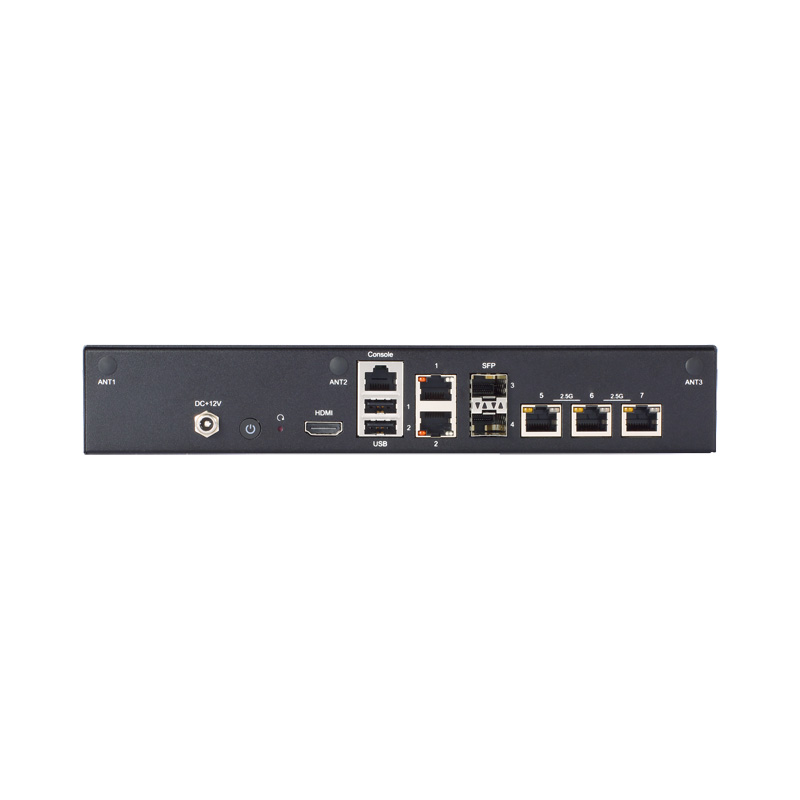

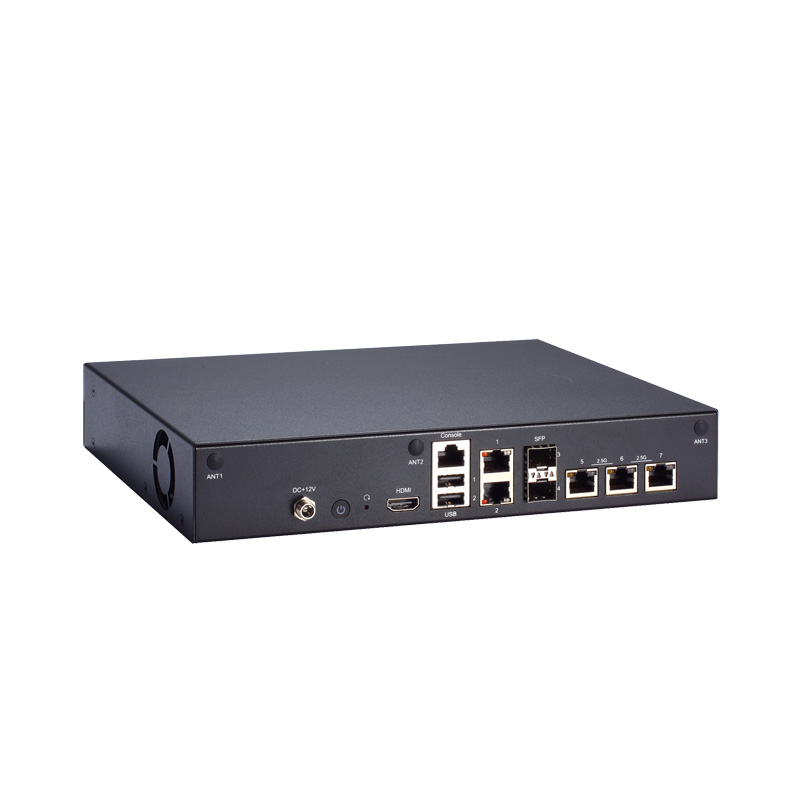

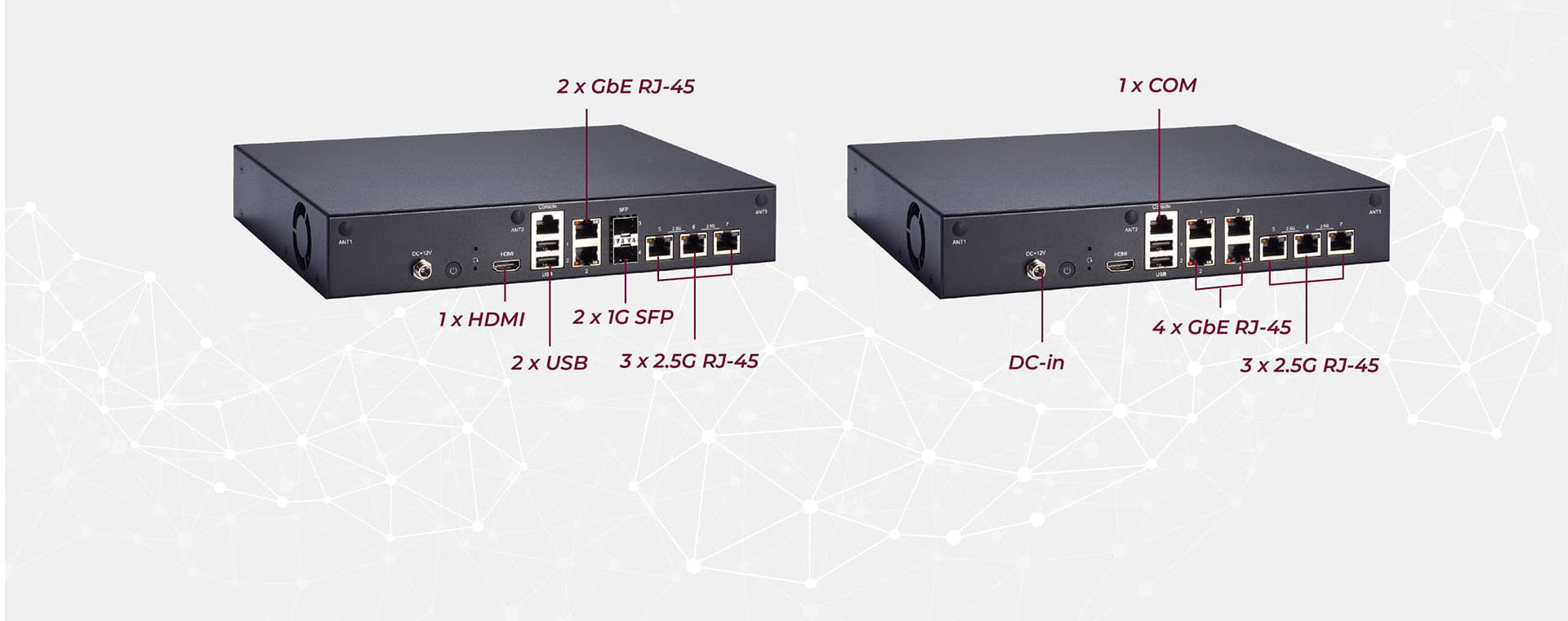

I/O Interface
  • 1 x Console (RJ-type)
  • 5 x RJ-45
  • 2 x SFP
  • 2 x USB 2.0
  • 1 x HDMI
  • 1 x Reset button
  • 1 x DC Jack (Screw type)
  • 1 x Power button with LED
Power Supply
  • 1 x DC power adapter 12V/5A
LCM Module
  • N/A
TPM
  • Onboard TPM 2.0 (optional)
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(H x W x D)
  • 44 x 257 x 197 mm (1.73" x 10.12" x 7.76")
Weight (net/gross)
  • 1.6 kg (3.53 lb) / 2.45 kg (5.6 lb)
EOS Support
  • Linux
Certifications
  • CE/FCC Class B

Ordering Information

  • NA350C
    1U Desktop with Intel Atom® x6425E processor, 2 SO-DIMM, 2 GbE, 2 1G SFP and 3 2.5G RJ-45
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco

Download

This object is currently under update, please visit later.
