iNA200

Status : Available

DIN-Rail Cybersecurity Gateway with Intel Atom® x6212RE/x6414RE Processor and up to 6 LAN

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
iNA200
iNA200
iNA200
iNA200
iNA200
iNA200
PoE

PoE

UL508

UL508

UL1604

UL1604

+5V

+5V

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel Atom® x6212RE/x6414RE processor (Elkhart Lake)
  • DDR4-3200 SO-DIMM, up to 32GB
  • 2 GbE LAN, 2 2.5GbE LAN, and 2 SFP
  • Wide operating temperature from -40°C to +70°C
  • Wide power input of 9 to 36V DC with dual power input
  • Supports 5G with M.2 Key B 3042/3052
  • Supports TPM 2.0
  • Ideal for OT field site cybersecurity and secured edge

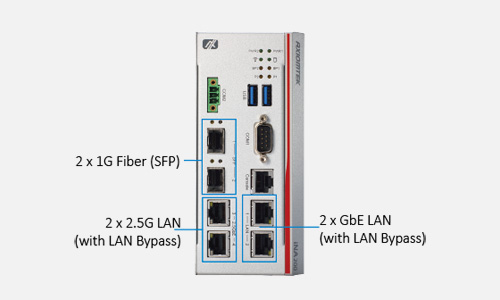

Higher Network Throughput
For the network interfaces, the iNA200 provides two GbE LAN ports with LAN Bypass, two 2.5G LAN ports with LAN Bypass and TSN function, and two 1G SFP (Intel® I210-IS) ports.
tBOX110
tBOX110

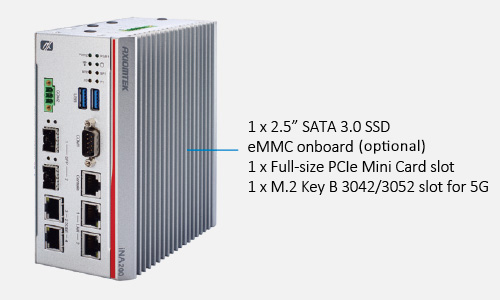

Great Expandability
The iNA200 has one 2.5” SATA 3.0 SSD and eMMC onboard (optional) for storage. It also supports one full-size PCIe Mini Card slot (USB + SATA interface) and one M.2 Key B 3042/3052 slot (PCIe + USB interface) for wireless modules.

Low Power yet Boosted Performance
The iNA200 is powered by the Intel Atom® x6212RE or x6414RE processor (codename: Elkhart Lake) and has one DDR4-3200 SO-DIMM for up to 32GB of system memory.
Rugged & Reliable Design
For demanding rugged environments, the fanless IIoT edge gateway iNA200 comes with a wide operating temperature range of -40°C to 70°C and supports wide power input of 9 to 36 VDC with dual power input.

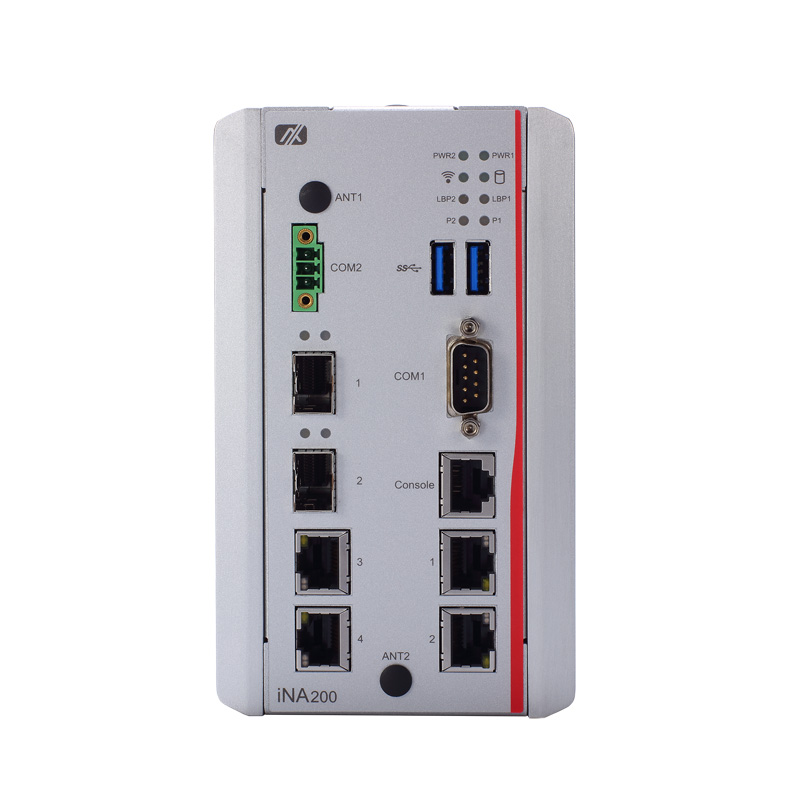

Rich I/O Interfaces
I/O options include two GbE LAN ports, two 2.5G LAN ports, two 1G SFP (Intel® I210-IS) ports, one HDMI, two USB 3.1 ports, one COM port (RS-232/422/485) with DB9 type, one COM port (RS-485) with 3-pin terminal block, one tact switch, four antenna holes, one power input connector, and one console port (RJ-45).

Specifications


Form Factor
  • DIN-rail
CPU
  • Intel Atom® x6212RE/x6414RE processor (Elkhart Lake)
Chipset
  • SoC integrated
System Memory
  • DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
Ethernet
  • 2 x 10/100/1000 Mbps (Marvell 88E1512) with LAN Bypass
  • 2 x 2.5G (Intel® I225-IT) with LAN Bypass and TSN function
  • 2 x 1G SFP (Intel® I210-IS)
Storage
  • 1 x 2.5" SATA 3.0 SSD
  • 1 x eMMC onboard (optional)
Expansion
  • 1 x M.2 Key B 3042/3052 slot (PCIe + USB interface)
  • 1 x Full-size PCIe Mini Card slot (USB + SATA interface)
I/O Interface
  • 1 x HDMI
  • 2 x USB 3.1
  • 1 x COM port (RS-232/422/485) with DB9 type
  • 1 x COM port (RS-485) with 3-pin terminal block
  • 1 x Tact switch
  • 4 x Antenna hole
  • 1 x Power input connector
  • 4 x Copper
  • 2 x Fiber
  • 1 x Console port (RJ-45)

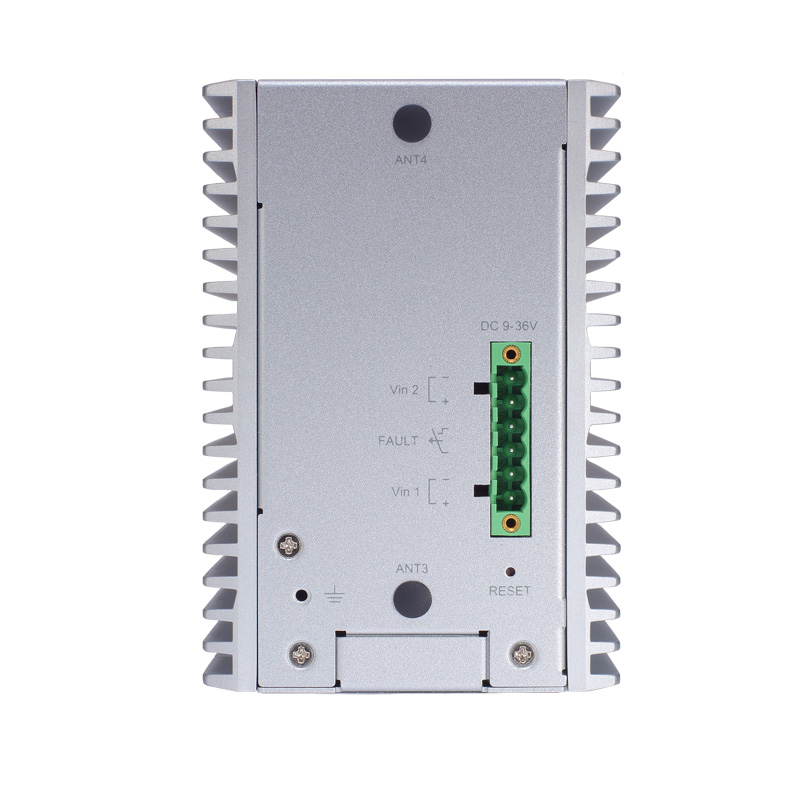

Power Supply
  • 9 to 36V DC (typical 12/24V) with terminal block for dual power input
  • OVP, UVP, OCP, RPP power protection design
Others
  • TPM 2.0
Watchdog Timer
  • 255 stepping for system reset
Dimensions
(W x D x H)
  • 66 x 127 x 150mm (2.6" x 5" x 5.9")
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Weight (net/gross)
  • 1.5 kg (3.3 lb)/1.8 kg (3.97 lb)
OS
  • Linux, Windows® 10
Certifications
  • CE (Class A), FCC (Class A)

Ordering Information

  • iNA200-X6414-A (P/N-E27B200100)
    DIN-rail cybersecurity gateway with Intel Atom® x6414RE processor and up to 6 LAN
  • iNA200-X6212-A (P/N-E27B200101)
    DIN-rail cybersecurity gateway with Intel Atom® x6212RE processor and up to 6 LAN

Download

Drivers

Date Description Version Download File
2022/10/26 Intel PSE_win10_64 VA1.0
2022/10/26 Intel Ethernet_win10_64 VA1.0
2022/10/26 Intel Graphic_win10_64 VA1.0
2022/10/26 Intel Serial I/O_win10_64 VA1.0
2022/10/26 Intel Chipset_win10_64 VA1.0
2022/10/26 RS485_win10_64 VA1.0
2022/10/26 Intel CSE_win10_64 VA1.0
2022/10/26 Intel GbE_win10_64 VA1.0

Software

Manual

Date Description Version Download File
2022/10/26 User's Manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/12/27 UKCA Declaration of Conformity
2022/12/27 FCC Verification
2022/12/27 CE-Conformity Declaration
2022/12/27 CE EMC Verification
