AX93316

Status : Available

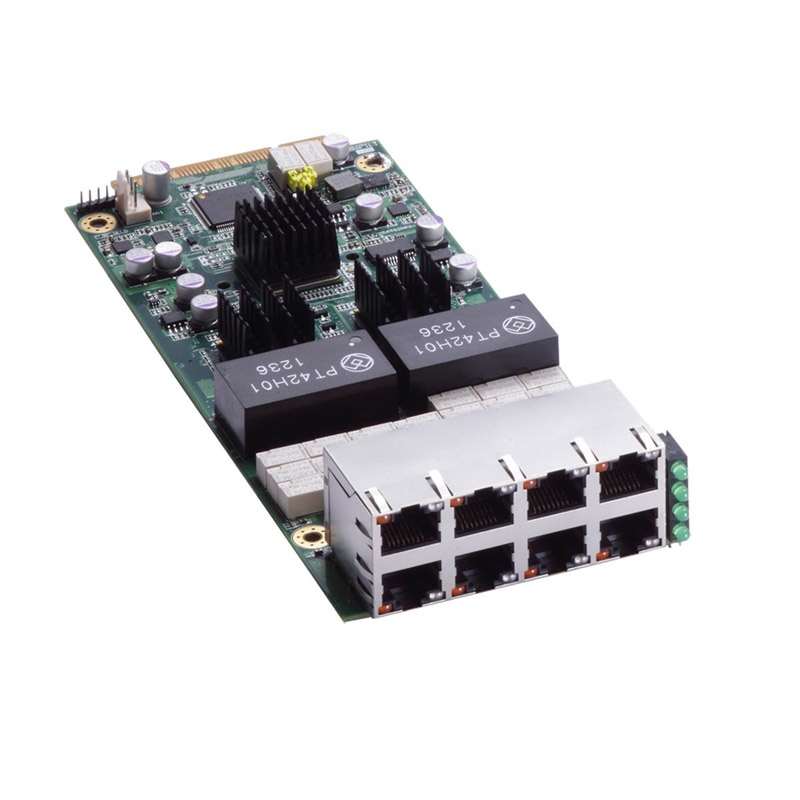

8-Port LAN Module with Intel® I350-AM4 GbE Ethernet Controller

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AX93316
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® I350-AM4 Ethernet controller
  • 8 GbE RJ-45 ports
  • PCIe 2.0 x8 golden finger
  • 4-pair LAN Bypass (optional)
  • Supports DPDK acceleration
  • RoHS compliant

Axiomtek's AX93316 LAN module is built with an Intel® I350-AM4 GbE Ethernet controller to optimize data traffic processing, employing advanced techniques including the Intel® DPDK, I/OAT, Jumbo Frames and VMDq, not only enabling network appliances to speed up their data traffic but also enhancing their packet processing capabilities for higher throughput of data.

Specifications


Controller
  • Intel® I350-AM4
Speed/Connector
  • 8 x GbE RJ-45
Interface
  • PCIe 2.0 x8
LAN Bypass
  • Optional (refer to ordering Information)
Jumbo Frames
  • Yes (9.5KB)
Virtualization
  • VMDq and SR-IOV
Acceleration
  • DPDK
Watchdog Timer
  • Yes
Available Models
  • NA363R, NA580, NA590, NA592, NA720, NA721, NA860, NA861, and NA870
Operation Temperature
  • 0°C to +40°C (+32°F to +104°F)
Humidity
  • 10% - 90% RH, non-condensing
Dimensions
  • 78.9 x 175 x 42.8 mm (3.11" x 6.89" x 1.69")

Ordering Information

  • AX93316-8GI-i350 with LAN tray (P/N-E393316109)
    LAN module with Intel® I350-AM4 and 8 copper LAN ports
  • AX93316-8GIL-350 with LAN tray (P/N-E393316102)
    LAN module with Intel® I350-AM4 and 8 copper LAN ports with 4-pair LAN bypass
