AX93326

Status : Available

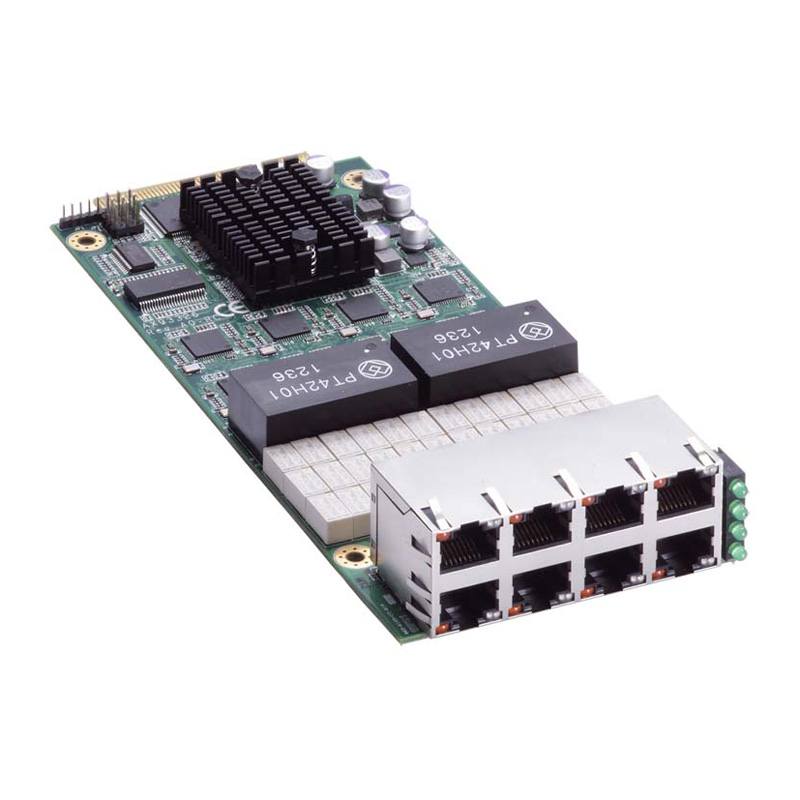

8-port LAN Module with Intel® I210-AT Ethernet Controller

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AX93326
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® I210-AT Ethernet controller
  • Eight GbE RJ-45 ports
  • PCIe 2.0 x4 golden finger
  • Four pairs LAN Bypass (optional)
  • RoHS compliant

The AX93326 LAN module is built with an Intel® I210-AT GbE Ethernet controller, incorporating Jumbo Frames and Intel® DPDK technologies to optimize the processing of network data traffic. It also provides an optional LAN bypass function to ensure smooth network connectivity at all times, making it an ideal solution for users seeking better protection of their essential business communications in the event of a power outage, system shutdown or crash.

Specifications


Controller
  • Intel® I210-AT
Speed/Connector
  • 8 x GbE RJ-45
Interface
  • PCIe 2.0 x8
LAN Bypass
  • Optional (refer to ordering information)
Jumbo Frames
  • Yes
Virtualization
  • N/A
Acceleration
  • DPDK
Watchdog Timer
  • Yes
Available Models
  • NA361R, NA362R, NA552, NA570, NA580, NA590, NA720, NA850, NA860, NA861
Operation Temperature
  • 0°C to +40°C (+32°F to +104°F)
Humidity
  • 10% - 90% RH, non-condensing
Dimensions
  • 78.9 x 175 x 42.8 mm (3.11" x 6.89" x 1.69")

Ordering Information

  • AX93326-8GI-i210 with LAN Tray (P/N-E393326100)
    LAN module with Intel® I210, 8 copper LAN ports

Download

This object is currently under update, please visit later.
