AX93331

Status : Available

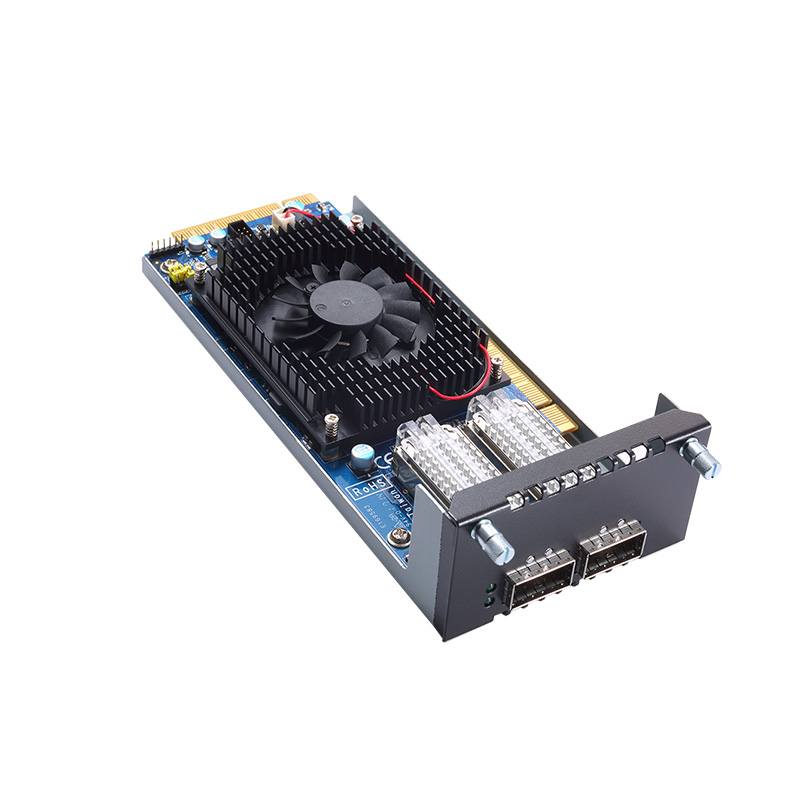

2-port 40GbE QSFP+ LAN Module with Intel® XL710 Ethernet Controller

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AX93331
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® XL710 40G Ethernet controller
  • Two 40 GbE QSFP+ ports
  • PCIe 3.0 x8 golden finger
  • Supports Intel® Virtualization Technology for connectivity (Intel® VT-c)
  • Compatible with Axiomtek SMB series
The AX93331 is a dual-port 40 GbE QSFP+ module with Intel® XL710 Ethernet controller. This is a great option for virtualized servers, providing advanced features including Virtual Machine Device Queues (VMDq) and Single Root I/O Virtualization (SR-IOV) to deliver amazing performance. It is designed to support demanding workloads for enterprise, cloud, and telecommunication service providers and data centers.

Specifications


Controller
  • Intel® XL710
Speed/Connector
  • 2 x 40G QSFP+
Interface
  • PCIe 3.0 x8
LAN Bypass
  • N/A
Jumbo Frames
  • Yes
Virtualization
  • VMDq, SR-IOV
Acceleration
  • N/A
Watchdog Timer
  • Yes
Available Models
  • NA361R, NA362R, NA552, NA570, NA580, NA590, NA720,NA850, NA860, NA861
Operation Temperature
  • 0°C ~ +40°C (+32°C ~ +140°C)
Humidity
  • 10% ~ 90% RH, non-condensing
Dimensions
  • 78.9 x 175 x 42.8 mm (3.11" x 7.24" x 1.69")

Ordering Information

  • AX93331 (P/N-E393331100)
    Dual-port 40 GbE QSFP+ Module with Intel® XL710 with Tray

Download

Drivers

Software

Manual

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/11/21 UKCA Declaration of Conformity
2023/11/21 CE-Conformity Declaration
