NA861

Status : Available

1U Rackmount Network Appliance Platform with LGA3647 Socket Intel® Xeon® Scalable Processor (Cascade Lake/Skylake), Intel® C621 (Purley) and up to 34 LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

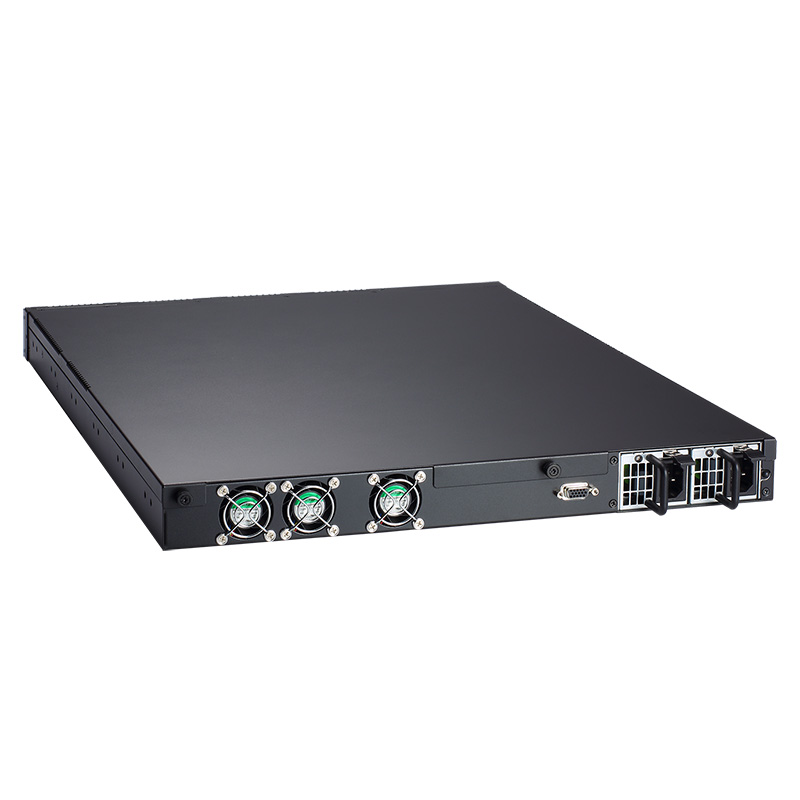

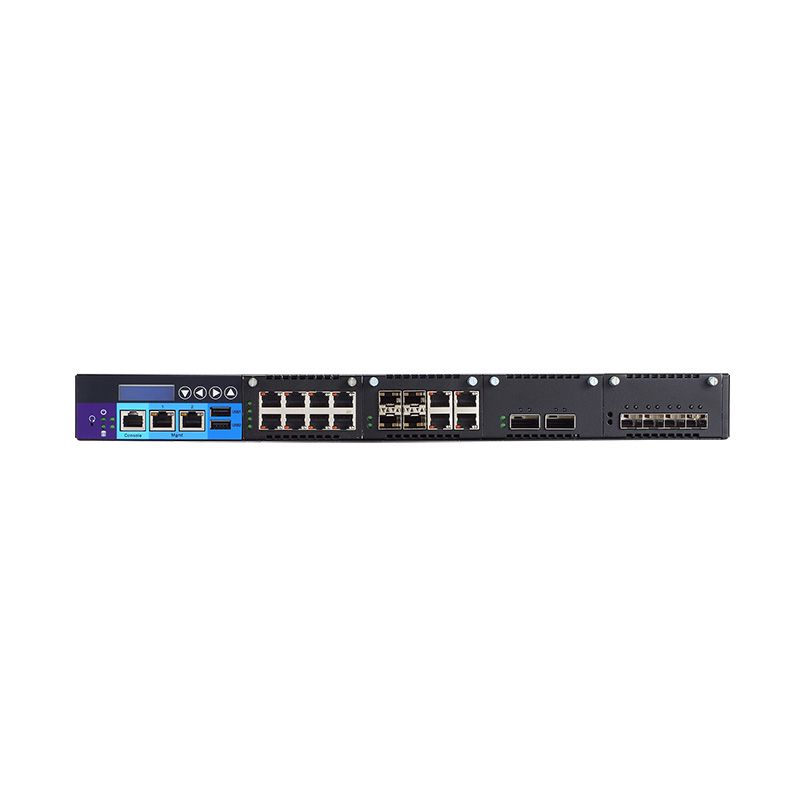

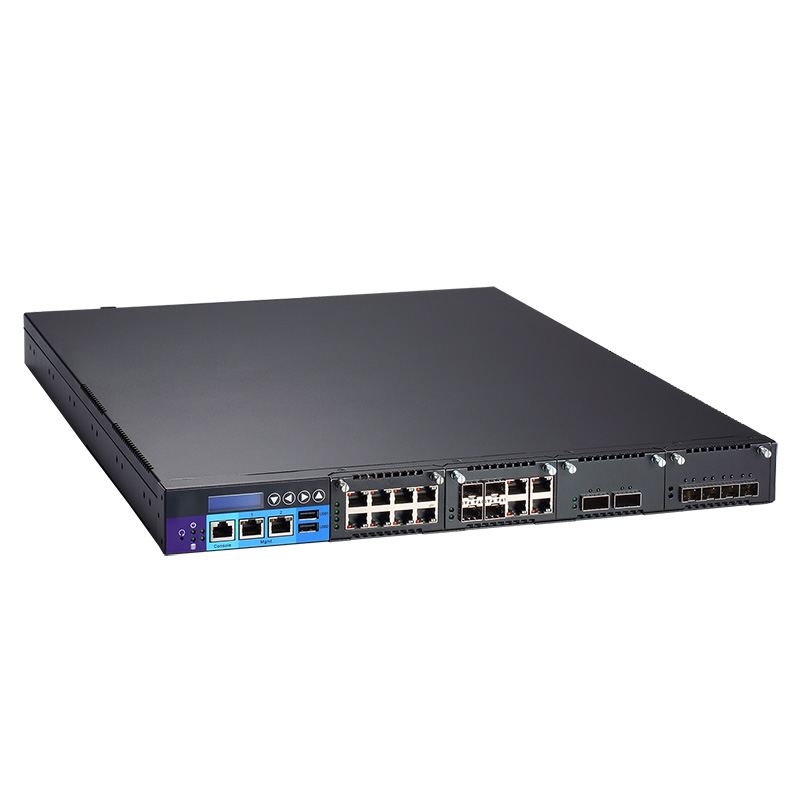

NA861
NA861
NA861
Low Power

Low Power

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA3647 socket Intel® Xeon® Scalable processor
  • 6 DDR4-2400 R-DIMM for up to 192GB of memory
  • Max. up to 34 LAN ports
  • 4 expandable LAN modules supporting
  • 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass
  • Supports 1U redundant power supply
  • Supports IPMI for optional
  • Supports onboard TPM
  • High computing power for SDN, NGFW, IDS, IPS and UTM applications

The NA861 offers high processing performance through the LGA3647 socket 2nd Generation Intel® Xeon® Scalable processor (codename: Cascade Lake) and supports the Intel® C621 chipset. The robust and highly reliable network appliance platform comes with two Gigabit Ethernet ports and four expandable LAN modules supporting 1GbE/10GbE/Fiber/Copper/Bypass with a maximum of thirty-four LAN ports. The NA861 is the perfect network hardware solution for enhancing digital security & surveillance, network traffic management and virtualized network security.

Specifications


Form Factor
  • 1U rackmount
CPU
  • LGA3647 socket Intel® Xeon® Scalable processors
  • (Cascade Lake/Skylake)
Chipset
  • Intel® C621
System Memory
  • 6 x DDR4-2400 R-DIMM, up to 192GB non-buffer non-ECC/ECC memory
BIOS
  • AMI
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet (Intel® i210)
  • Single CPU: 4 x LAN module (optional), max. up to 34 LAN ports
LAN Bypass
  • LAN Bypass function through latch relay (depends on LAN modules)
LAN Module
  • 4 x LAN module (optional), max. up to 34 LAN ports
Storage
  • 2 x 2.5" SATA HDD
  • 1 x mSATA
Expansion
  • N/A
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 2.0
  • 2 x RJ-45
  • 1 x VGA
Power Supply
  • 400W 1U redundant power supply
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(H x W x D)
  • 44 x 430 x 561 mm (1.73" x 16.92" x 22")
Weight (net/gross)
  • 8 kg (17.6 lb)/12 kg (26.4 lb)
OS
  • Linux
Certifications
  • FCC class A
  • CE class A
Others
  • Onboard TPM 2.0
  • Onboard BMC AST2500, IPMI 2.0 for optional

Ordering Information

  • NA861-R2GI-US with Redn power (P/N-E26E861100)
    1U rackmount appliance with Intel® Xeon® Scalable processor, 2 GbE LAN and redundant power NA861-R2GI-US with Single power (P/N-E26E861101)
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco
