AX92324

Status : Available

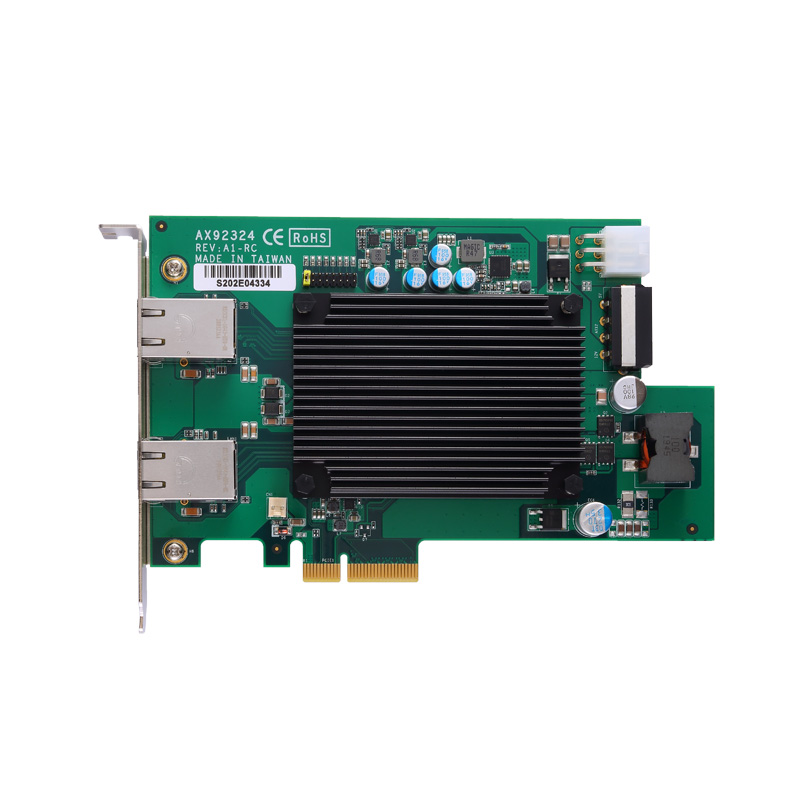

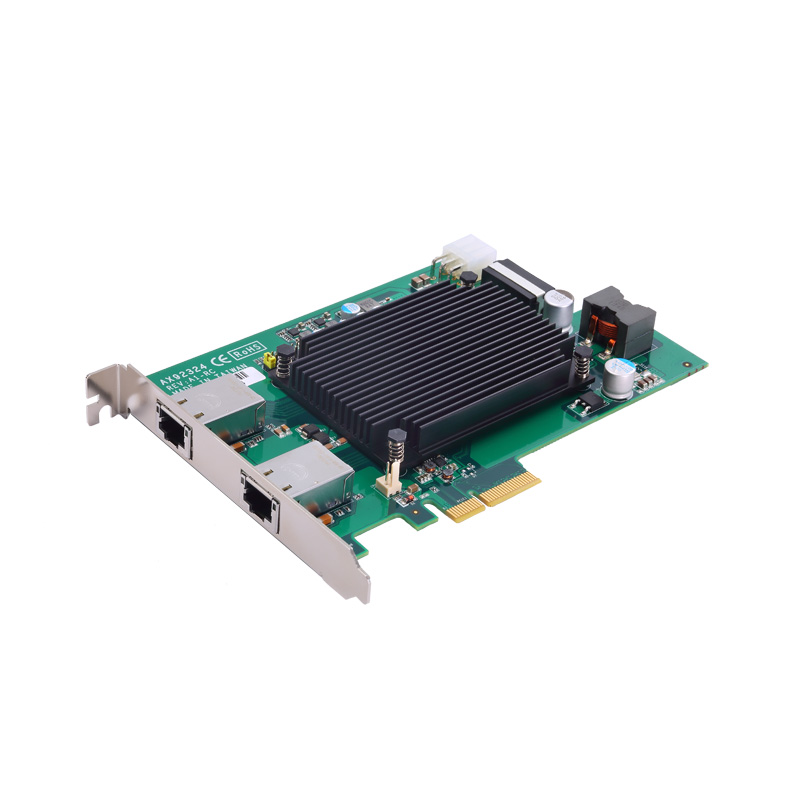

2-port 10GbE PoE PCI Express Card

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AX92324
AX92324
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Ethernet Controller X550-AT2, up to 10 Gbps data rate
  • Supports 15.5KB Jumbo Frame and IEEE 1588
  • Compliant with IEEE802.3at to deliver 25.5W per port
  • PCI Express x4 compliant
  • PoE power on/off via Power Manager software and API
  • Operating temperature ranges from 0°C to 55°C

Specifications


Bus Type
  • PCI Express x4
Connector
  • 2 GbE LANs with Intel® X550-AT2 controller; supports 15.5KB jumbo frame and IEEE 1588
  • IEEE 802.3at compliant; each port delivers up to 30W at 54 VDC
  • 10Gbps/*5Gbps/*2.5Gbps/1Gbps/100Mbps (*Linux only)
Power Connector
  • 6-pin ATX power connector
  • 12 VDC or 24 VDC
  • *24VDC ATX power connector is used for Axiomtek's system only
Power Requirements
  • Power from PCIe slot (max. 20W PoE power output)
  • 2.1A @ +12V
  • 1.2A @ +3.3V
  • Power from ATX power connector (max. 60W PoE power output)
  • 6A @ +12V or 3A @ +24V
  • 1.2A @ +3.3V (from PCIe slot)
Operating Temperature
  • 0°C to +55°C (+32°F to +131°F) (with air flow)
Relative Humidity
  • 10% to 95%, non-condensing
Dimensions
  • 168 x 111 mm
Certifications
  • CE
Software
  • N/A
OS
  • Windows® 7/10, Linux

Ordering Information

  • AX92324-PoE (By project)
    2-port 10GbE PCIe card with PoE
  • AX92324-w/o PoE (P/N-E392324101)
    2-port 10GbE PCIe card
  • PoE Power Cable (P/N-59492320700E)
    4P 3.0/6P 4.2, L=10 cm (only used with IPC962/IPC964/IPC974)
