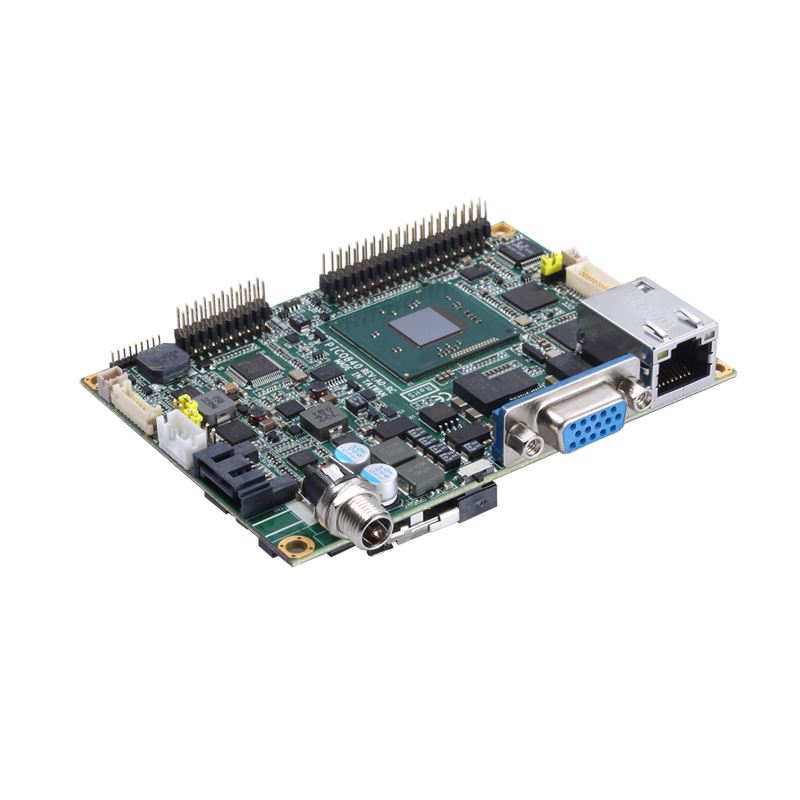

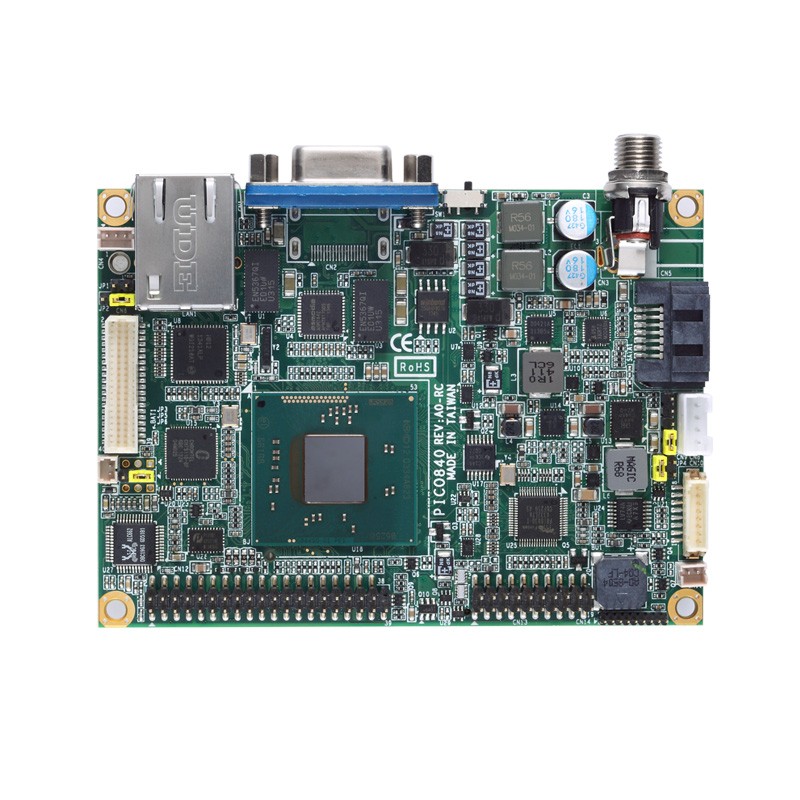

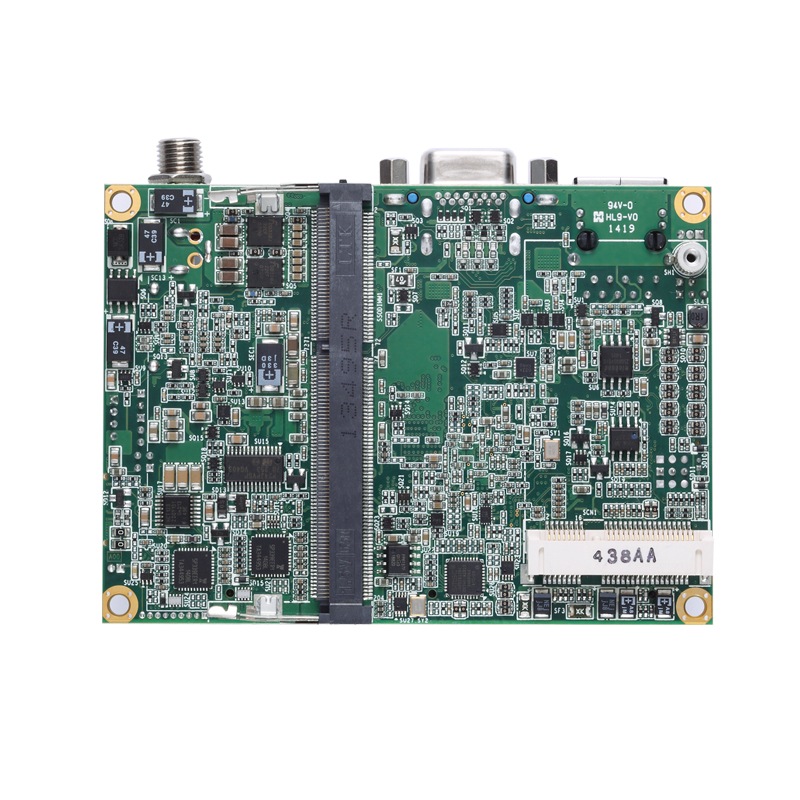

PICO842

Status : Available

Pico-ITX SBC with Intel® Celeron® Processor J1900/N2807, LVDS/VGA (HDMI), LAN and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
PICO842
PICO842
PICO842
Fanless

Fanless

UL508

UL508

UL1604

UL1604

CFast

CFast

TripleView

TripleView

Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Celeron® processor J1900/N2807 (Bay Trail SoC)
  • 1 DDR3L-1066/1333 SO-DIMM, up to 8GB
  • 4 USB 2.0 ports
  • 2 COM ports (RS-232/422/485 selectable)
  • PCI Express Mini Card with mSATA supported

The PICO842, an extreme-compact fanless pico-ITX motherboard, is designed to support the Intel® Celeron® processors quad-core J1900 and dual-core N2807 (codename: ). Its system memory supports up to 8GB of DDR3L. The extreme compact-size fanless embedded board supports dual display outputs through HDMI or VGA, and 18/24-bit single/dual channel LVDS. With improved media and graphics performance, the Axiomtek PICO842 is suitable for any graphics, imaging, and video intensive application. Its ultra slim size also makes it perfectly suitable for IoT, medical, automation, and embedded systems.

Specifications

CPU
  • Intel® Celeron® processor J1900 (up to 2.42 GHz) /N2807 (up to 2.16 GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • 1 x VGA or 1 x HDMI
  • 1 x LVDS
Digital I/O
  • N/A
Audio
  • MIC-in/Line-out
Storage
  • 1 x SATA-300
Expansion
  • 1 x Full-Size PCI Express Mini Card with mSATA supported
Others
  • SMbus
  • ST ST33TPM12LPC with TPM 1.2 compliant
Battery
  • Lithium 3 V/ 220 mAH
Power Input
  • DC power jack connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Celeron® J1900 @ 8GB DDR3L
    Max. RMS. +12V @ 0.9A
  • Intel® Celeron® N2807 @ 8GB DDR3L
    Max. RMS. +12V @ 0.7A
Watchdog Timer
  • 255 levels, 1~255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C ~ +70°C (-4°F ~ 158°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • PICO842VGA-J1900 (P/N-E38H842100)
    Pico-ITX SBC with Intel® Celeron® processor J1900 (2-2.4 GHz, 2 MB Cache, 10W), VGA/LVDS, 1 GbE LAN, audio and gift box
  • PICO842VGA-N2807 (P/N- E38H842101)
    Pico-ITX SBC with Intel® Celeron® processor N2807 (1.58-2.16 GHz, 1 MB Cache, 4.3W), VGA/LVDS, 1 GbE LAN, audio and gift box

Download

Drivers

Date Description Version Download File
2017/07/12 Function driver for Windows 10 VA1.3
2017/07/12 Function driver for Windows 8 VA1.3
2017/07/12 Function driver for Windows 7 VA1.3

Software

Manual

Date Description Version Download File
2015/12/25 PICO840_PICO842 User's Manual VA2_ 09-01-2015 VA2.0
2015/12/25 AX93283 Quick Manual VA1_03-03-2015 VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/03 UKCA Declaration of Conformity
2021/03/26 CE-Conformity Declaration
2017/08/09 CE-Conformity Declaration
