CAPA13S

Status : Available

3.5" Embedded SBC with AMD Ryzen™ Embedded V1807B/V1605B APU, DisplayPort++, 2 HDMI, eDP, and 3 GbE LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

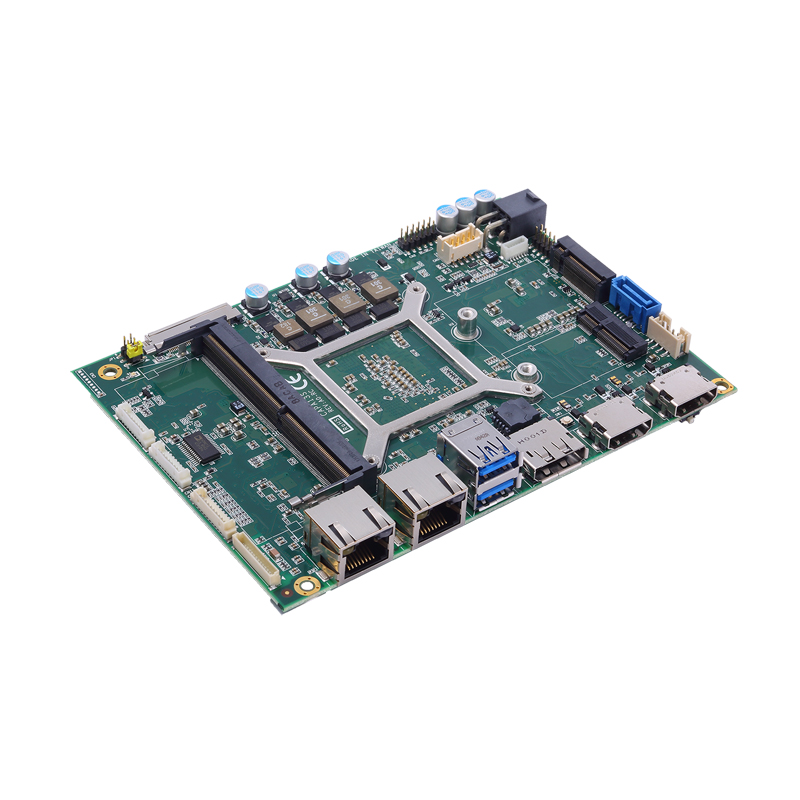

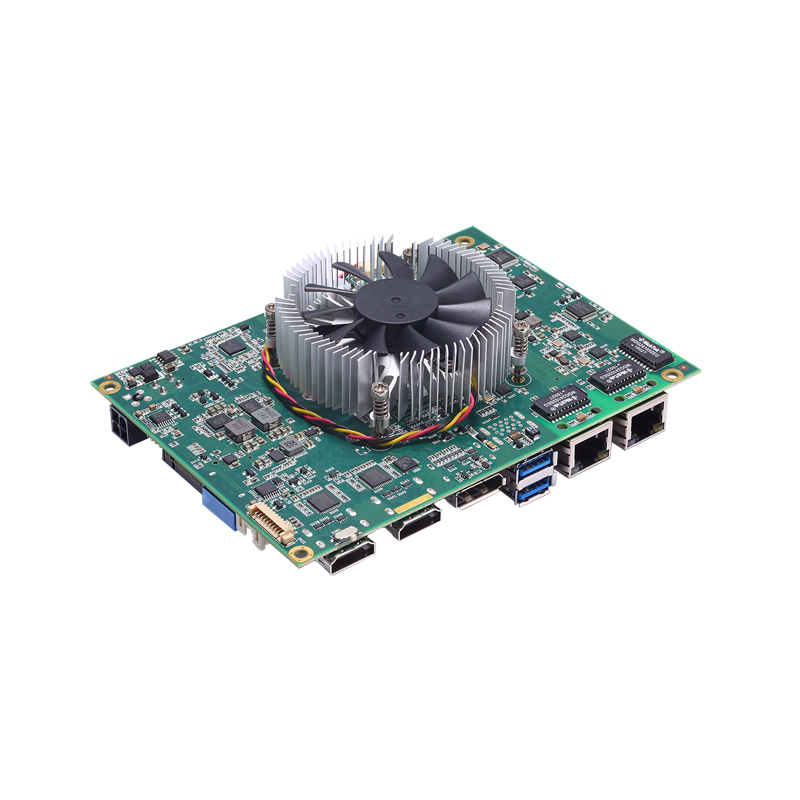

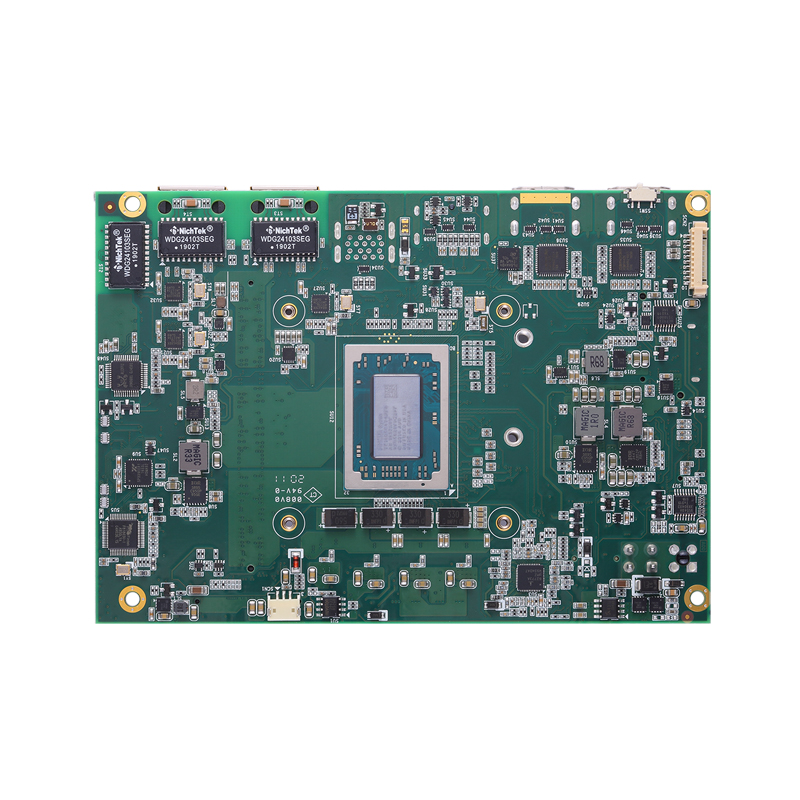

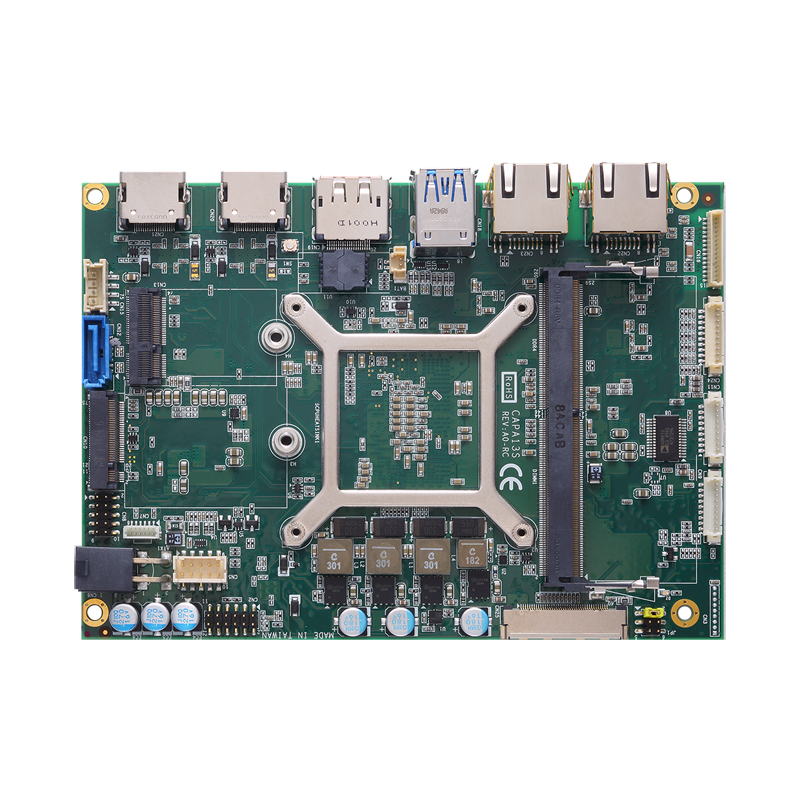

CAPA13S
CAPA13S
CAPA13S
CAPA13S
TripleView

TripleView

Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • AMD Ryzen™ Embedded V1807B and V1605B APU
  • 1 DDR4 SO-DIMM for up to 16GB of memory
  • Supports quad-view 4K/2K display
  • 3 GbE LAN
  • M.2 Key E
  • M.2 Key B

The high-performance CAPA13S responds to the need of delivering immersive 4K graphics and multi-screen display as well as vivid 3D graphics. It delivers powerful 3D and 4K graphics through the integrated AMD Radeon™ RX Vega graphics and has a quad display capability through two HDMI, one DisplayPort++ and one eDP for embedded solutions that require a high-resolution display and full-graphics feature. In addition, the CAPA13S has three GbE LAN ports to connect with industrial cameras to help system integrators drive their projects forward. This scalable embedded board is ready for versatile applications in industrial, healthcare, gaming, and retail.

Specifications

CPU
  • AMD Ryzen™ Embedded V1807B/V1605B APU onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-2400 (V1605B)/DDR4-3200 (V1807B) SO-DIMM, up to 16GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen2
Ethernet
  • 2 x10/100/1000 Mbps Ethernet (Realtek RTL8111G)
  • 1 x10/100/1000 Mbps Ethernet (Realtek RTL8111G)(optional)
Display
  • 1 x DisplayPort++
  • 2 x HDMI
  • 1 x eDP
Digital I/O
  • 8-channel in/out programmed
Audio
  • Mic-in/Line-in/Line-out
Storage
  • 1 x SATA-600
  • 1 x M.2 Key B (SATA, USB 2.0, PCIe x2 for optional) in 22 x 42 or 30 x 42
Expansion
  • 1 x M.2 Key E (PCIe x1, USB 2.0) in 22 x 30
Others
  • TPM 2.0
Battery
  • Lithium 3V/220 mAh
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • AMD V1605B @2.0 GHz 16GB DDR4, min. RMS. +12V@3.1A
  • AMD V1807B @3.35 GHz 16GB DDR4, min. RMS. +12V@5.1A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +60°C (-4°F to 140°F)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • CAPA13S-3GA-V1605B FAN (P/N-E38E13S101)
    3.5” Embedded SBC with AMD Ryzen™ V1605B (2.0-3.6 GHz, 2MB Cache, 15W), DisplayPort++, 2 HDMI, eDP, 3 GbE LAN, audio, and fan
  • CAPA13S-3GA-V1807B FAN (P/N-E38E13S100)
    3.5” Embedded SBC with AMD Ryzen™ V1807B (3.35-3.8 GHz, 2MB Cache, 45W), DisplayPort++, 2 HDMI, eDP, 3 GbE LAN, audio, and fan
  • CAPA13S-GGA-V1605B FAN (P/N-E38E13S103)
    3.5” Embedded SBC with AMD Ryzen™ V1605B (2.0-3.6 GHz, 2MB Cache, 15W) DisplayPort++, 2 HDMI, eDP, 2 GbE LAN, audio, and fan
  • CAPA13S-GGA-V1807B FAN (P/N-E38E13S102)
    3.5” Embedded SBC with AMD Ryzen™ V1807B (3.35-3.8 GHz, 2MB Cache, 45W) DisplayPort++, 2 HDMI, eDP, 2 GbE LAN, audio, and fan
  • 594H3186800E
    Buzzer cable 9 x 55 mm 2-pin, L=400 mm
  • 59380880250E
    COM port cable DB9--9 x 1P, P=1.25, L=250 mm
  • 594E8422800E
    2 x USB 2.0 cable with bracket, 180 mm
  • 7128E13R000E
    Heatspreader

Download

Drivers

Date Description Version Download File
2022/04/25 Ethernet Driver VA1.0
2022/04/25 AMD FP5 Driver VA1.0
2022/04/25 Audio Driver VA1.0

Software

Manual

Date Description Version Download File
2022/04/25 User Manual VA1
2022/04/25 Quick Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/06 UKCA Declaration of Conformity
