CAPA848

Status : Available

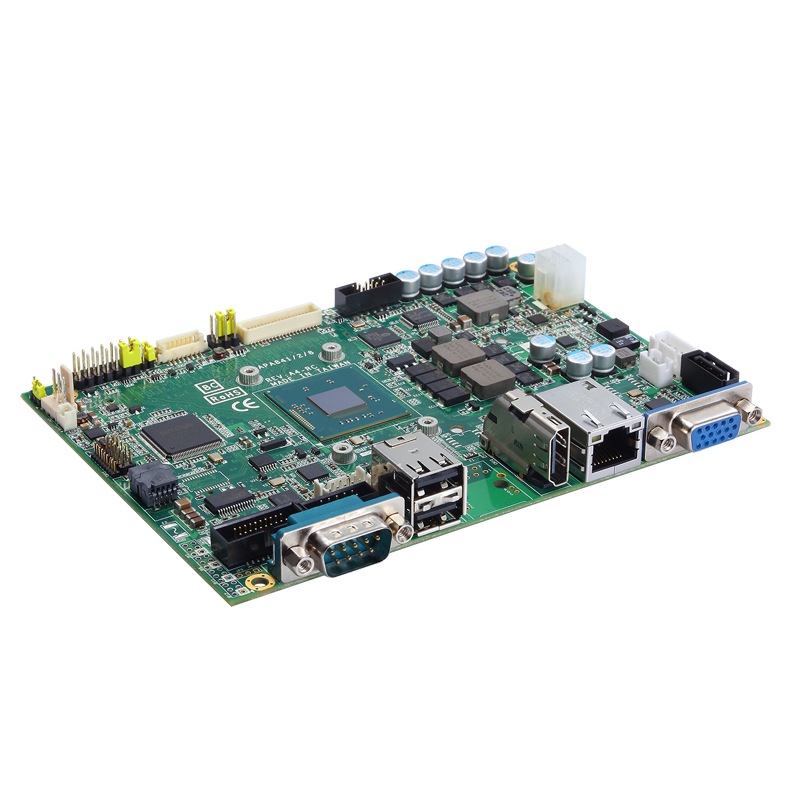

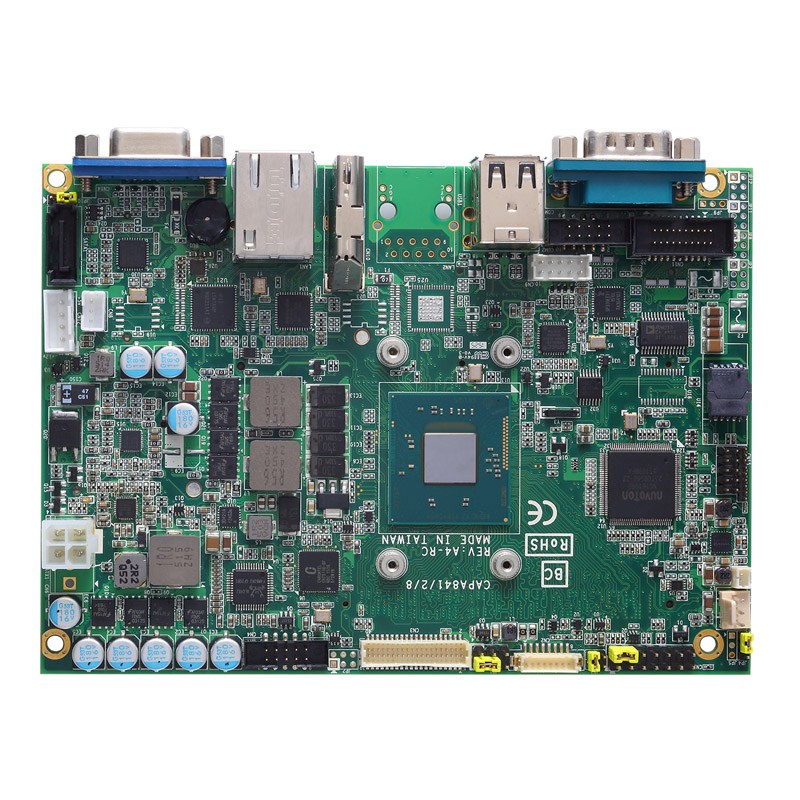

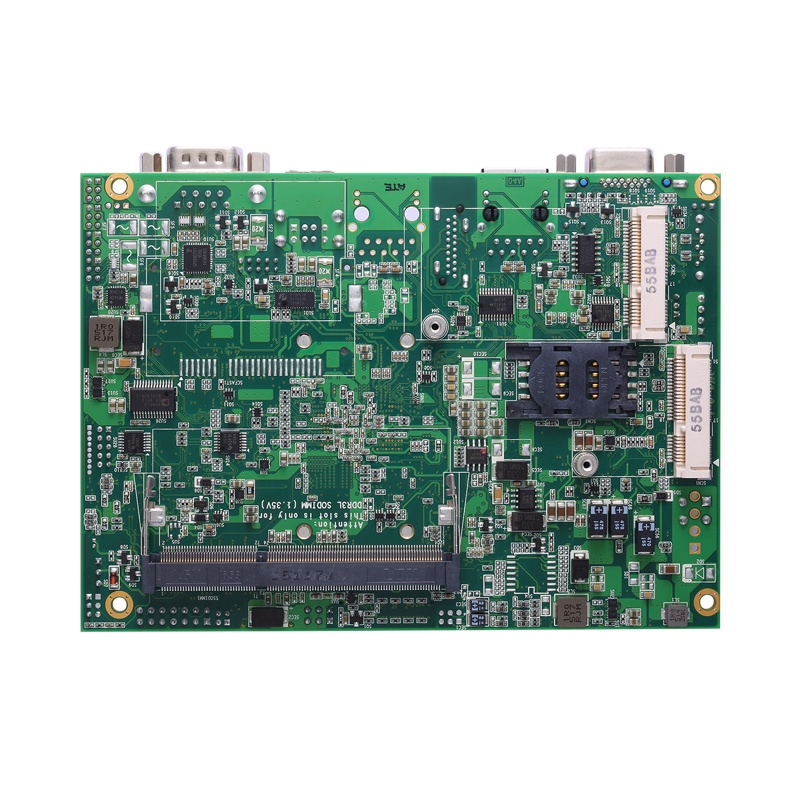

3.5" Embedded SBC with Intel® Celeron® Processor N2807, LVDS/VGA/HDMI, LAN and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CAPA848
CAPA848
CAPA848
Fanless

Fanless

UL508

UL508

UL1604

UL1604

TripleView

TripleView

Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Celeron® processor N2807 (1.58 GHz)
  • 1 DDR3L-1333 SO-DIMM, up to 8GB
  • 4 USB 2.0 ports
  • 4 COM ports
  • 2 PCI Express Mini Card slots and 1 SIM slot
  • 1 Gigabit Ethernet port
  • LVDS/VGA/HDMI with dual-view supported

Specifications

CPU
  • Intel® Celeron® processor N2807 1.58 GHz dual-core onboard (Bay Trail)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
  • 2 x RS-232
USB
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000Mbps (Intel® I210-AT)
Display
  • 1 x VGA
  • 1 x LVDS
  • 1 x HDMI
Digital I/O
  • 8-CH in/out programmable
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 1 x SATA-300
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
  • 1 x Half-size PCI Express Mini Card slot
  • 1 x SIM slot
Others
  • SMBus
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Celeron® N2807 @ 1.58 GHz, 8GB DDR3L
    Max. RMS. +12V @ 0.64A
Watchdog Timer
  • 255 levels, 1 - 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +70°C (-4°F to +158°F)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • CAPA848VHGA-N2807 (P/N-E38E848100)
    3.5" Embedded SBC with Intel® Celeron® processor N2807 1.58 GHz, VGA/LVDS/HDMI, GbE LAN, and audio
  • 59382620000E
    1 x COM w/ bracket, P=2.0 mm, L=300 mm
  • 59384500100E
    Audio cable w/ bracket, P=2.0 mm, L=450 mm
  • 59382631000E
    2 x USB 2.0 wafer cable w/ bracket, 180 mm
  • 59380000300E
    2 x COM w/bracket, P=1.27 x 2.54, L=300 mm
