IMB540

Status : Available

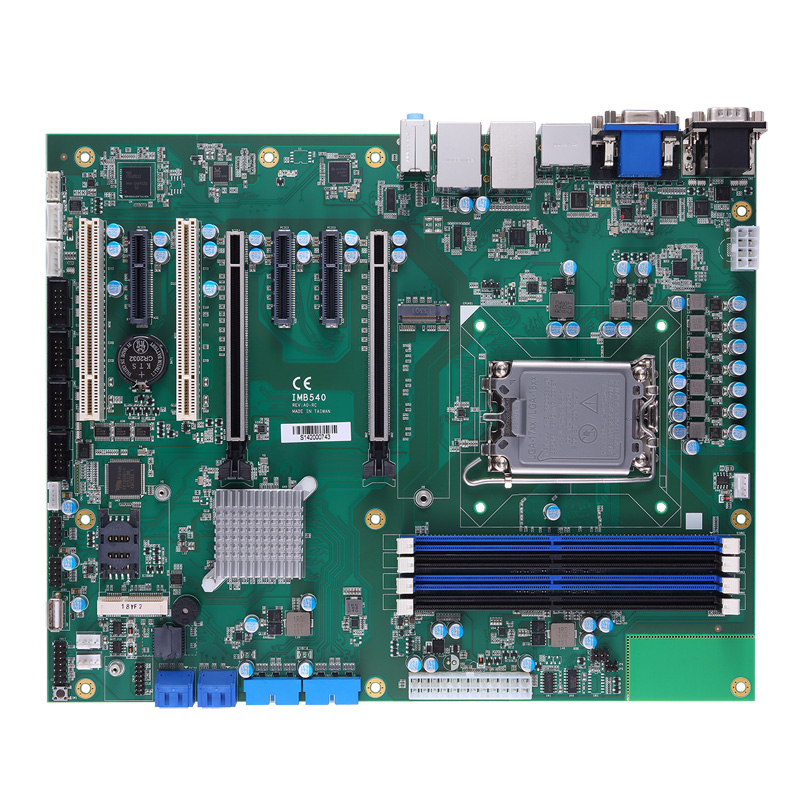

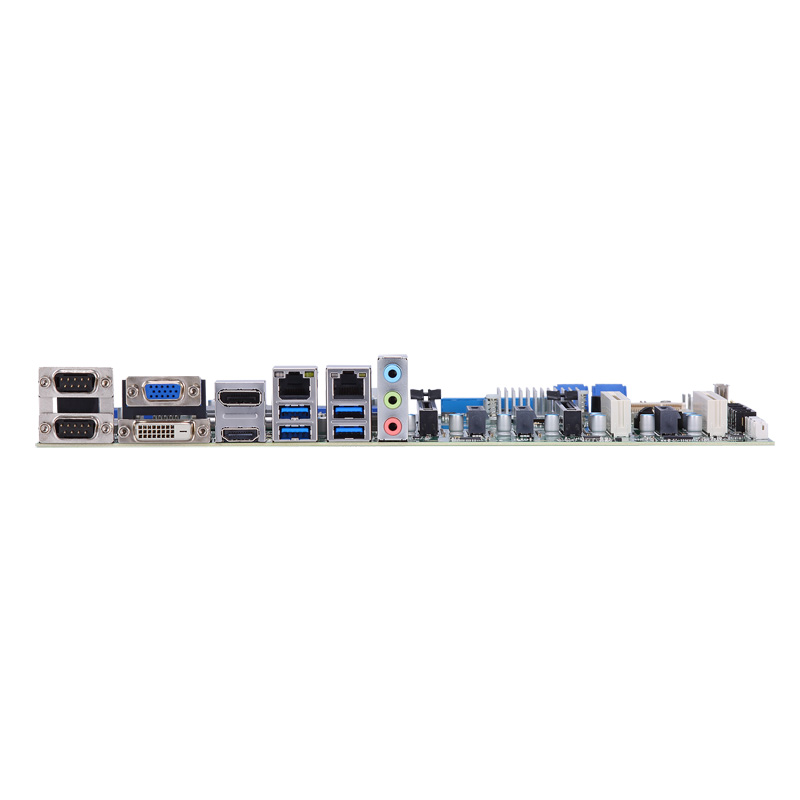

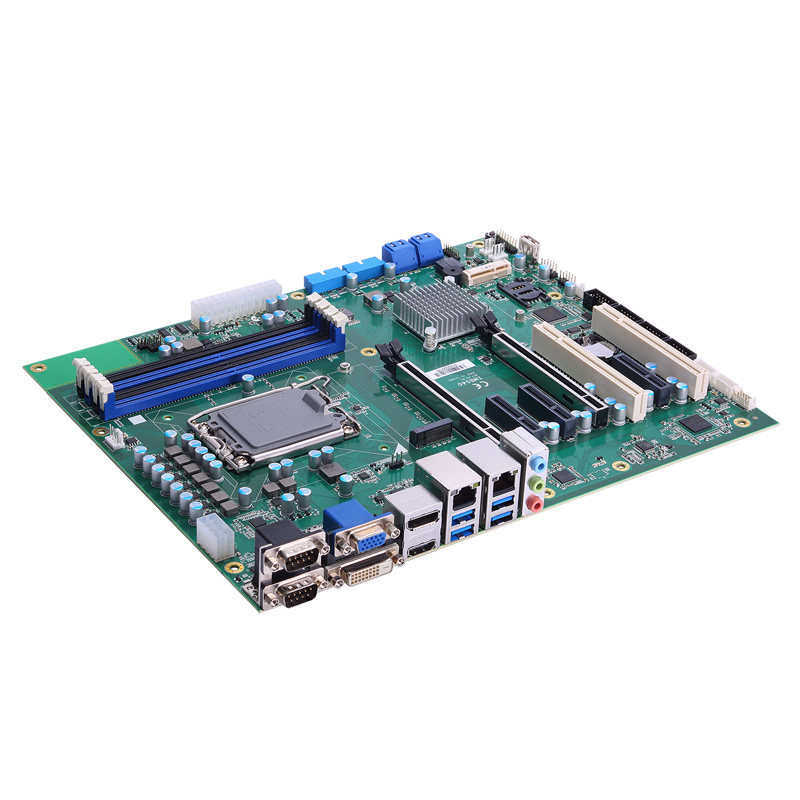

ATX Motherboard with LGA1700 Socket 13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® Processor, Intel® R680E, USB 3.2 Gen2, SATA 3.0, GbE and 2.5GbE LAN, VGA, DisplayPort++, DVI-D, and HDMI

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
IMB540
IMB540
IMB540
+5V

+5V

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1700 socket 13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Raptor Lake S/Alder Lake S)
  • Four 288-pin DDR4-3200 ECC/non-ECC un-buffered Long-DIMM, up to 128GB
  • DisplayPort++, VGA, DVI-D and HDMI with quad view supported
  • Supports M.2 Key M 2280
  • 4 USB 3.2 Gen2, 4 USB 3.2 Gen 2x1 and 2 dual USB 3.2 Gen 1x1
  • TPM 2.0 supported (optional)

Specifications

CPU
  • LGA1700 socket 13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
Chipset
  • Intel® R680E
System Memory
  • 4 x 288-pin DDR4-3200 ECC/Non-ECC un-buffered Long-DIMM, up to 128GB (ECC memory is available for Intel® R680E only)
BIOS
  • AMI
COM
  • 4 x RS-232 (internal box header)
  • 2 x RS-232/422/485 (rear I/O)
USB
  • 4 x USB 3.2 Gen2x1 (10Gbps, rear I/O)
  • 2 x Dual USB 3.2 Gen1x1 (5Gbps, internal box header)
  • 4 x USB 2.0 (internal pin header)
  • 1 x USB 2.0 (internal 180D type A)
Ethernet
  • 1 x 10/100/1000/2500 Mbps (Intel® I225-LM; Intel® AMT with Intel vPro®)
  • 1 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x VGA
  • 1 x HDMI 1.4b
  • 1 x Displayport++ (DP 1.2)
  • 1 x DVI-D
Digital I/O
  • 8-channel programmable
Audio
  • HD Codec audio as MIC-in/Line-in/Line-out
Storage
  • 4 x SATA-600 with RAID 0/1/5/10
  • M.2 Key M 2280 in support of PCIe x4 via CPU
Expansion
  • 2 x PCIe Gen4 x16 slot (signal: x16 + x0 or x8 + x8)
  • 3 x PCIe x4 slot open-ended (1 x Gen3 + 2 x Gen4) (signal by PCH)
  • 1 x PCIe Mini Card slot (signal: PCIe x1)
  • 2 x 32-bit PCI slot, default clock is 33 Mhz, PCI clock could be selected between 33 or 66 MHz by jumper (signal by PCH)
Others
  • 1 x PS/2 keyboard (internal box header)
  • 1 x PS/2 mouse (internal box header)
Battery
  • Lithium 3 V/ 220 mAH
TPM
  • TPM 2.0 (optional)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 305 x 244 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • IMB540-S (P/N-E38F540100)
    ATX motherboard with LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor, Intel® R680E, USB 3.2 Gen2x1, SATA 3.0, GbE and 2.5GbE LAN, VGA, DisplayPort++, DVI-D, and HDM (Single Packing)
  • IMB540-S (P/N-E38F540101)
    ATX motherboard with LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor, Intel® R680E, USB 3.2 Gen2x1, SATA 3.0, GbE and 2.5GbE LAN, VGA, DisplayPort++, DVI-D, and HDMI (Bulk Packing)
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 5948C122800E
    2 x USB 3.2 Gen1 cable with bracket, L=400 mm
  • 59380000290E
    PS/2 keyboard & mouse cable with bracket
  • 594G5208000E
    SATA III signal cable, L=500 mm with locking latch
  • 594G5208010E
    SATA III signal cable, L=500 mm without locking latch
  • 59384500100E
    Audio cable with bracket, P=2.0 mm, L=450 mm
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 83935151000E
    TPM 2.0 module (AX93515)
  • 713000000500
    CPU heatsink for 1U chassis (AX61135TM)
  • 711000002500
    CPU cooler for 2U, 4U, and wall mount chassis with smart fan

Download

Drivers

Date Description Version Download File
2023/08/25 05. Intel ME Driver VA1.1
2023/08/25 06. Serial IO VA1.1
2023/08/25 04. Intel LAN Driver_1 (for I225) VA1.1
2023/08/25 04. Intel LAN Driver_2 (for I210 WOL) VA1.1
2023/08/25 02. Intel Graphics VA1.1
2023/08/25 03. Realtek Audio Driver VA1.1
2023/08/25 01. Intel chipset Driver VA1.1

Software

Manual

Date Description Version Download File
2023/10/26 IMB540 User's Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/04/25 CE-Conformity Declaration
2023/04/25 UKCA Declaration of Conformity
