IMB760

Status : Available

EATX Motherboard with Dual LGA4189 Socket 3rd Gen Intel® Xeon® Scalable Processors, Intel® C621A/C627A, 4 PCIe x16, 2 PCIe x8, VGA, NVMe, and IPMI

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
IMB760
IMB760
+5V

+5V

+12V

+12V

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Dual 3rd gen Intel® Xeon® Scalable processors (Ice Lake-SP)
  • 16 288-pin DDR4-3200 RDIMM for up to 1TB of memory
  • 4 PCIe x16 and 2 PCIe x8
  • Supports 2 M.2 Key M slots for NVMe with RAID 0 & 1
  • Supports TPM 2.0 module (optional)
  • Two 10GbE ports
  • IPMI (optional)
SATA3: Rotated 90 Degrees Design

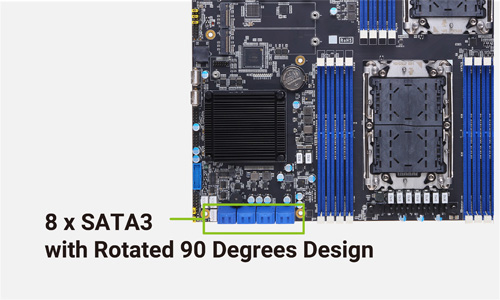

Eight SATA-600 ports come with rotated 90 degrees design which enable more space for add-on-cards. It is also integrated RAID 0/1/5/10 are available for reliable data storage and protection.
IMB760
IMB760
Quick to Locate Your Server

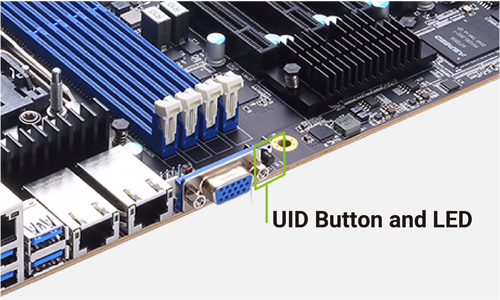

The UID button and LED can quickly locate a particular server when it is deployed in a dense rack with other equipment.
Server Grade EATX Motherboard for AIoT

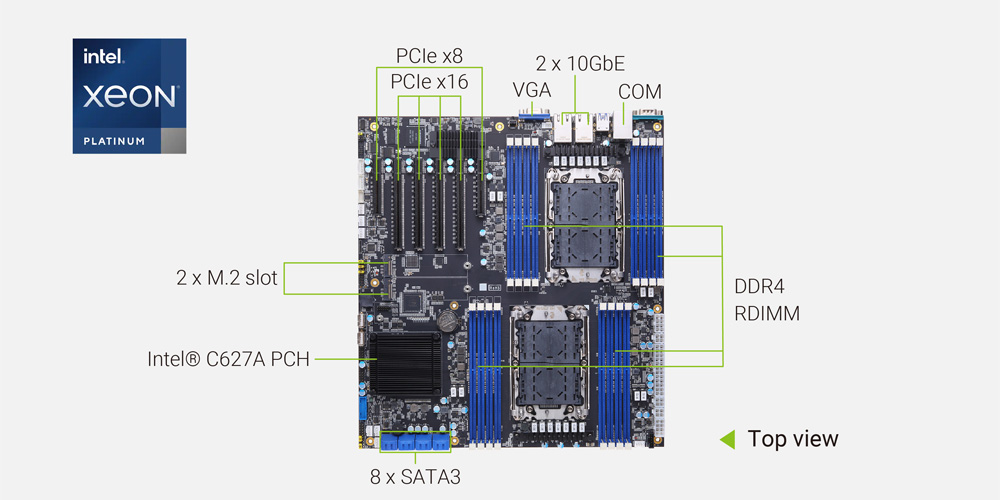

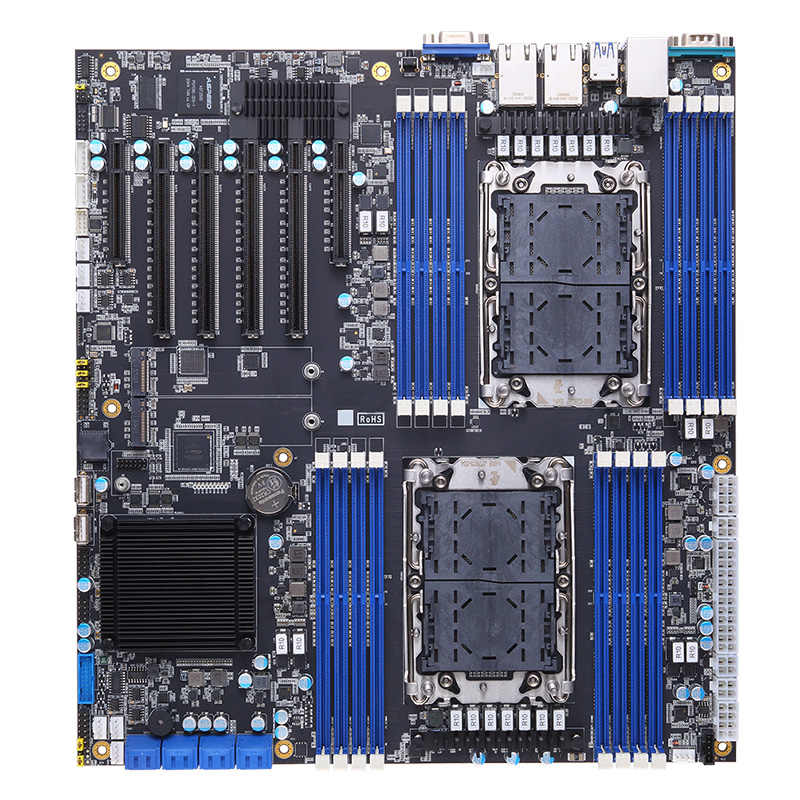

The IMB760 is a server-grade extended ATX motherboard (330mm x 305mm) powered by the dual LGA4189 socket 3rd Gen Intel® Xeon® scalable processors (code name: Ice Lake-SP) with the Intel® C621A/C627A chipset. It comes with an effective load balancing between two CPUs and multiple accelerator cards to stabilize computation loads and maximize computing power. Featuring optimized performance, more PCI Express Card slots and high-density memory expansion, this EATX server motherboard enables high-level computing, AI workload, and deep learning for the data-fueled future.
IMB760
Optimized Performance
The IMB760 comes with an effective load balancing between dual 3rd Gen Intel® Xeon® scalable processors and multiple accelerator cards to stabilize computation loads and maximize computing power.
Heigh-Density Expandability

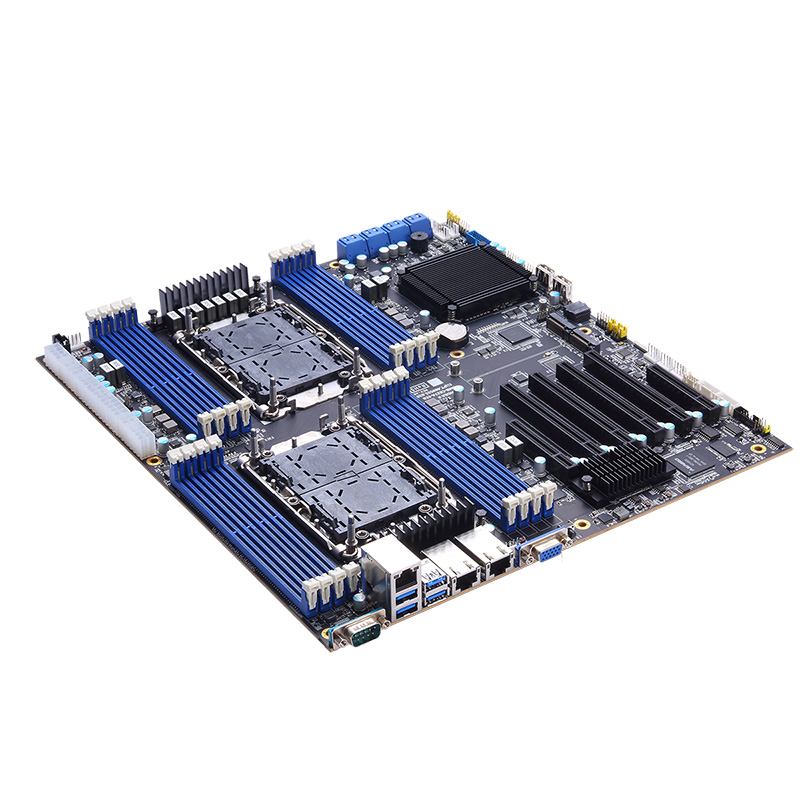

It offers four PCIe x16 slots, two PCIe x8 slots and two M.2 Key M 2280 interfaces with PCIe x4 signal, supporting GPU cards, capture cards, RAID cards, NVMe storage, and more.
High-Capacity Storage
The EATX motherboard is equipped with sixteen DDR4-3200 RDIMM sockets with a memory capacity of up to 1TB. Eight SATA-600 ports with integrated RAID 0/1/5/10 are also available for reliable data storage.

Specifications

CPU
  • 3rd gen Intel® Xeon® Scalable processors (TDP up to 270W)
Ethernet
  • 1 x IPMI LAN via Intel® I210-AT (shared with BMC AST2500)
  • 2 x 10 GbE Ethernet (Intel® X550-AT2)
Chipset
  • Intel® C621A
  • Intel® C627A (by project)
System Memory
  • 16 x 288-pin DDR4-3200 RDIMM un-bufferrd memory, up to 1TB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (rear I/O)
USB
  • 4 x USB 3.2 Gen1 (rear I/O)
  • 2 x USB 3.2 Gen1 (internal box header)
  • 4 x USB 2.0 (internal box header)
  • 2 x USB 2.0 (180D TypeA)
Display
  • 1 x VGA
Digital I/O
  • 8-channel programmable
Audio
  • N/A
Storage
  • 8 x SATA-600 with RAID 0/1/5/10
  • 2 x M.2 Key M 2280 slot (PCIe x4/SATA signal) for NVMe SSD with RAID 0, 1 supported
Expansion
  • Slot2: PCIe x8 (Gen4)
  • Slot3: PCIe x16 (Gen4)
  • Slot4: PCIe x16 (Gen4)
  • Slot5: PCIe x16 (Gen4)
  • Slot6: PCIe x16 (Gen4)
  • Slot7: PCIe x8 (Gen4)
Others
  • 1 x PS/2 keyboard (internal box header)
  • 8 x 4-pin fan header (2 for the CPU & 6 for the system)
  • ASPEED AST2500 BMC (optional)
Battery
  • TBD
TPM
  • TPM 2.0 module (optional)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 10°C to +35°C (+50°F to +95°F) (depends on cooler solution)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 305 x 330 mm
Board Thickness
  • 2.4 mm
Certifications
  • CE

Ordering Information

  • IMB760-C621A-IP SP (P/N-E38F760107)
    EATX Motherboard with dual LGA4189 socket Intel® Xeon® Scalable processors, Intel® C621A, 4 PCIe x16, 2 PCIe x8, VGA, NVMe, and IPMI
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 83935151000E
    TPM 2.0 module (AX93515)
  • 5948C122800E
    2 x USB 3.1 Gen1 cable with bracket, L=400 mm
  • 594G5208010E
    SATA3 cable 180D w/ B.sleeve, L=50 cm
  • 713WFB30000E
    IMB700_CL_LGA4189_4U_CPU up to 270W
  • 713JYC1M000E
    IMB700_CL_LGA4189_2U_CPU up to 205W

Download

Drivers

Date Description Version Download File
2023/05/05 04.LAN VA1
2023/05/05 05.VROC Driver VA1
2023/05/05 02.AST2510 VA1
2023/05/05 03.Realtek Audio Driver VA1
2023/05/05 01.Chipset-Public-Server VA1

Software

Manual

Date Description Version Download File
2023/05/05 IMB760 User's Manual A1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/06/14 UKCA Declaration of Conformity
2023/06/14 CE-Conformity Declaration
