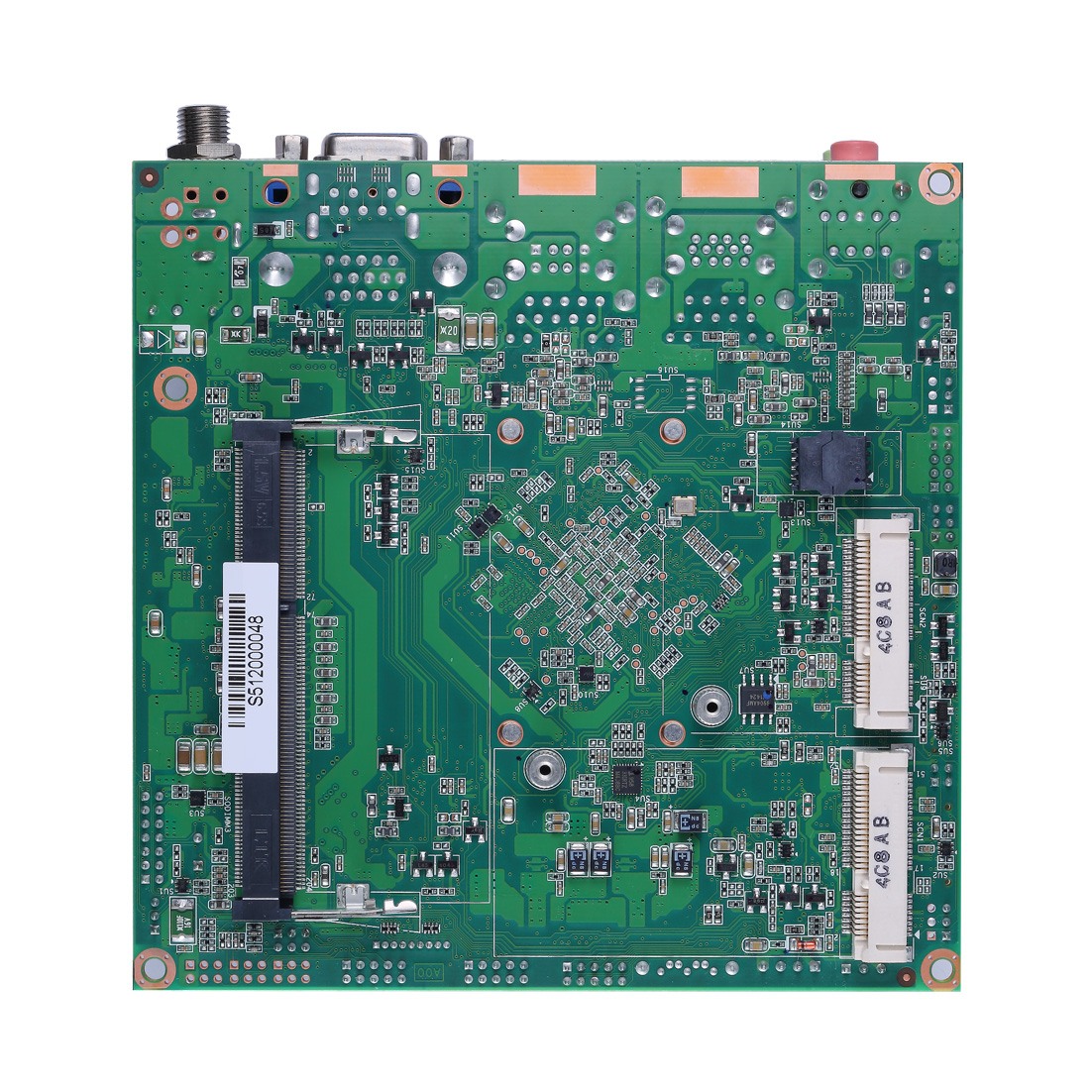

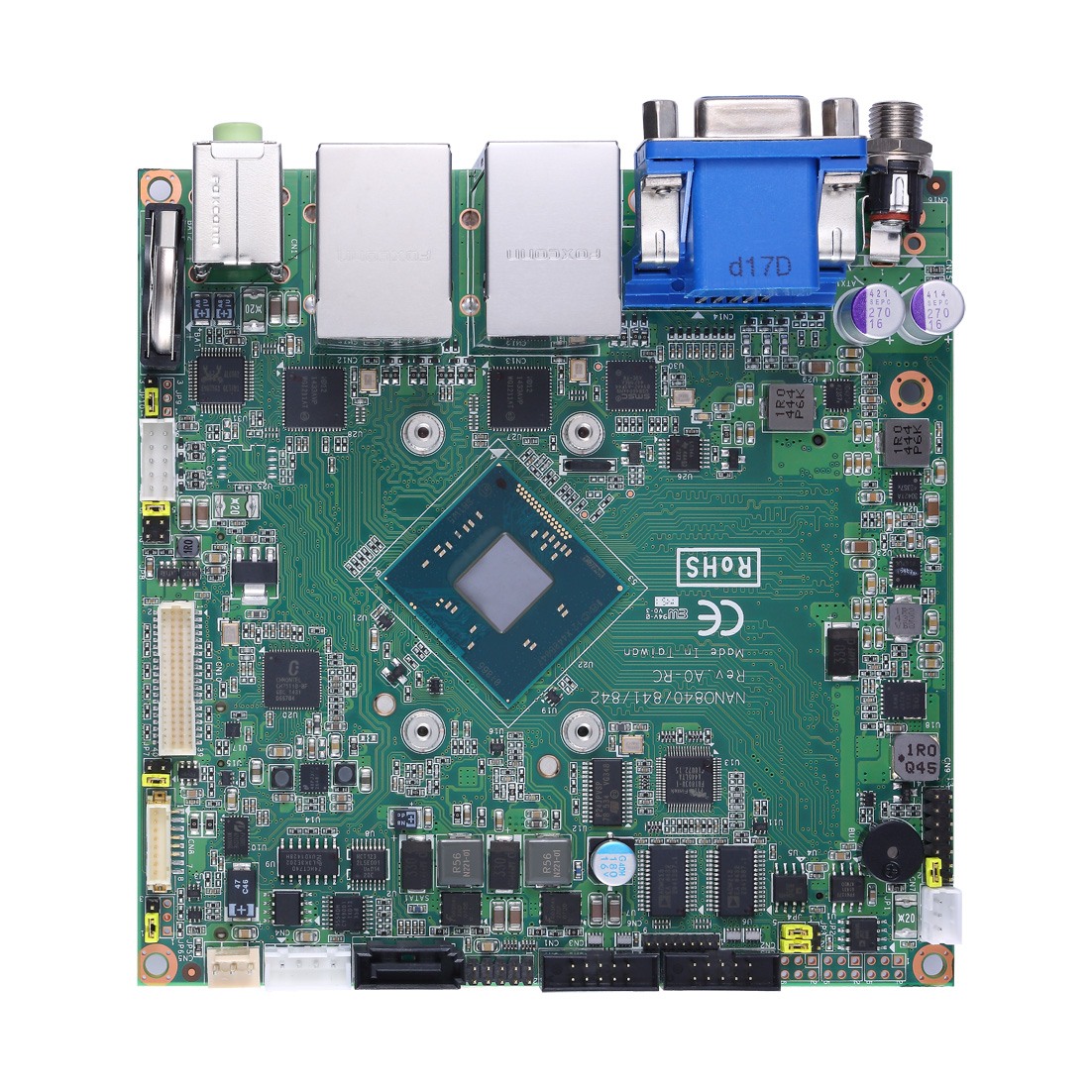

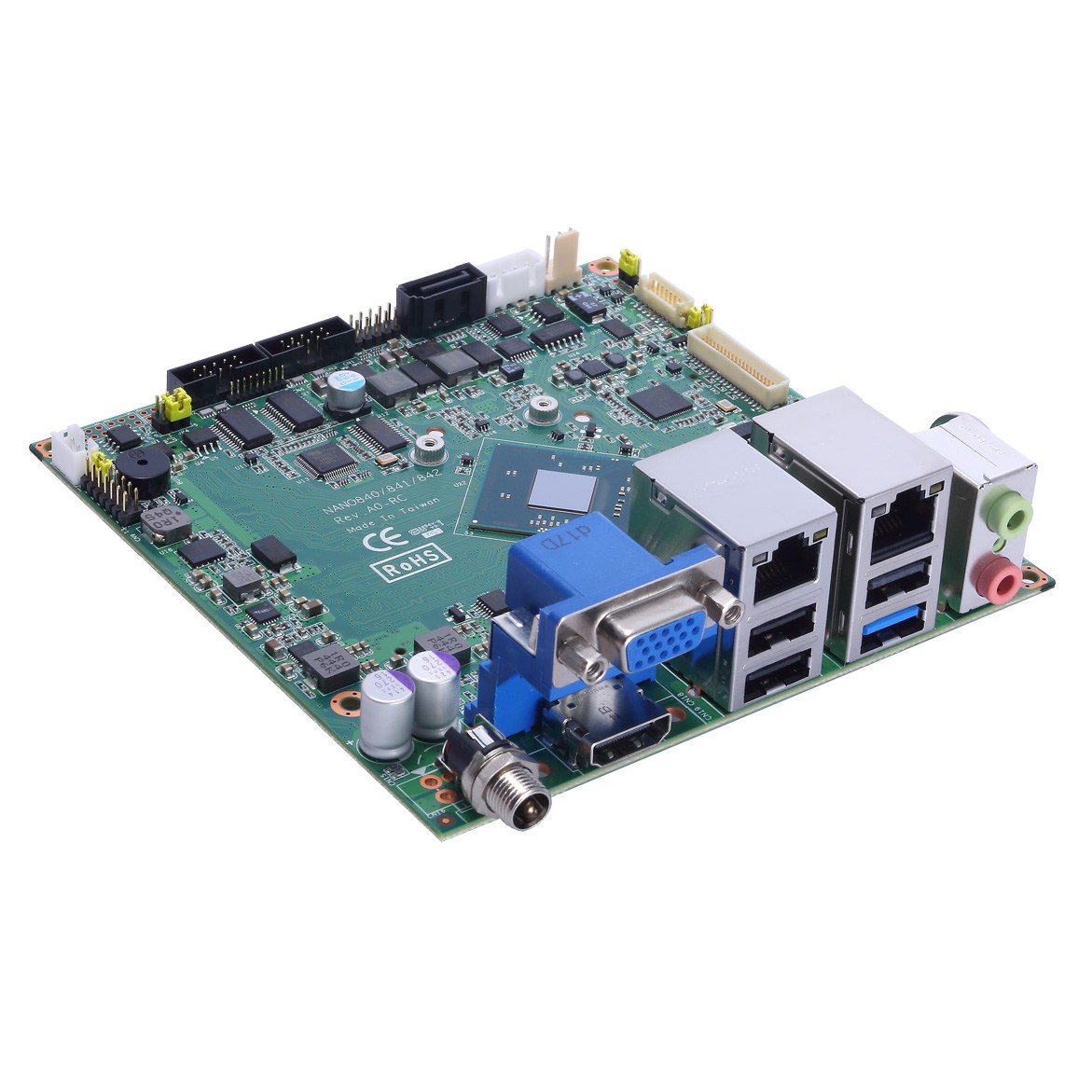

NANO840

Status : Available

Nano-ITX SBC with Intel® Atom™ Processor E3845/E3827, LVDS/ VGA/HDMI, Dual LANs and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NANO840
NANO840
NANO840
Fanless

Fanless

PoE

PoE

UL508

UL508

UL1604

UL1604

TripleView

TripleView

Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Atom™ processor E3845/E3827
  • 1 DDR3L SO-DIMM supports up to 8 GB memory capacity
  • 5 USB 2.0 ports and 1 USB 3.0 port
  • 2 COM ports
  • 2 PCI Express Mini Card slots
The NANO840 NanoITX board supports Intel® Atom™ processor E3845 or E3827 with one DDR3L 1066/1333 up to 8 GB memory. The NANO840 is capable of operating under wide temperatures from -40°C to +80°C in fanless operation which is designed for working in harsh environments. It comes with multiple display outputs: HDMI, LVDS and VGA with visual experiences enhanced for dual-view supported. Moreover, this small form factor embedded board requires +12V DC power input. The NANO840 is ideal for applications requiring a power-optimized and rich-I/O platform, such as high-end medical imaging, digital signage, kiosks/POI, thin clients, and gaming machines.

Specifications

CPU
  • Intel® Atom™ processor E3845 1.91GHz quad core, E3827 1.75GHz dual core onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1066/1333 up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 with +5V/+12V powered
  • 1 x RS-232
USB
  • 5 x USB 2.0
  • 1 x USB 3.0
Ethernet
  • 2 x 10/100/1000Mbps (Intel® i210IT)
Display
  • 1 x VGA
  • 1 x LVDS
  • 1 x HDMI
Digital I/O
  • 8-IN/OUT
Audio
  • MIC-in/Line-out
Storage
  • 1 x SATA-300
Expansion
  • 1 x Full-Size PCI Express Mini Card w/mSATA supported
  • 1 x Half-Size PCI Express Mini Card
Others
  • ST ST33TPM12LPC with TPM 1.2 compliant
Battery
  • Lithium 3V/220mAH
Power Input
  • DC power jackconnector
  • +12V DC-in
  • AT Auto Power On function supported
Power Requirements
  • Intel® Atom™ E3845 @1.91 GHz 8GB DDR3L
    Max. RMS: +12V @ 0.9A
  • Intel® Atom™ E3827 @1.75 GHz 8GB DDR3L
    Max. RMS: +12V @ 0.8A
Hardware Monitoring
  • Yes
Watchdog Timer
  • 255 levels, 1~255 sec.
Operating Temperature
  • -40°C ~ +80°C (-40°F ~ 176°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 120 x 120 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • NANO840VHGGA-E3845 (P/N- E38K840100)
    Nano-ITX SBC with Intel® Atom™ processor E3845 (1.91 GHz, 2 MB Cache, 10W), VGA/LVDS/HDMI, 2 GbE LAN, audio and gift box
  • NANO840VHGGA-E3827 (P/N-E38K840101)
    Nano-ITX SBC with Intel® Atom™ processor E3827 (1.75 GHz, 1 MB Cache, 8W), VGA/LVDS/HDMI, 2 GbE LAN, audio and gift box

Download

Drivers

Date Description Version Download File
2017/07/12 Function driver for Windows 8 VA1.1
2017/07/12 Function driver for Windows 7 VA1.1

Software

Manual

Date Description Version Download File
2015/08/27 Quick Manual VA1.0
2015/08/25 User's Manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/03 UKCA Declaration of Conformity
2021/04/14 CE-Conformity Declaration
