NANO842

Status : Available

Nano-ITX SBC with Intel® Celeron® Processor J1900/N2807, LVDS/VGA/HDMI, Dual LANs and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NANO842
NANO842
NANO842
Fanless

Fanless

UL508

UL508

UL1604

UL1604

TripleView

TripleView

Microsoft Azure

Microsoft Azure

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Celeron® Processor J1900/N2807 (Bay Trail SoC)
  • 1 DDR3L-1066/1333 SO-DIMM, up to 8GB
  • 5 USB 2.0 ports and 1 USB 3.0 port
  • 2 COM ports
  • 2 PCI Express Mini Card slots

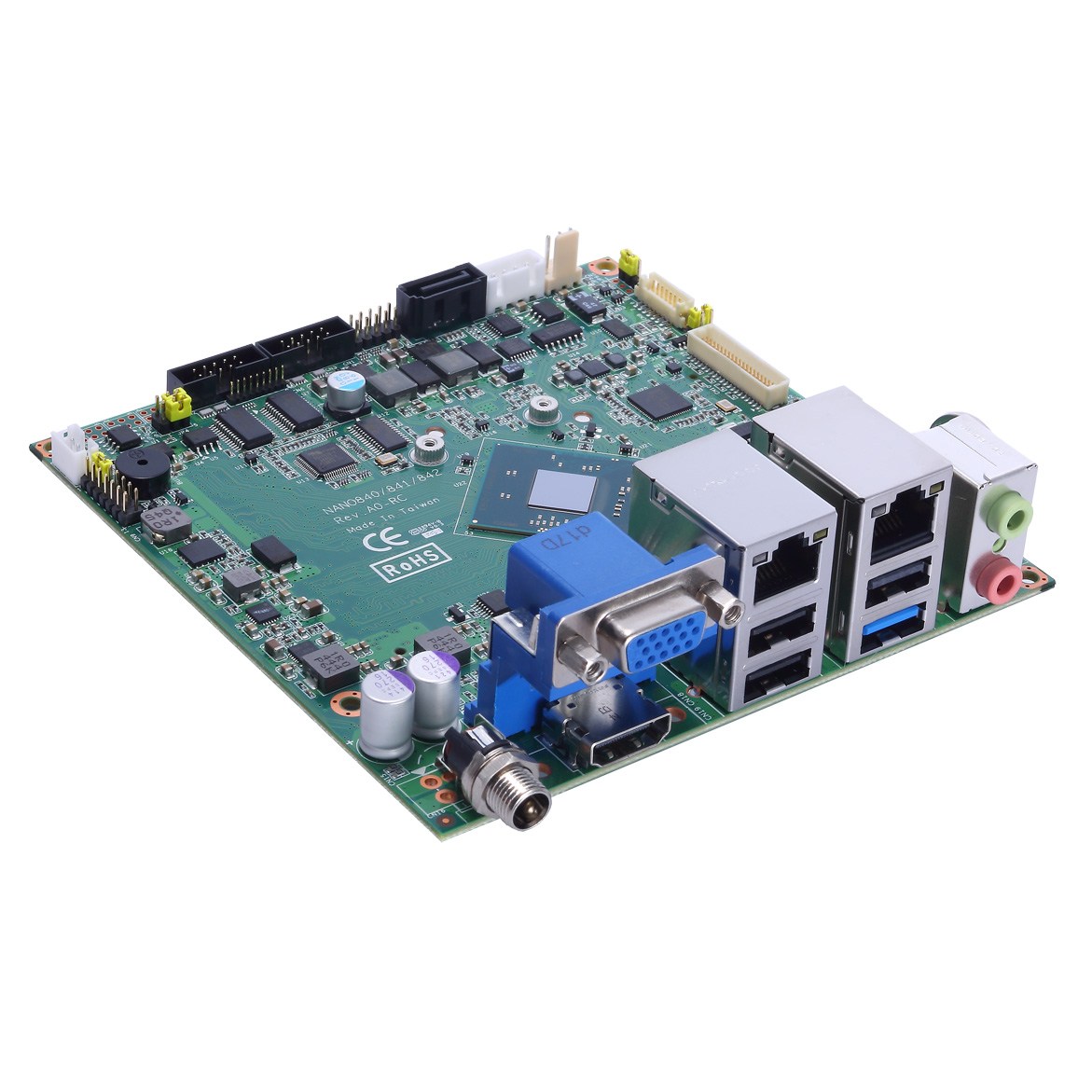

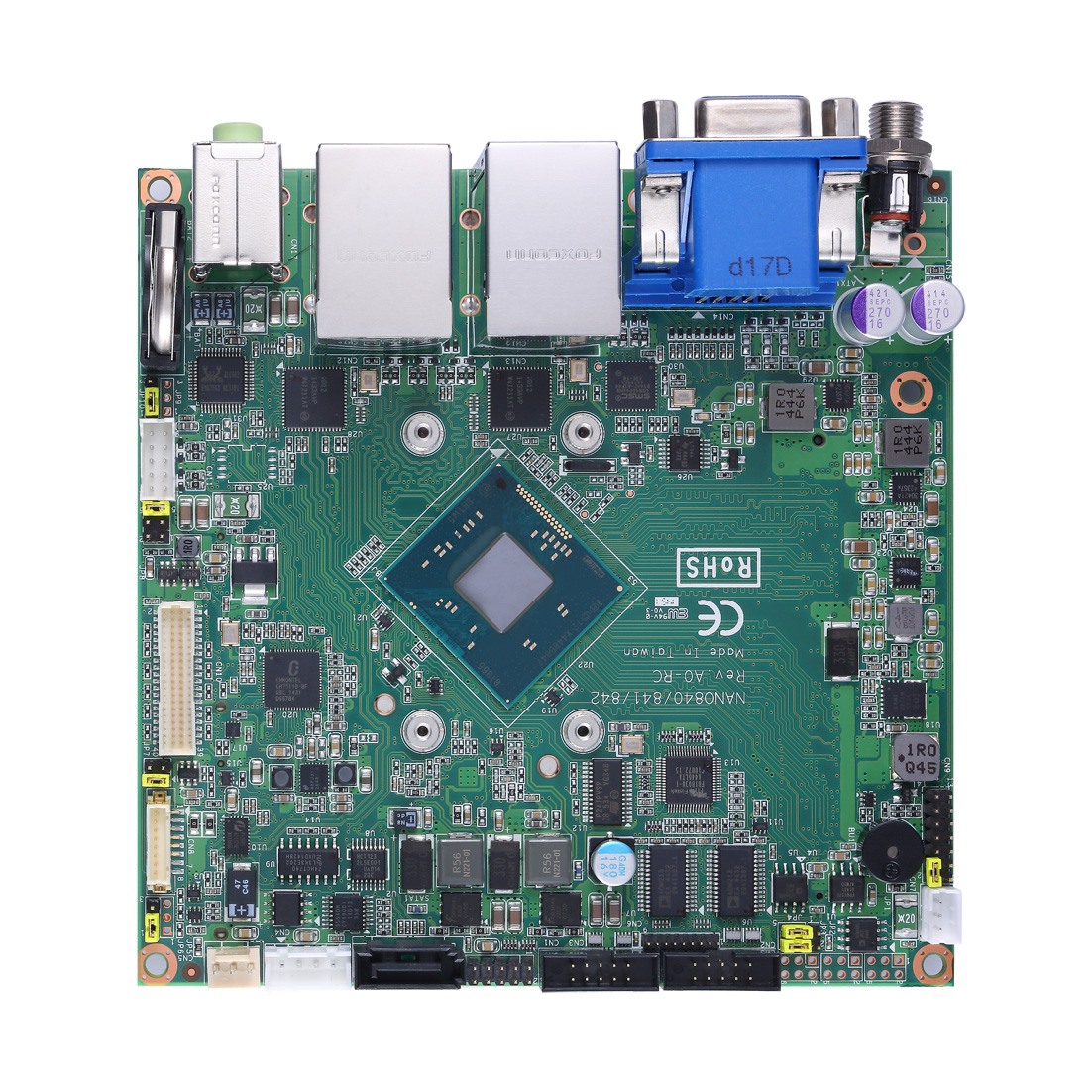

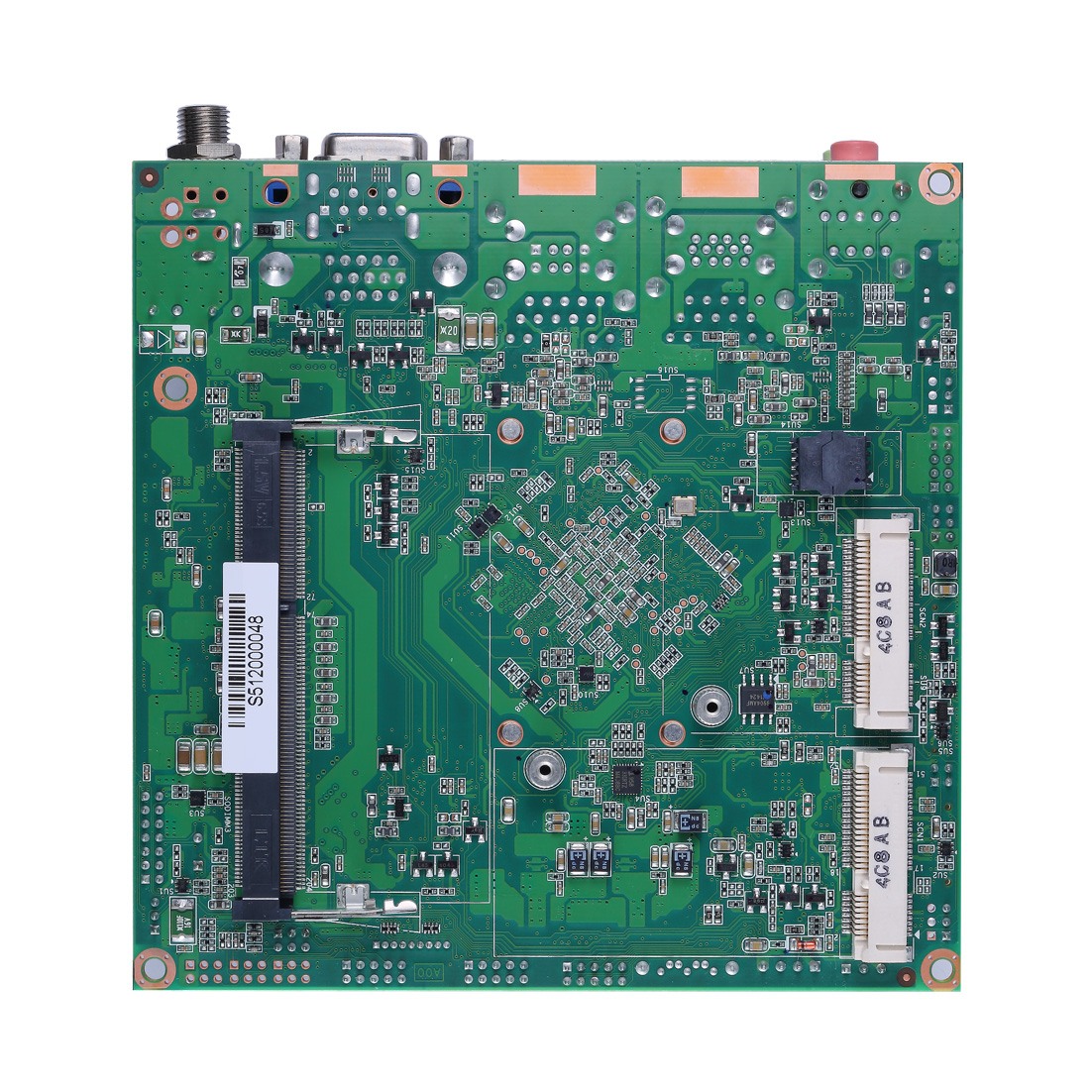

The NANO842 Nano-ITX motherboard is designed to support the Intel® Celeron® processors quad-core J1900 and dual-core N2807 (code name: Bay Trail). A DDR3L SO-DIMM socket located on the bottom of the board can support up to 8GB of DDR3L memory. It can handle operating temperatures from -20°C to 70°C, and runs on +12V DC input. This 120 x 120 mm industrial embedded board comes with multiple display outputs: HDMI, LVDS and VGA with visual experiences enhanced for dual-view supported. The Axiomtek NANO842 is an ideal solution aimed at embedded, industrial, and IoT applications.

Specifications

CPU
  • Intel® Celeron® Processor J1900 2.0 GHz & N2807 1.58 GHz onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 with +5V/+12V powered
  • 1 x RS-232
USB
  • 5 x USB 2.0
  • 1 x USB 3.0
Ethernet
  • 2 x 10/100/1000Mbps (Intel® i211AT)
Display
  • 1 x VGA
  • 1 x LVDS
  • 1 x HDMI
Digital I/O
  • 8-IN/OUT
Audio
  • MIC-in/Line-out
Storage
  • 1 x SATA-300
Expansion
  • 1 x Full-Size PCI Express Mini Card w/mSATA
  • 1 x Half-Size PCI Express Mini Card
Others
  • ST ST33TPM12LPC with TPM 1.2 compliant
Battery
  • Lithium 3V/220mAH
Power Input
  • DC power jackconnector
  • +12V DC-in
  • AT Auto Power On function supported
Power Requirements
  • Intel® Celeron® J1900 @ 2 GHz 8 GB DDR3L
    Max. RMS: +12V @0.9A
  • Intel® Celeron® N2807 @ 1.58 GHz 8 GB DDR3L
    Max. RMS: +12V @0.7A
Hardware Monitoring
  • Yes
Watchdog Timer
  • 255 levels, 1~255 sec.
Operating Temperature
  • -20°C ~ +70°C (-4°F ~ 158°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 120 x 120 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • NANO842VHGGA-J1900 (P/N-E38K842100)
    Nano-ITX SBC with Intel® Celeron® processor J1900 (2 GHz-2.4 GHz, 2 MB Cache, 10W), VGA/LVDS/HDMI, 2 GbE LANs, and audio
  • NANO842VHGGA-N2807 (P/N- E38K842101)
    Nano-ITX SBC with Intel® Celeron® processor N2807 (1.58 GHz-2.16 GHz, 1 MB Cache, 4.3W), VGA/LVDS/HDMI, 2 GbE LANs, and audio
