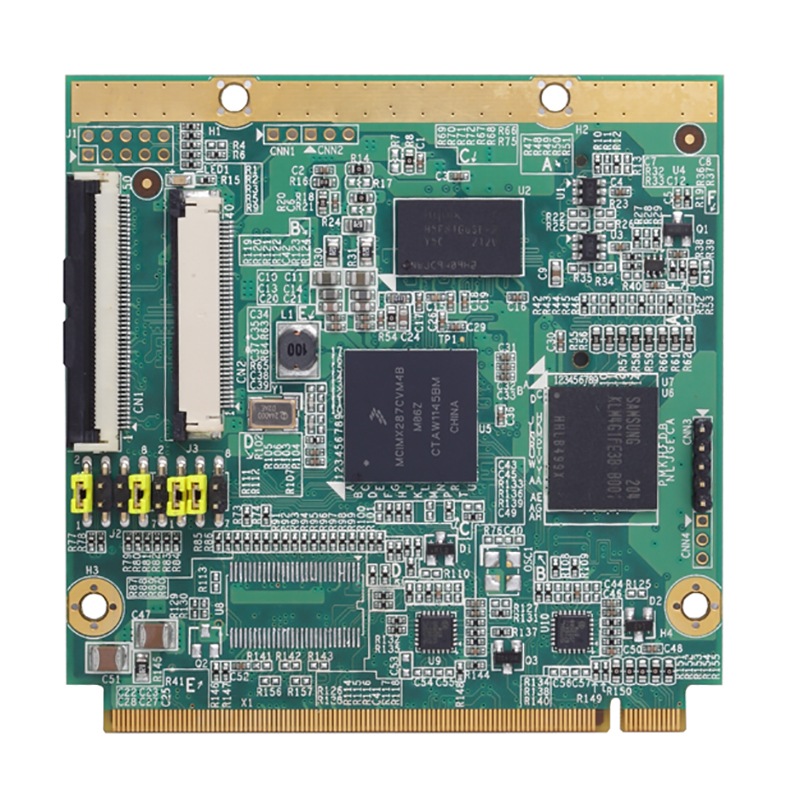

Q7M100



CPU	Freescale iMX-28 Series SoC with 287 ARM926EJ-S CPU running @ 454MHz
Chipset	SoC integrated
System Memory	Onboard DDR2-667, up to 128MB
BIOS	N/A
COM	4 x COM with TX/RX/RTS/CTS (1 with 3.3V TTL level) 1 x Console port
USB	1 x OTG client 1 x host
Ethernet	2 x 10/100 Mbps
Display	LCD supported, up to 24-bit TTL RGB modes and 24-bit system mode
Audio	Mic-in/Line-out
GPIO	8 interfaces, up to 400 kbps
I2C	2 x I2C
CAN	2 x CANBus 2.0B
SPI	1 channel for 2 chip select
Storage	1 x eMMC flash 4 GB 1 x SDHC interface
Expansion	N/A
Others	N/A
Battery	Battery on the Baseboard is required
Power Requirement	+5V ± 5% @ 800mA
Watchdog Timer	N/A
Hardware Monitoring	N/A
Operating Temperature	-40ºC ~ 85ºC (-40ºF ~ 185ºF)
Relative Humidity	10% ~ 95%, non-condensing
Dimensions	70 x 70 mm
Board Thickness	1.2 mm
Certifications	CE
