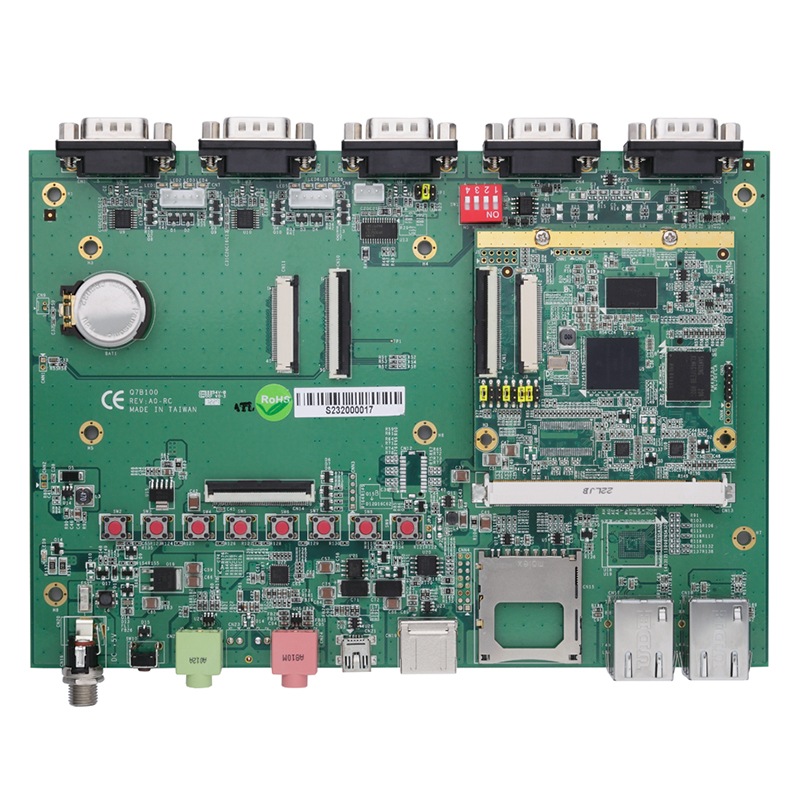

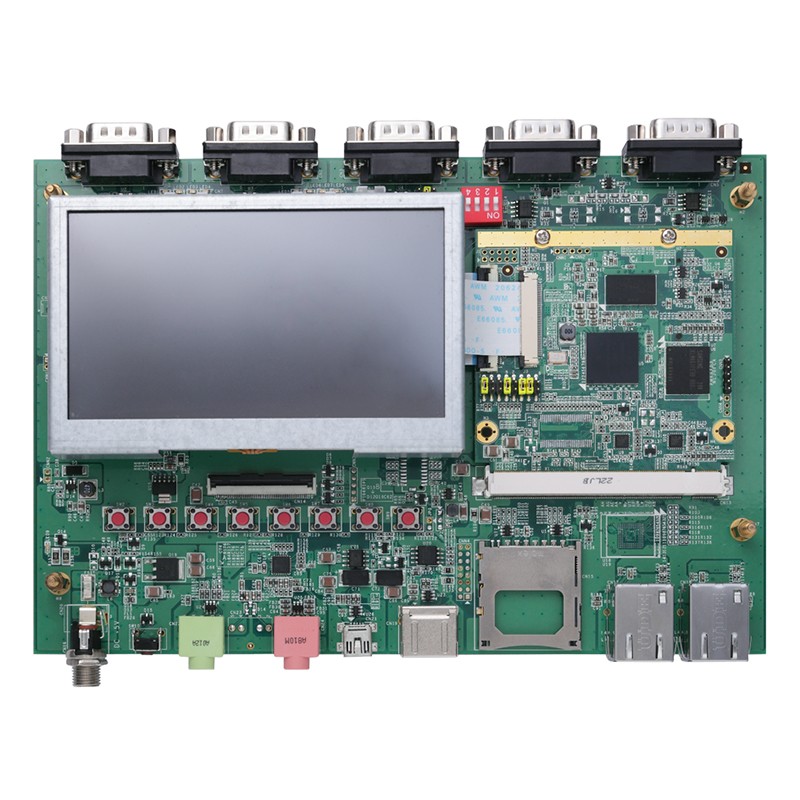

Q7M100-100-EVK



CPU	Freescale iMX-287 ARM926EJ-S CPU 454 MHz (On Q7M100 SoM)
Chipset	SoC integrated
System Memory	Onboard DDR2-667, up to 128MB (on Q7M100 SoM)
BIOS	On the module
COM	4 x COM with TX/RX/RTS/CTS (one with 3.3V TTL level) 1 x Console Port
USB	1 x USB 2.0 1 x OTG client
Ethernet	2 x 10/100 Mbps
Display	1 x 24-bit TTL LCD
Audio	MIC-in/Headphone
GPIO	N/A
I2C	2 x I2C
CAN	2 x CANBus 2.0
SPI	N/A
Storage	1 x SD/MMC socket 1 x SATA connector
Expansion	N/A
Others	8 button-detect circuit keypad 4-wire touch screen controller
Battery	Battery on the Baseboard is required
Power Requirement	+5V ± 5%, 5A
Watchdog Timer	N/A
Hardware Monitoring	N/A
Operating Temperature	N/A
Relative Humidity	10% ~ 95%, non-condensing
Dimensions	200 x 140 mm
Board Thickness	1.6 mm
Certifications	CE
