ITC211

Status : Available

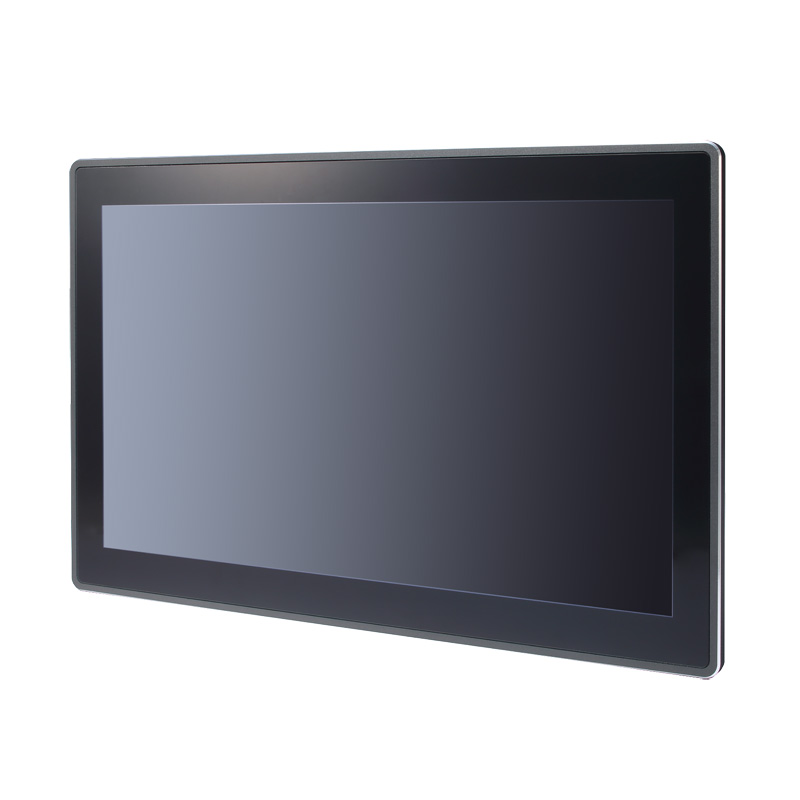

21.5" Full HD TFT LCD Slim Bezel Modular Panel PC with Intel® Smart Display Module (SDM) CPU Card

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ITC211
ITC211
ITC211
ITC211
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 21.5" Full HD TFT LCD
  • 16:9 aspect ratio; 250 nits brightness
  • Diamond-cut slim bezel under 41.5 mm thickness
  • Projected capacity touch supported (10-point touch)
  • Swappable Intel® SDM CPU card
  • Modular design for various applications
  • Supports an add-on RFID reader, barcode scanner, LED
  • lightbar, keypad, and camera modules (optional)
  • Supports a thermal printer (optional)
  • Supports countertop/floor stand, and wall mount (optional)
Intel® SDM Modular Design
The ITC211 is powered by Intel® Smart Display Module (SDM) with a swappable design, which ensures upgradable I/O connection to meet the different application requirements and user-friendly quick maintenance without any burden.
ITC211
ITC211
Rich Peripherals & Flexible Mounting
The ITC211 can be seamlessly integrated with the RFID reader, a barcode scanner, camera modules, and a thermal printer. It supports multiple types of mounting for various environments, for instance, a desktop stand for the counters, a floor stand at the ideal height for self-services, or a wall mount for constrained spaces.
Outstanding Display
The ITC211 has an FHD TFT LCD display with a 10-point PCAP (Projected Capacitive Touch) touchscreen. Additionally, it supports portrait and landscape modes to meet the demands of various applications.
Various Applications
These highly flexible features enable the ITC211 to be deployed in various fields, such as infotainment signage for hotels, a self-service kiosk in restaurants and endless aisles in stores, point-of-care terminals in hospitals, and even in light industrial environments.

Specifications

LCD Panel
  • 21.5" Full HD TFT LCD
  • 250 nits
  • 16:9 ratio
  • 1920 x 1080 pixels
SDM Module
  • Intel® SDM Small (SDM-S, 60 x 100 mm)
  • Intel® SDM Large (SDM-L, 175 x 100 mm)
CPU
  • SDM300S: Quad-core Intel® Pentium® N4200 1.1GHz processor or dual-core Intel® Celeron® N3350 1.1GHz processor
  • SDM500L: Intel® Celeron® 4305UE 2.0GHz processor or Intel® Core™ processor (optional)
Chipset
  • SoC integrated
System Memory
  • SDM300S: Onboard LPDDR4 2400 MHz 4GB (8GB optional)
  • SDM500L: 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB

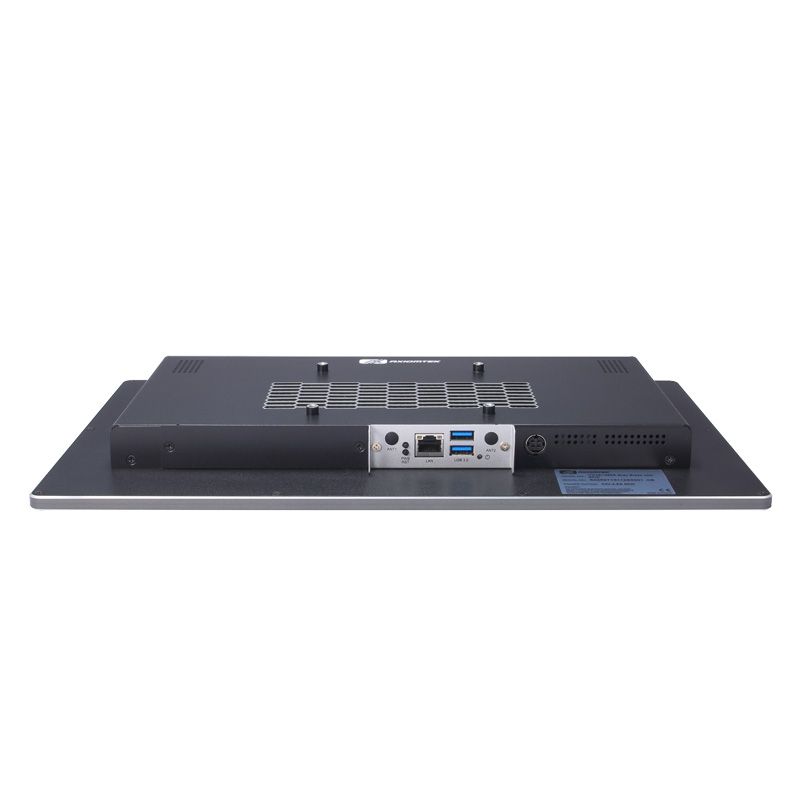

SDM-S I/O
  • 1 x GbE LAN
  • 2 x USB 3.0 Type A
  • 2 x SMA antenna reserved hole
SDM-L I/O
  • 1 x Power button with LED
  • 1 x GbE LAN
  • 4 x USB 3.0 Type A
  • 1 x Audio output
  • 1 x Microphone input
  • 2 x SMA antenna reserved hole
I/O
  • N/A
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • TBD
Expansion
  • SDM300S: 1 x M.2 Key E 2230 slot (for Wi-Fi)
  • SDM500L: 1 x M.2 Key E 2230 slot (for Wi-Fi)
Storage
  • SDM300S: eMMC 64GB onboard
  • SDM500L: 1 x M.2 Key B 2242 slot
Others
  • 2 x S.P.L. 88dB, 1.5W, 4 ohm
Power Supply
  • 24V AC to DC power adapter
Power Consumption
  • Average 60W
Dimensions
  • 526.1 x 46.3 x 317.6 mm (20.7" x 1.8" x 12.5")
Weight (net/gross)
  • 6.9 kg (15.2 lb)/10.2 kg (22.4 lb)
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Operating Humidity
  • 20% to 90%, non-condensing
Certications
  • CE, FCC Class A

Ordering Information

  • ITC211-SDM300S -N4200
    21.5 FHD PCAP touch slim bezel panel with SDM300S Intel® Pentium® N4200 processor, onboard DDR4 4G, eMMC 64GB, 1 LAN, 2 USB 3.0, and 2 speakers
  • ITC211-SDM510L-i5-12600HE
    21.5 FHD PCAP touch slim bezel panel with SDM510L Intel® Core™ i5 12600HE processor, 2 SO-DIMM, 1 M.2 SSD slot, 2.5G LAN, 3 USB 3.2 Gen2, 1 USB2.0, and 2 speakers
  • RFID module
  • Barcode scanner module
  • Camera module
  • Thermal printer with counter-top stand or floor stand
  • SSD
    M.2 2242-M (SDM510L)
  • DDR4 SO-DIMM
    4GB to 32GB (SDM510L)
  • 822T1500050E
    Mounting kit
  • 8812T1500A0E
    Wi-Fi kit
  • 59903000000E
    AC power cord EU, L=1830 mm
  • 599000001100
    AC power cord US, L=1830 mm
  • 59909010000E
    AC power cord China, L=1830 mm
  • 59906000010E
    AC power cord Japan, L=1830 mm
  • 59905000000E
    AC power cord Australia, L=1830 mm
  • 59918000000E
    AC power cord Brazil, L=1830 mm
